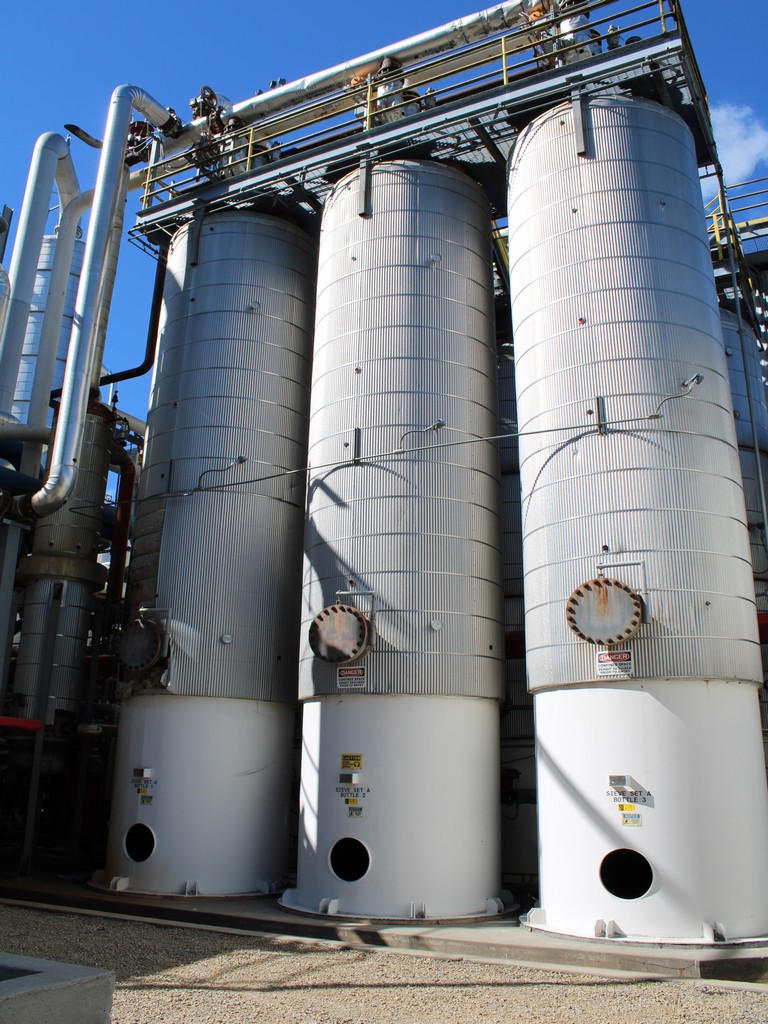

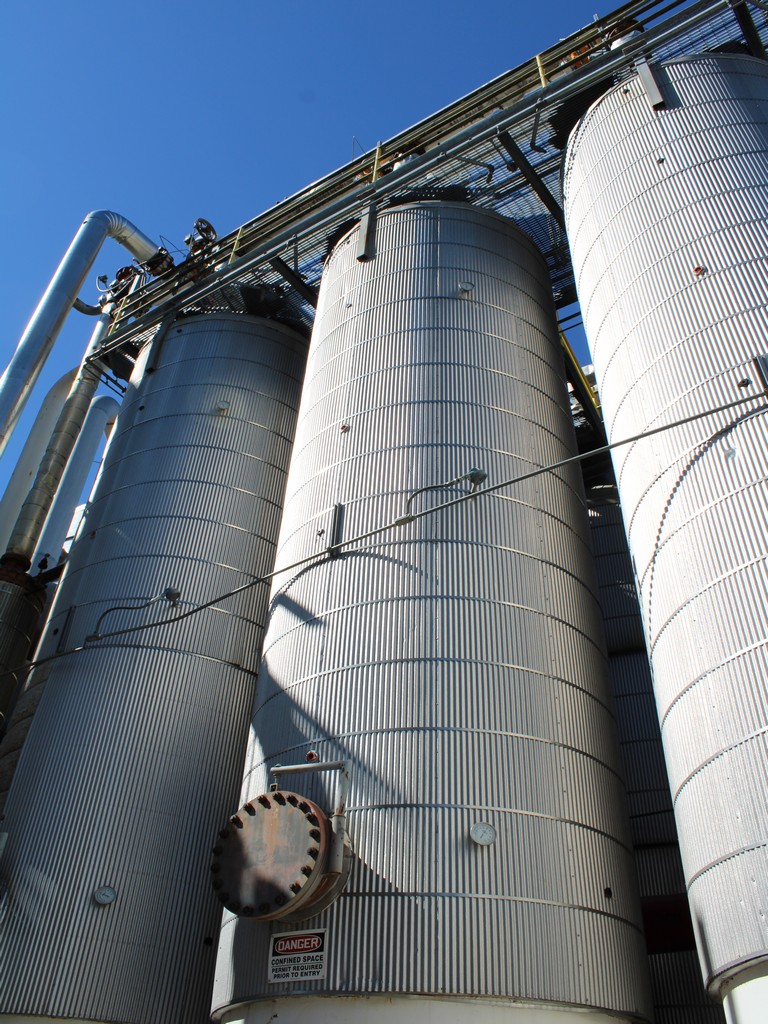

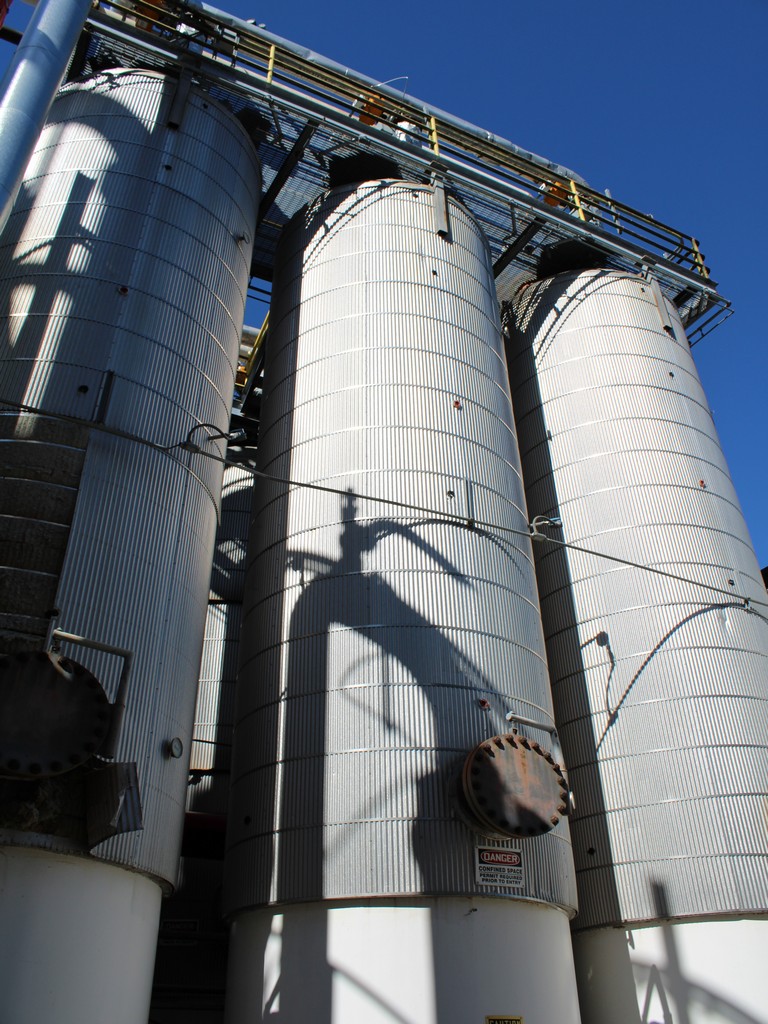

DISTILLATION AND EVAPORATION MOLECULAR SIEVE TANK

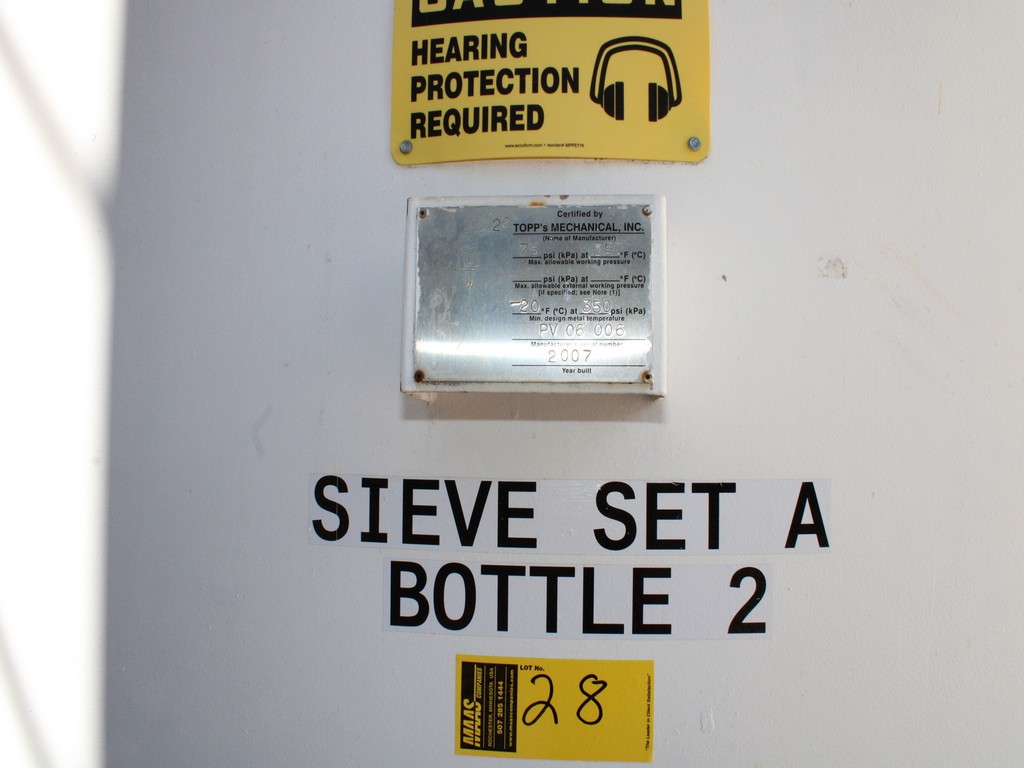

Lot Number: 28

Manufacturer: TOPP'S MECHANICAL

Name: DISTILLATION AND EVAPORATION MOLECULAR SIEVE TANK

Model:

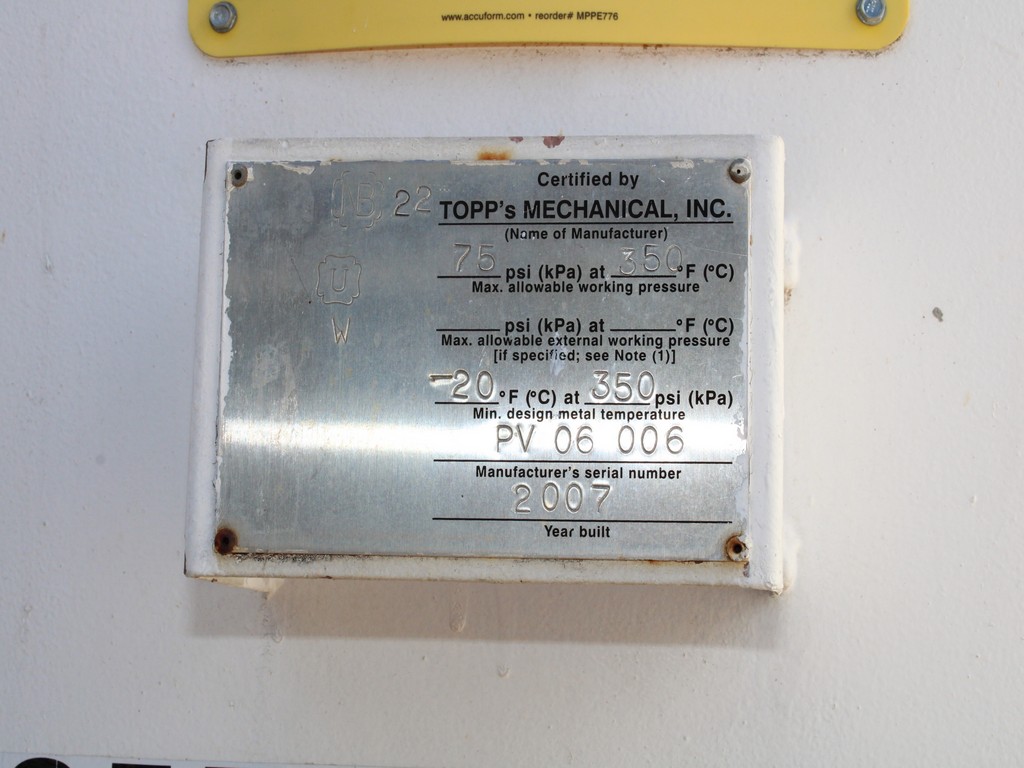

Serial: PV06-006


Description:

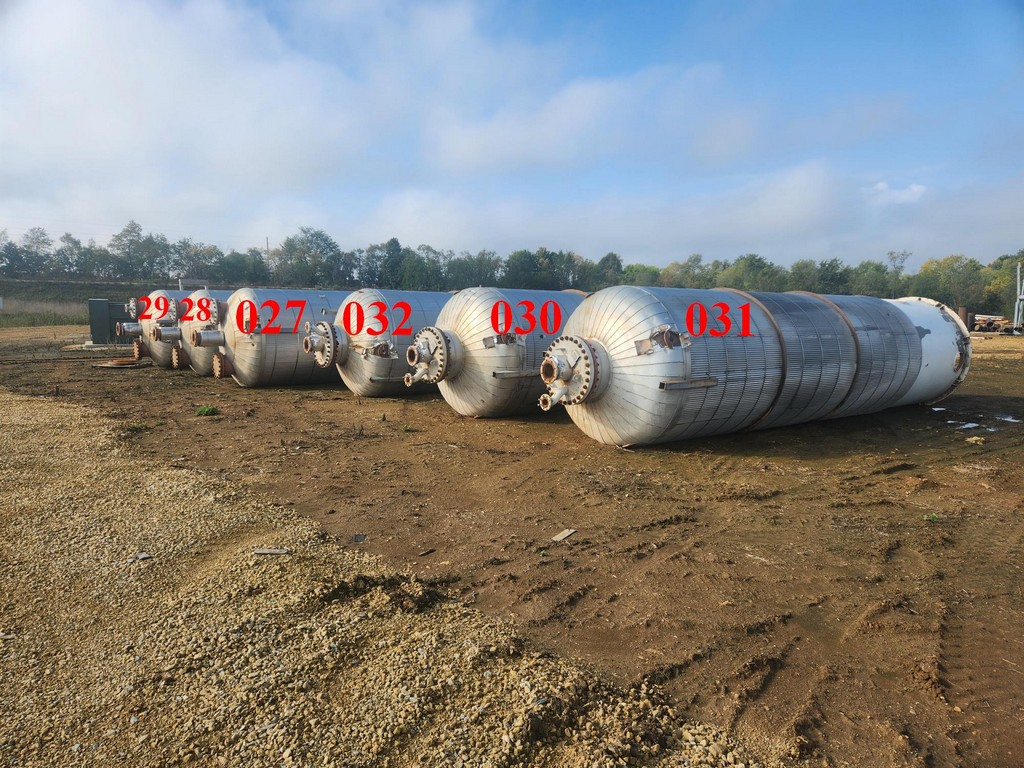

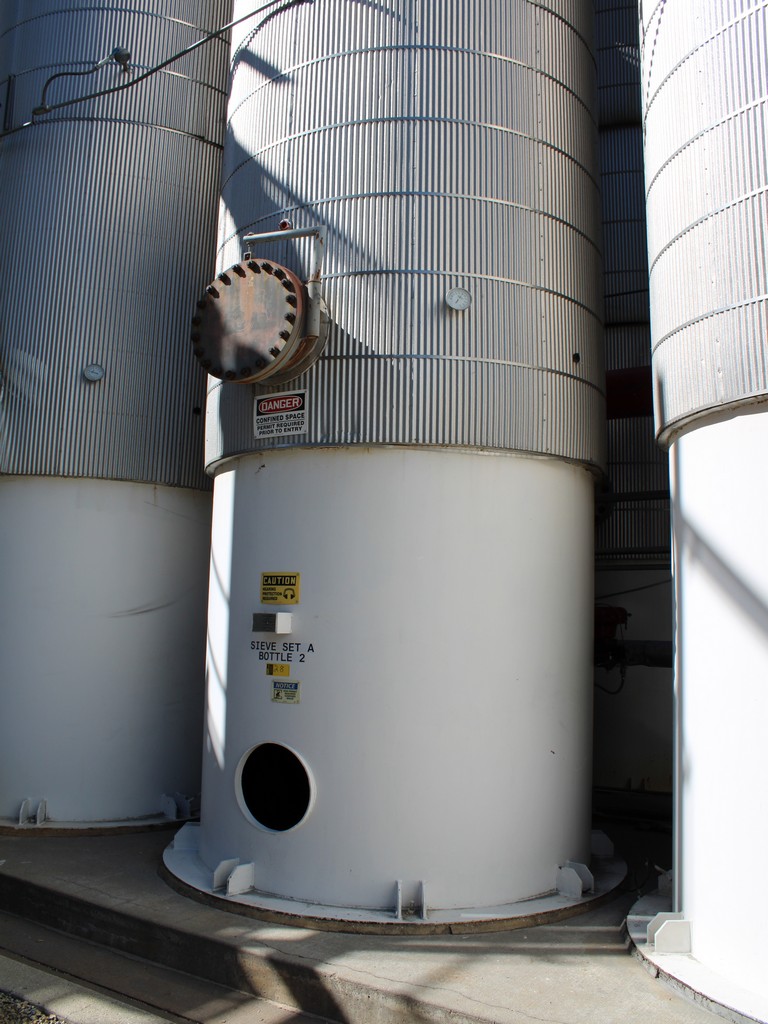

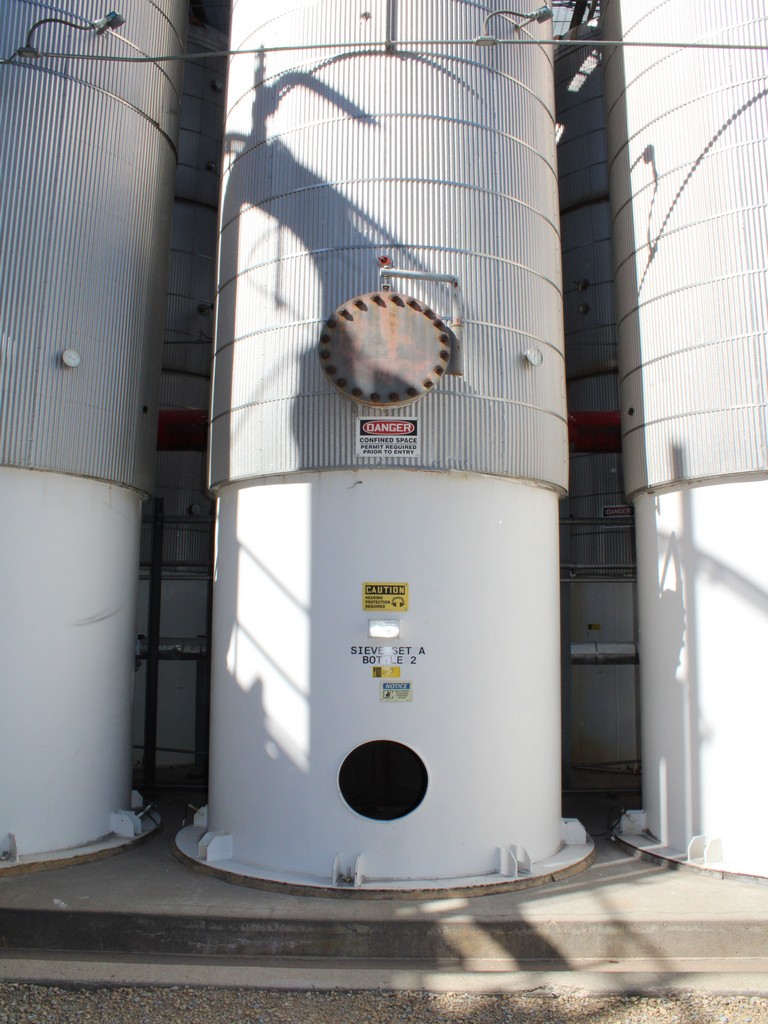

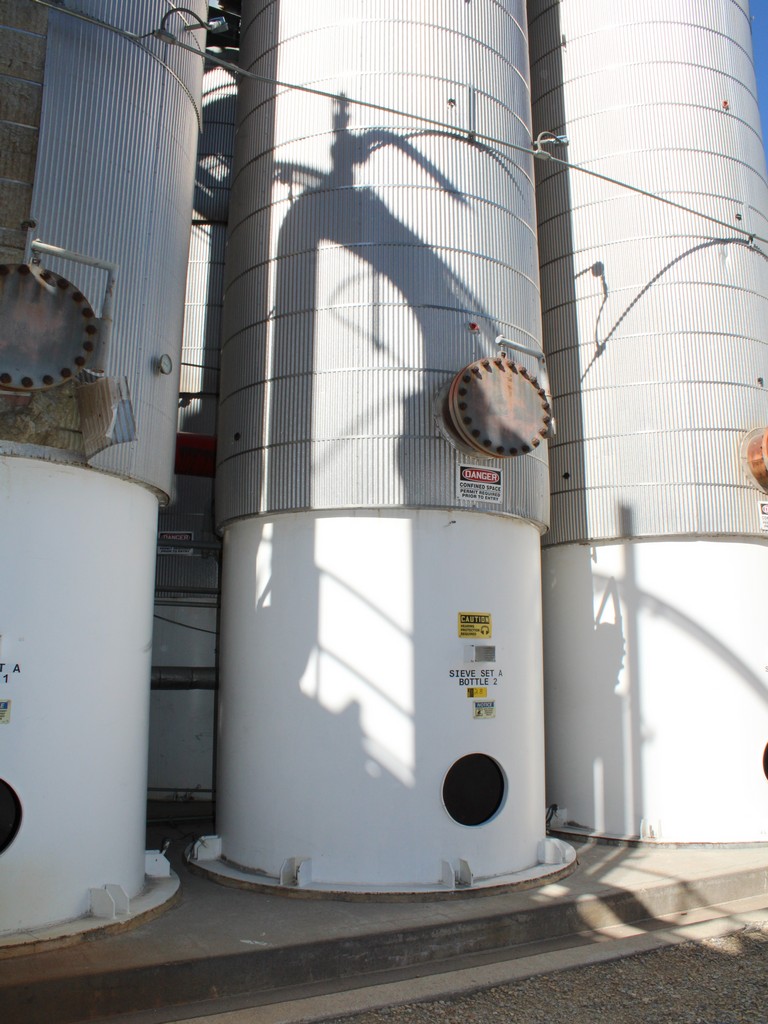

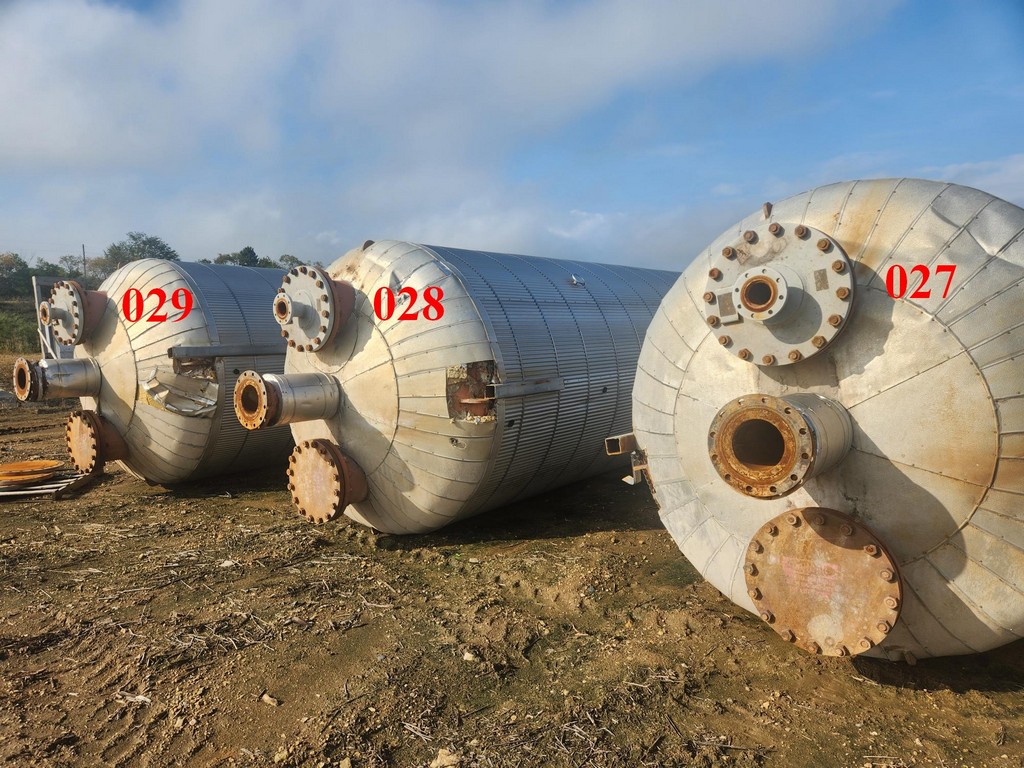

Sieve Set A Bottle 2, 2007, Carbon Steel, 90" Diameter Tank, 288" Long Tank Body, 7,930 Gallons, Dome Top and Bottom, Manway and Base Ring, (2) 90" Diameter 0.028" Size 304 SS Wire Mesh, 6" and 4" Bottom Outlets, (2) 10" and (1) 18" Top Outlets, Design: 75-PSI Full Vacuum, 350deg. F Temperature, Operation: 50-PSI Full Vacuum, 300deg. F Temperature, Empty Weight 19,200 lbs. NOTE: Unit has been removed from service since photos were taken and is now located in the West storage yard.
