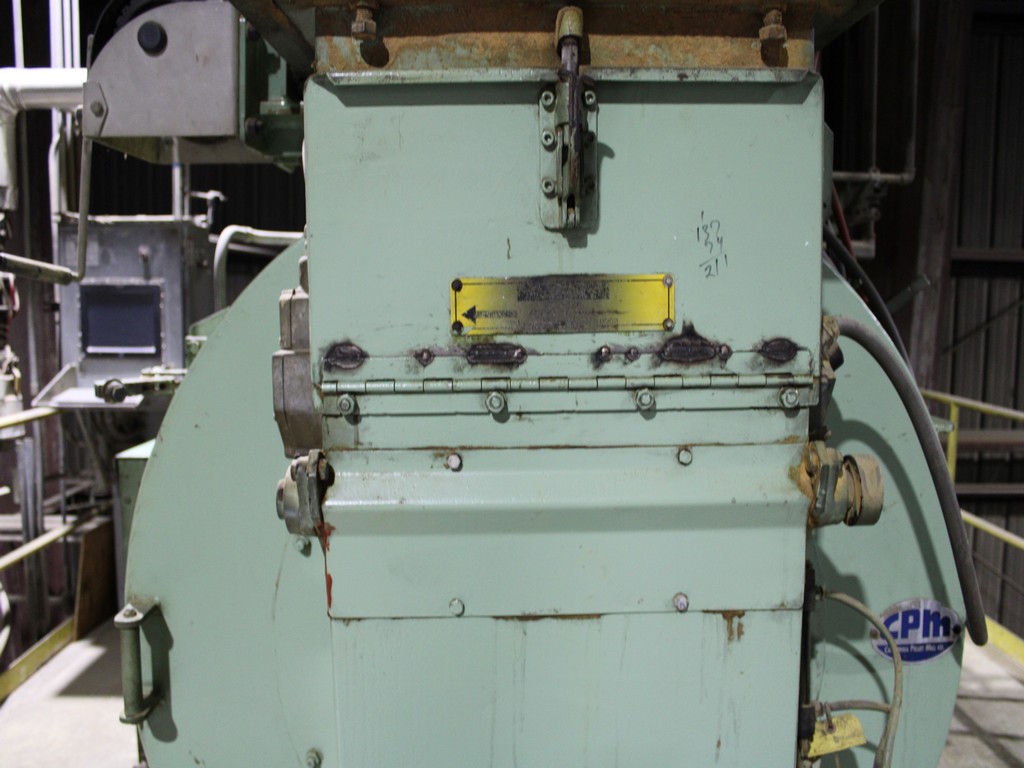

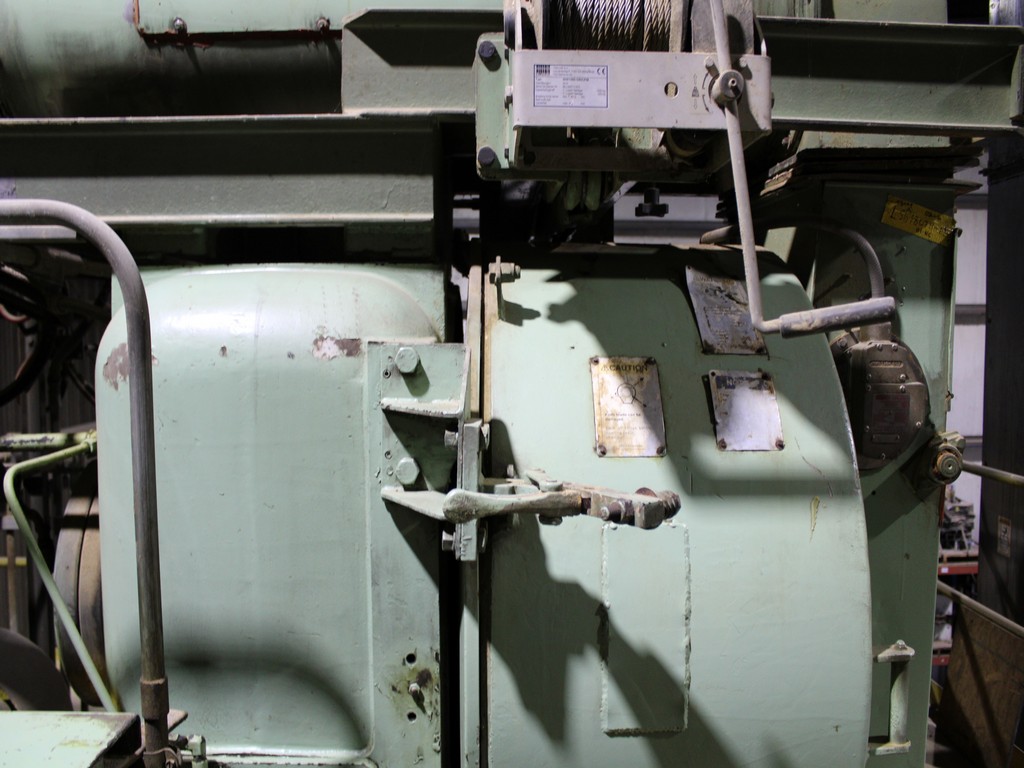

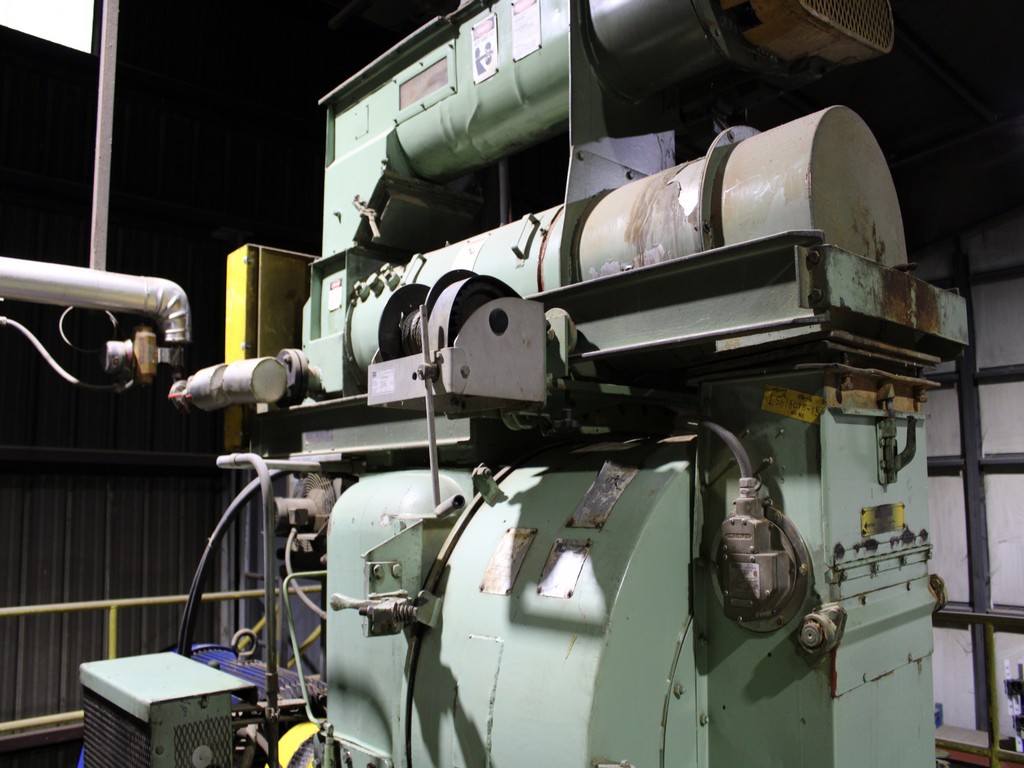

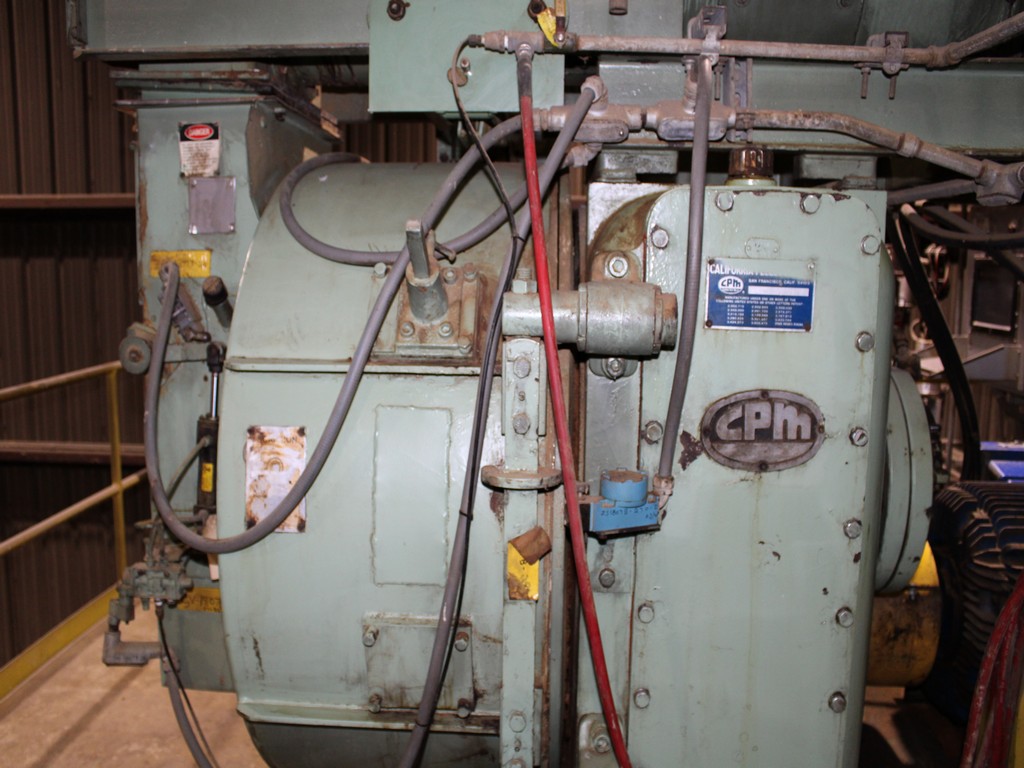

PELLET MILL SYSTEM
Lot Number: 1

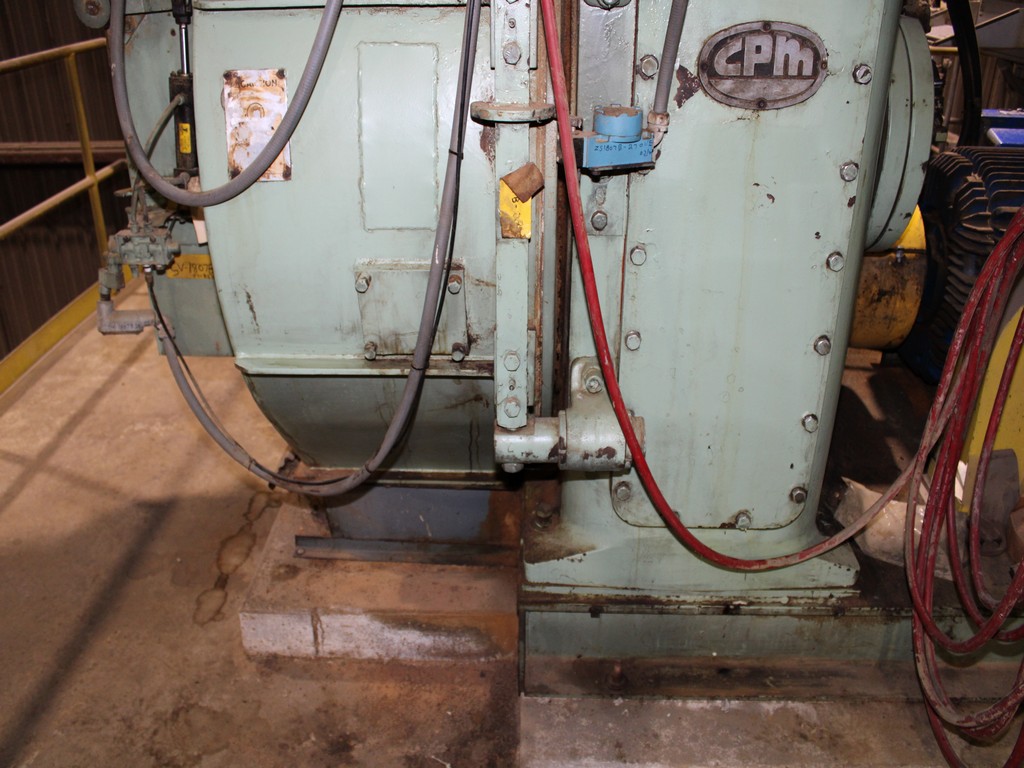

Manufacturer: CALIFORNIA PELLET MILL
Name: PELLET MILL SYSTEM
Model: 7930-8
Serial: PM 7922 394471
Description:

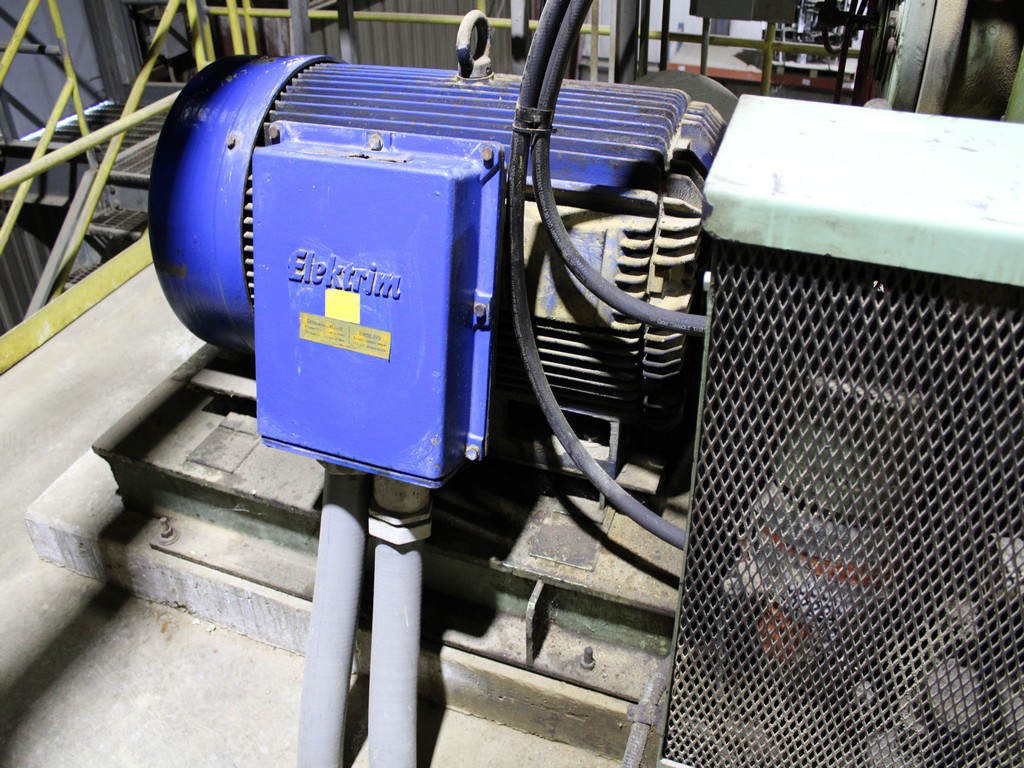

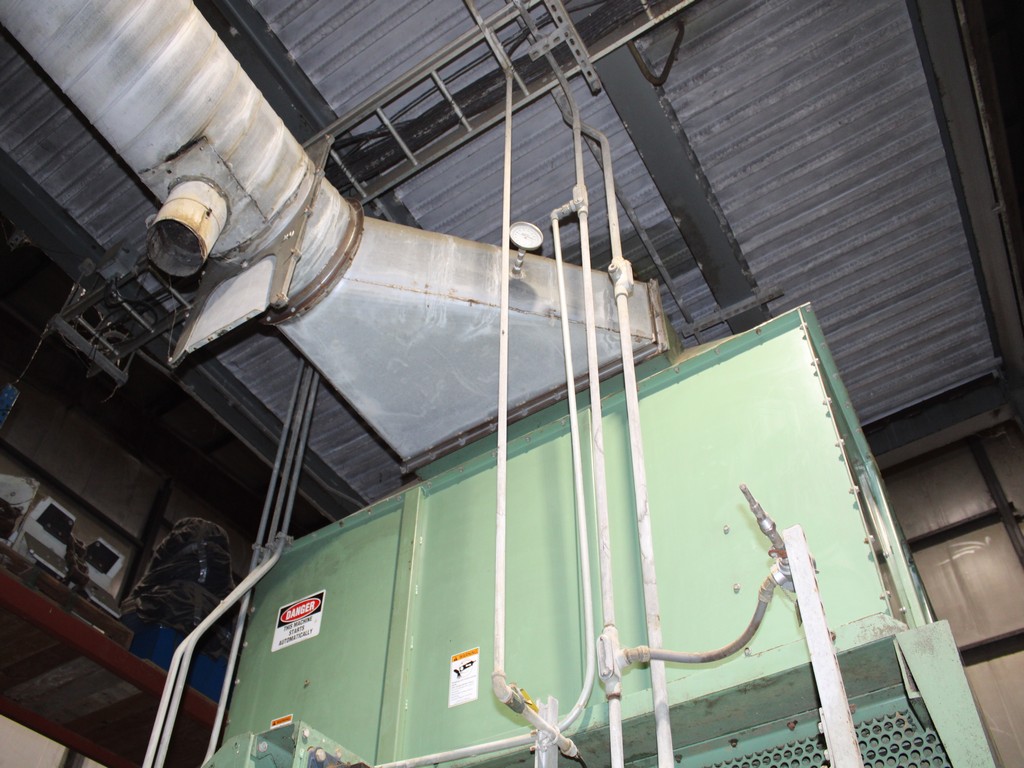

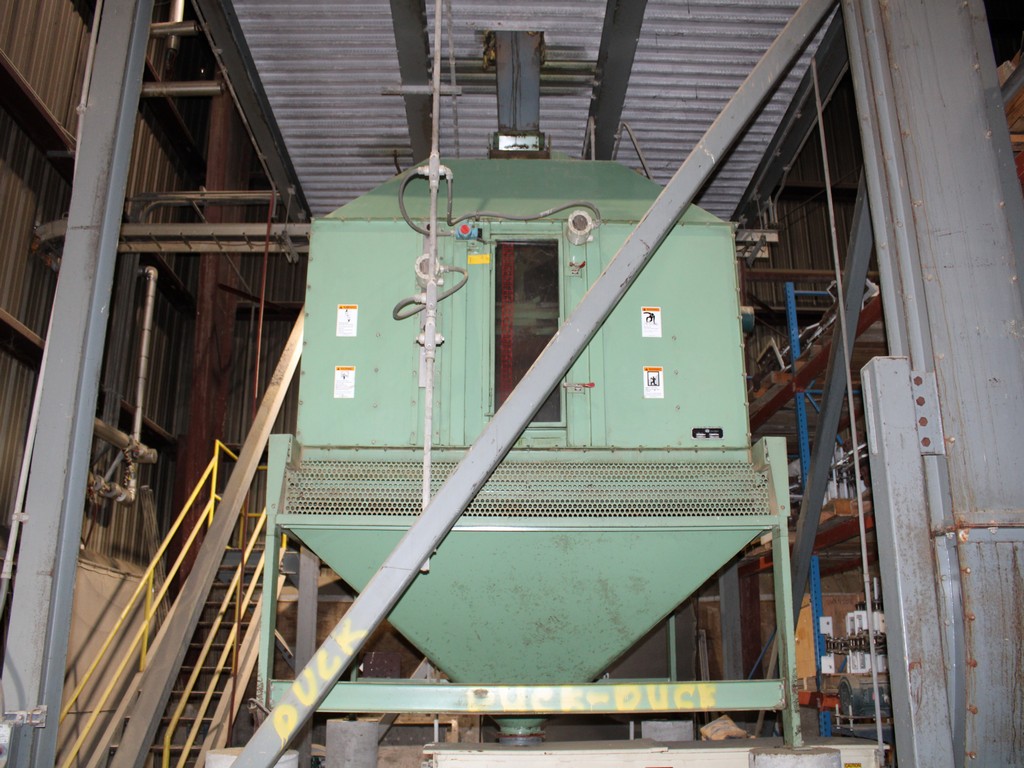

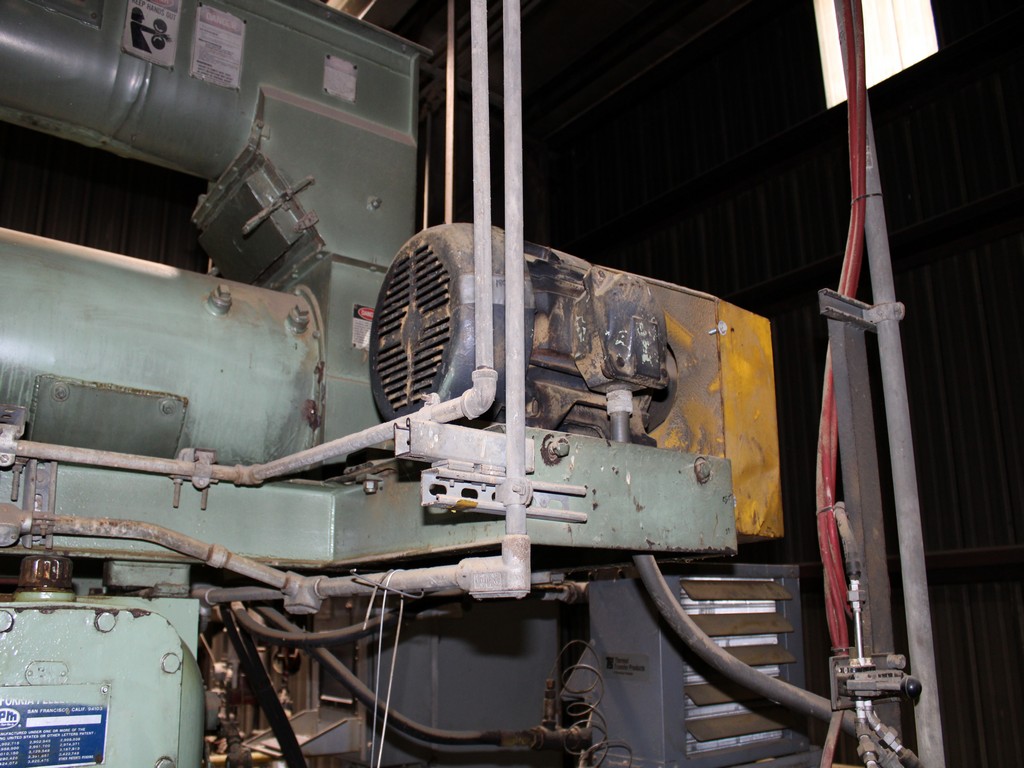

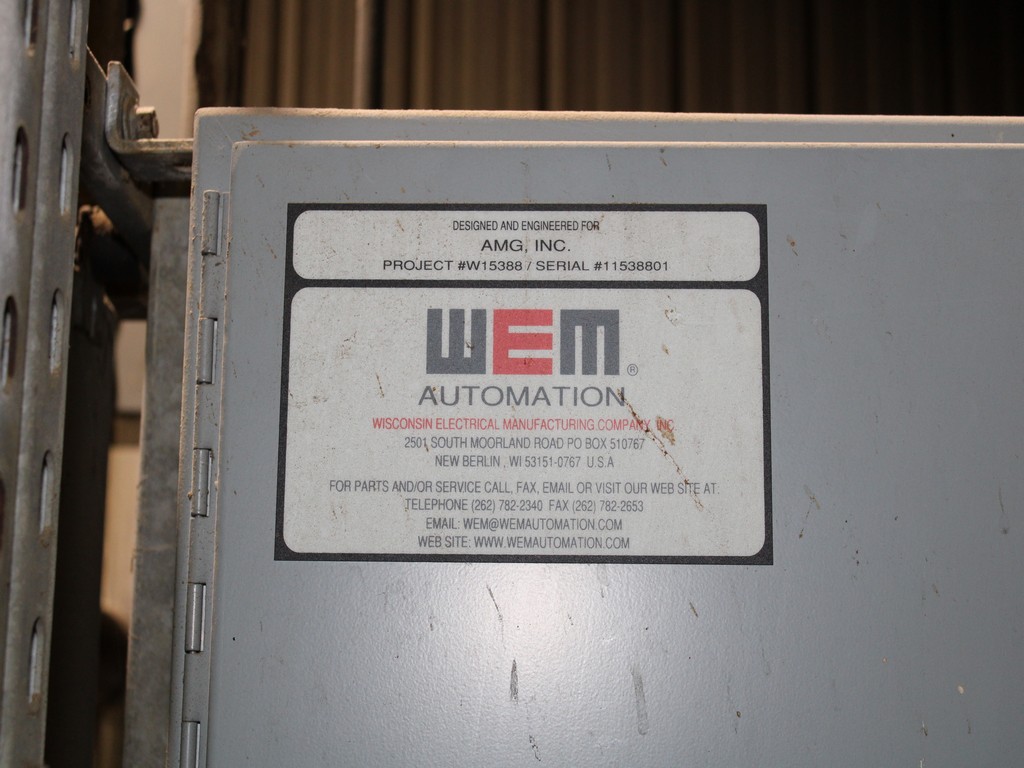

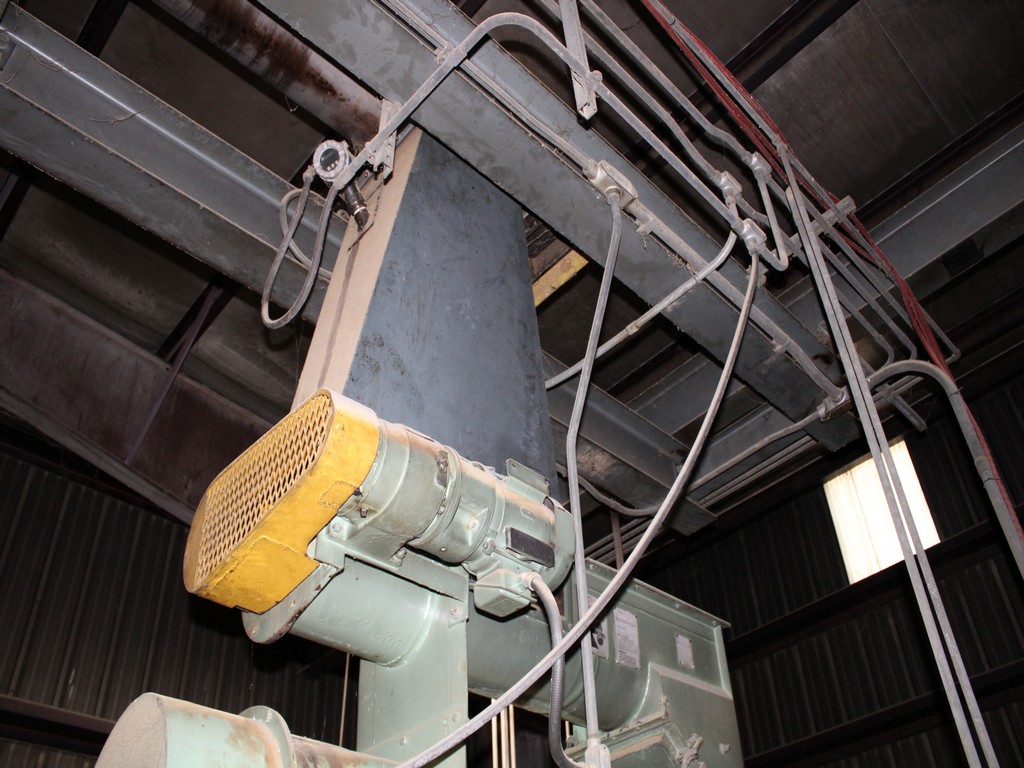

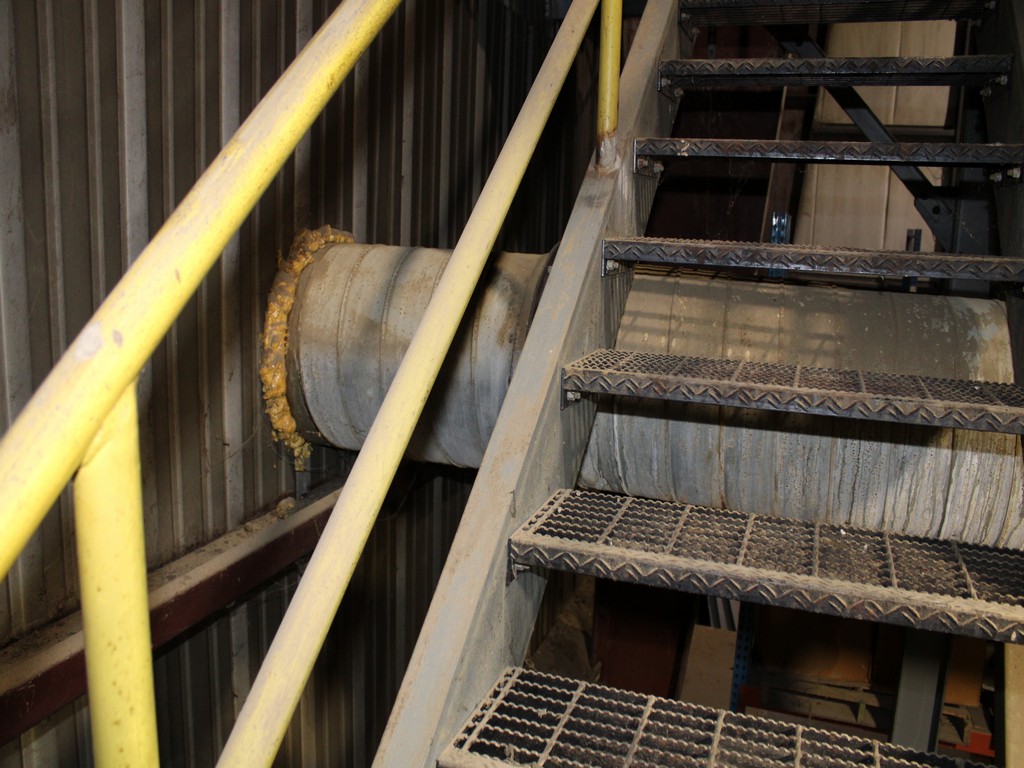

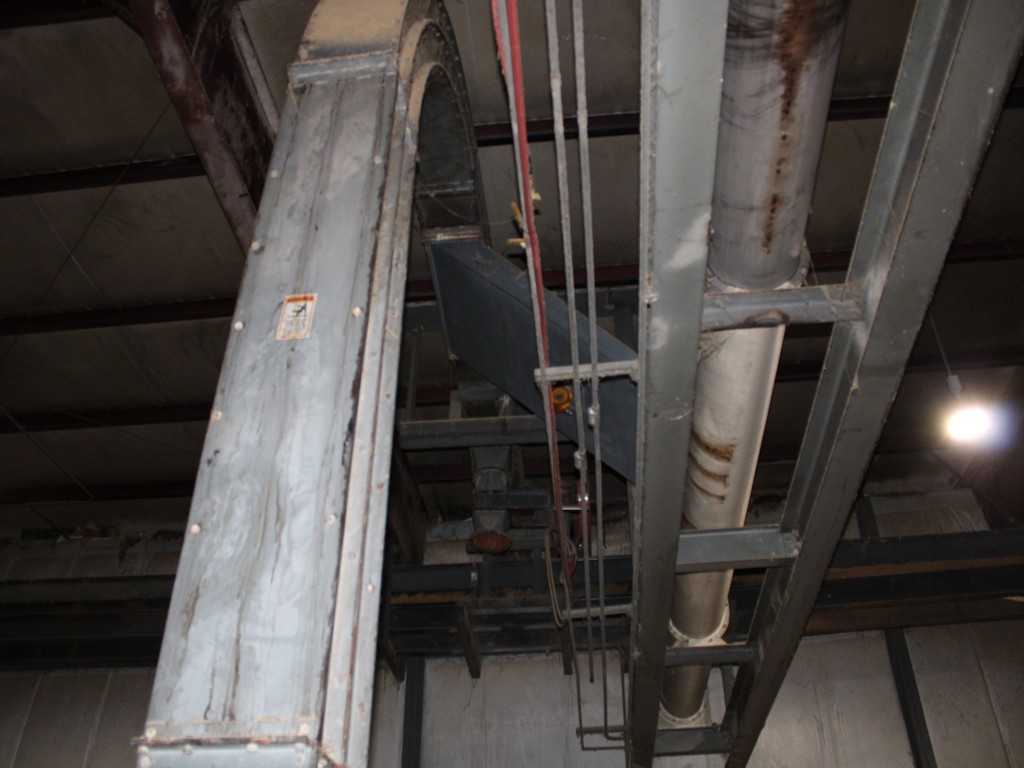

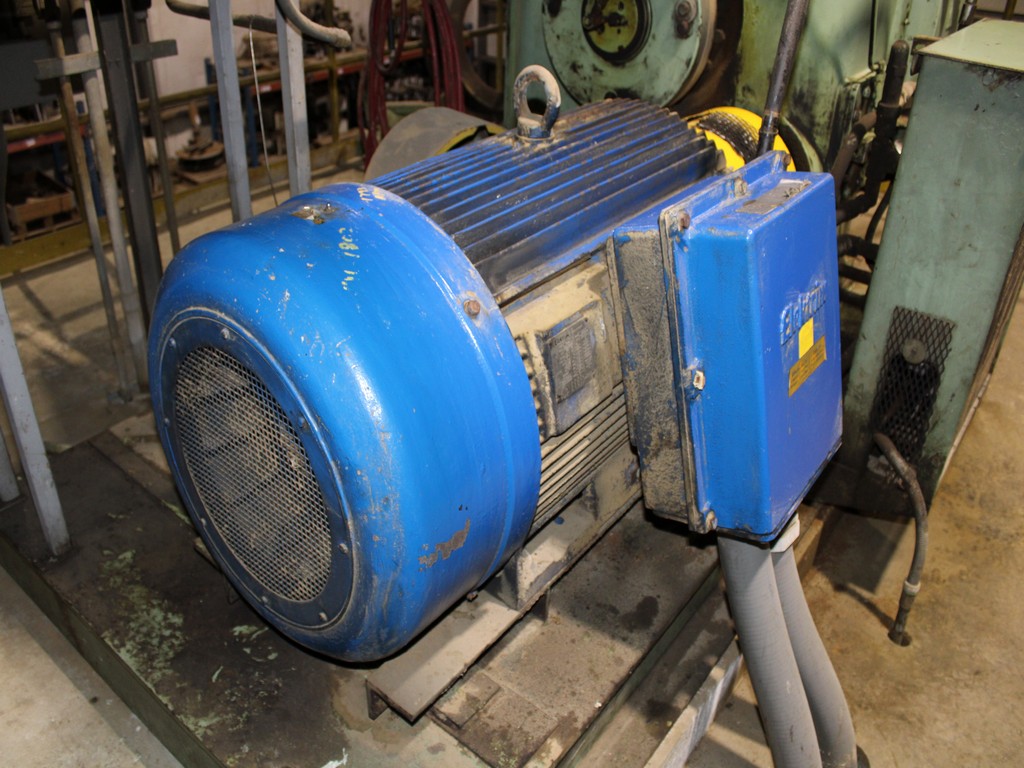

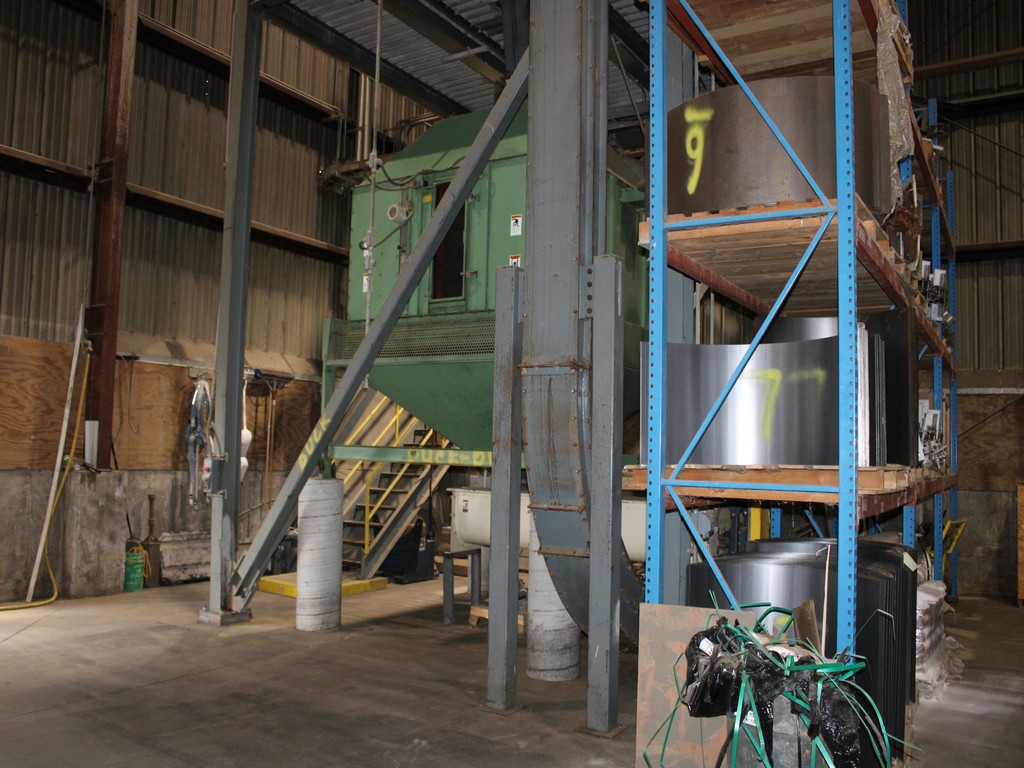

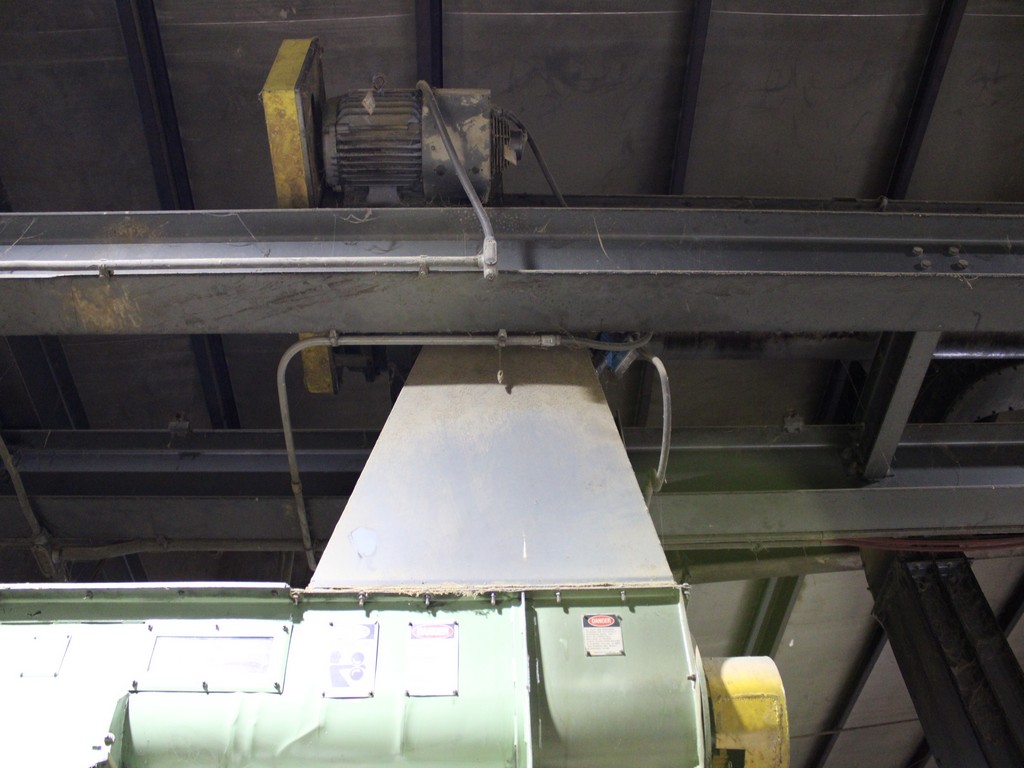

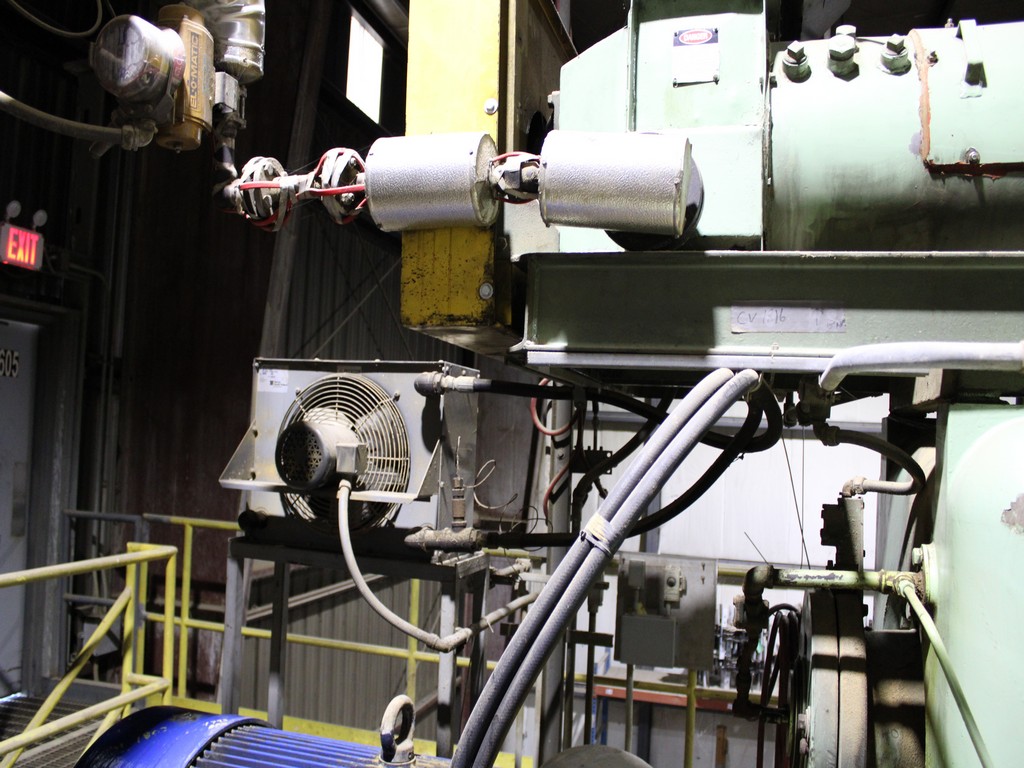

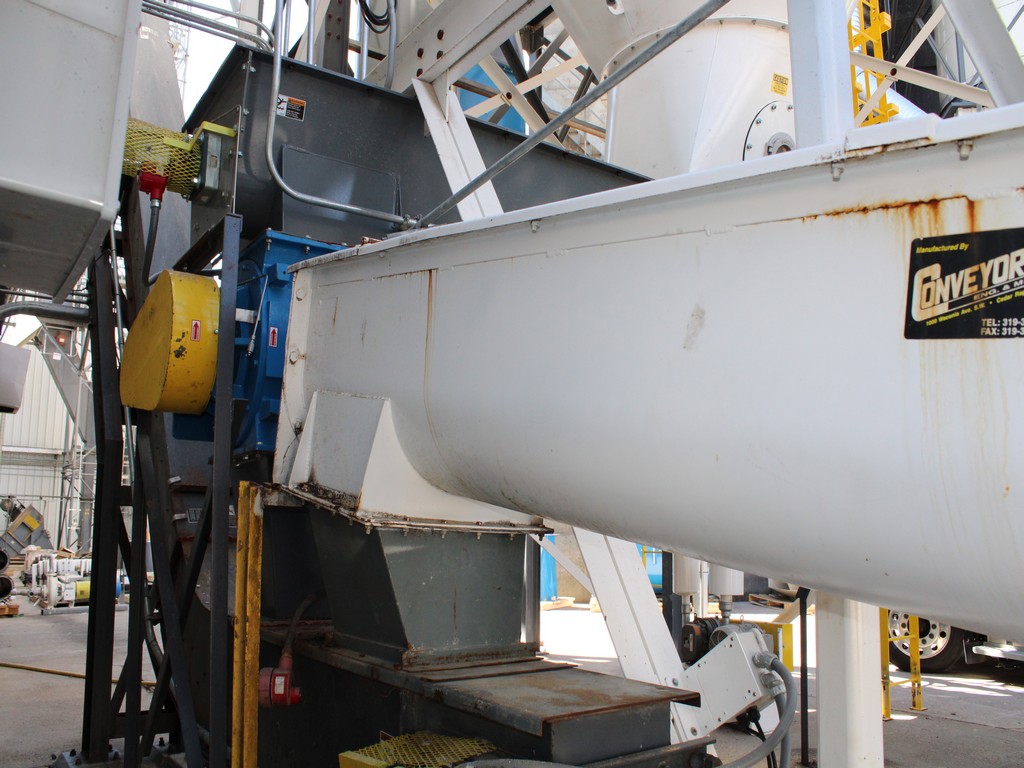

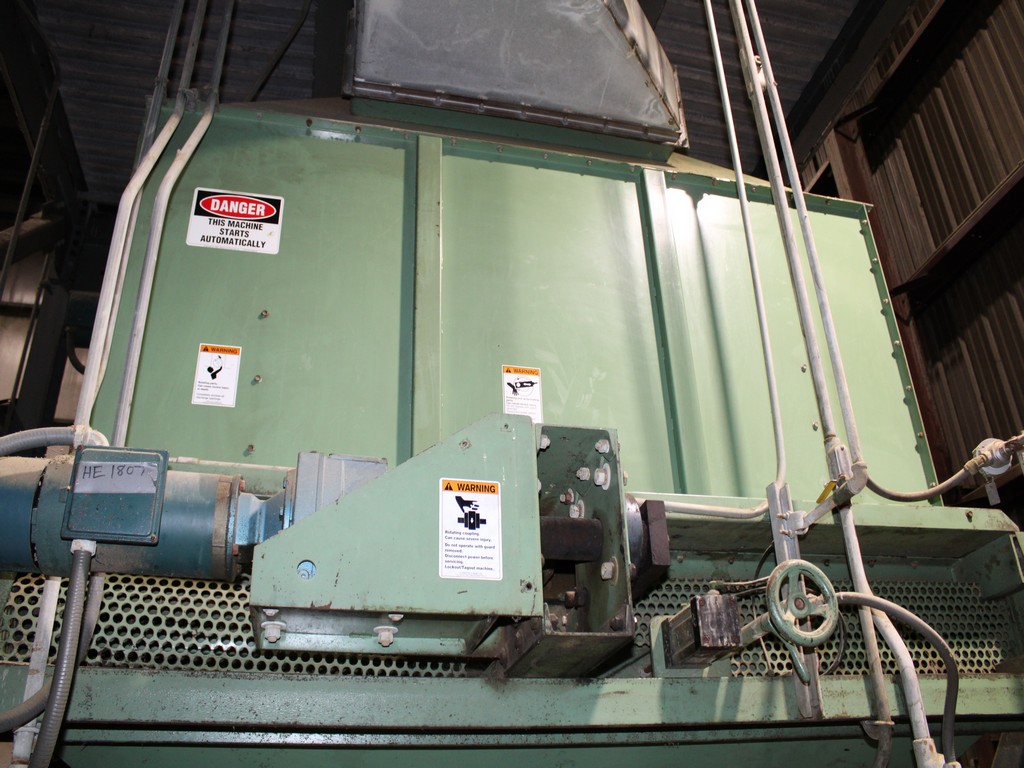

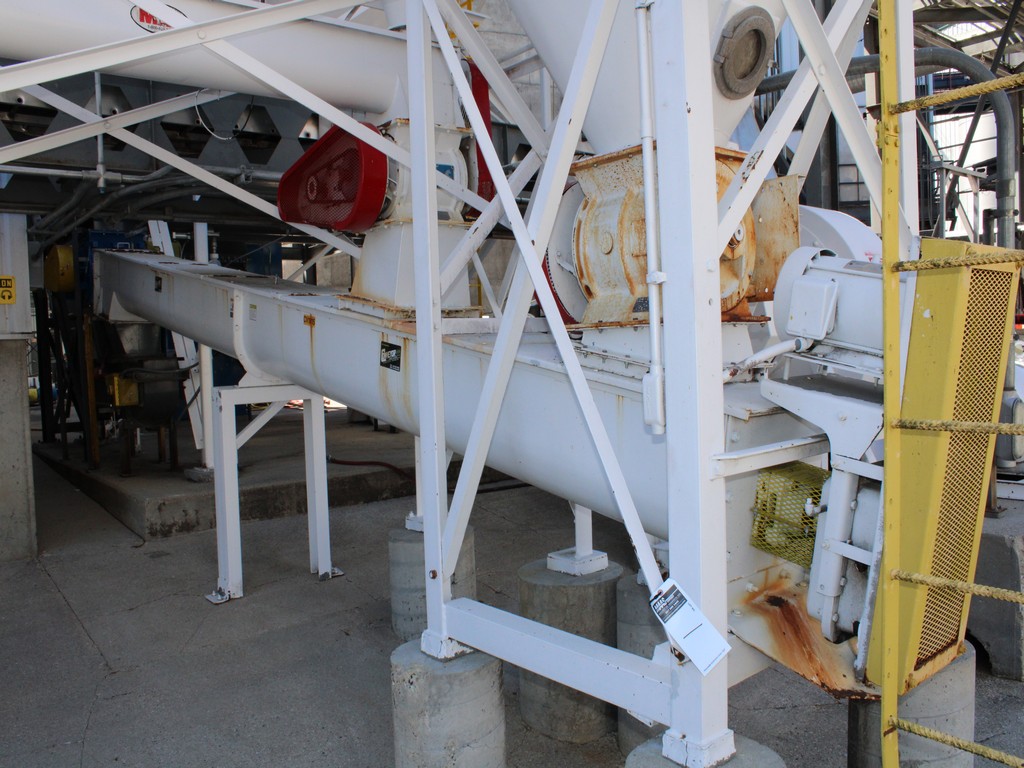

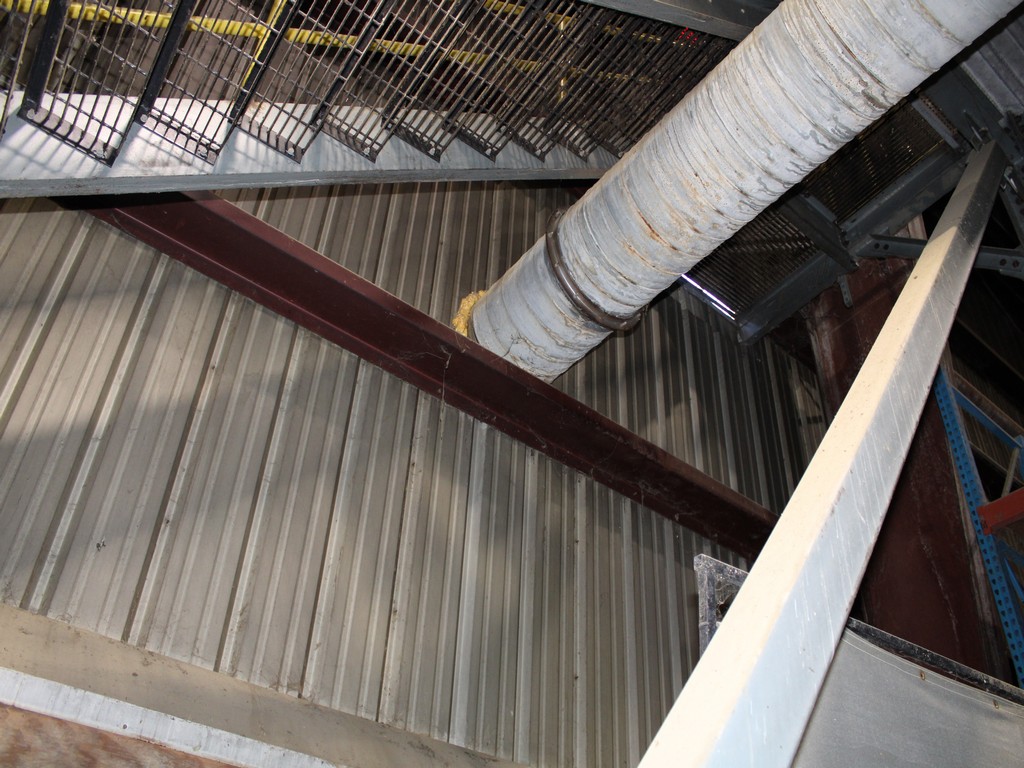

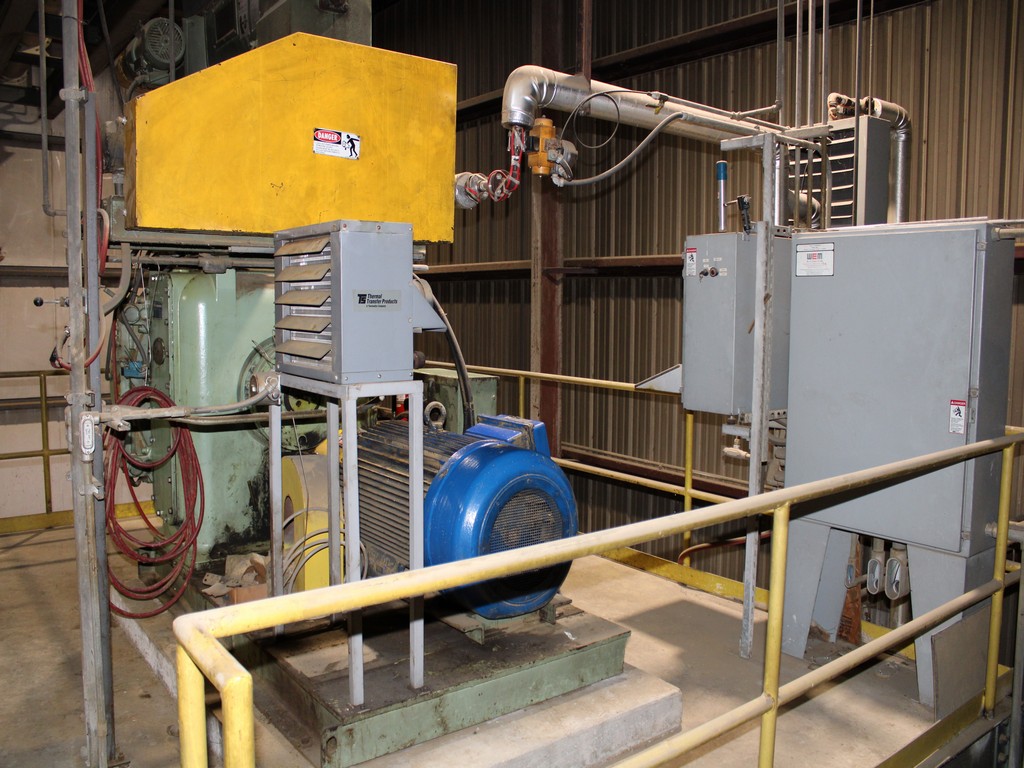

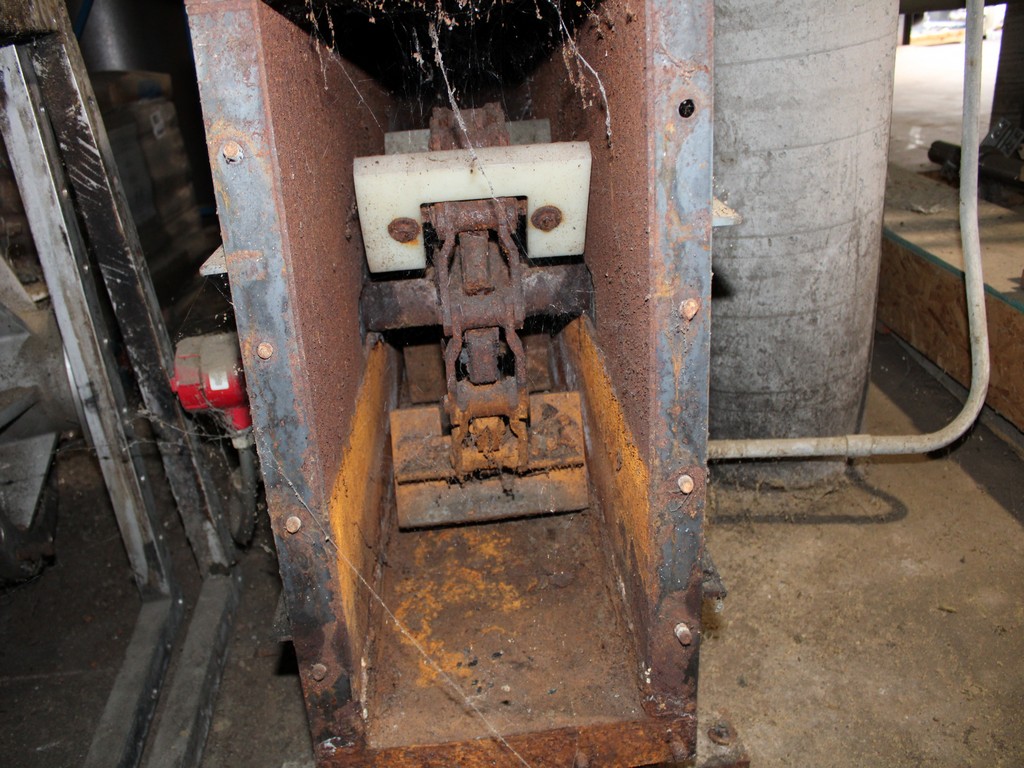

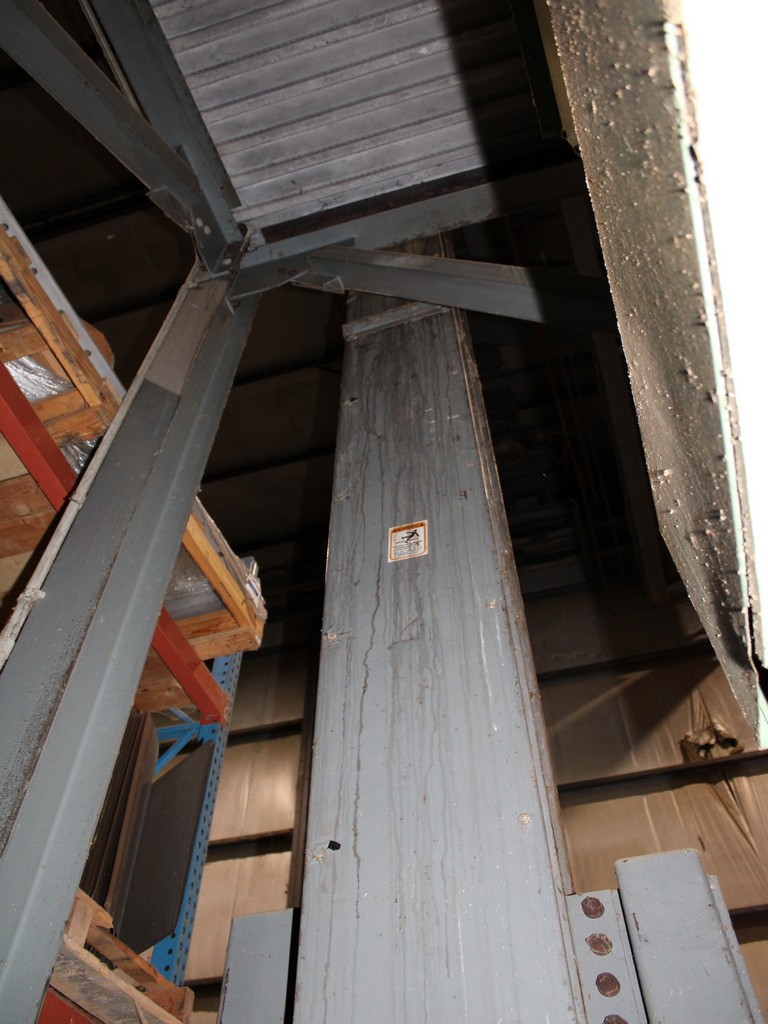

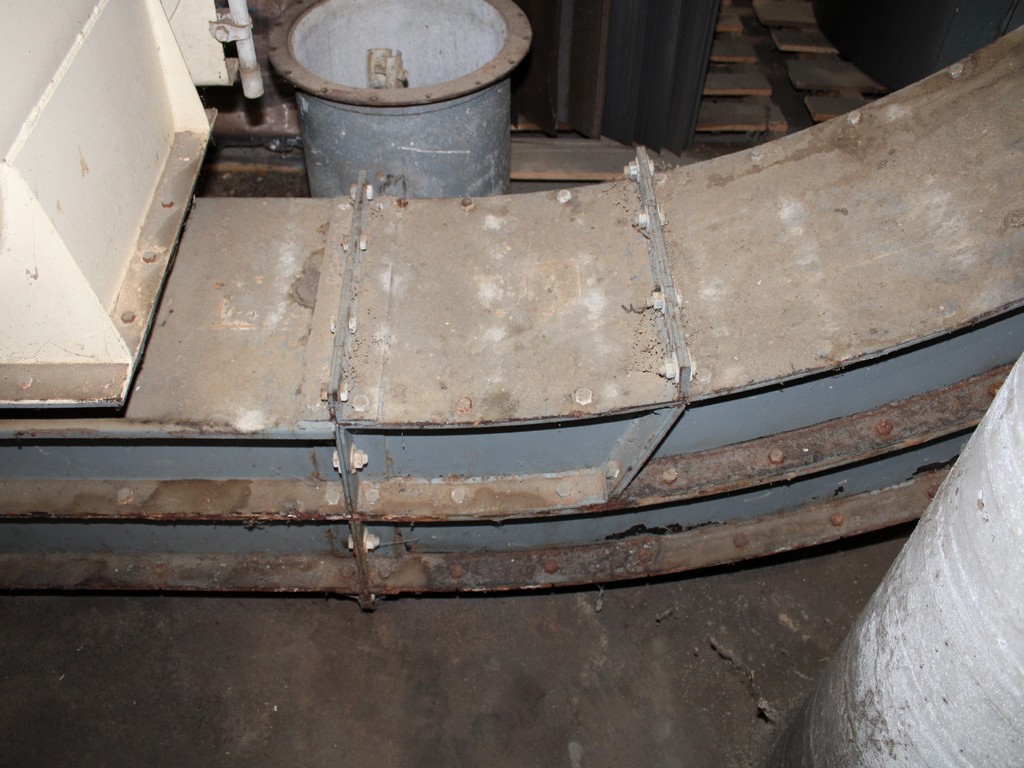

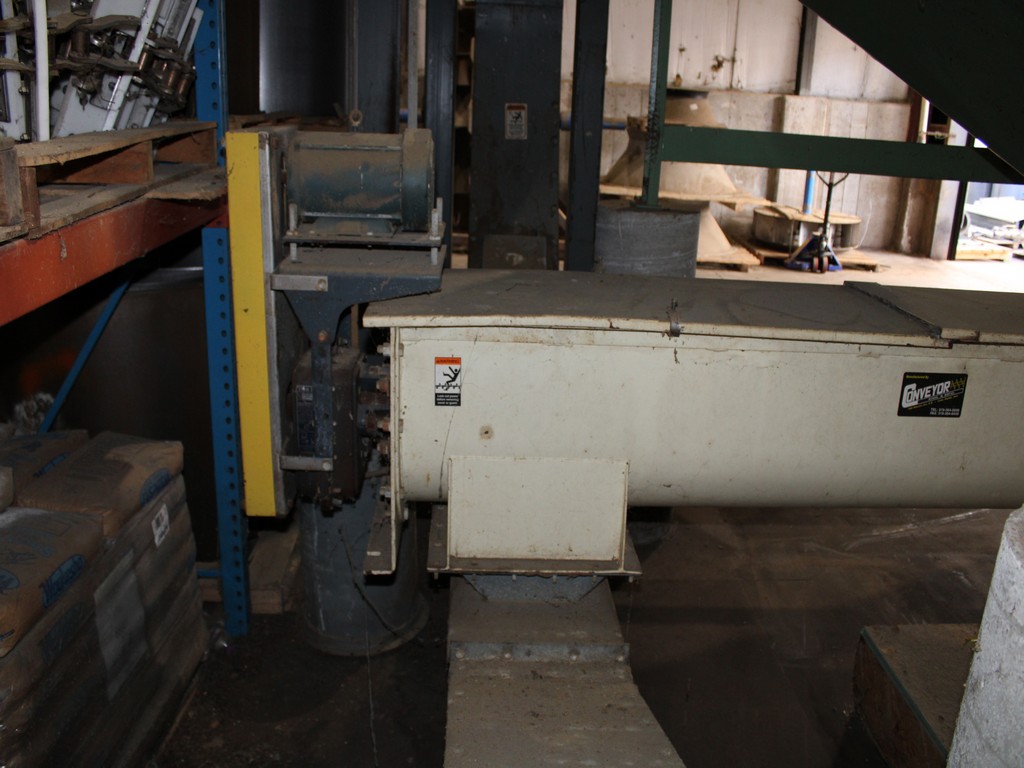

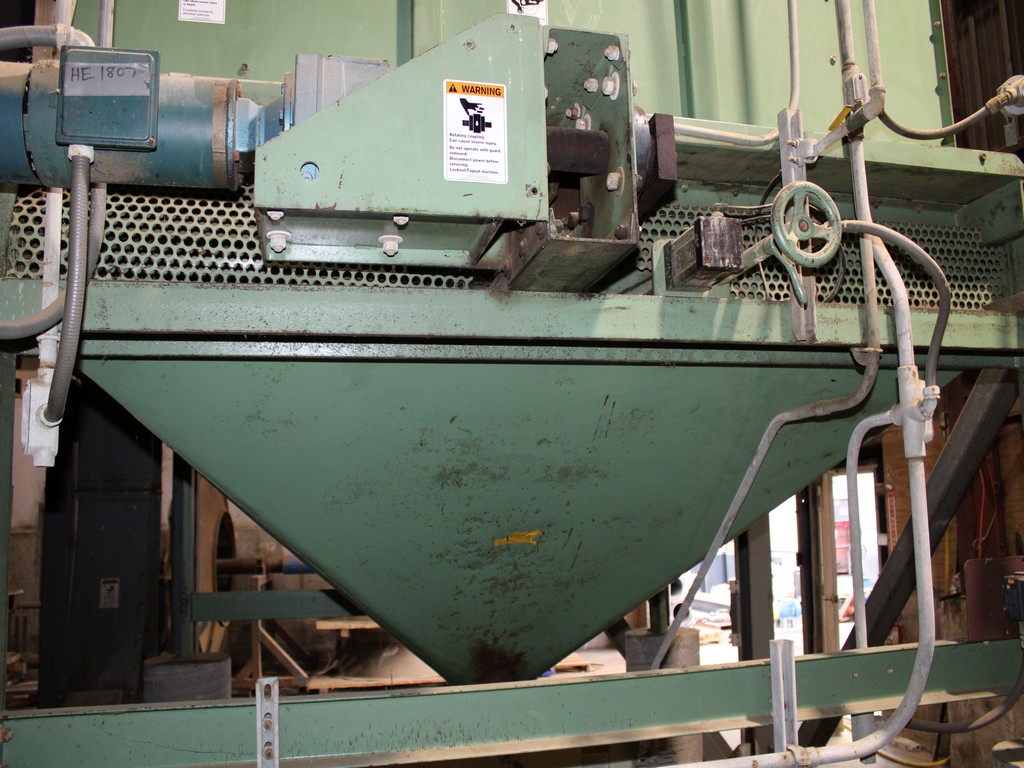

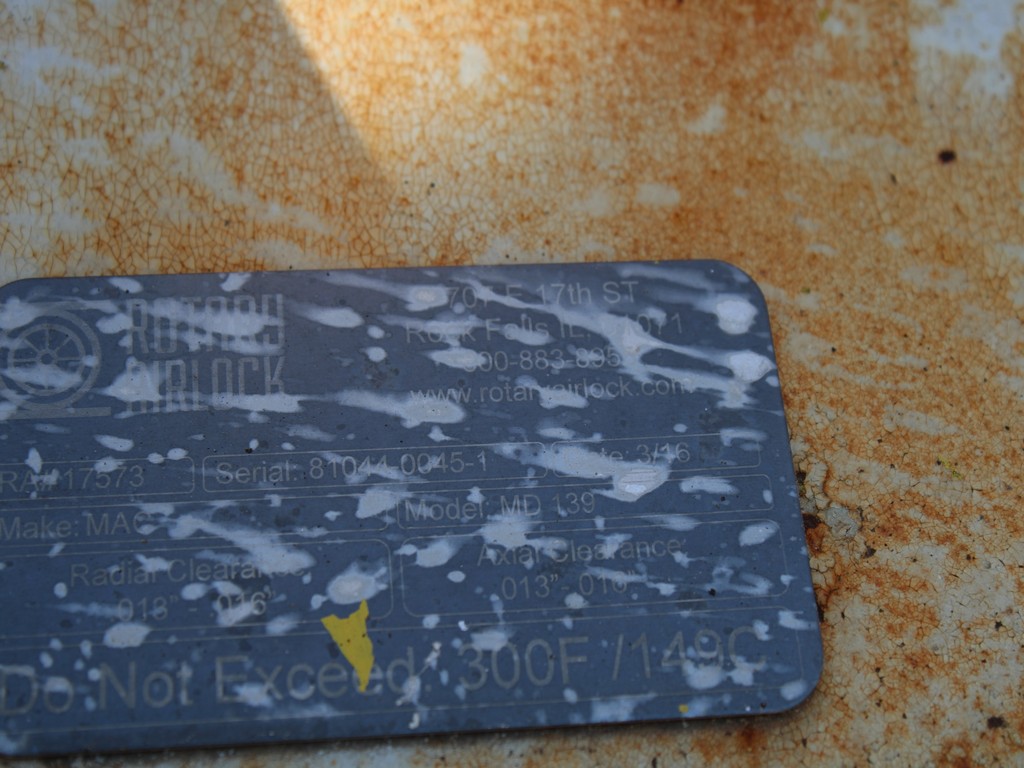

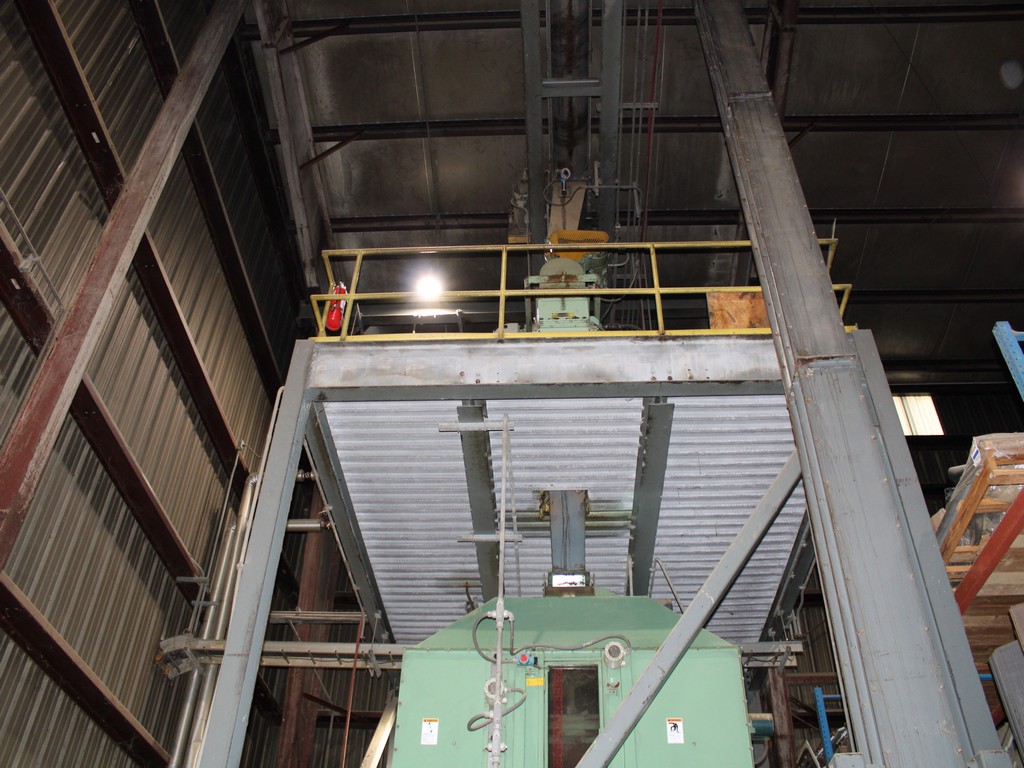

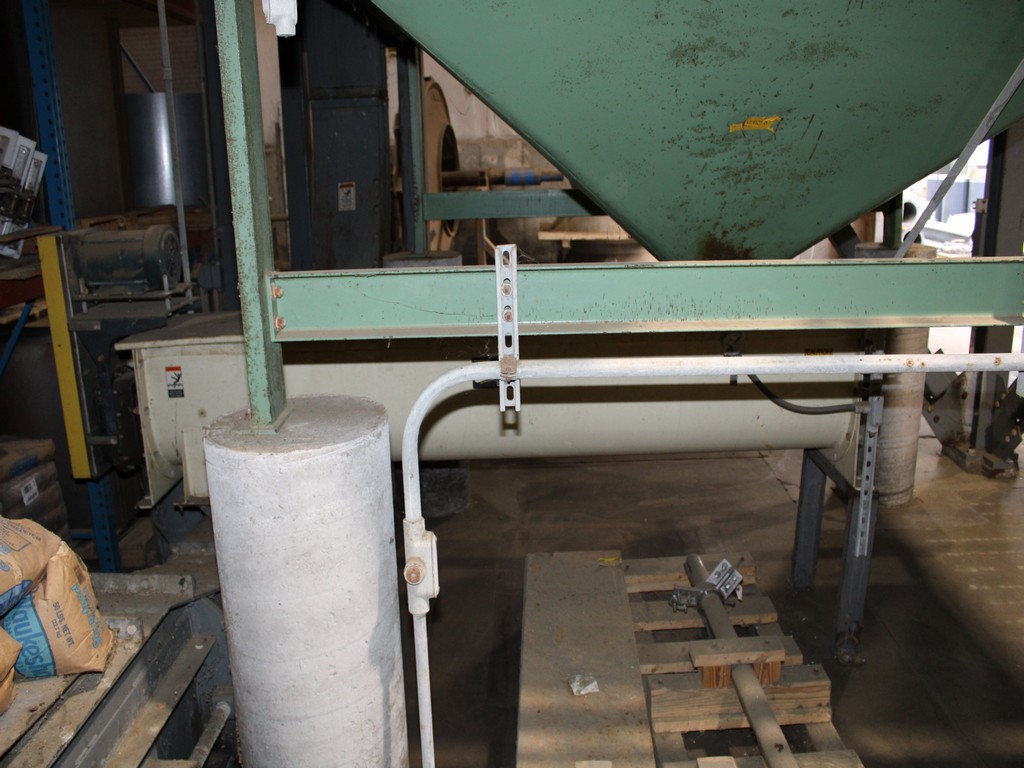

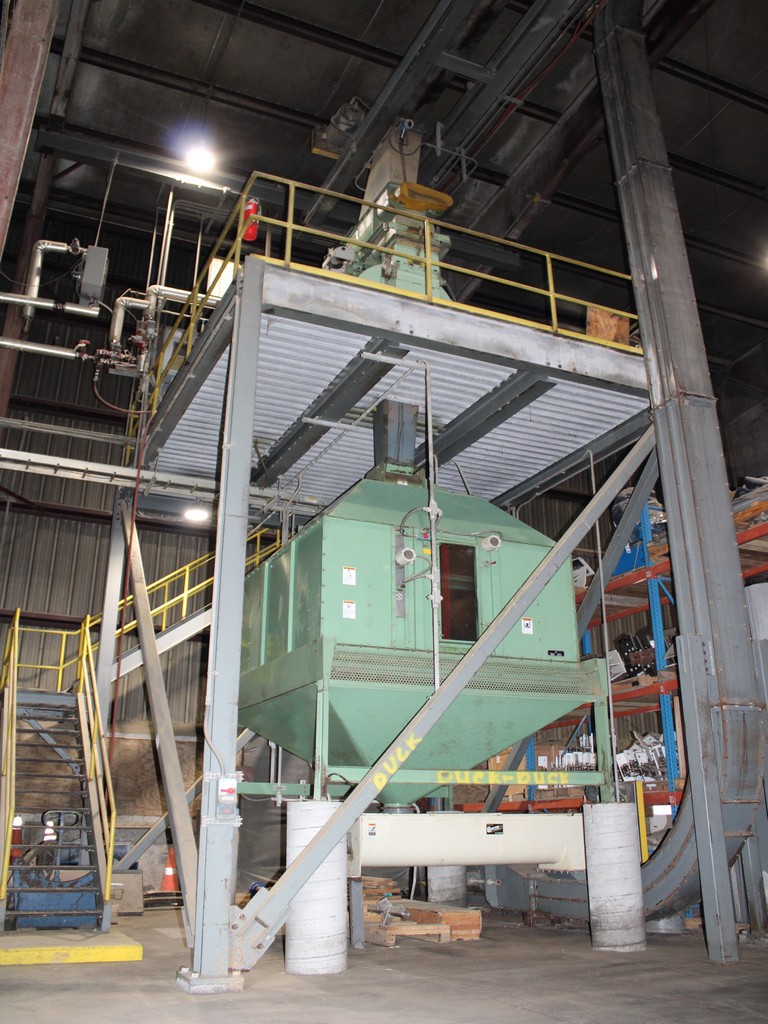

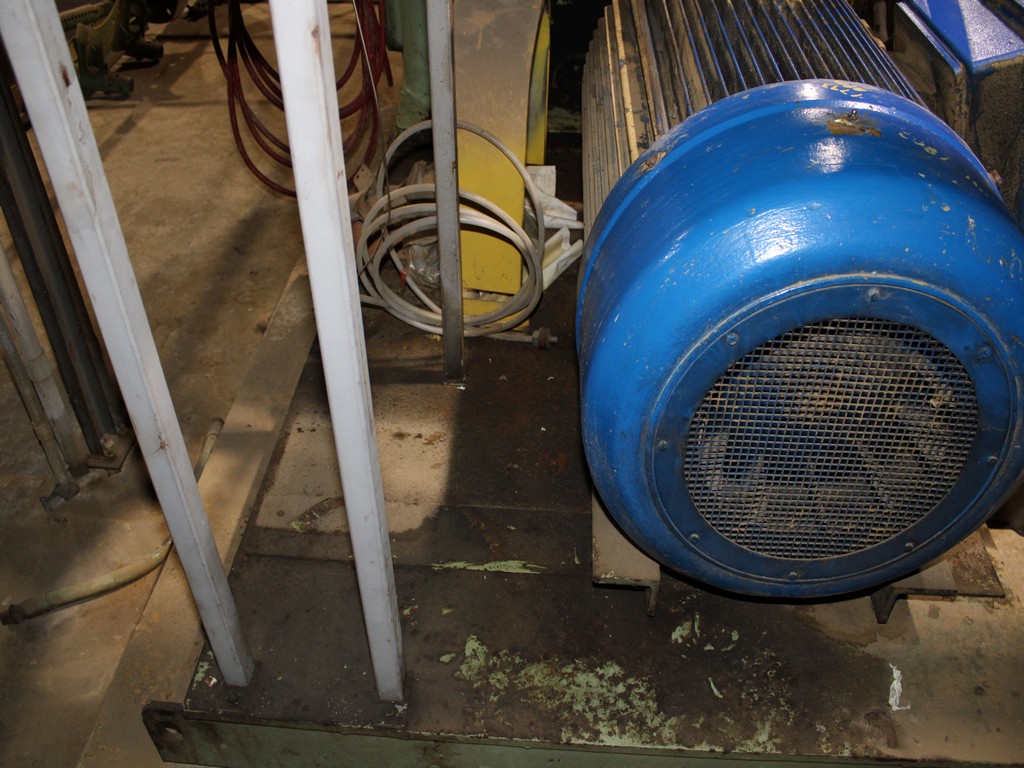

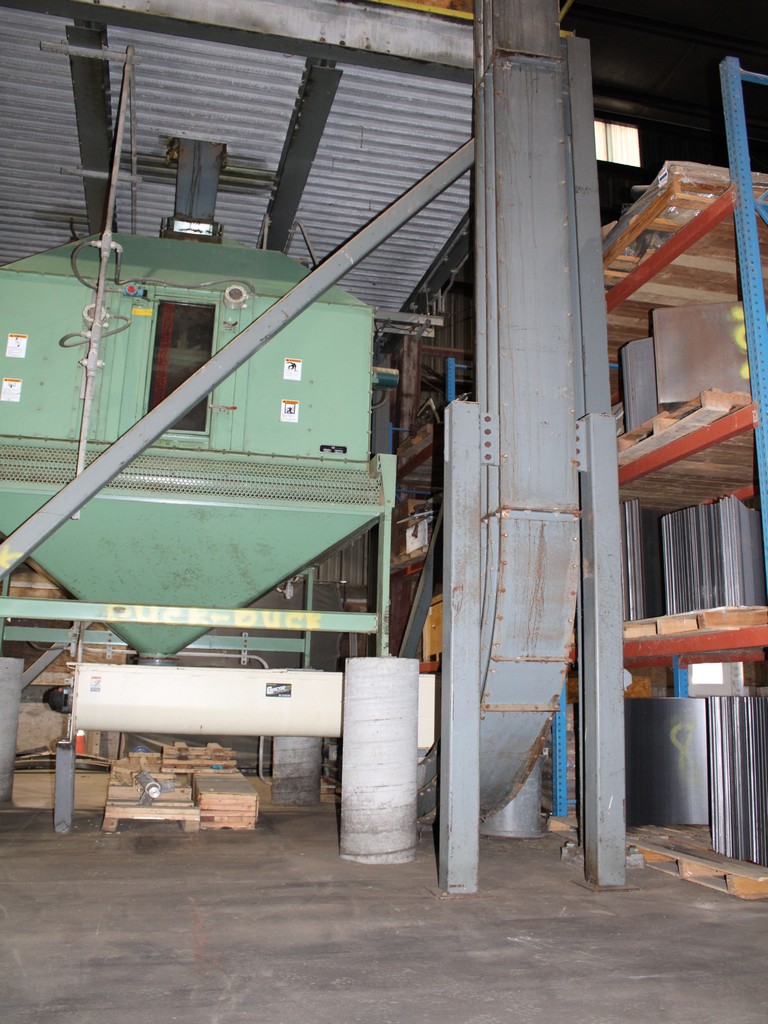

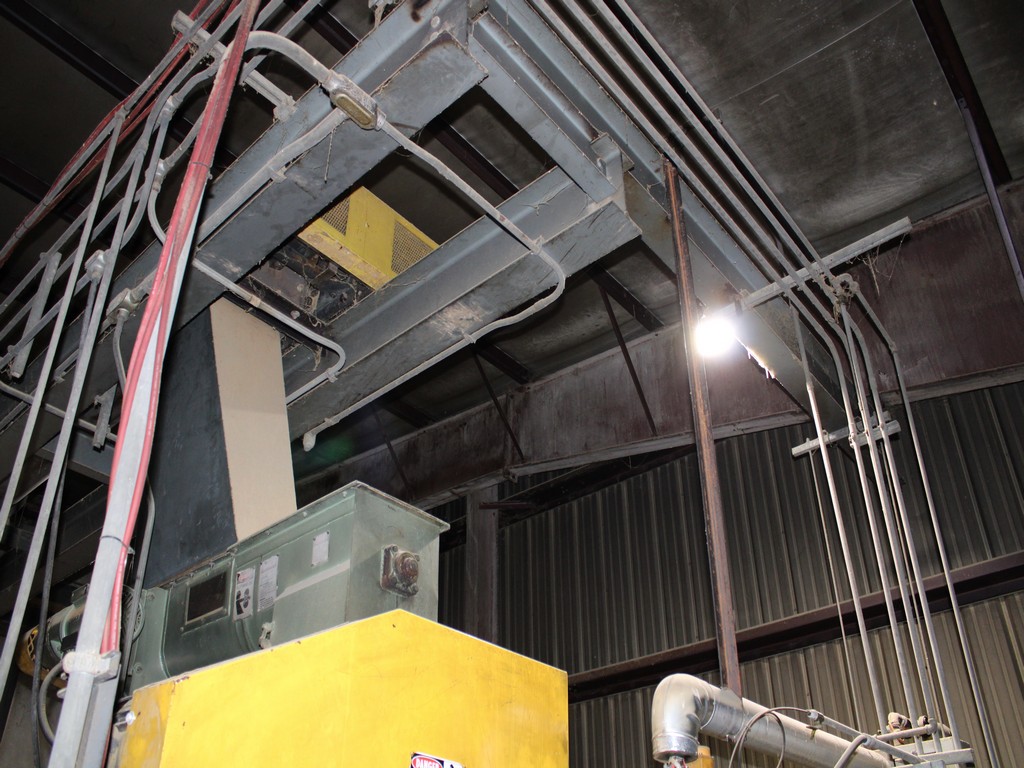

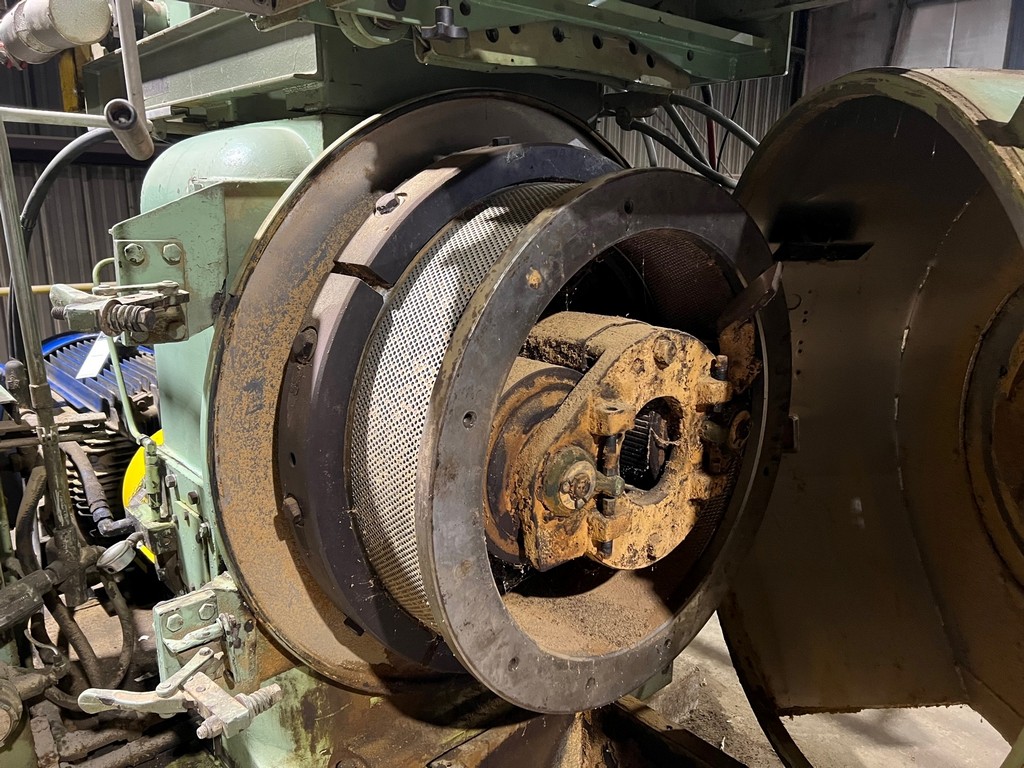

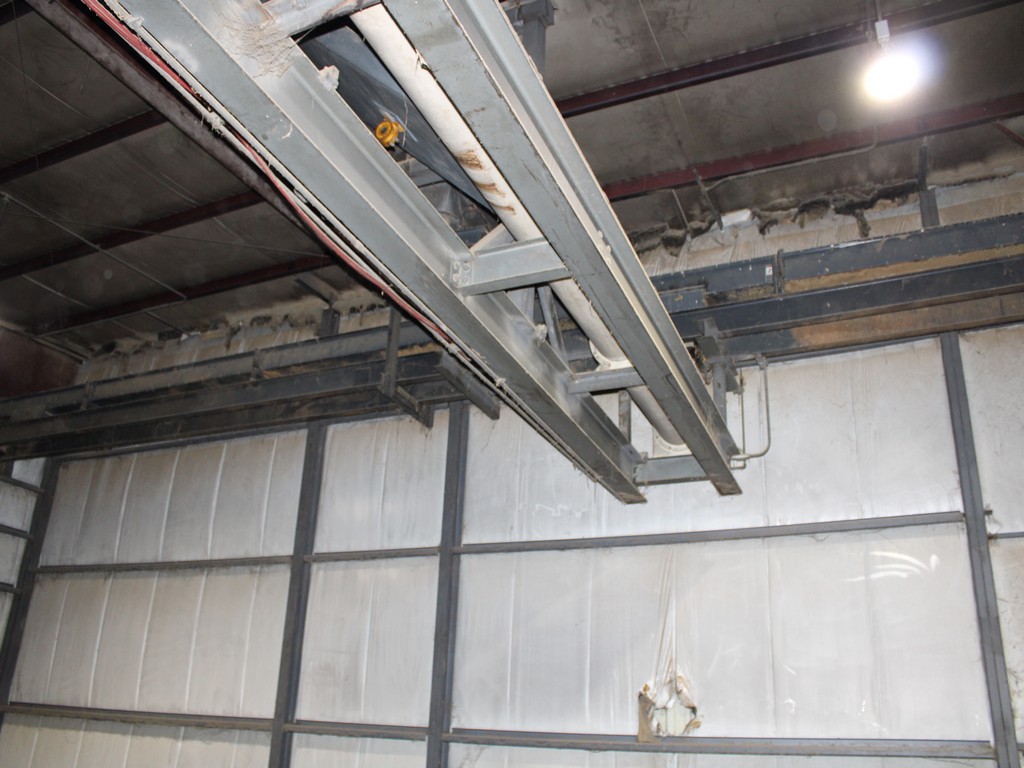

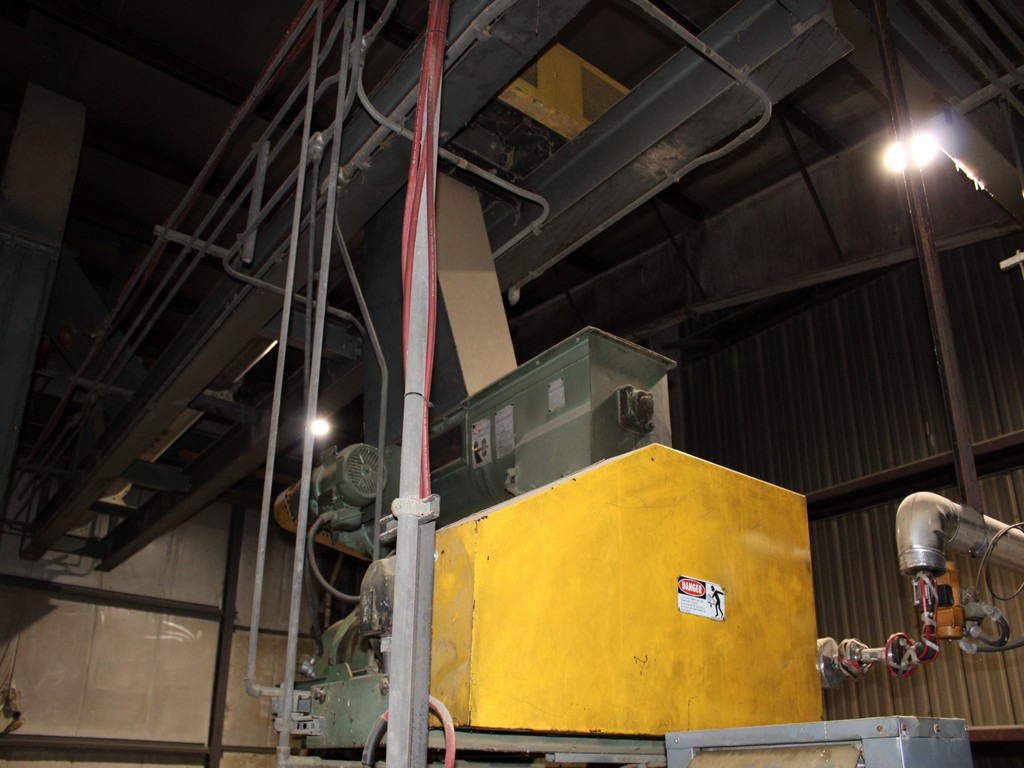

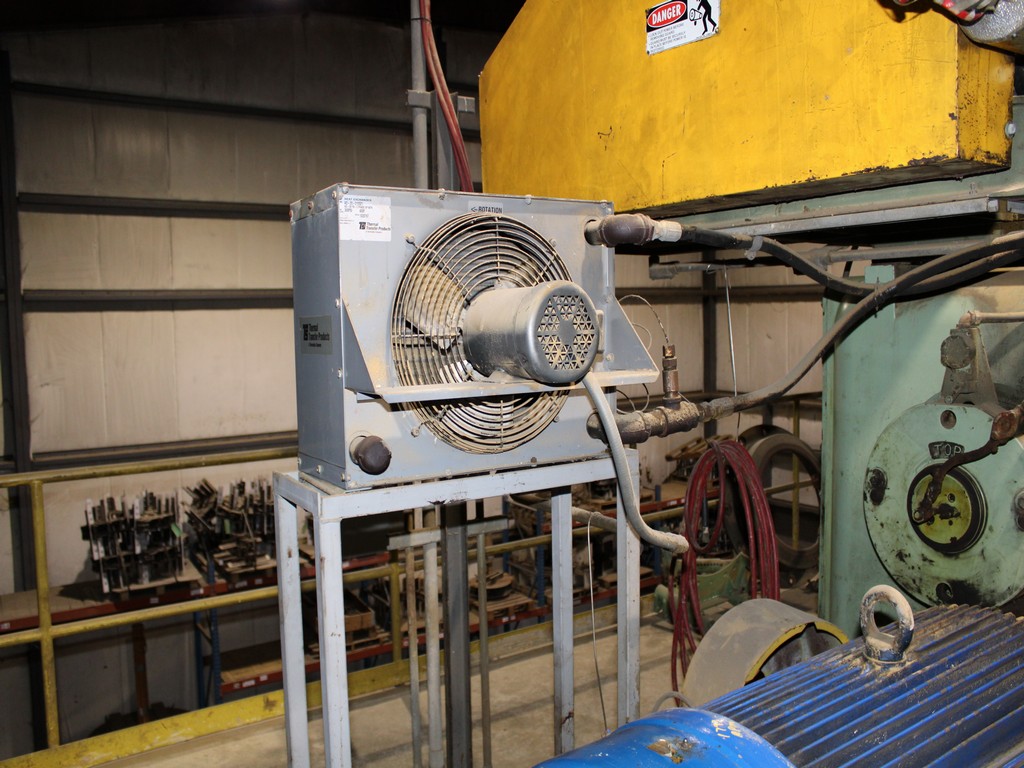

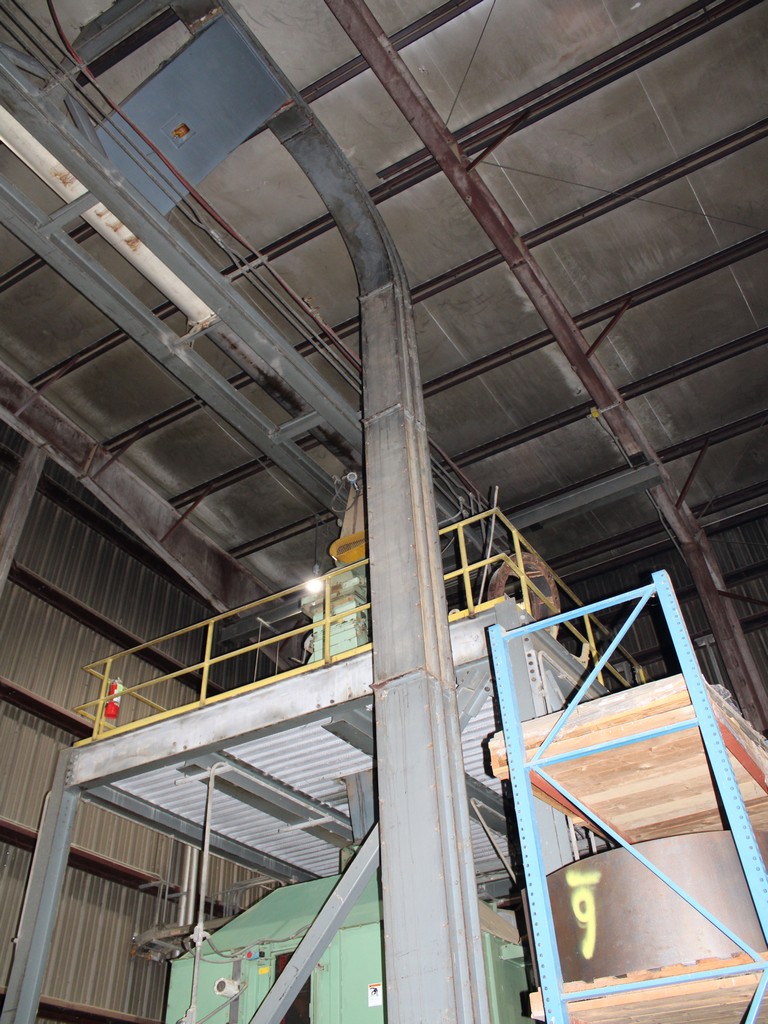

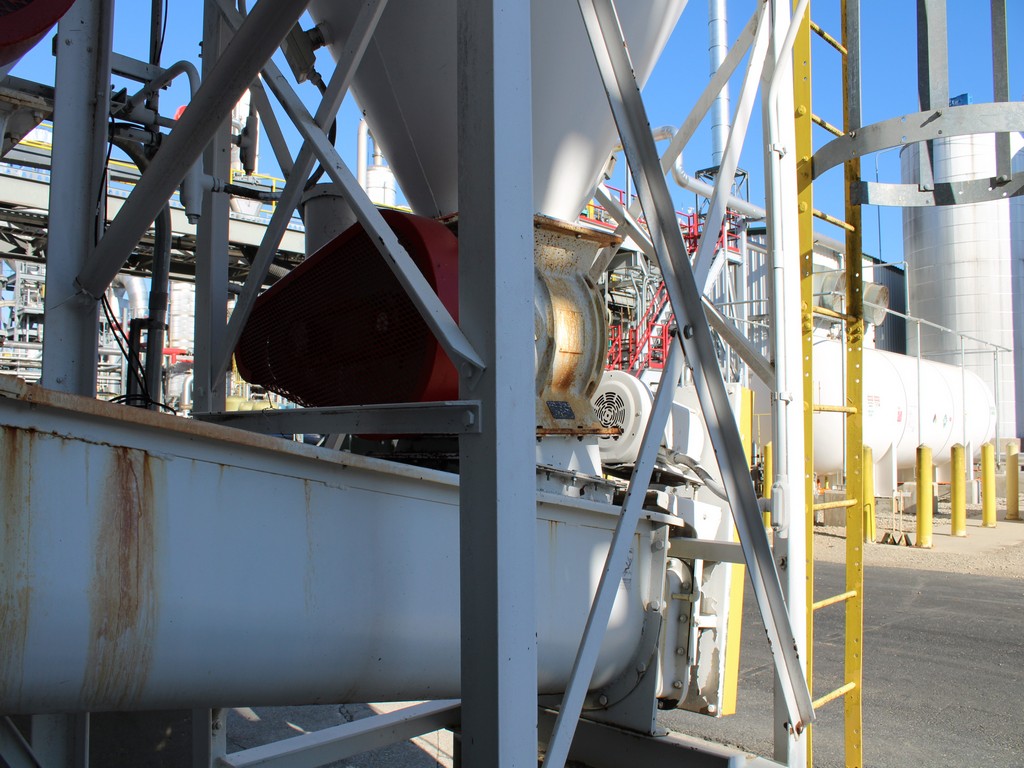

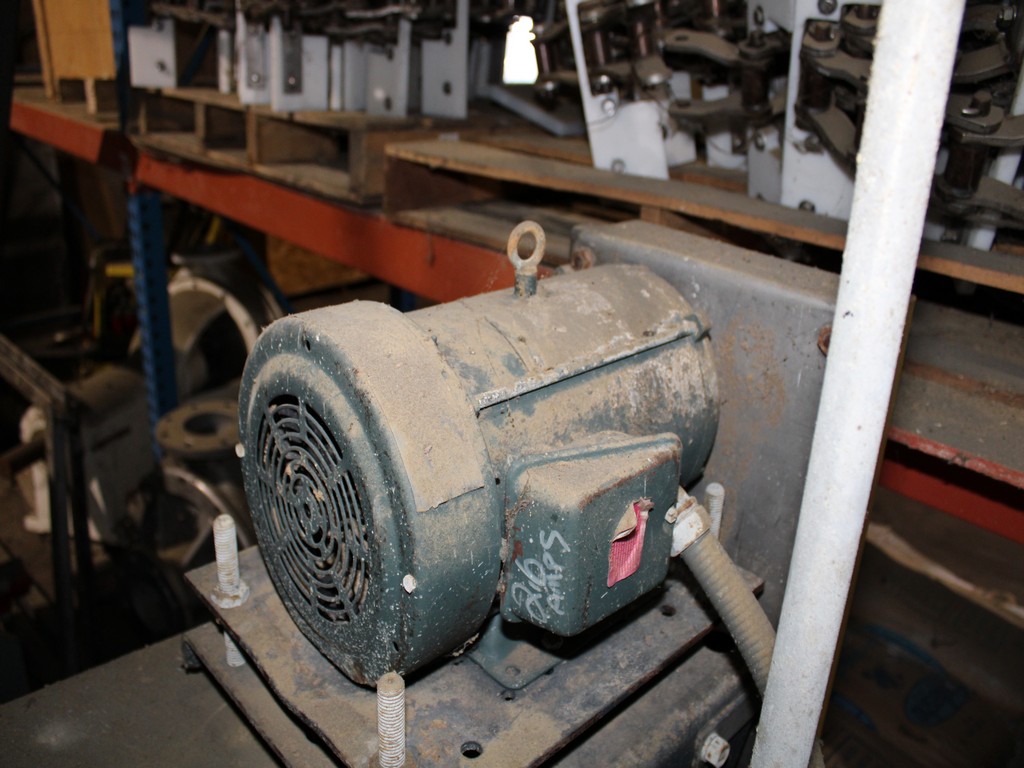

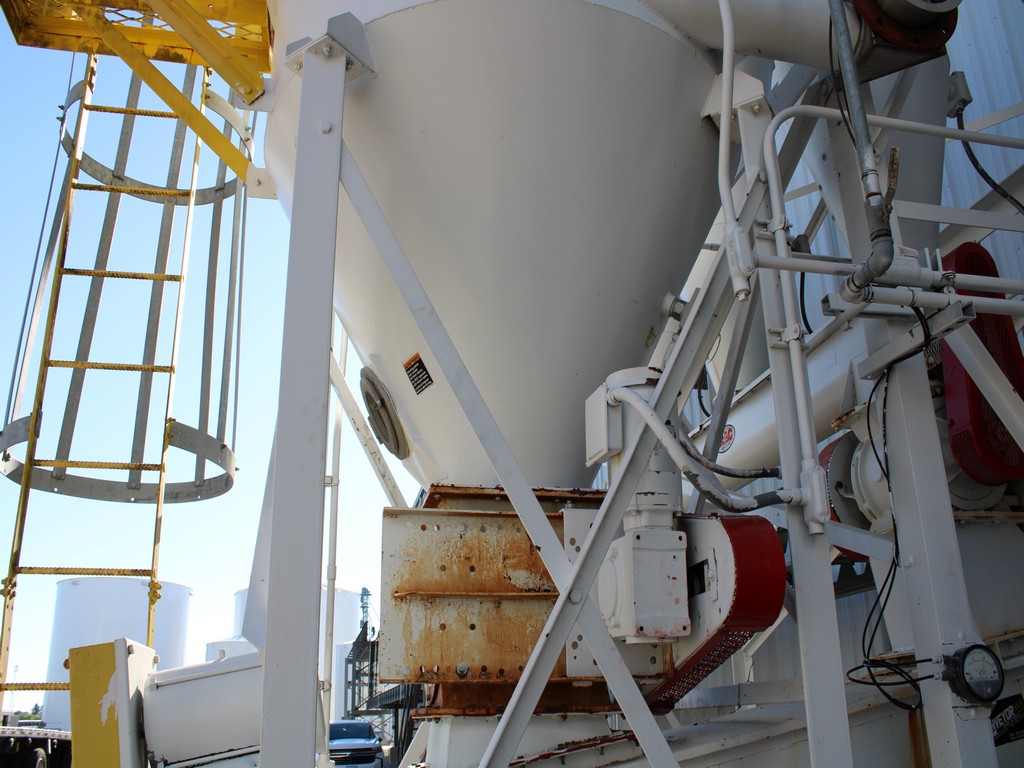

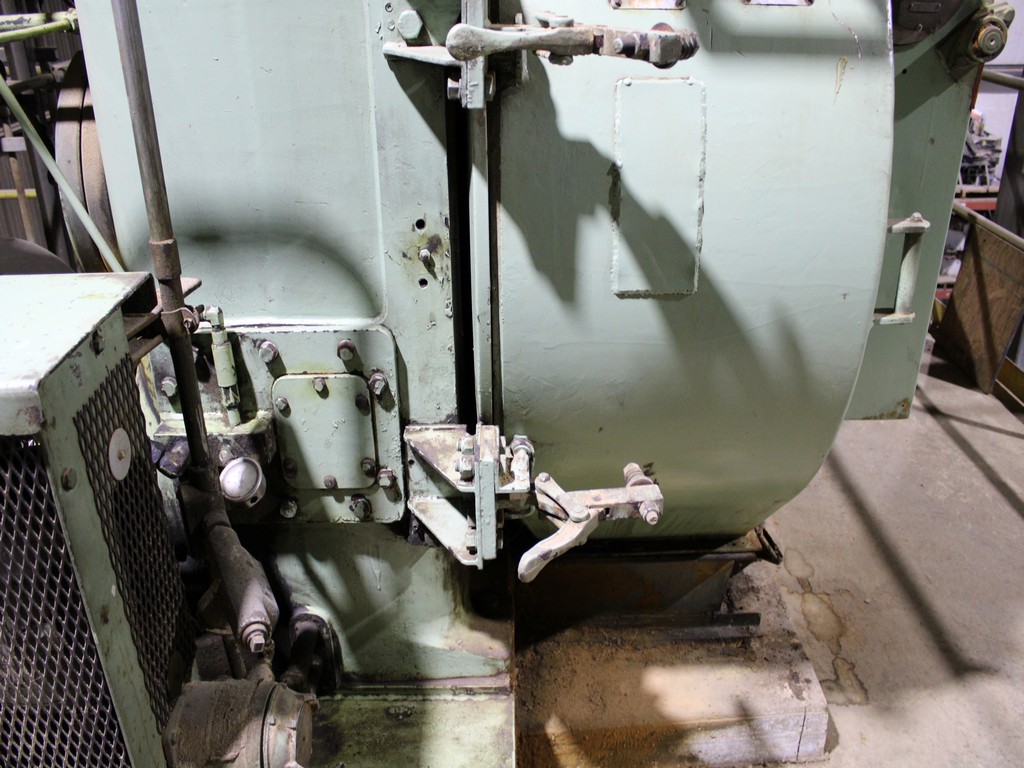

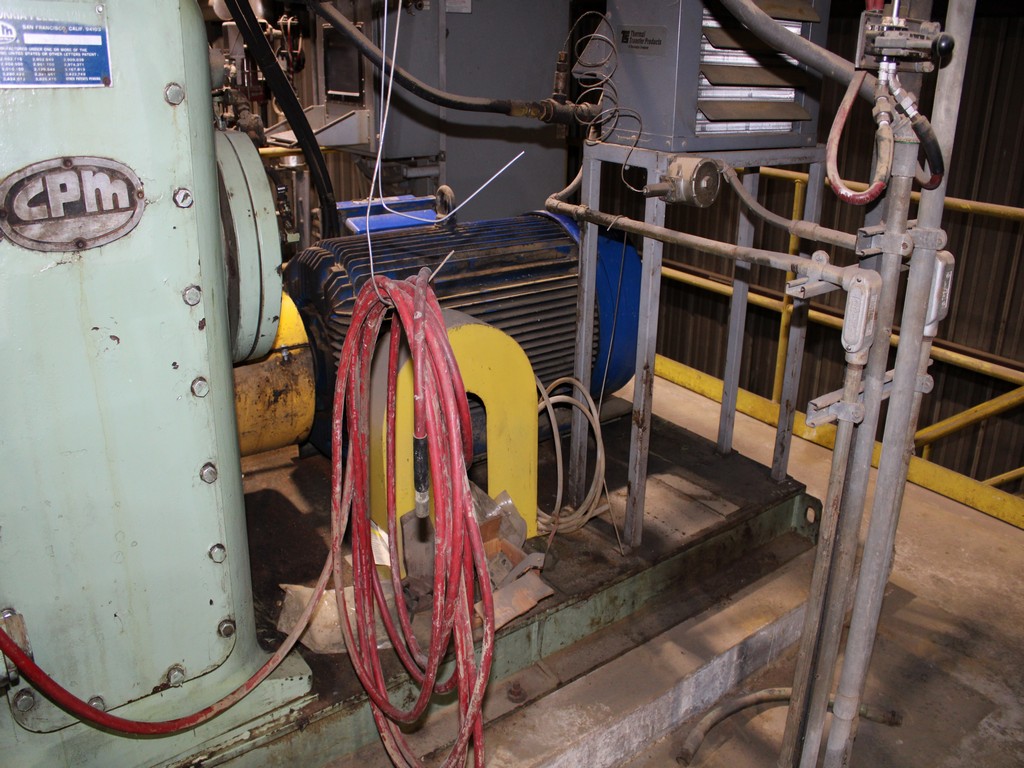

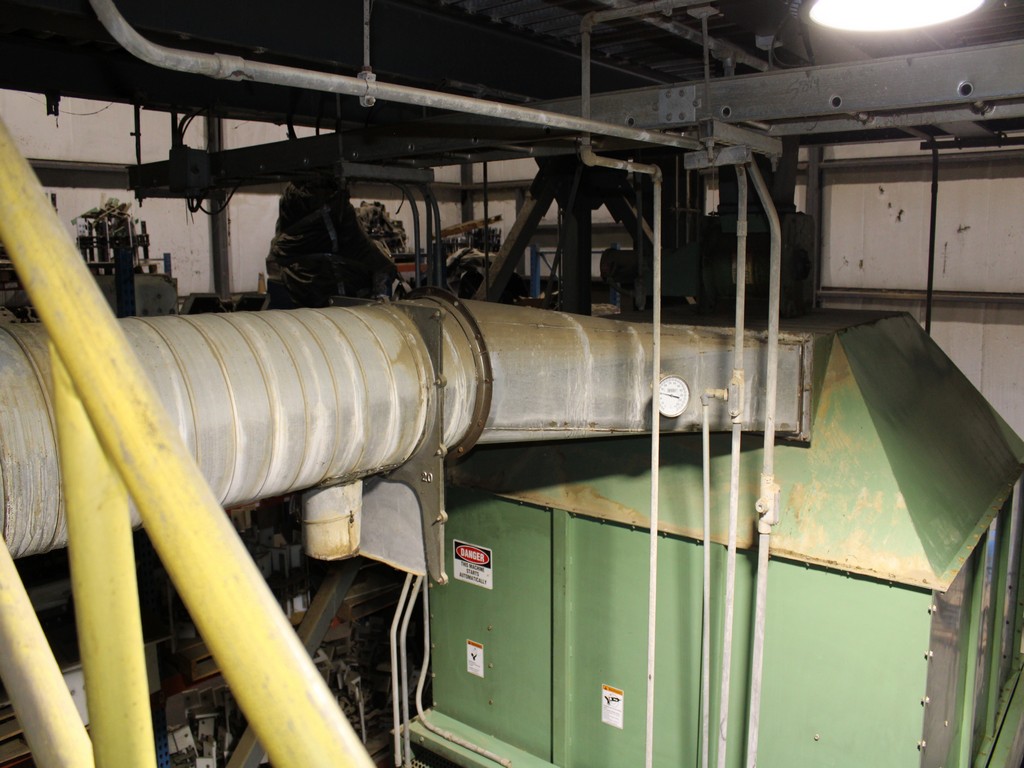

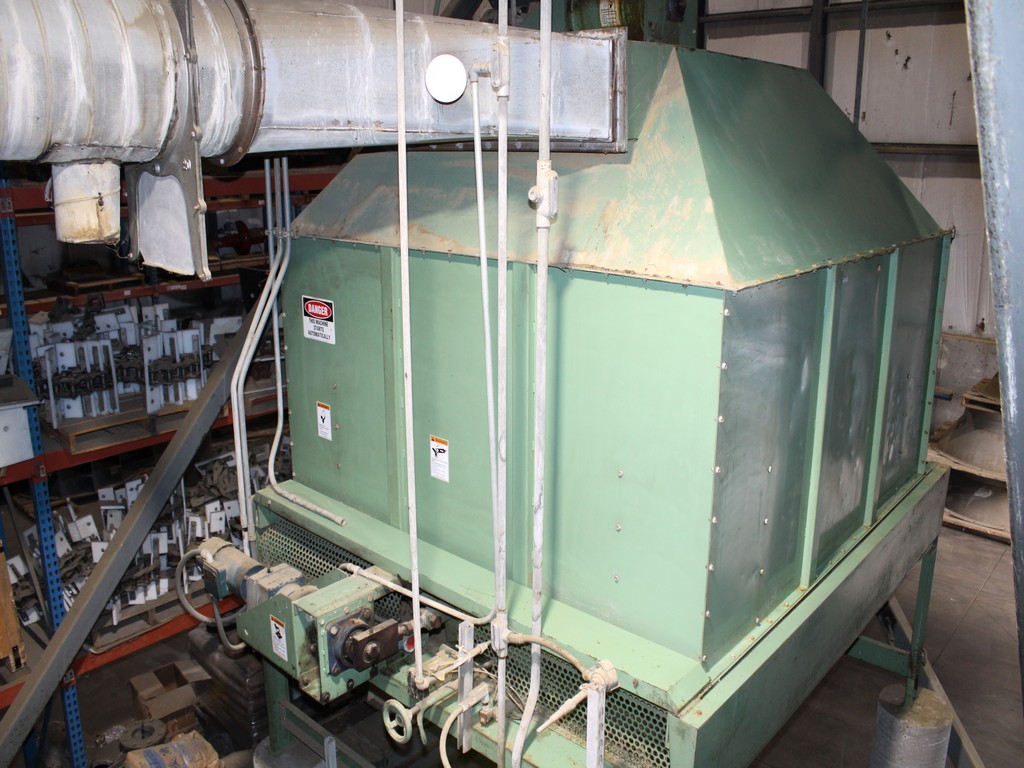

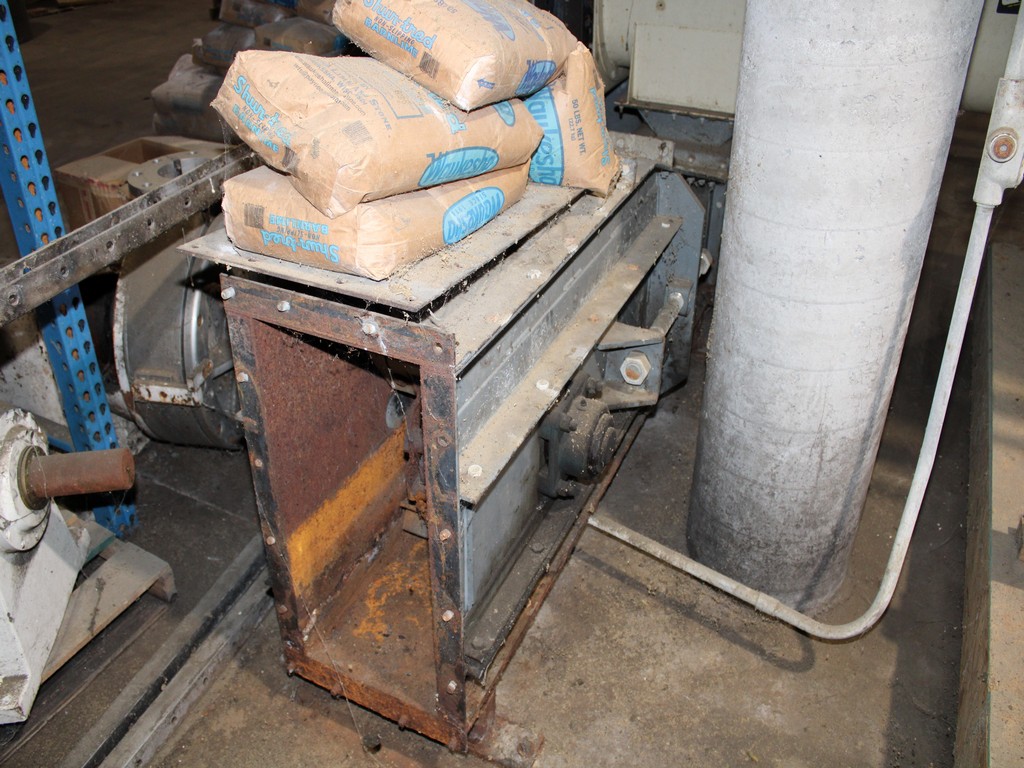

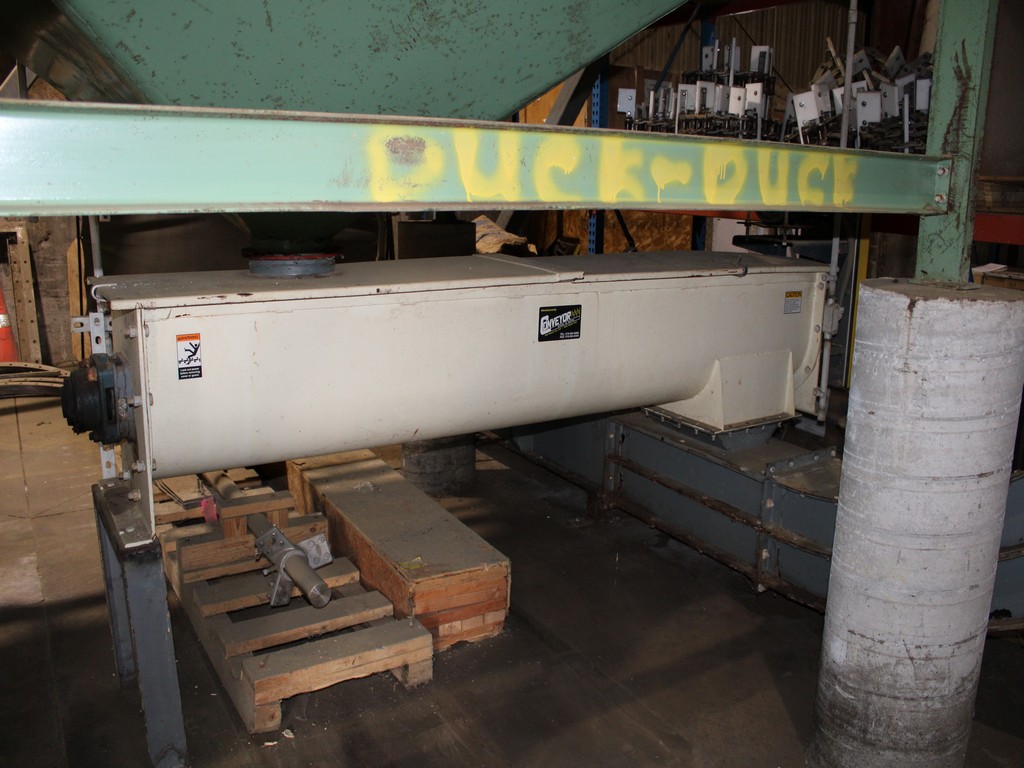

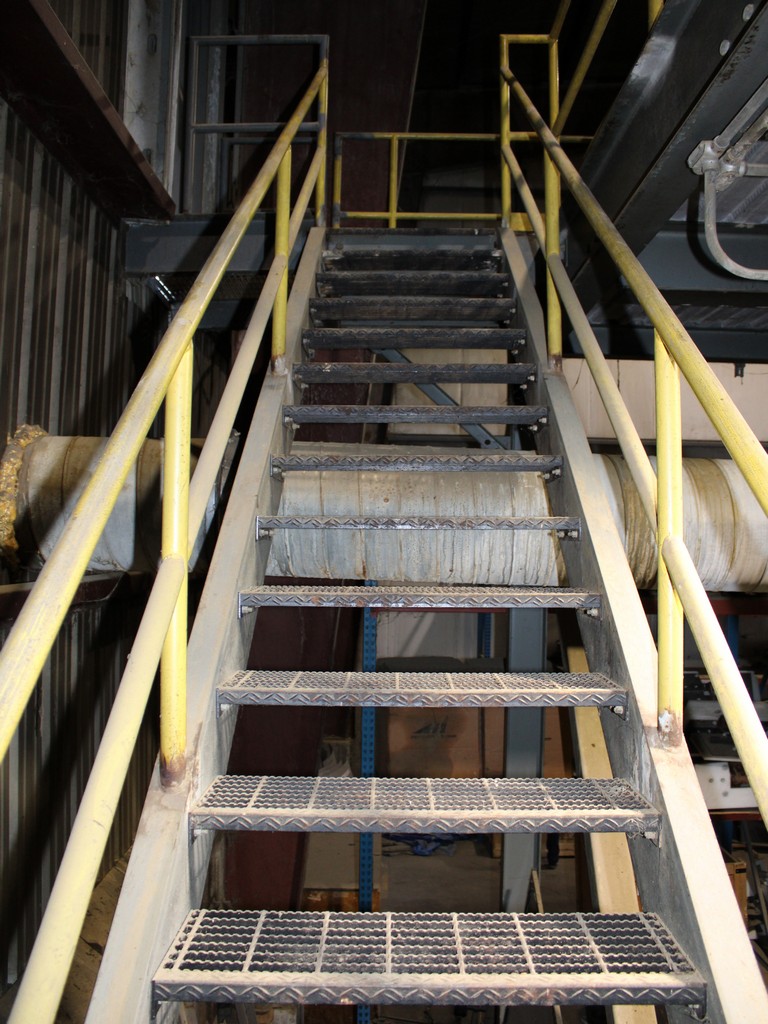

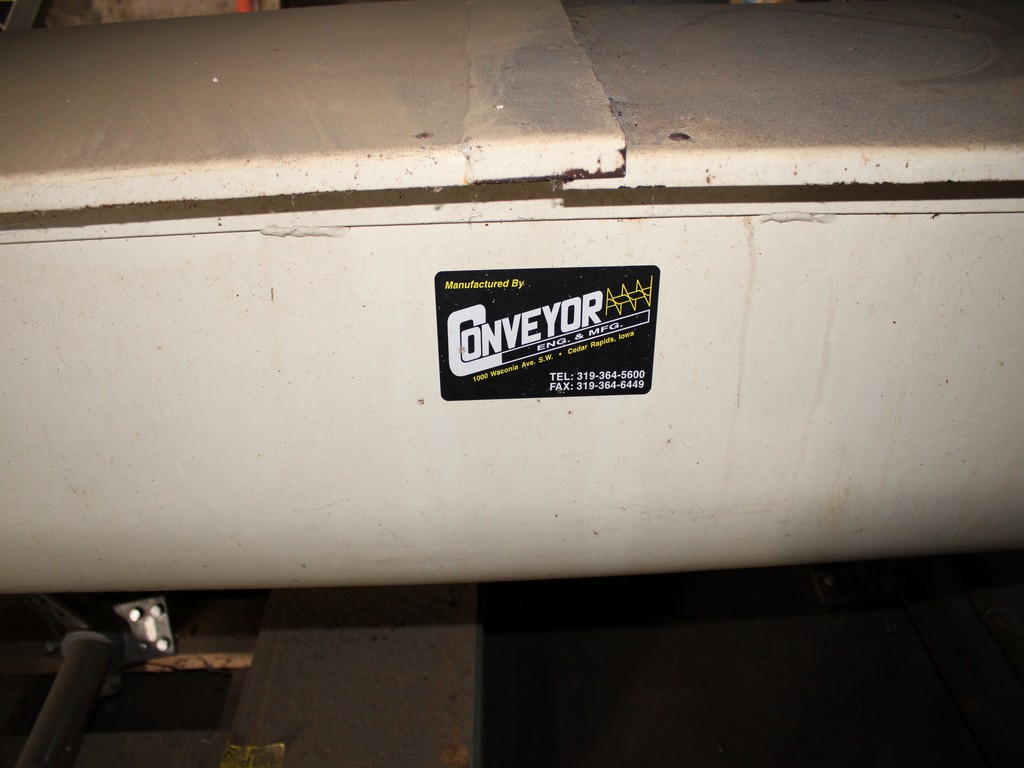

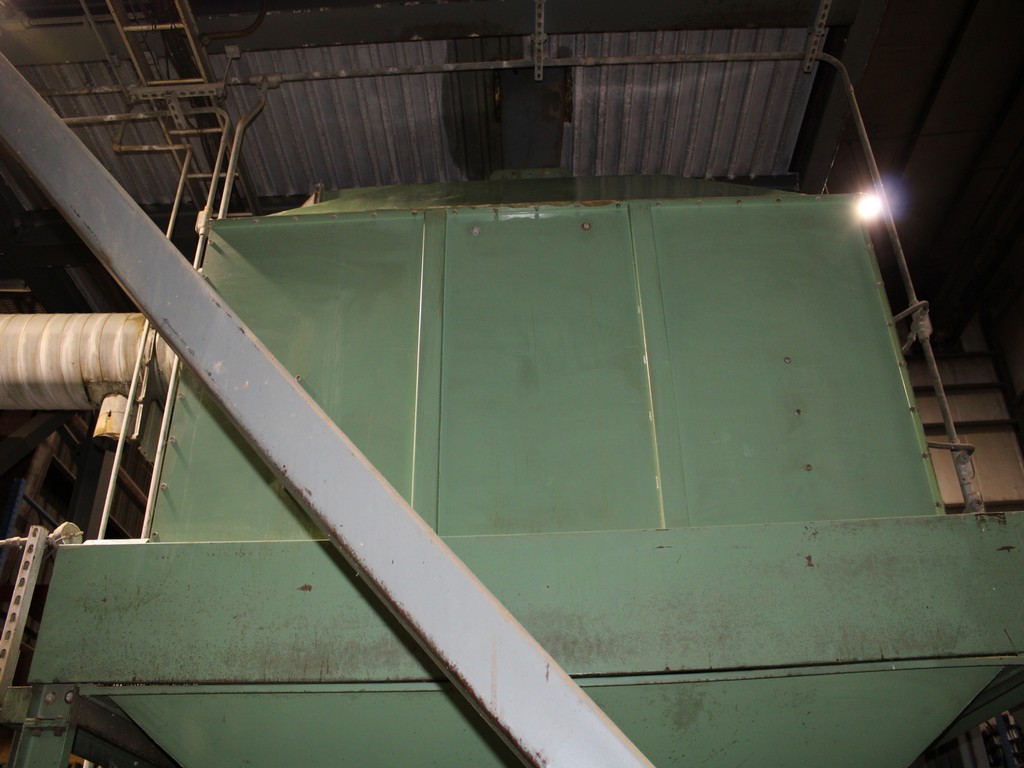

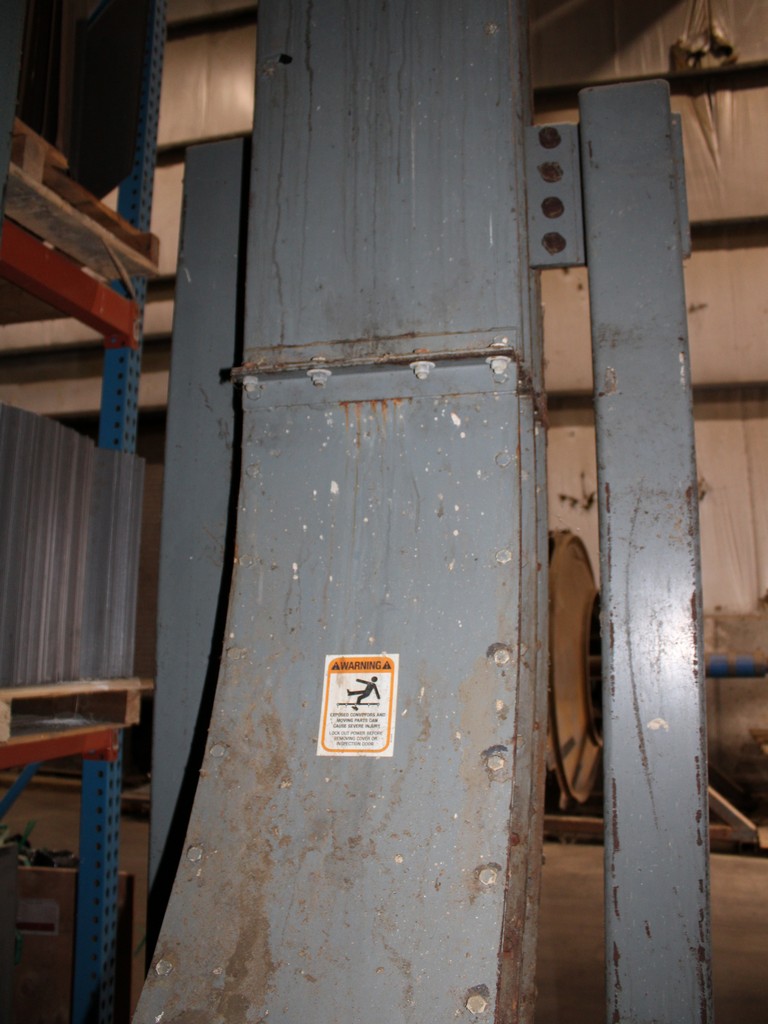

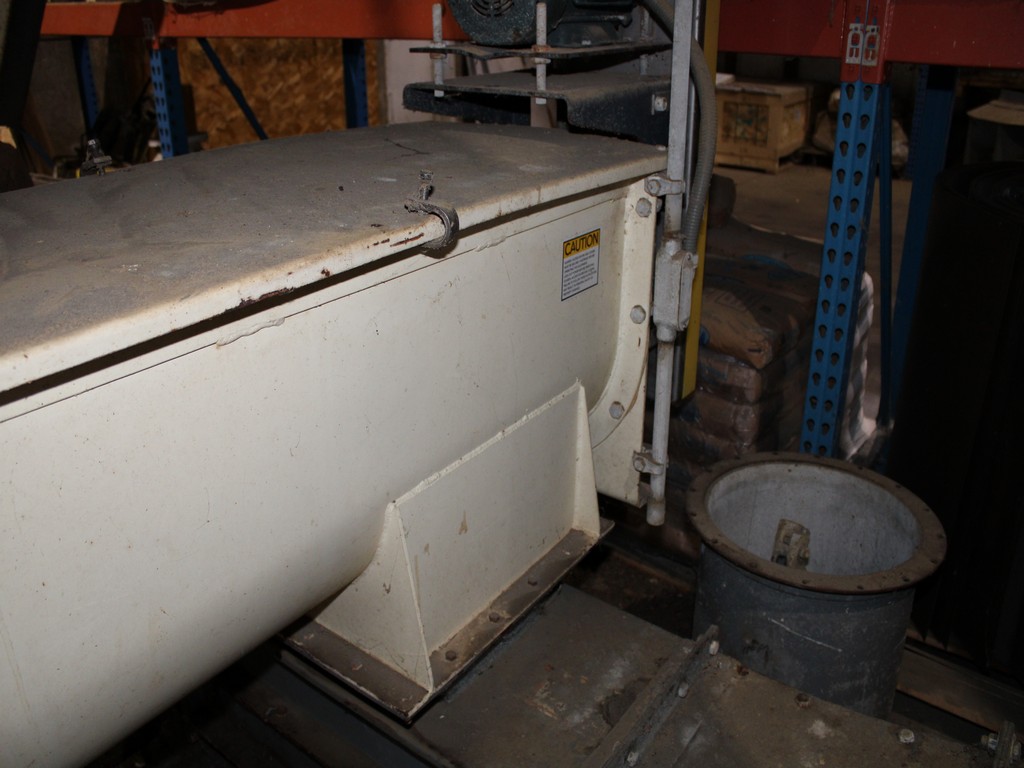

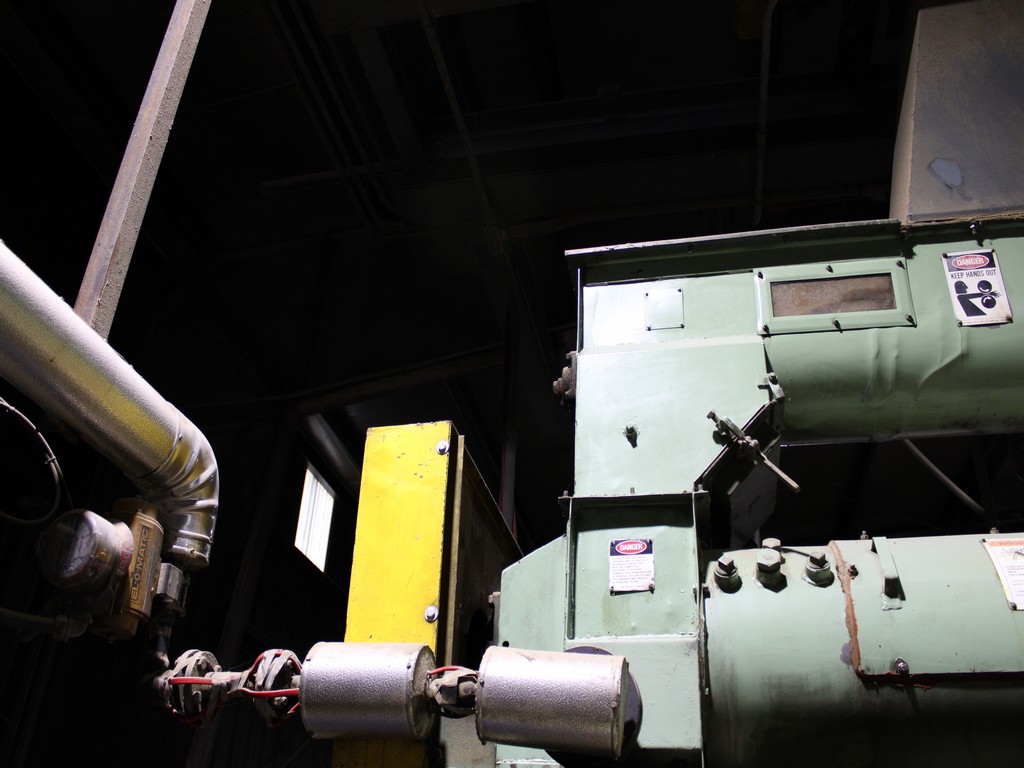

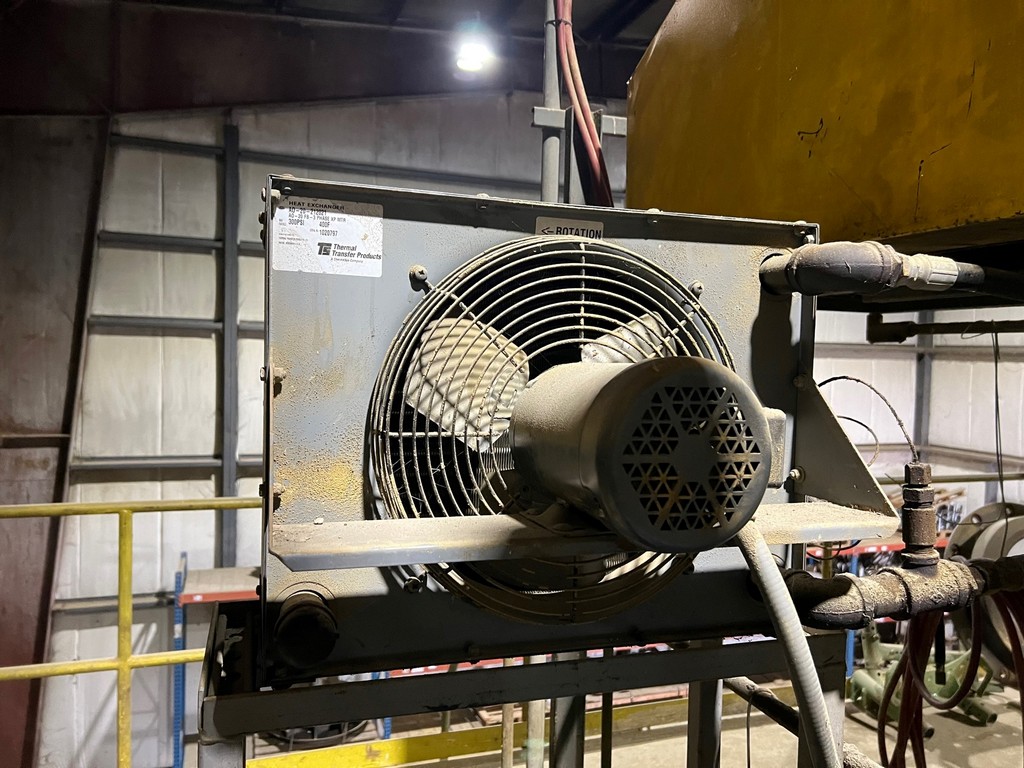

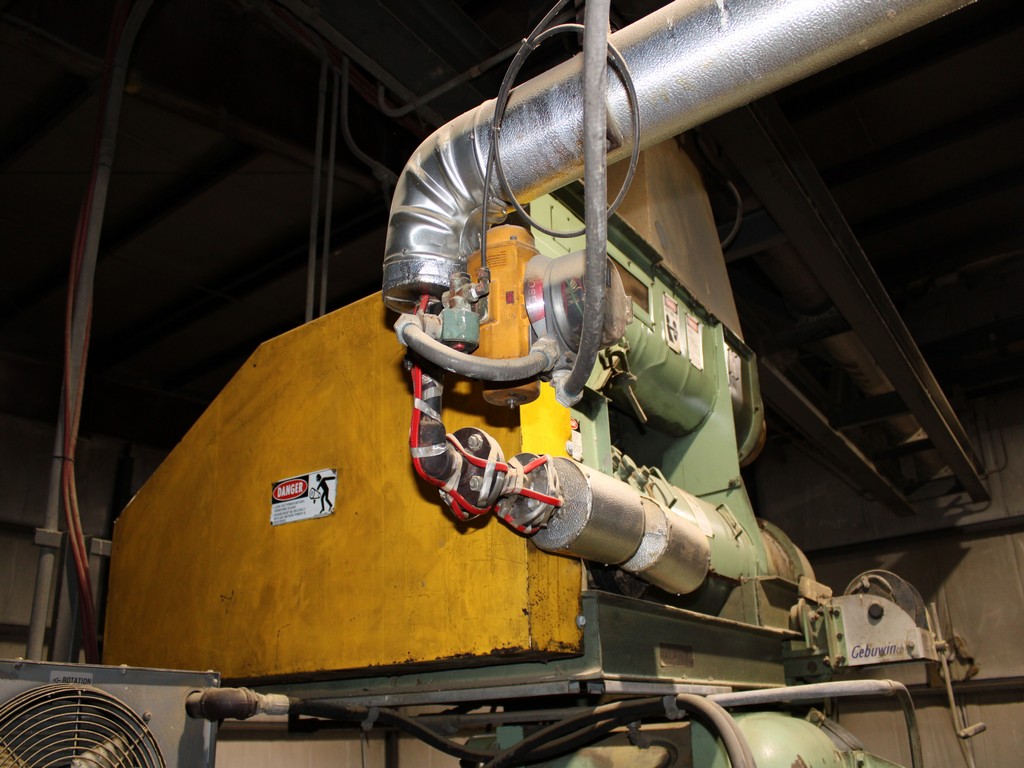

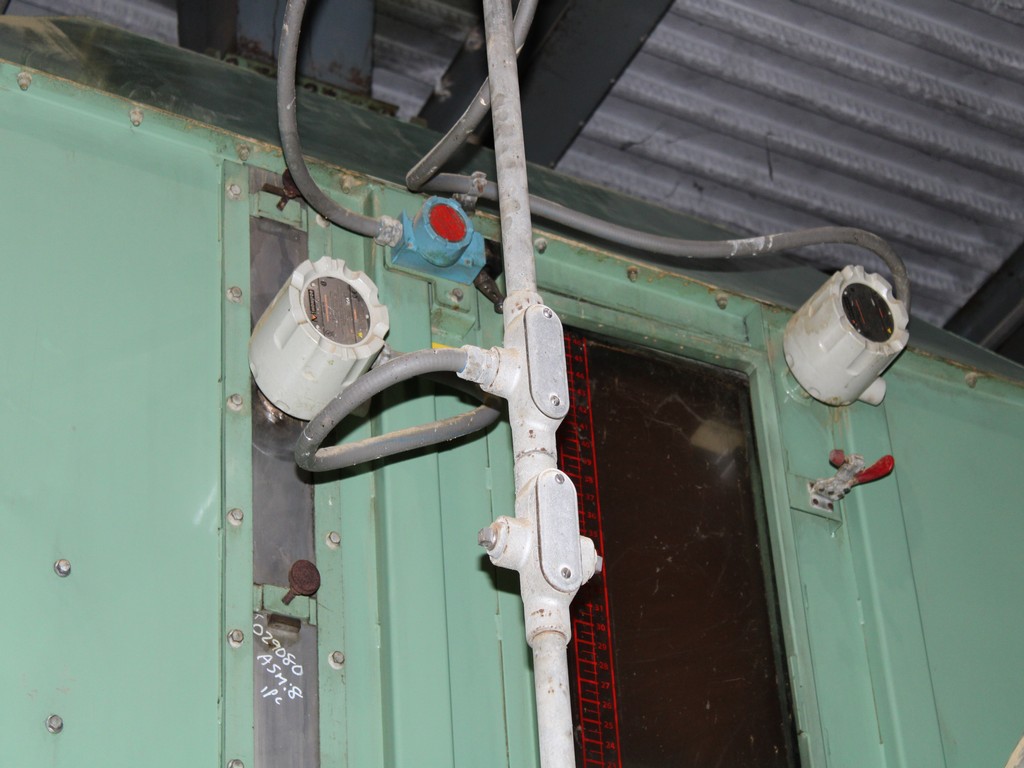

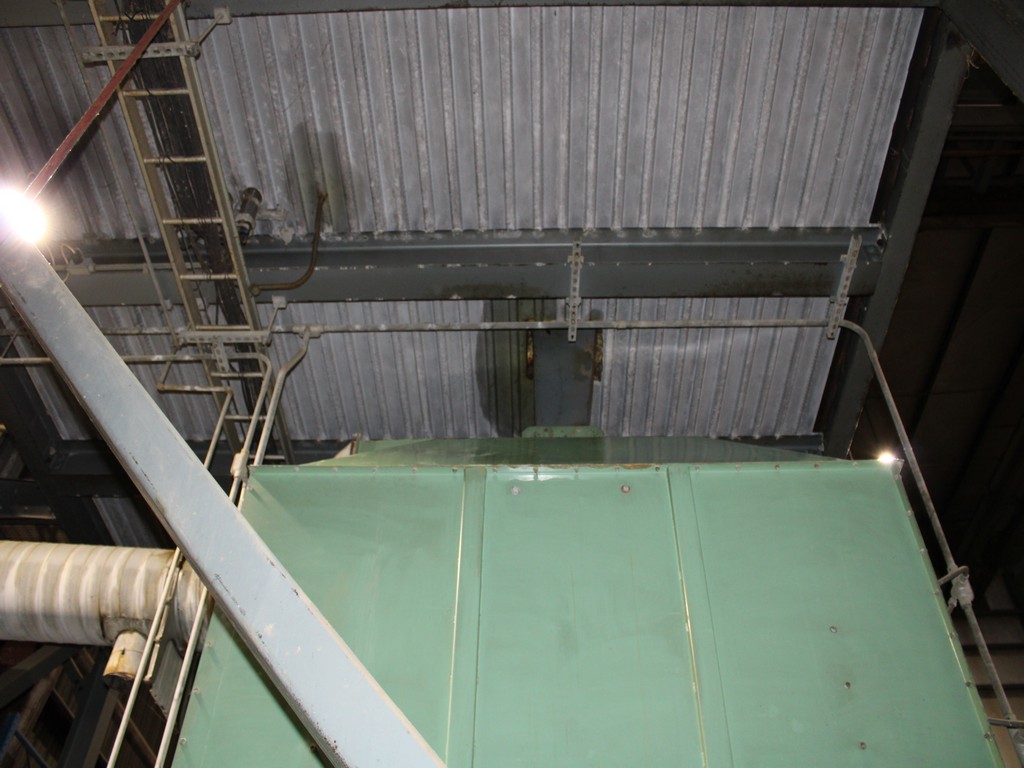

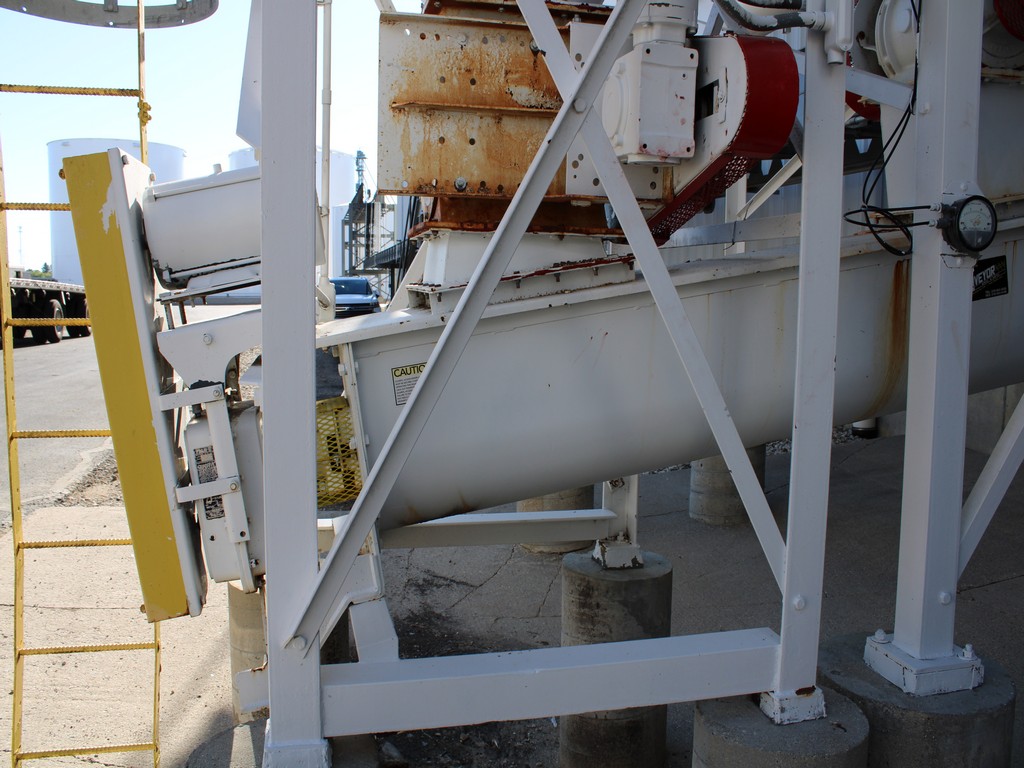

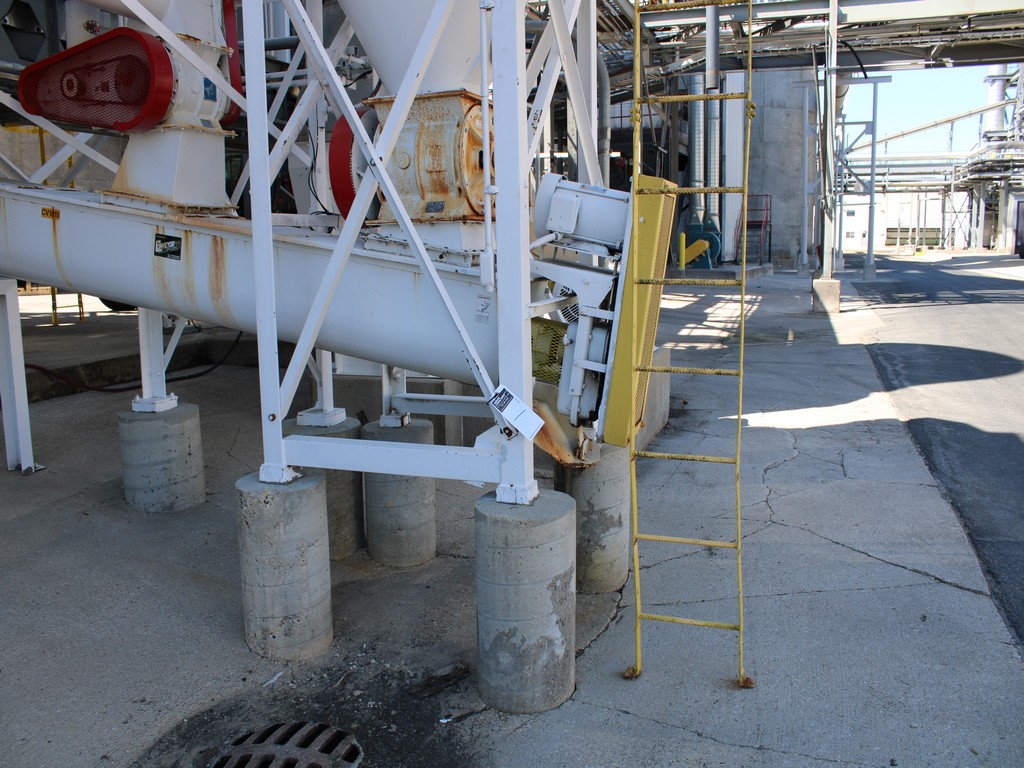

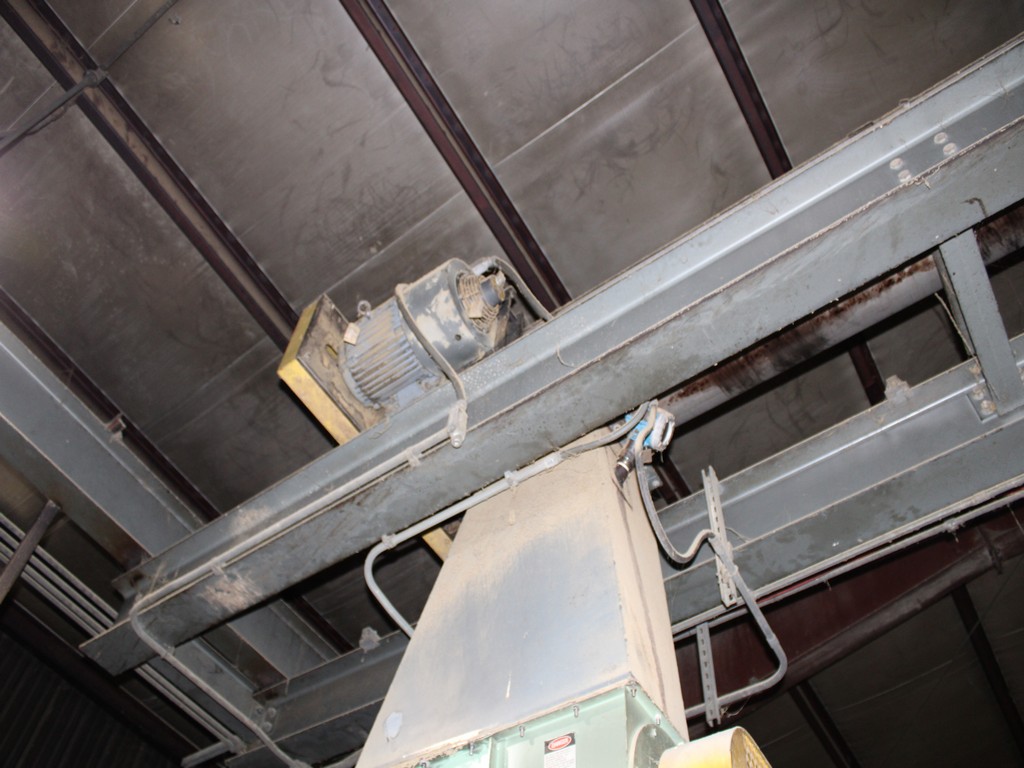

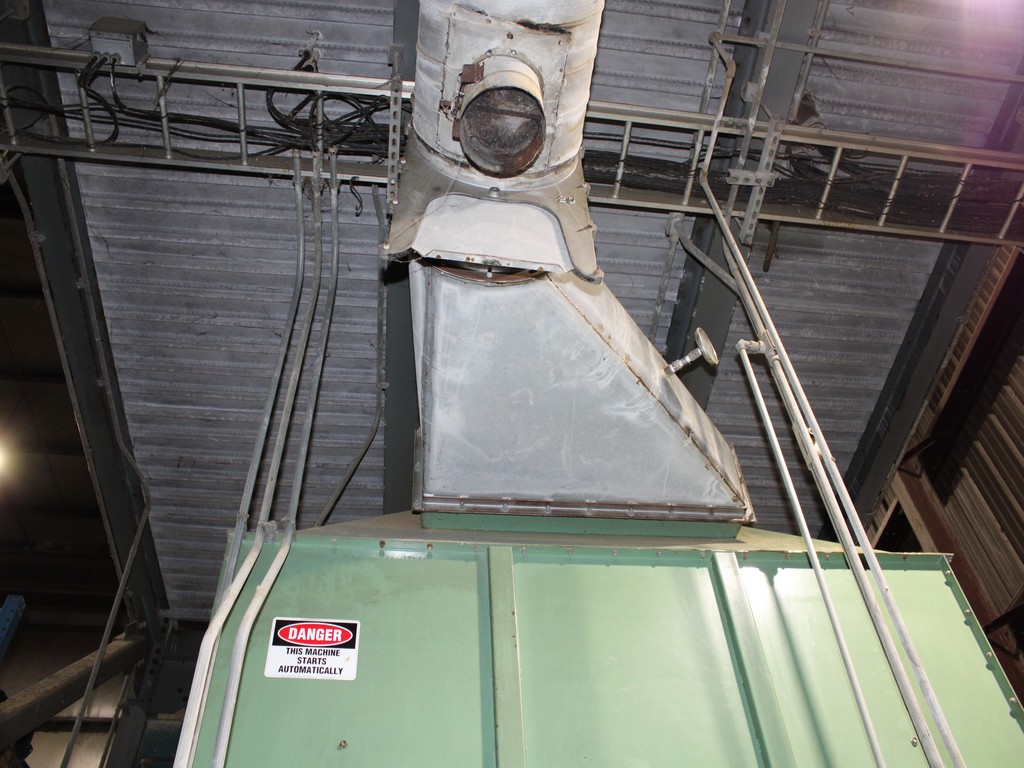

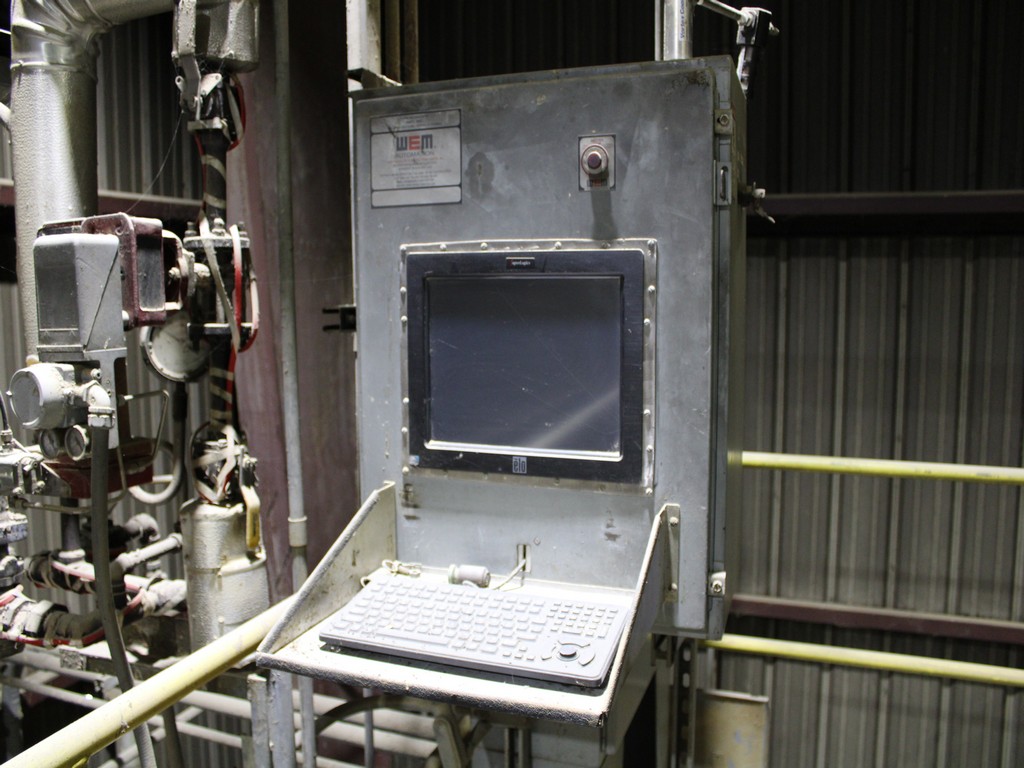

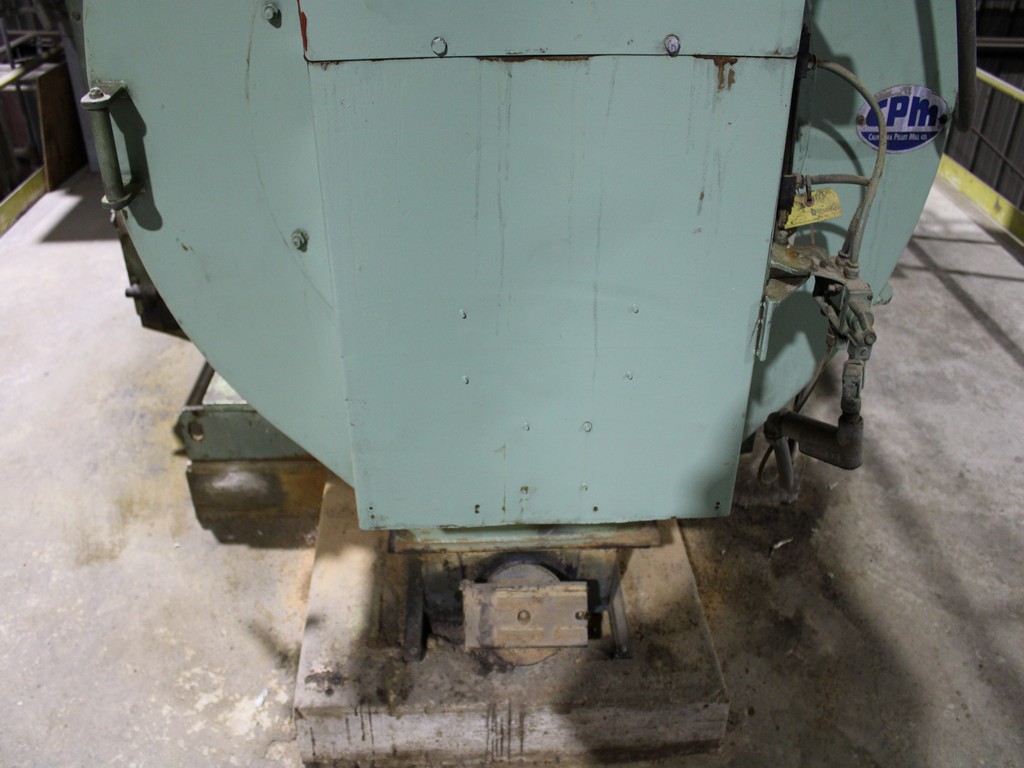

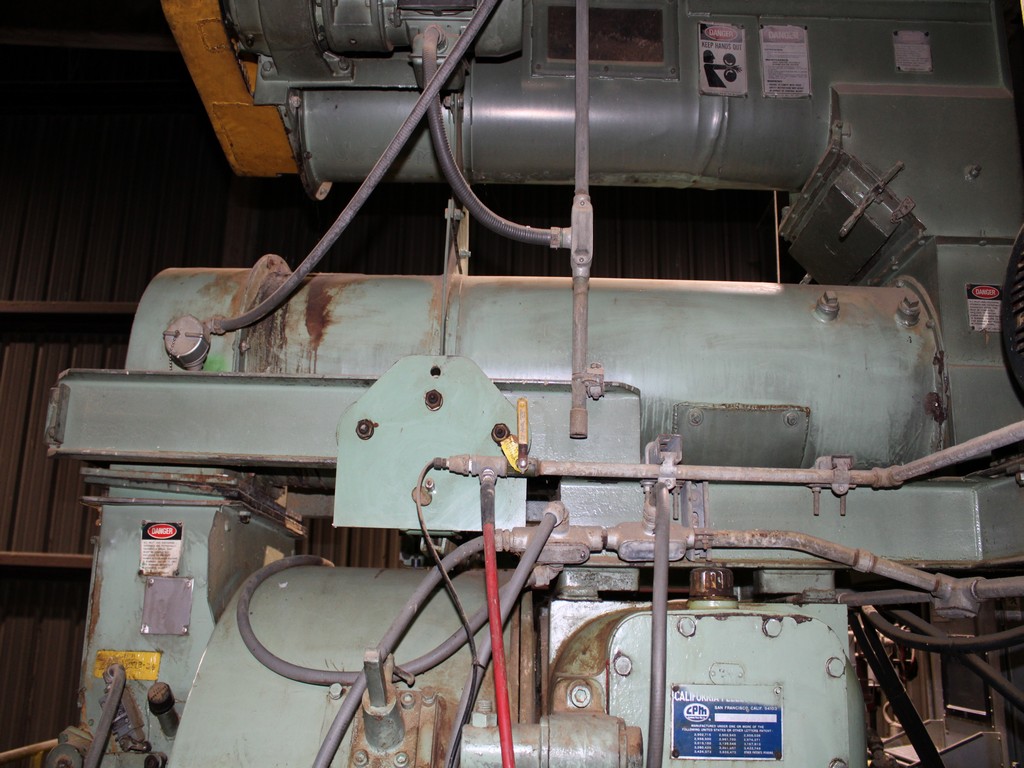

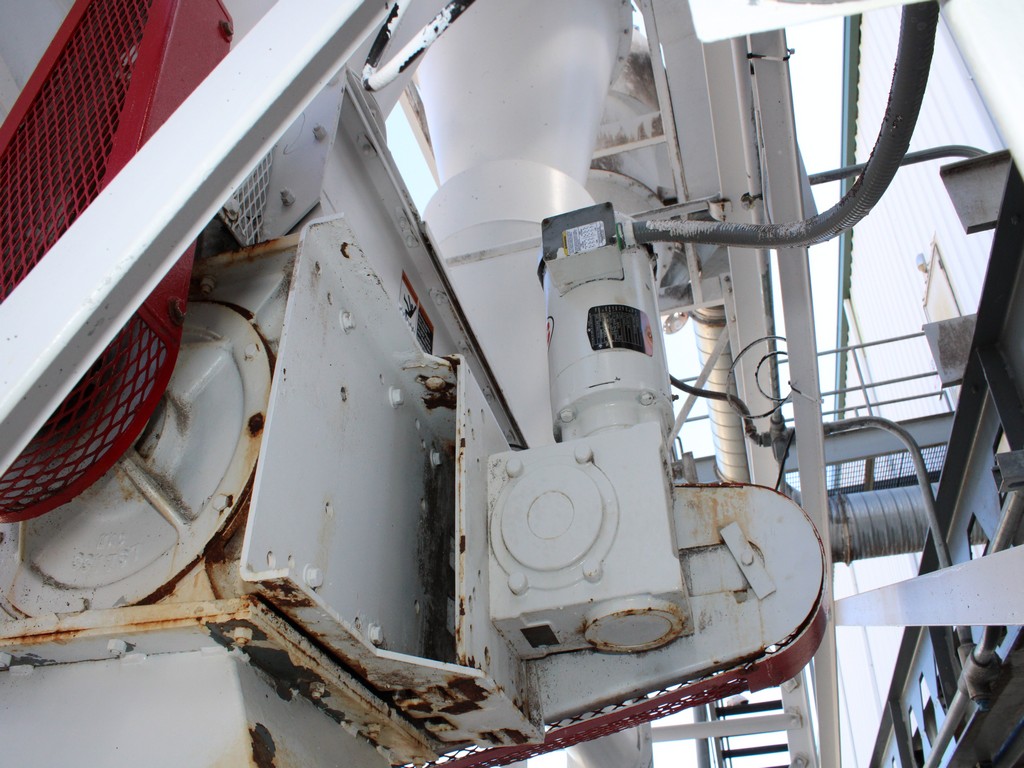

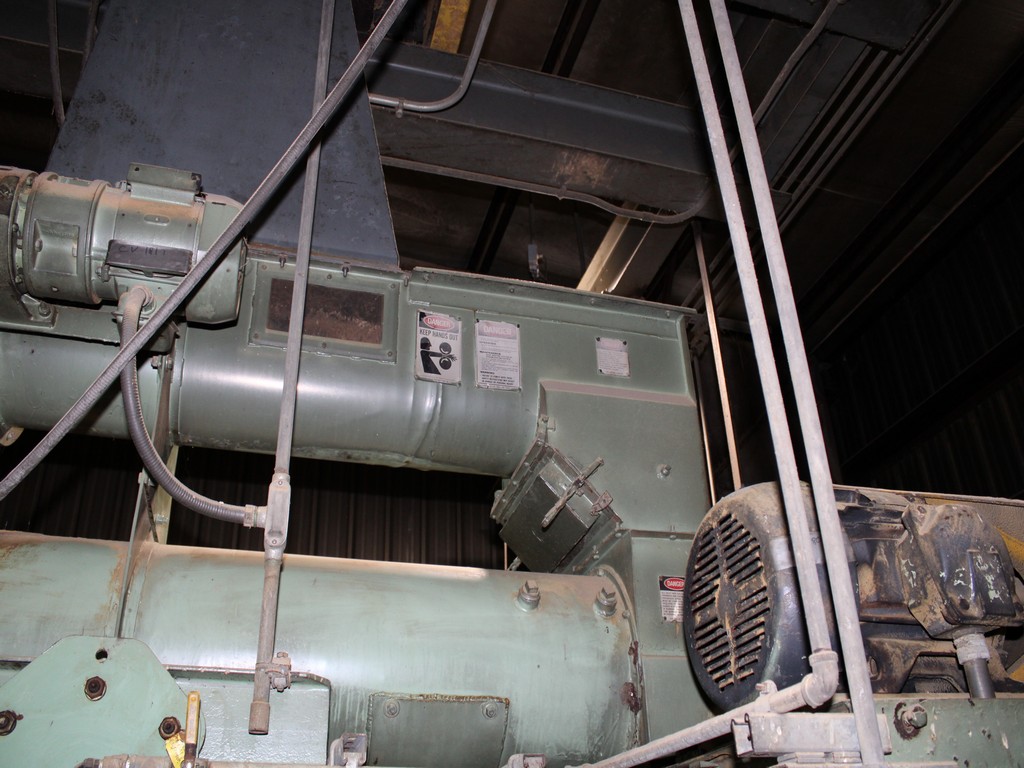

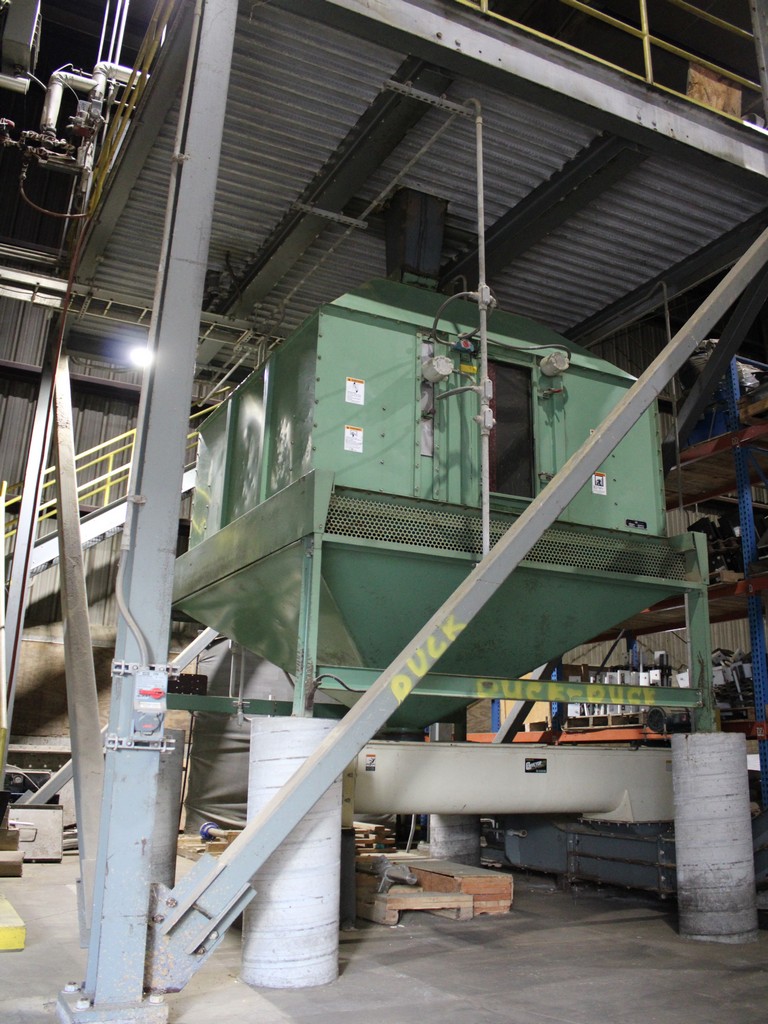

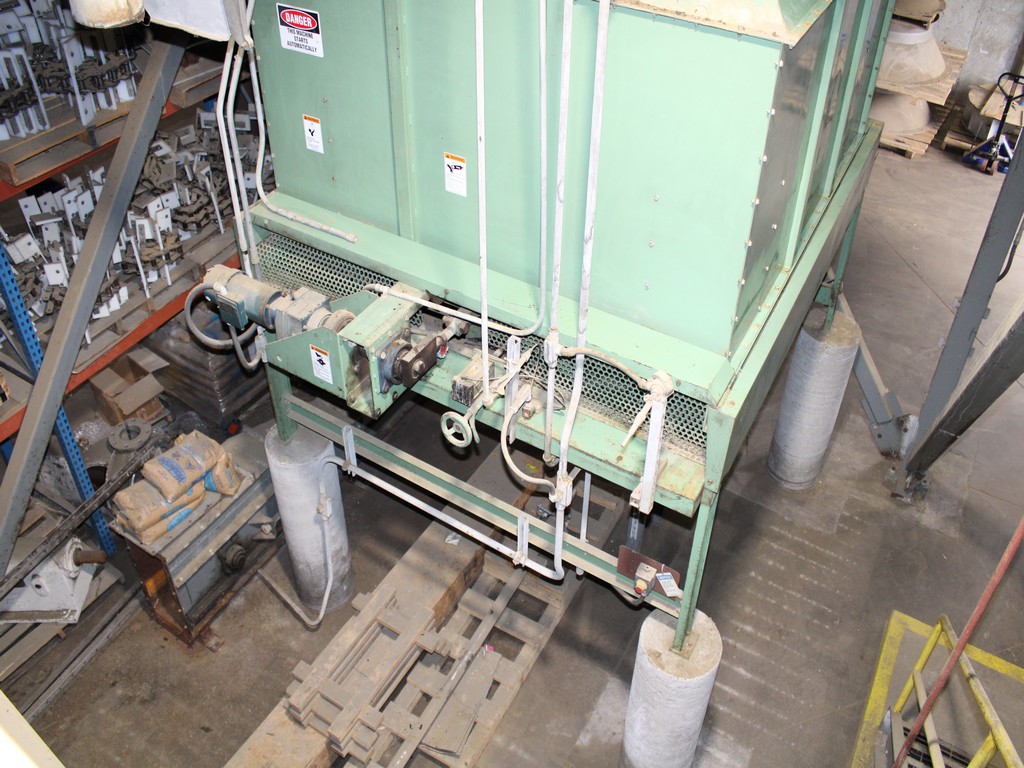

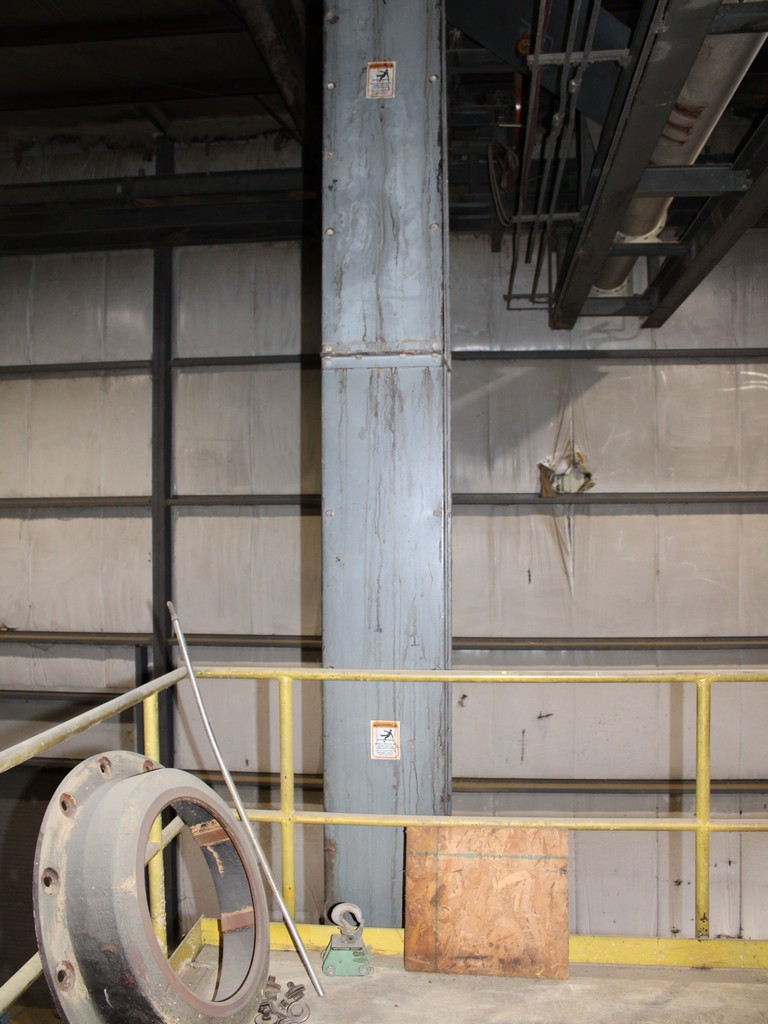

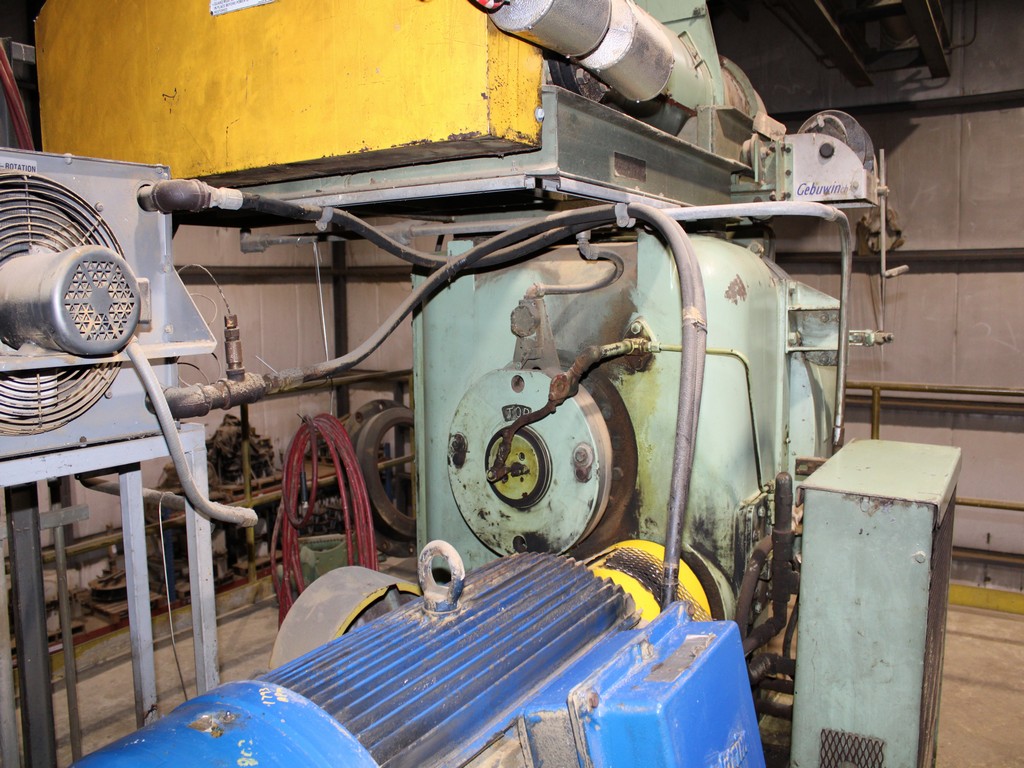

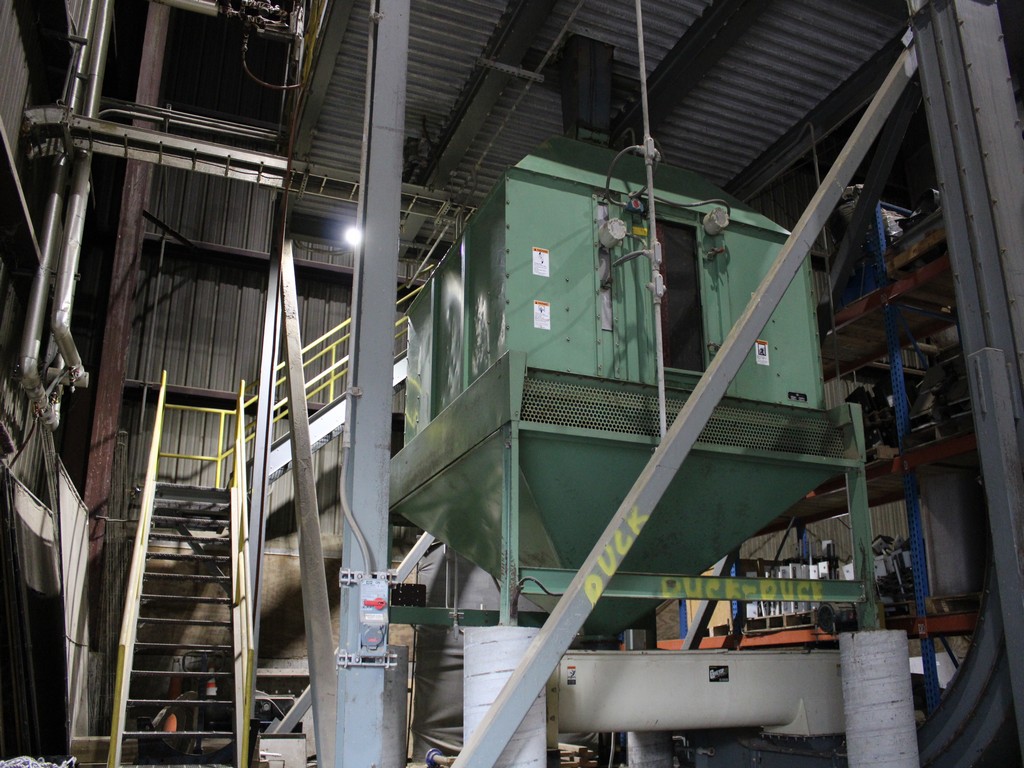

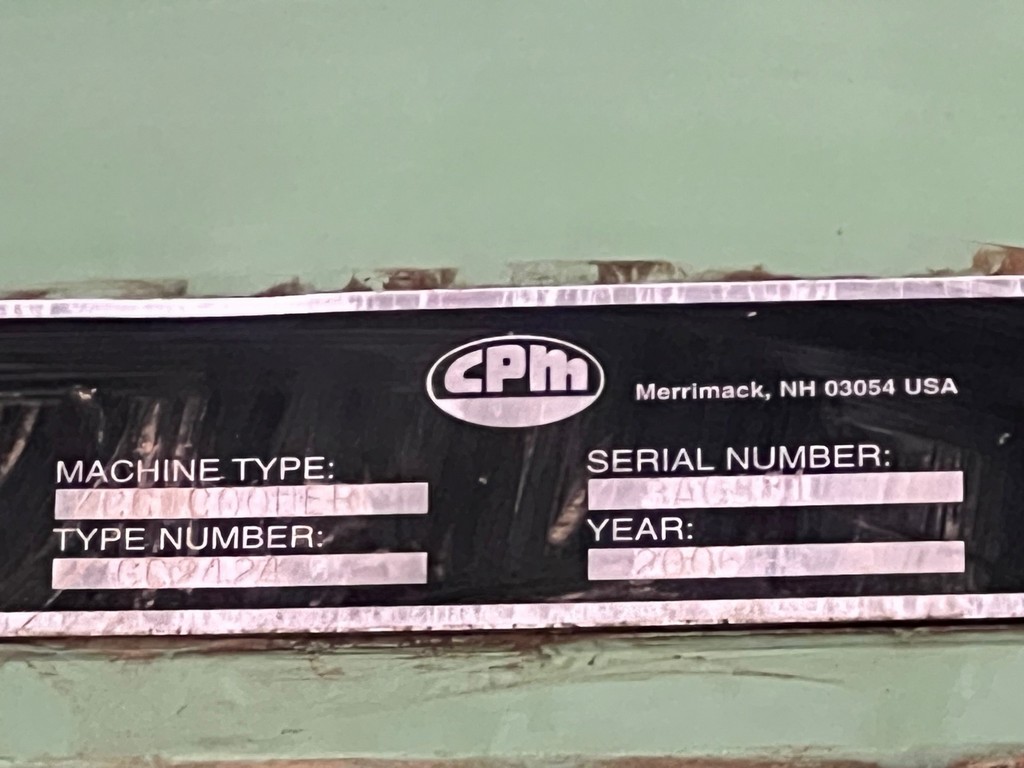

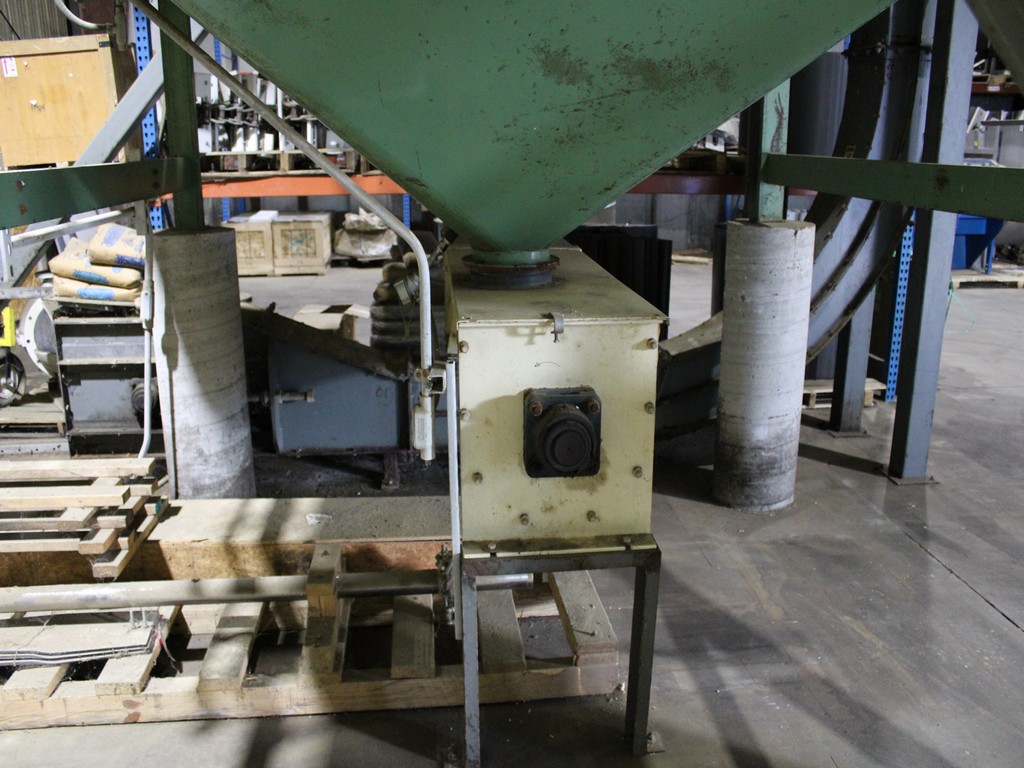

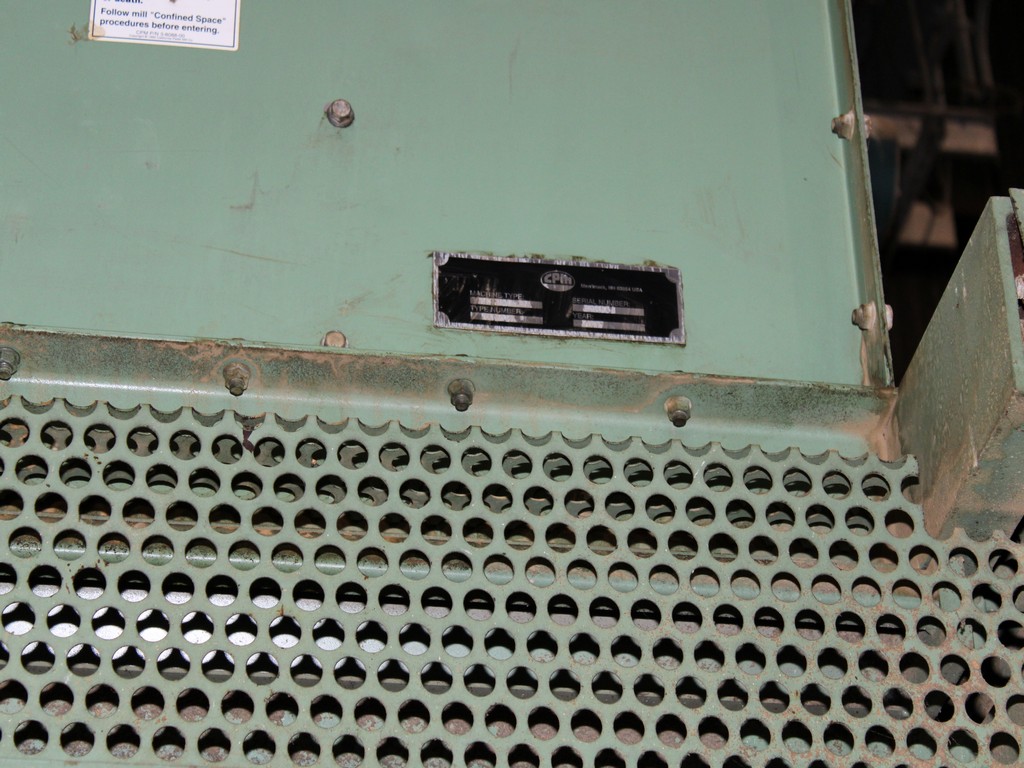

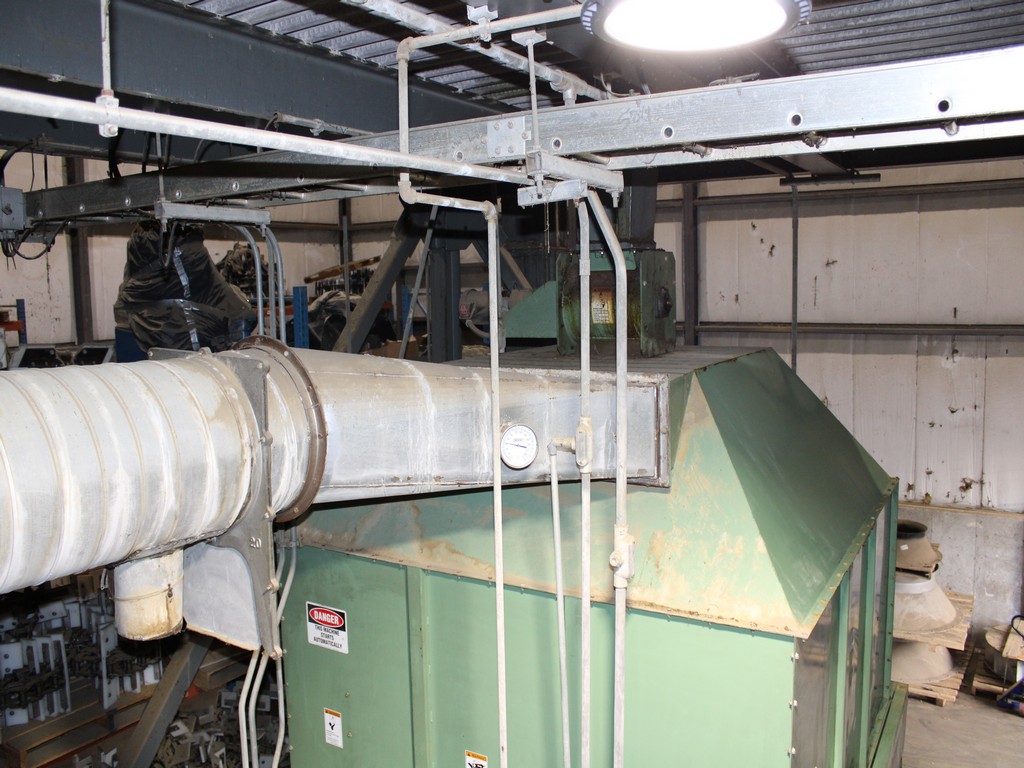

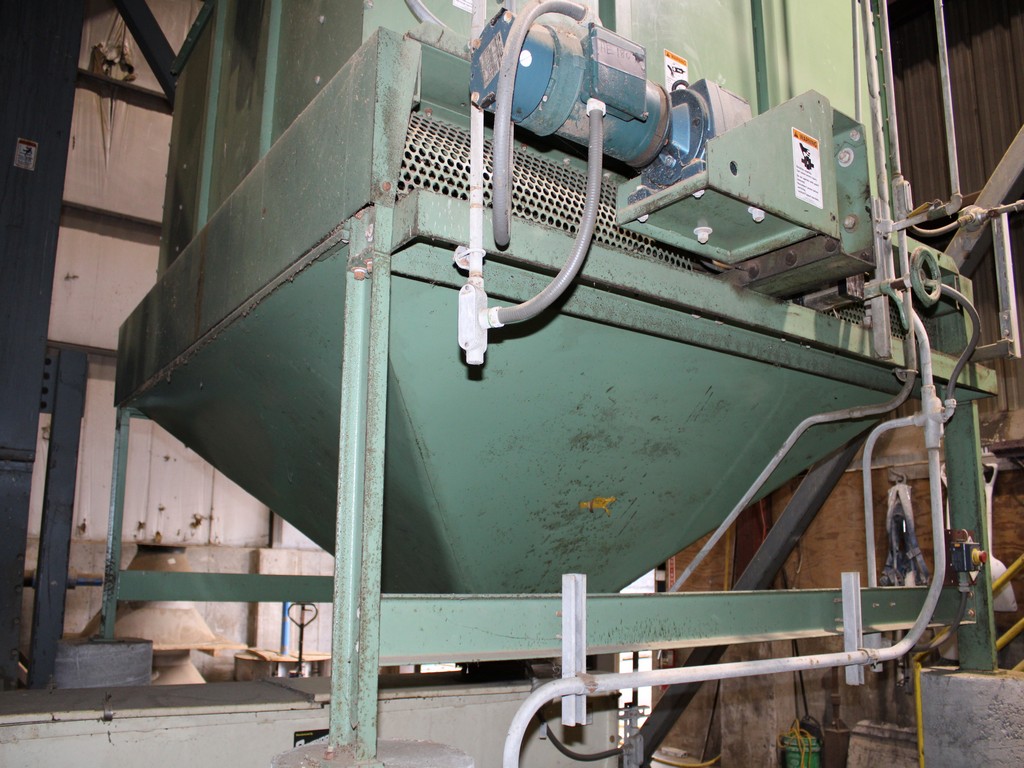

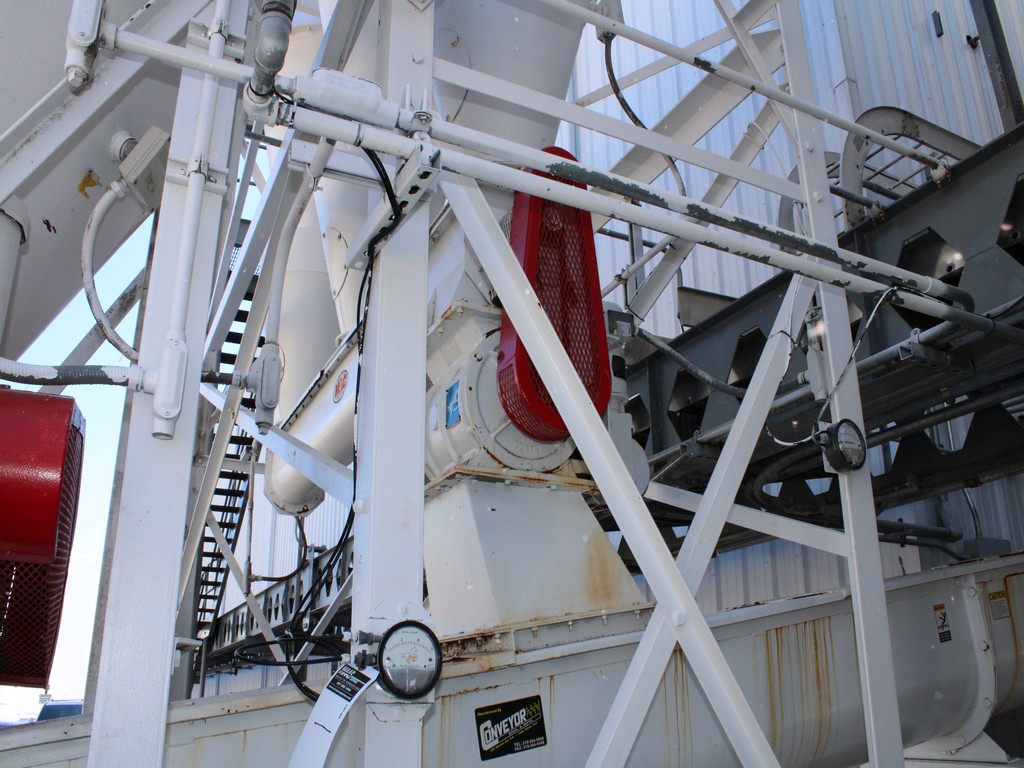

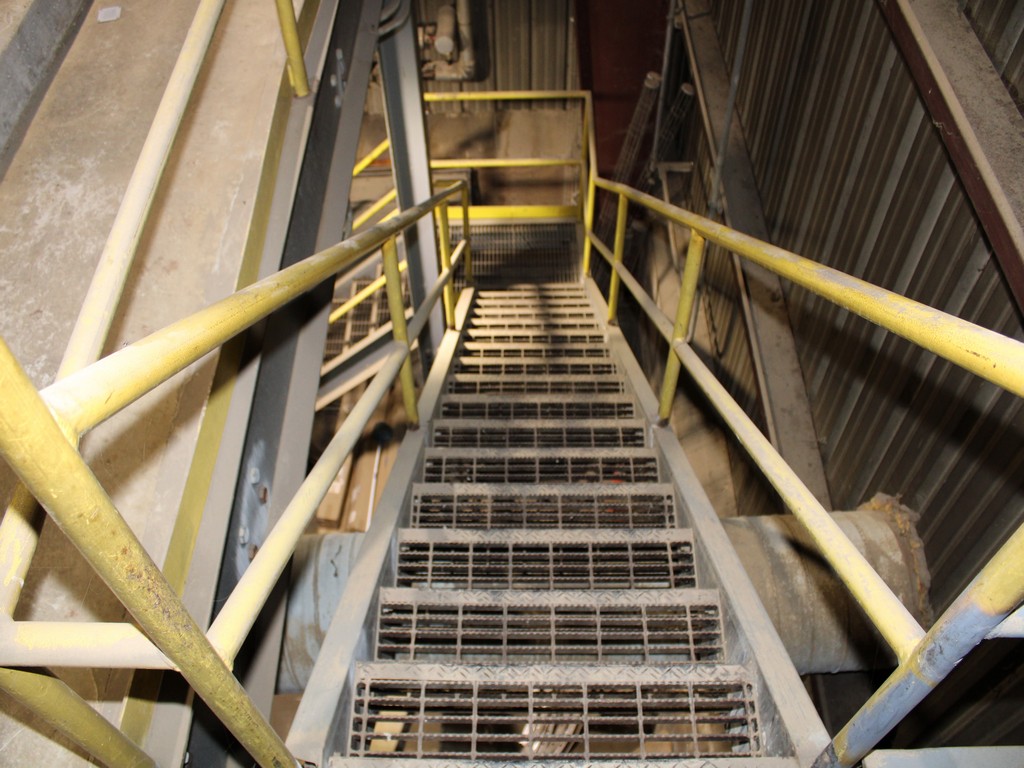

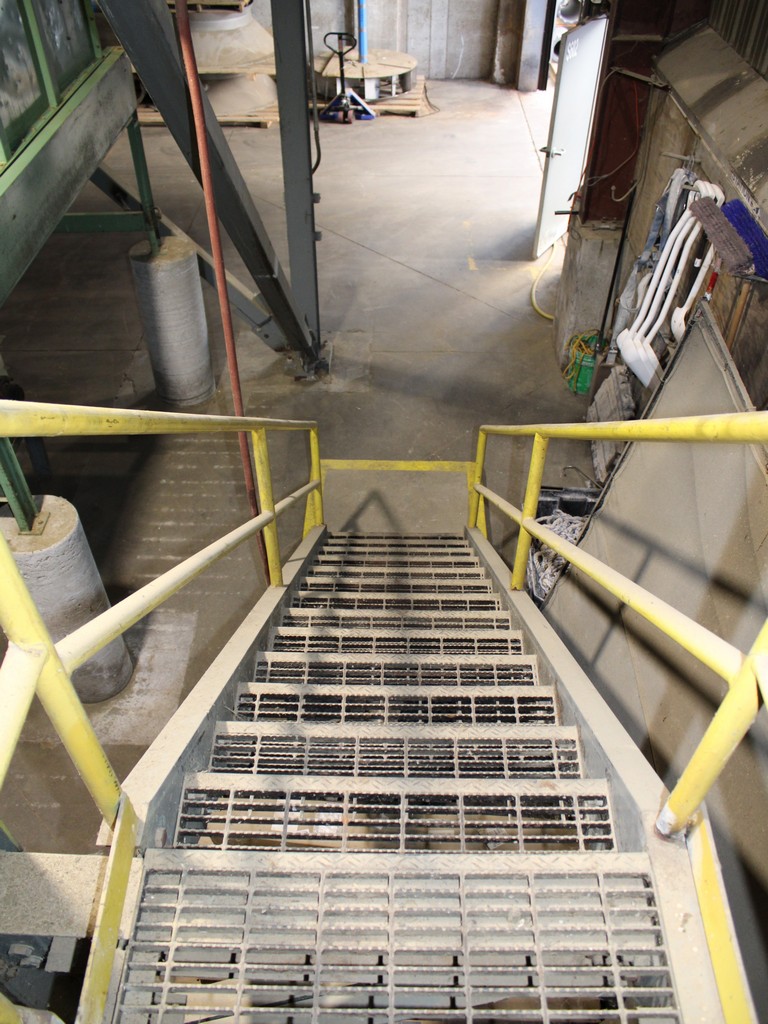

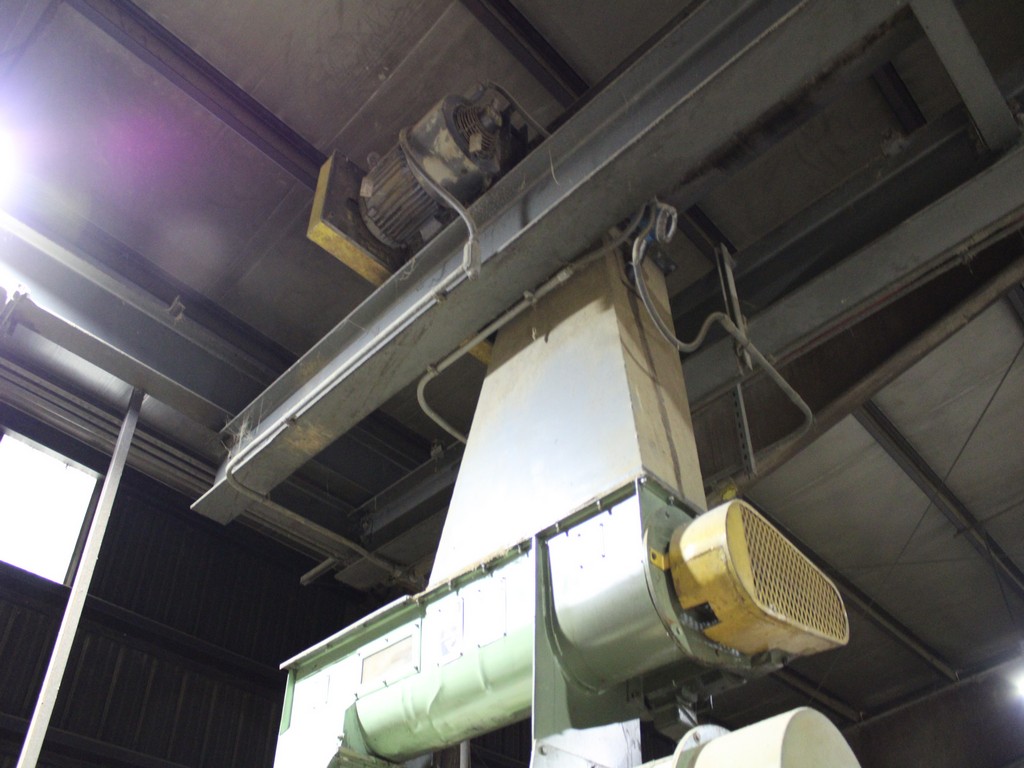

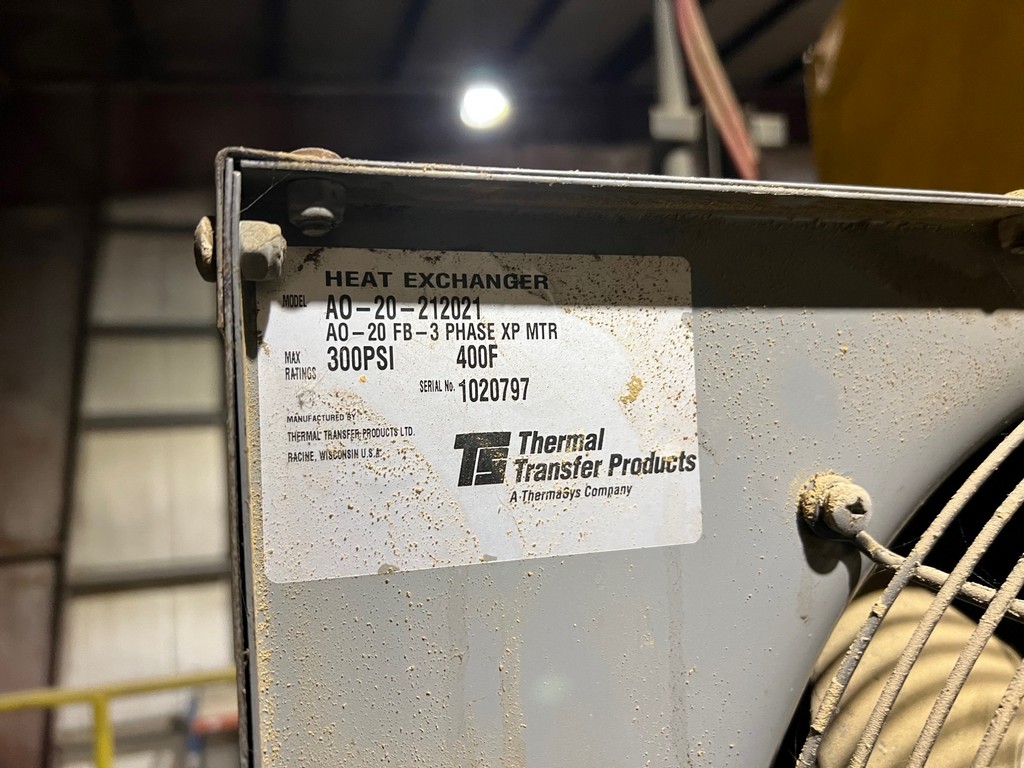

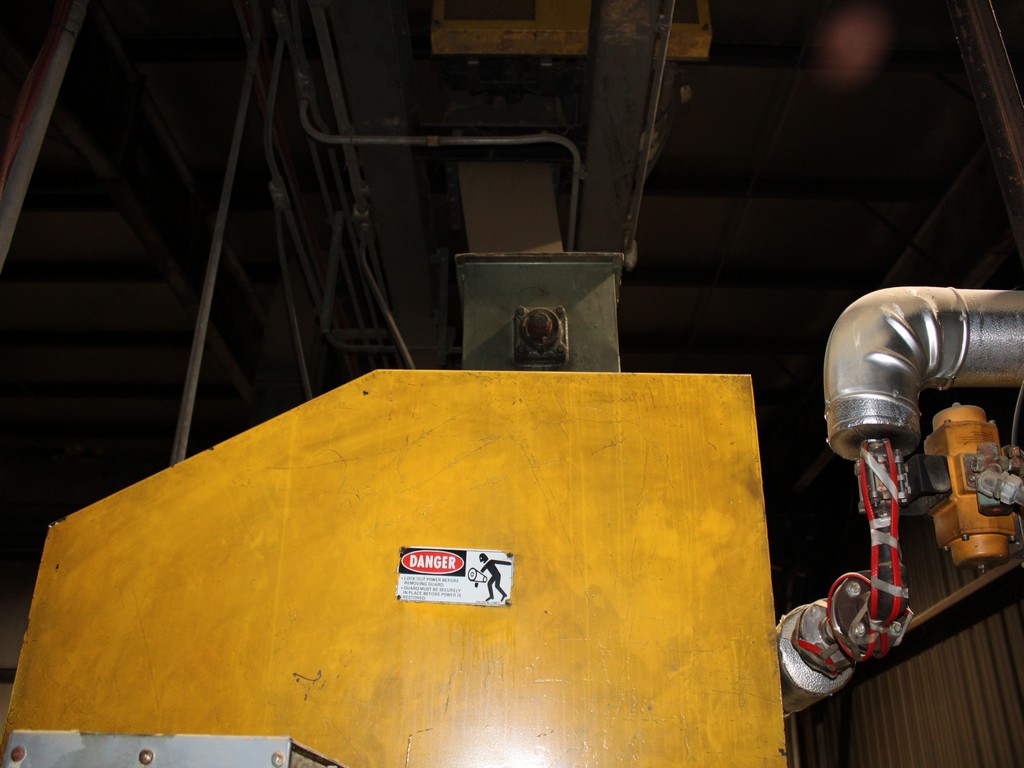

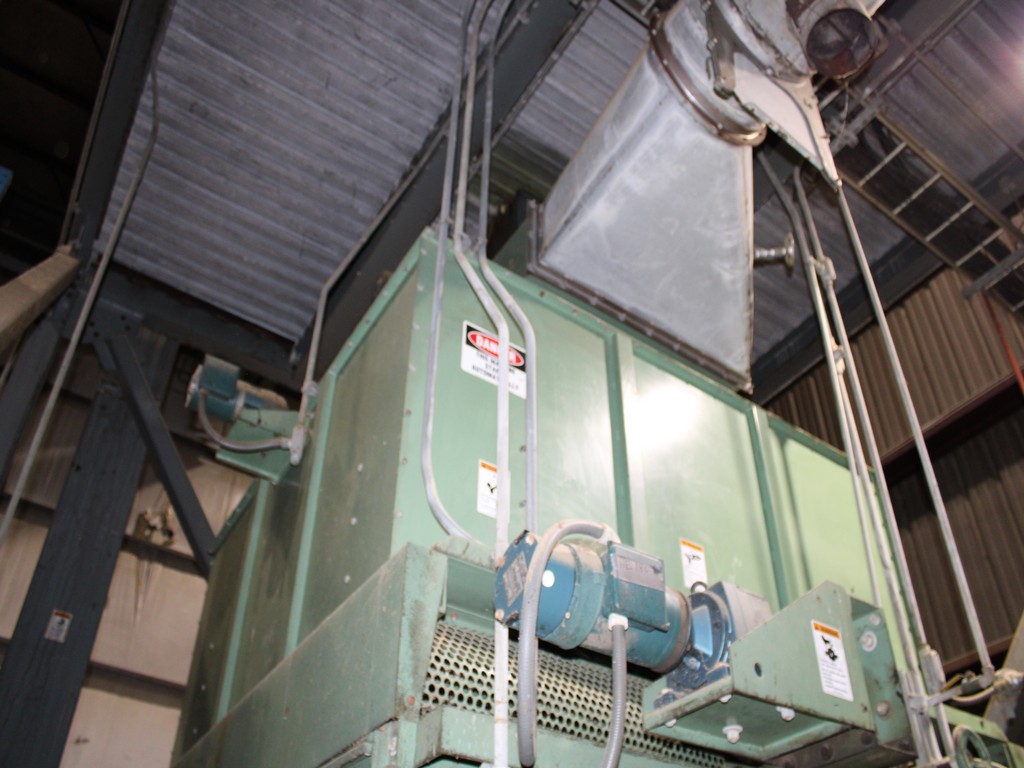

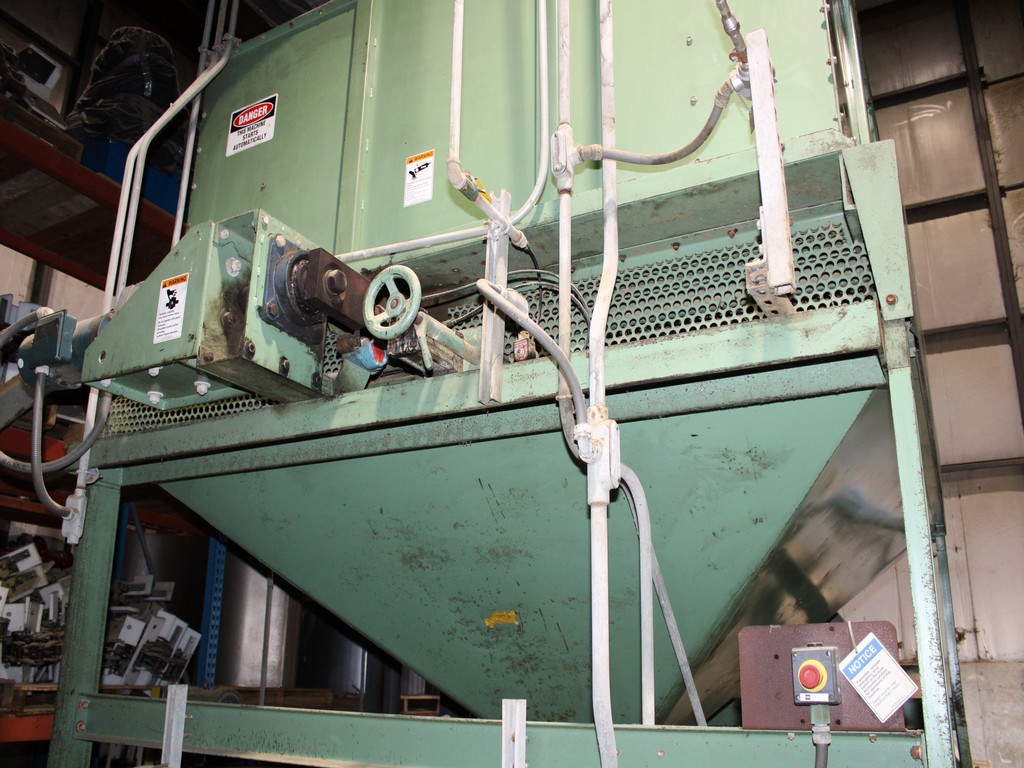

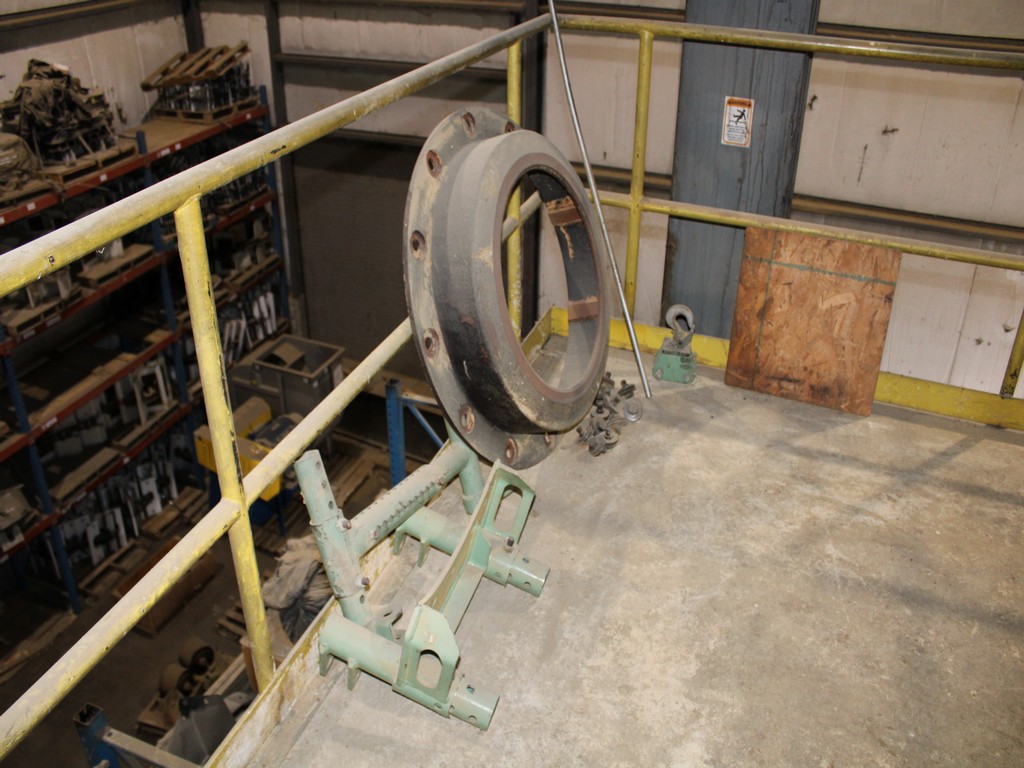

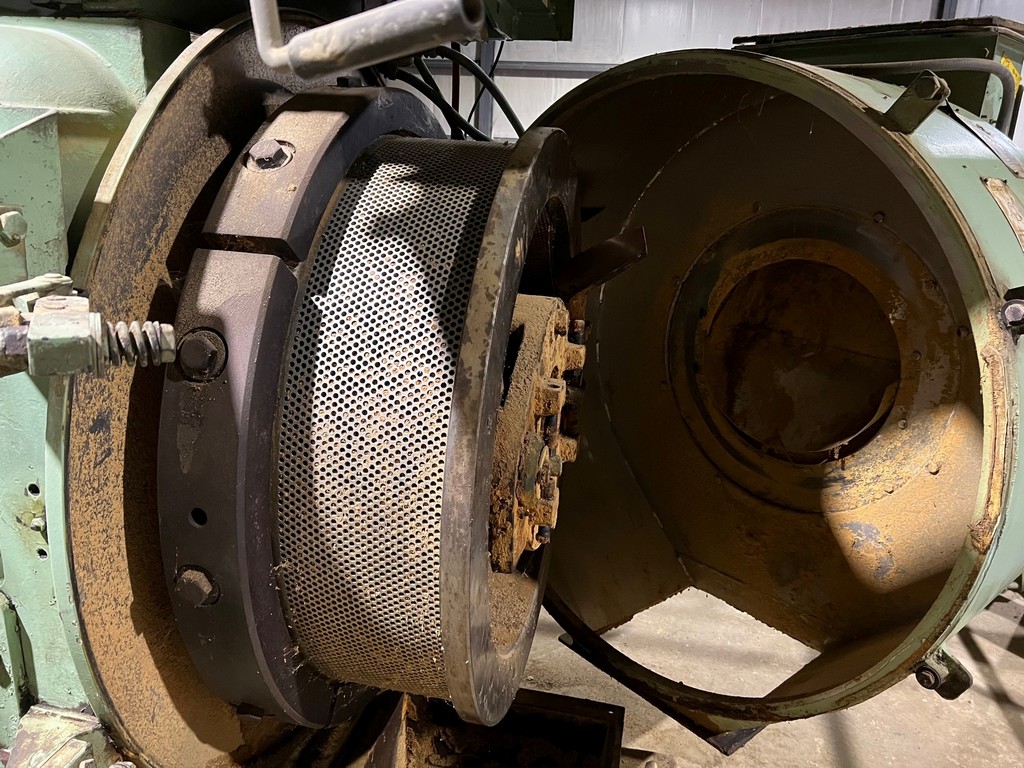

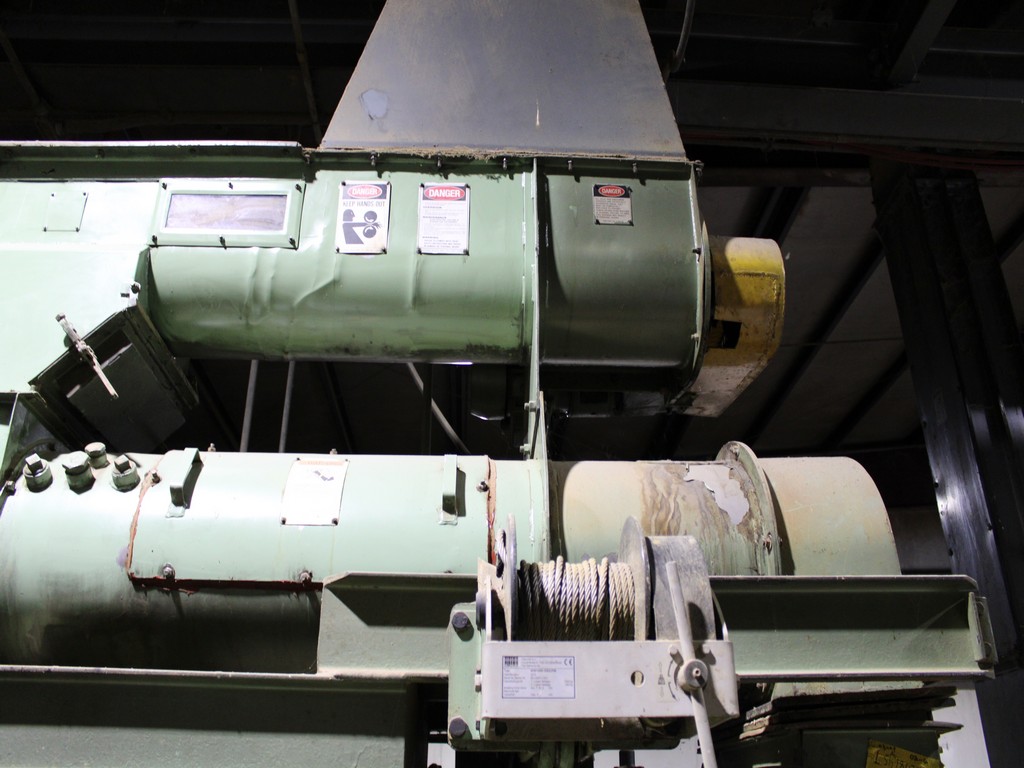

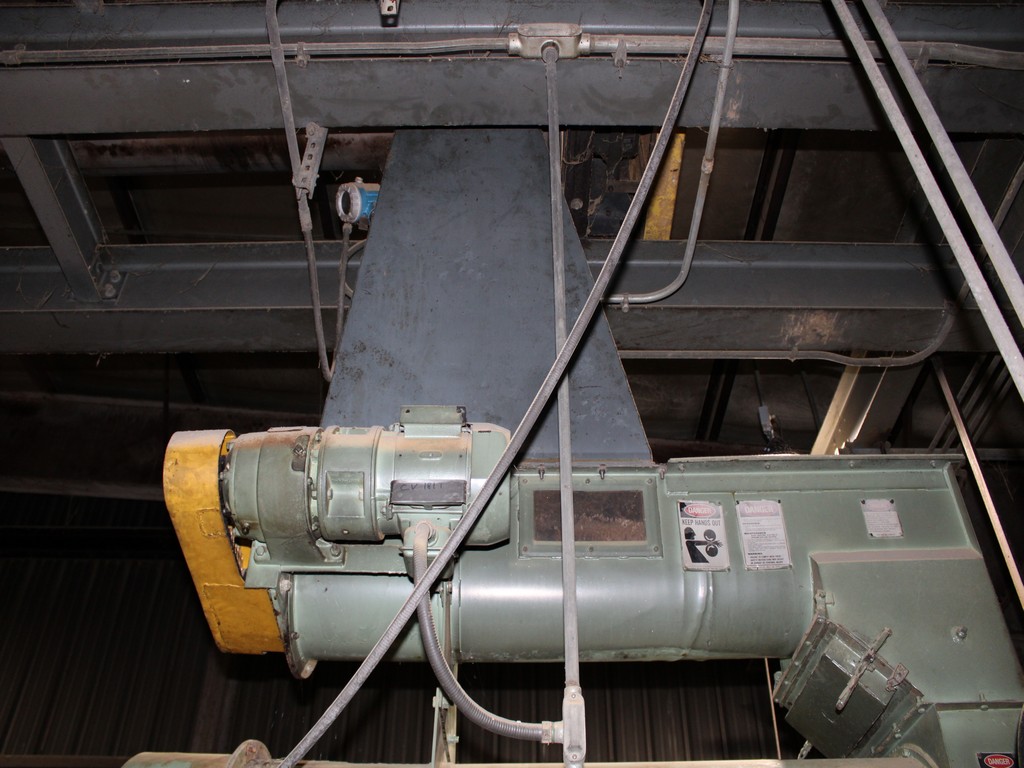

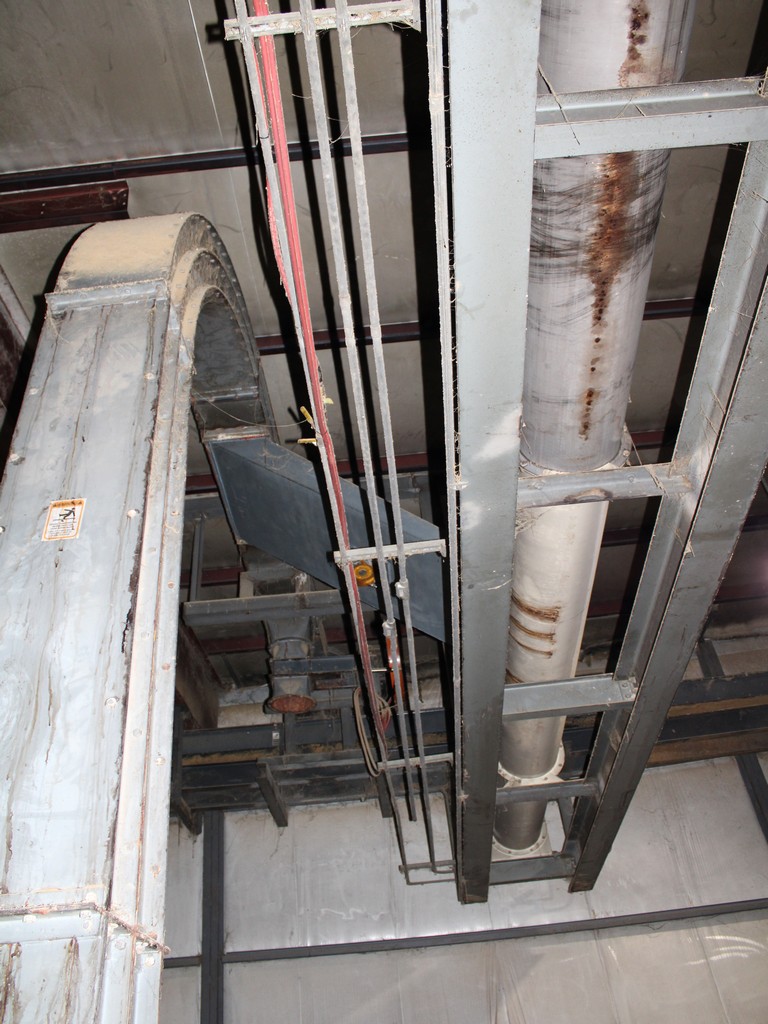

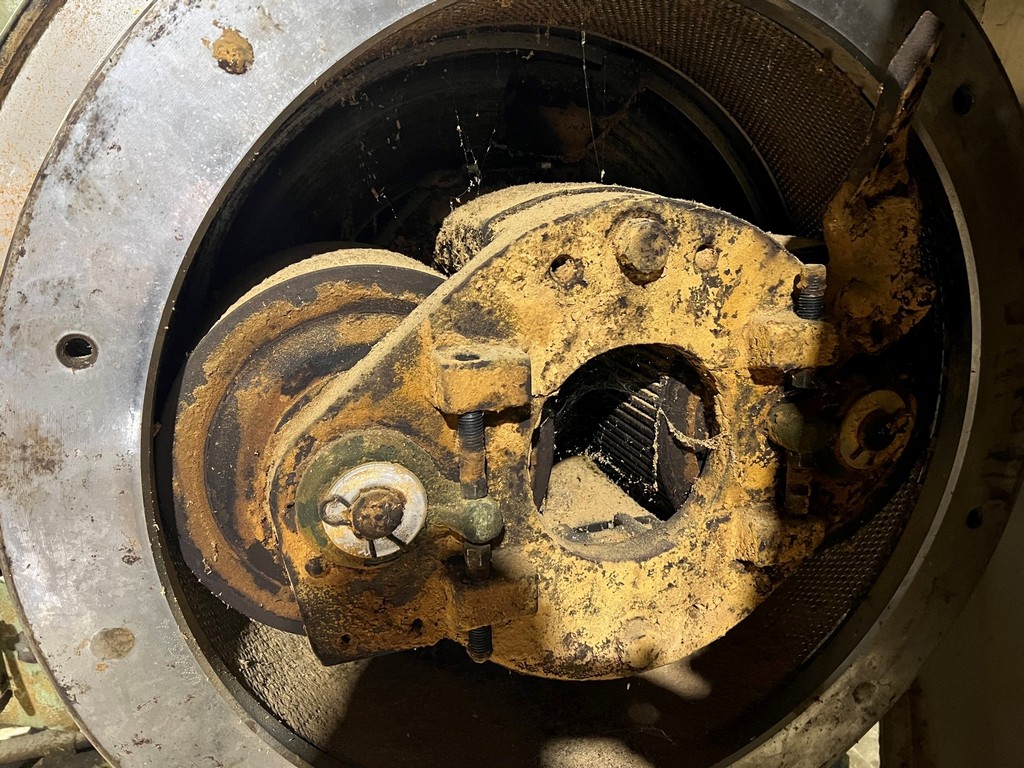

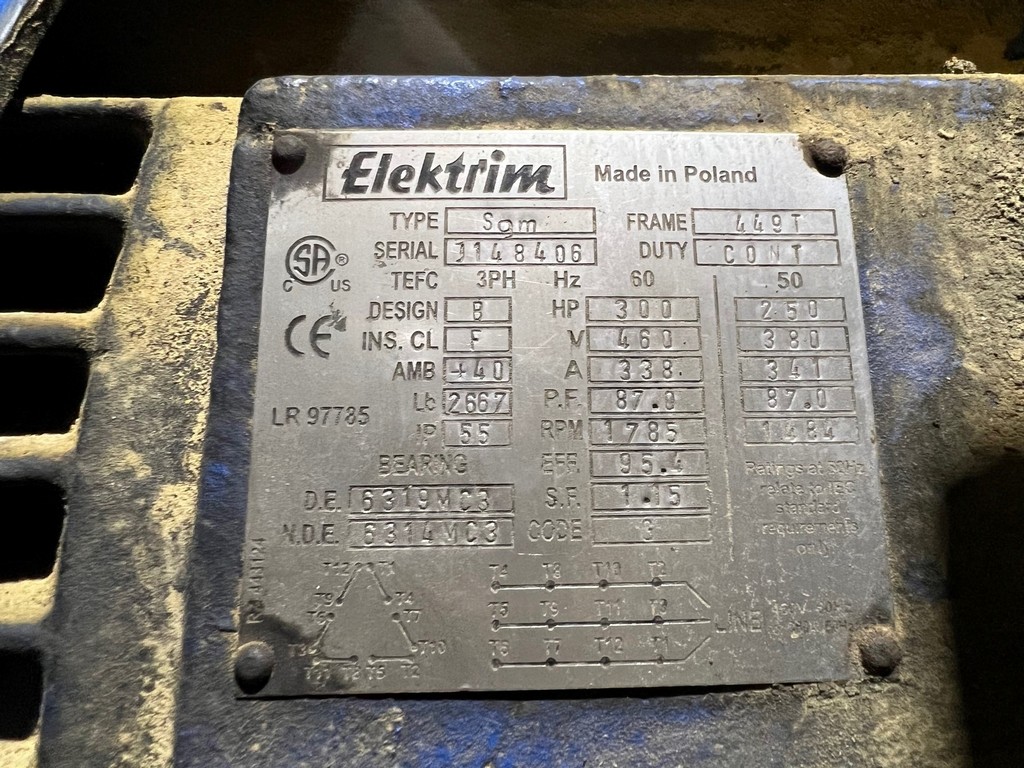

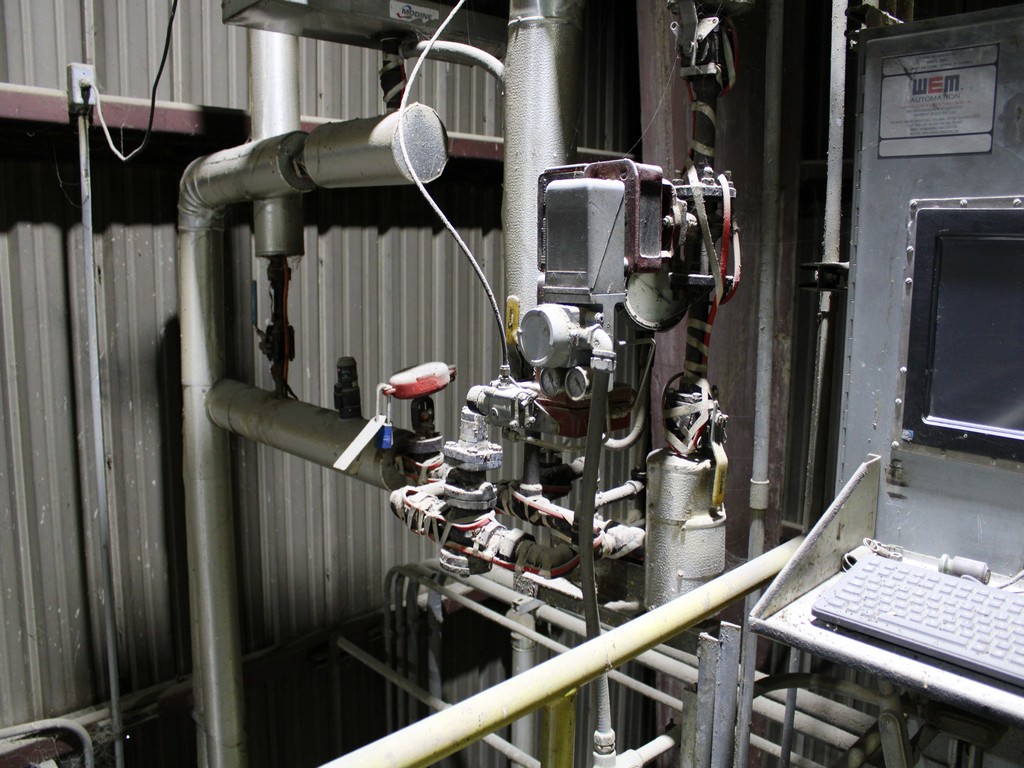

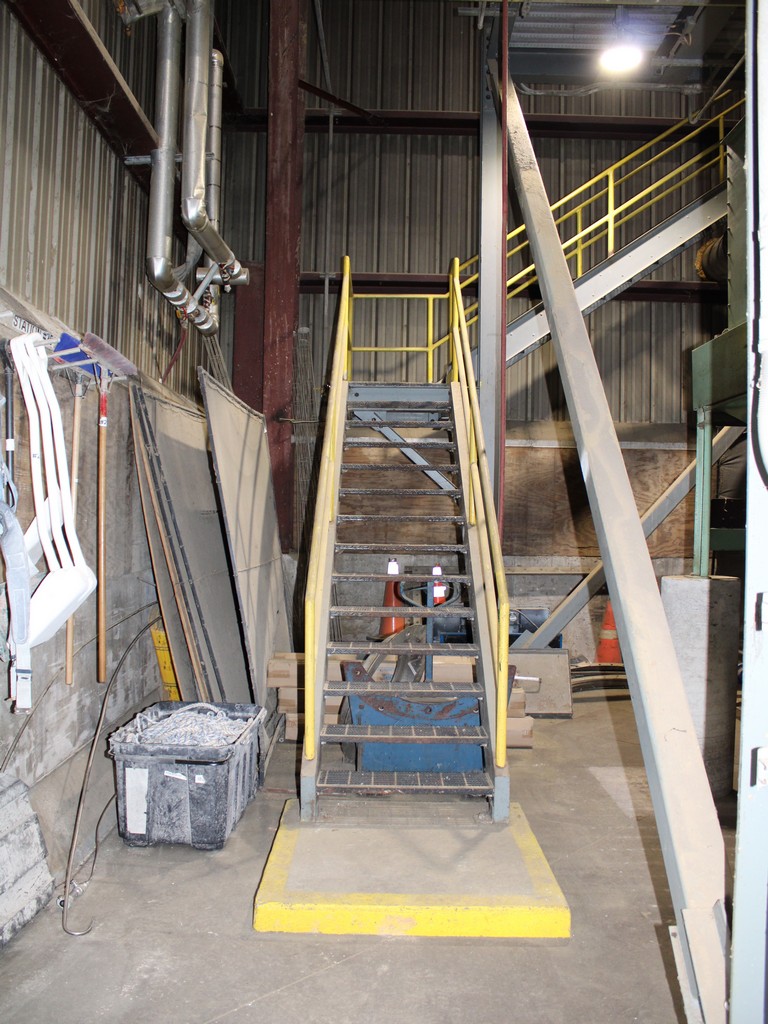

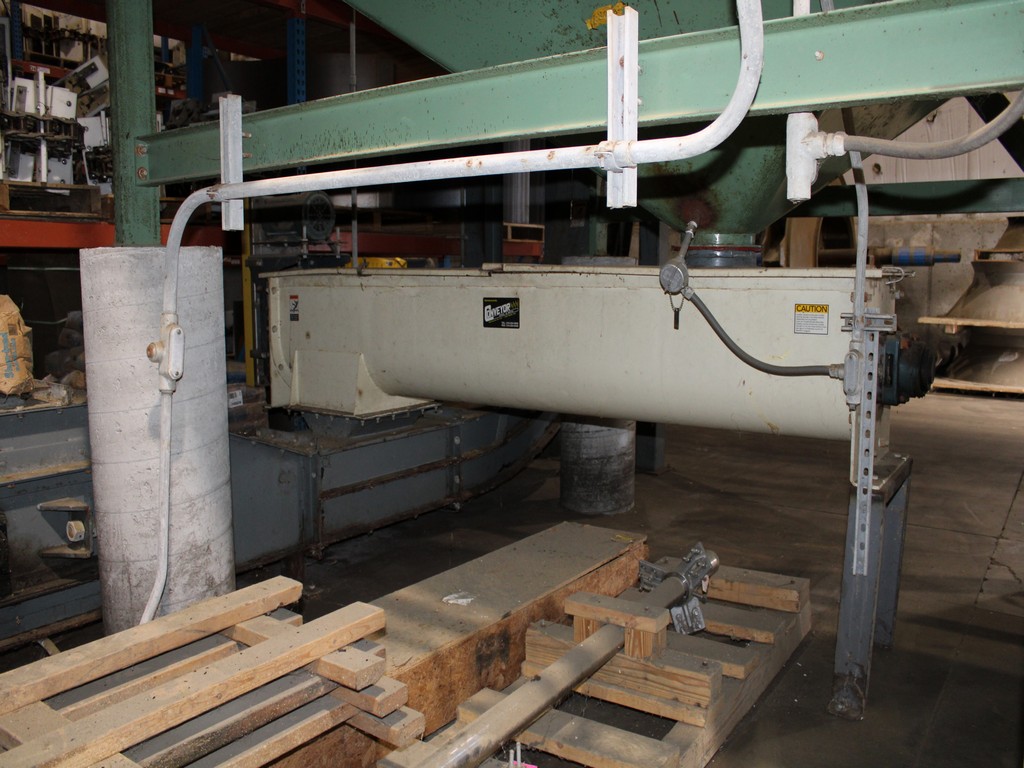

Consisting of but not necessarily limited to: Currently Configured to Produce Animal Feed/Heating Pellets, 5+-Tons Per Hour, 1800-RPMs, Elektrim SGM 300-HP Electric Motor, Frame 449T, SN 1148406; 60"L Top Mounted Feeder Auger, 3-HP Electric Motor, 182T Size; Approximately 60"L Mixer, 20-HP Electric Motor with Gear Drive, Frame 286U; Type 0-3629-23 Die, Die Current Set Up - 2.75" Effective with .25" Relief; WEM Automation Controls, Project #W15388, SN 11538801, Electrical Panel, Control Panel with Elo Super Logics PLC with Keyboard; Thermal Transfer A0-20-21021 Heat Exchanger, SN 1020797, 300-PSI, 400deg. F; CPM CC2424 Counterflow Cooler, SN 3A0381, 2006, CC2424AL Rotary Airlock with Gearmotor, Stainless Steel Exhaust Hood and Bin Walls, CC2424MGA Manual Gear Adjust, Approximately 96" x 96" Cooler Housing on Fabricated Steel Frame and Legs, Bottom Cone, Pellet Cooler Inlet Feeder; Estimated 12" x 108" Bottom Auger Conveyor Discharge; Fabricated Steel Mezzanine, I-Beam Columns, approximately 18'-9" x 15'-6" Area, Estimated 20'H, Poured Concrete Floors, (2) Flights of 32"W Steel Stairs, Hand Rails; Drag Chain Conveyor Elevator, 16"W x 15"D, "S" Shaped from Mill to Ceiling and Wall; Pellet Mill Exhaust Fan; Dust Collector including Conveyor Engineering & Manufacturing 24'L Auger Conveyor, 10-HP Electric Motor, Frame 215T, ID No. P21S3027; Falk 5207325A Quad Drive; MAC Cyclone Assembly including (3) Approximately 30" Diameter Cyclones with MAC 10'L Bottom Auger, Reliance 2-HP Electric Motor, MAC SS1767 Rotary Airlock; MAC 39AVBC38 Dust Collector, SN 102919-005-1 with MAC MD139 Rotary Airlock, SN 81044-0045-1; Twin City Blower 926 RBR-SW 9FL 52 Blower Fan, SN 06-221362-1-1, Teco Westinghouse MAX-E 150-HP Eletric Motor, Frame 445T, SN FR AC065024-3; Includes Operations/Parts/Service Manuals. Modine Steam Heater; Winch Assembly; Oil Cooler and Oil Pump Motor; Die Hoist and Lift Plate.
