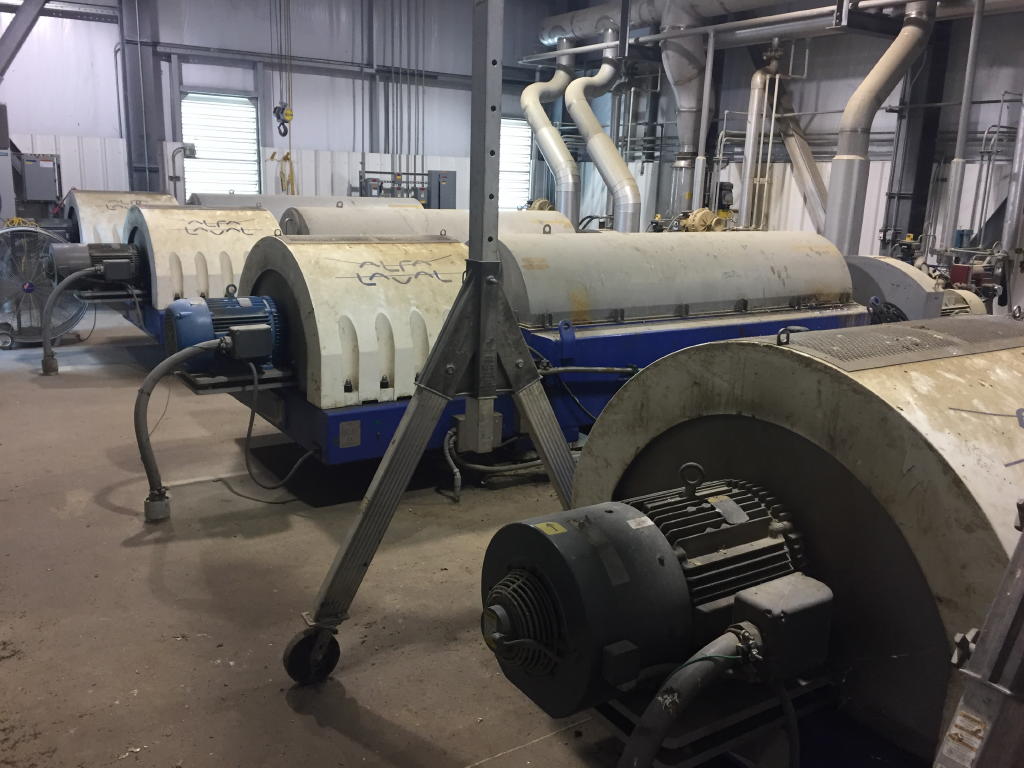

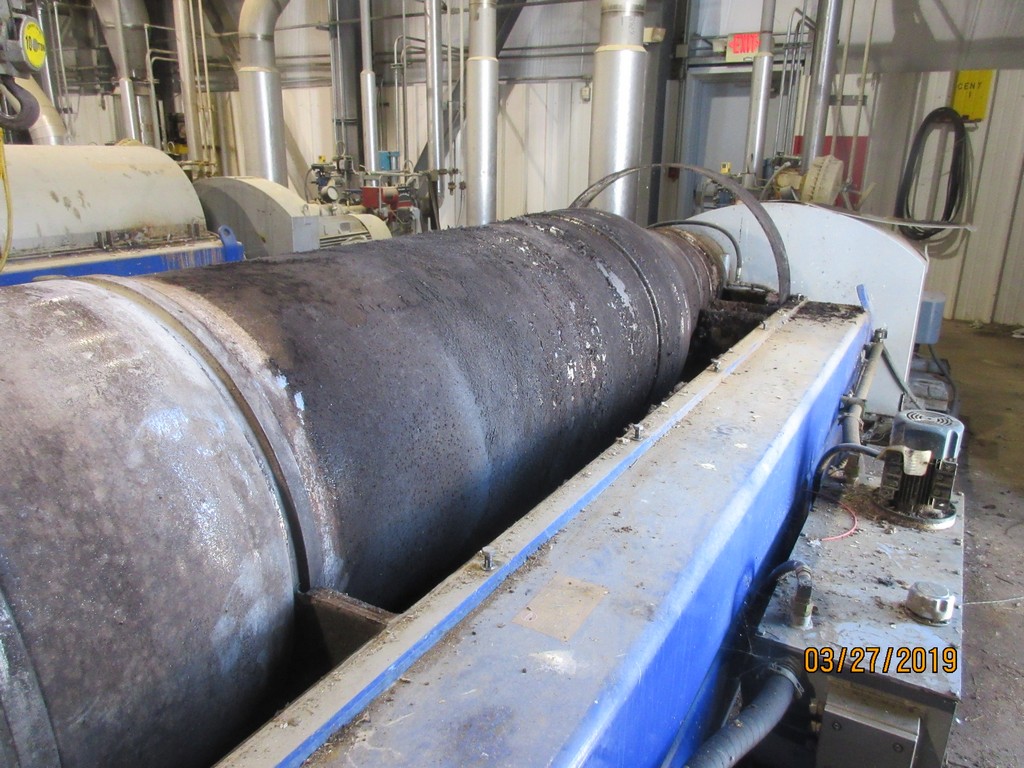

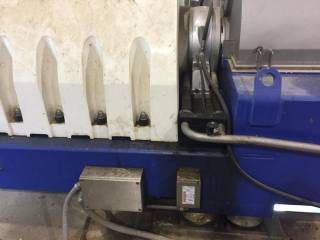

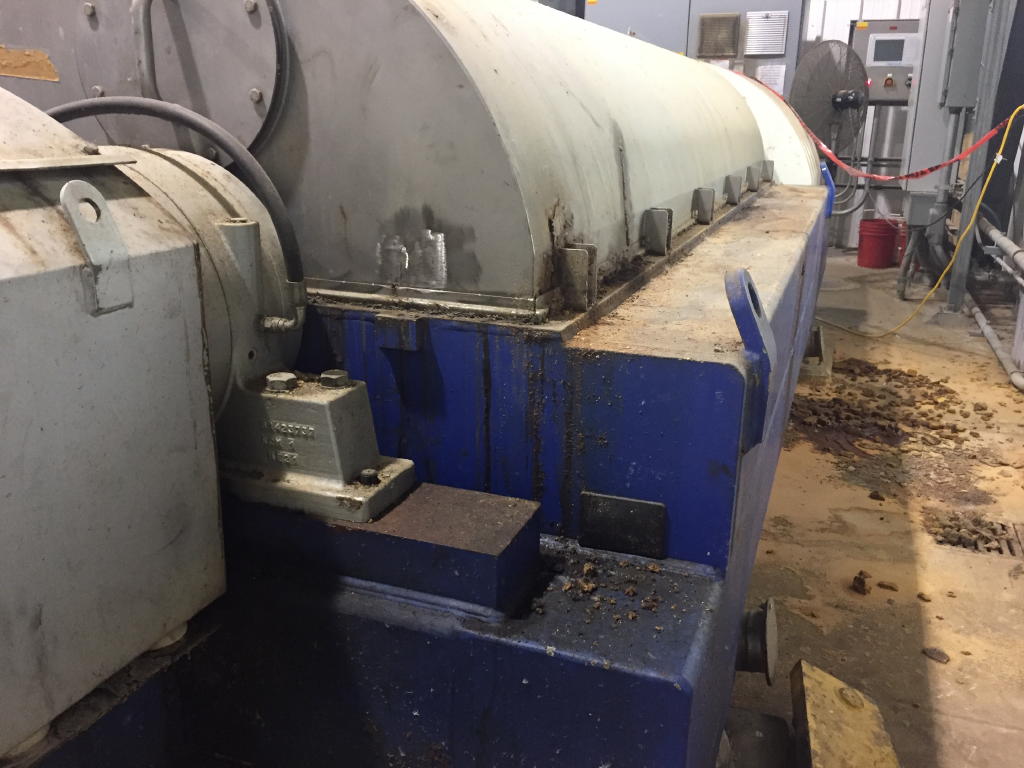

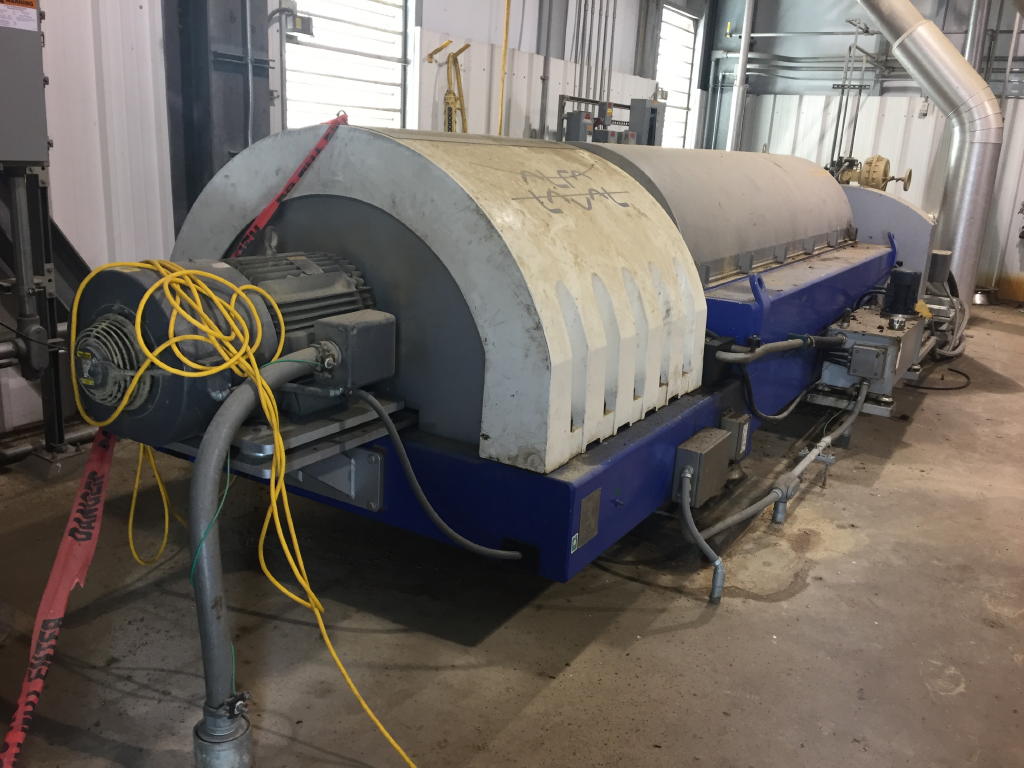

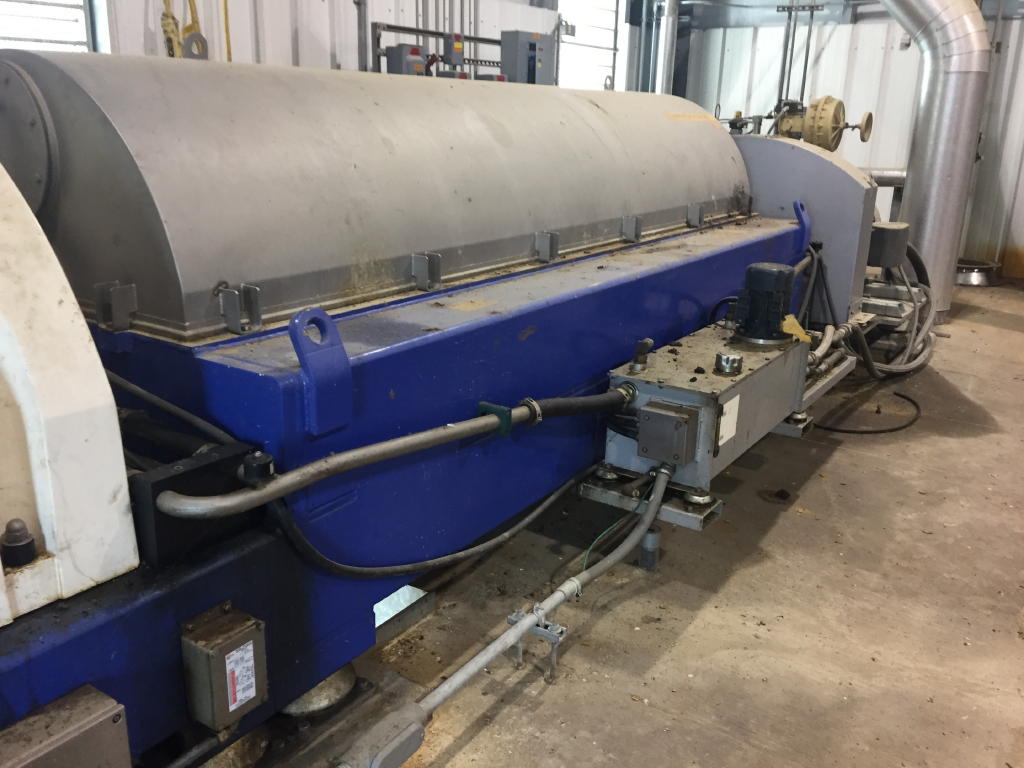

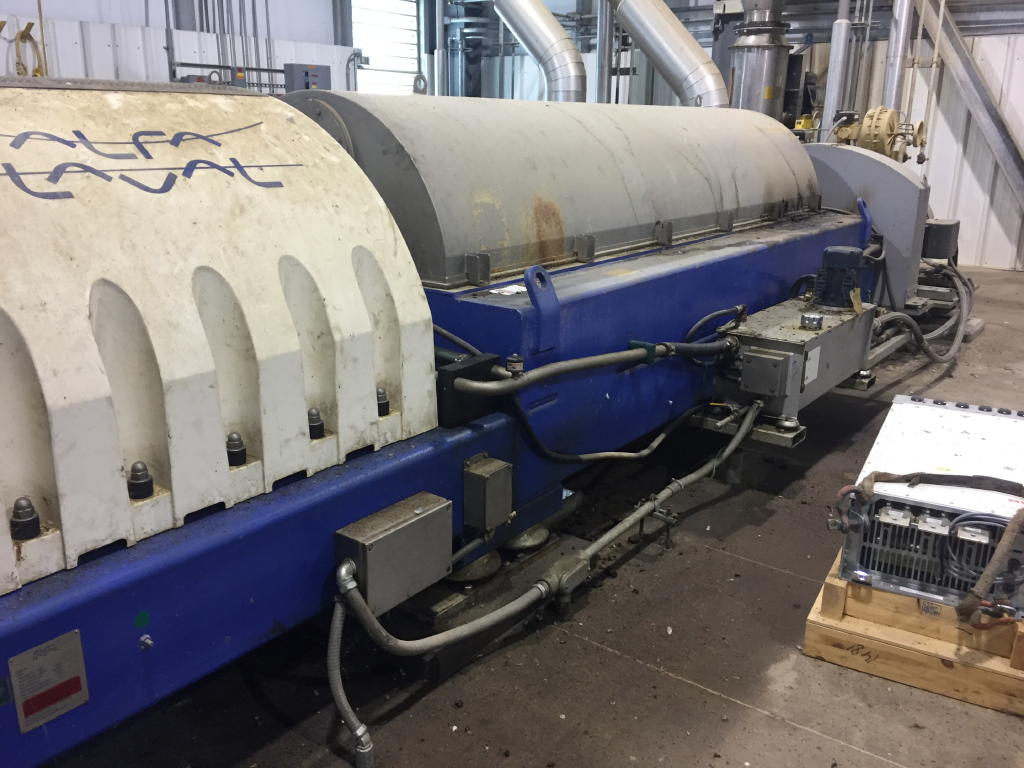

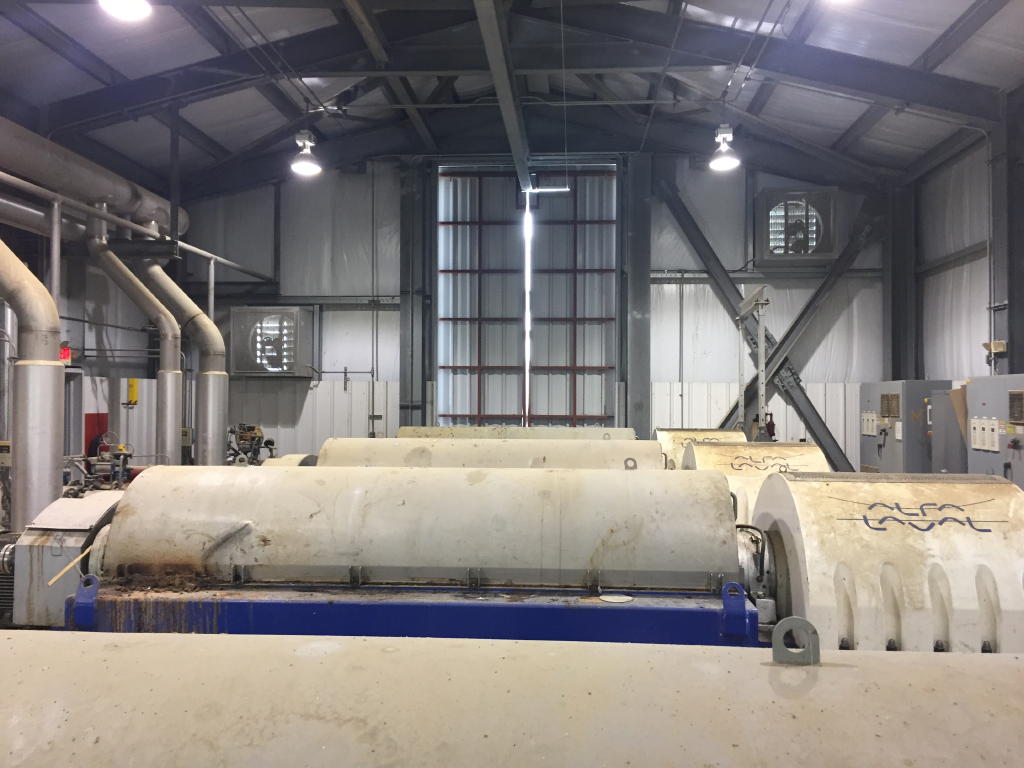

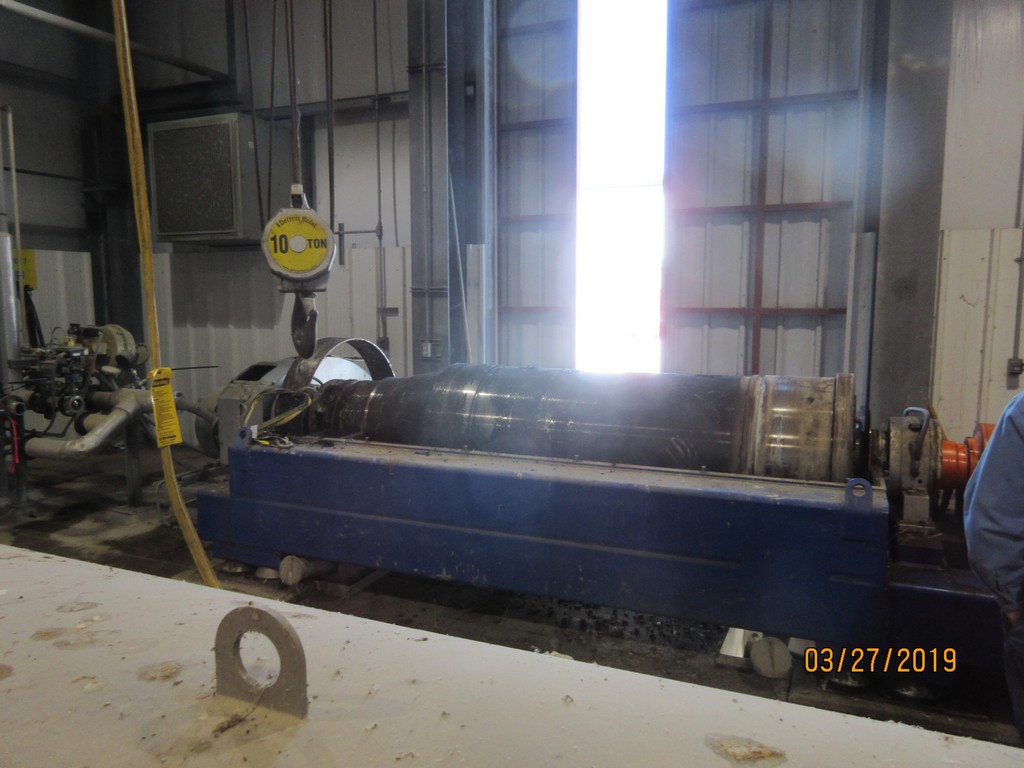

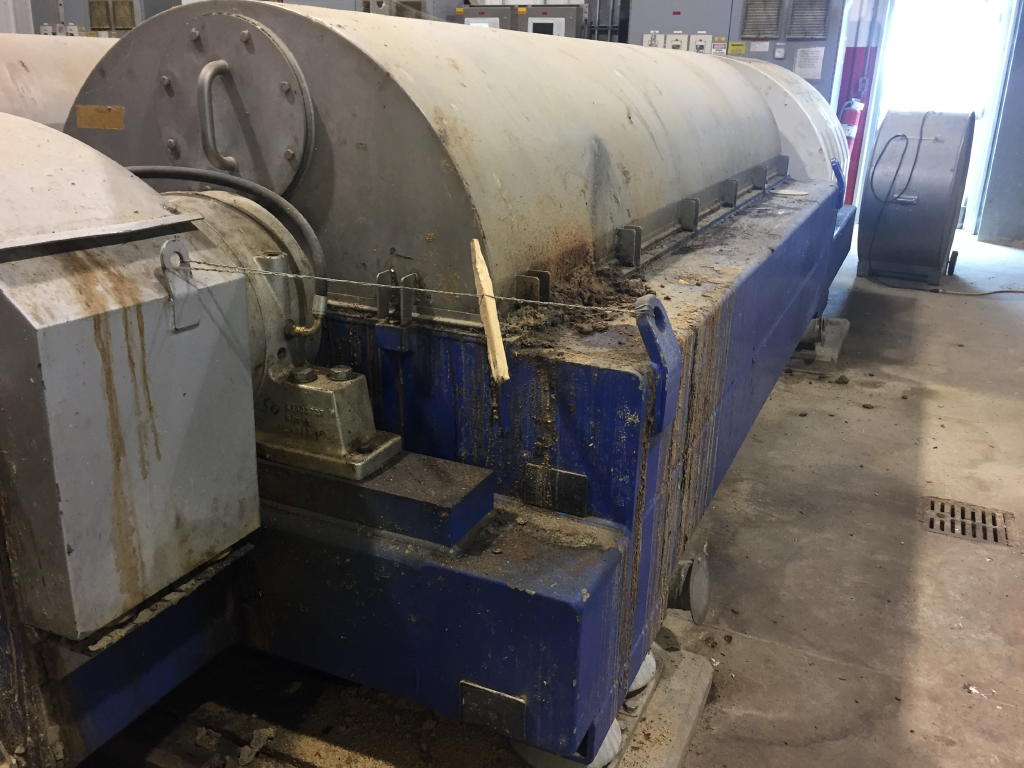

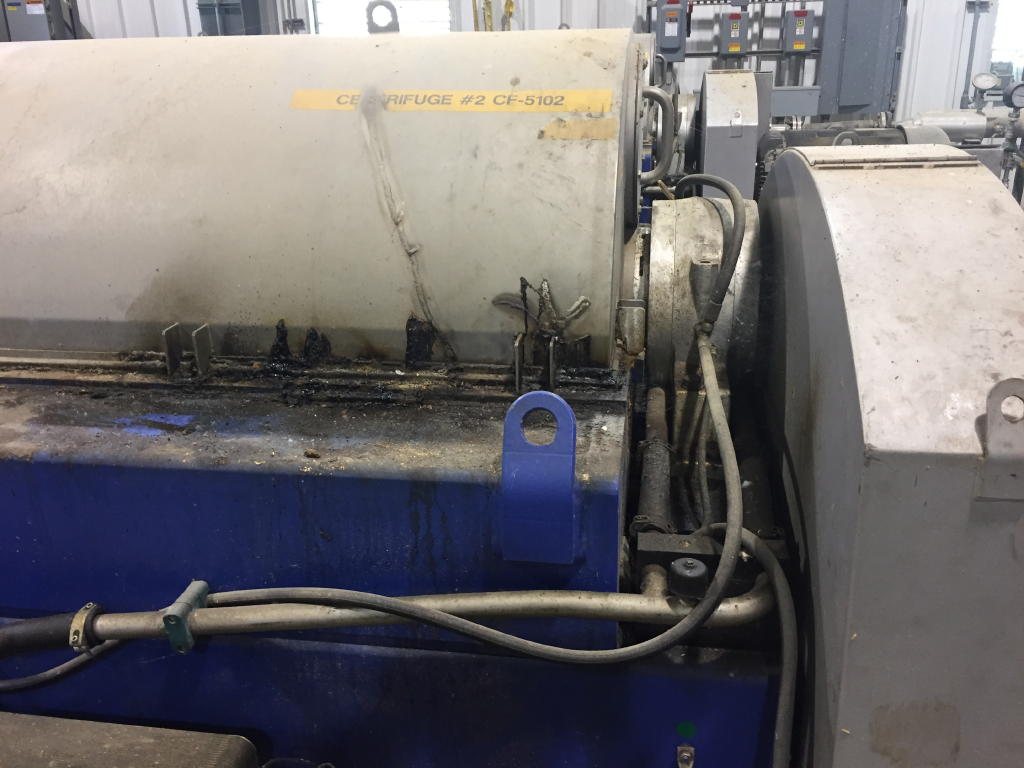

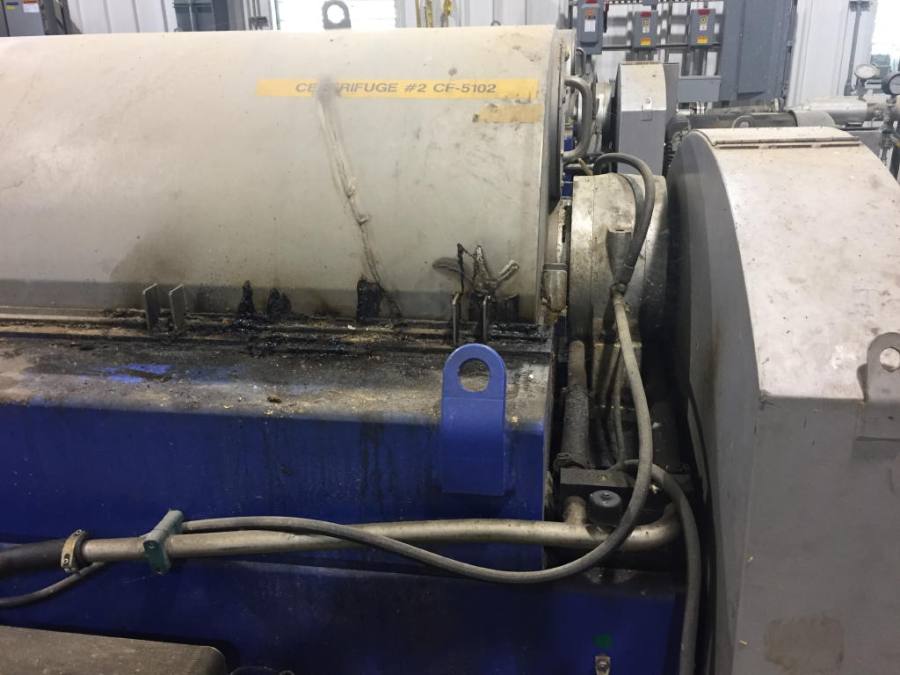

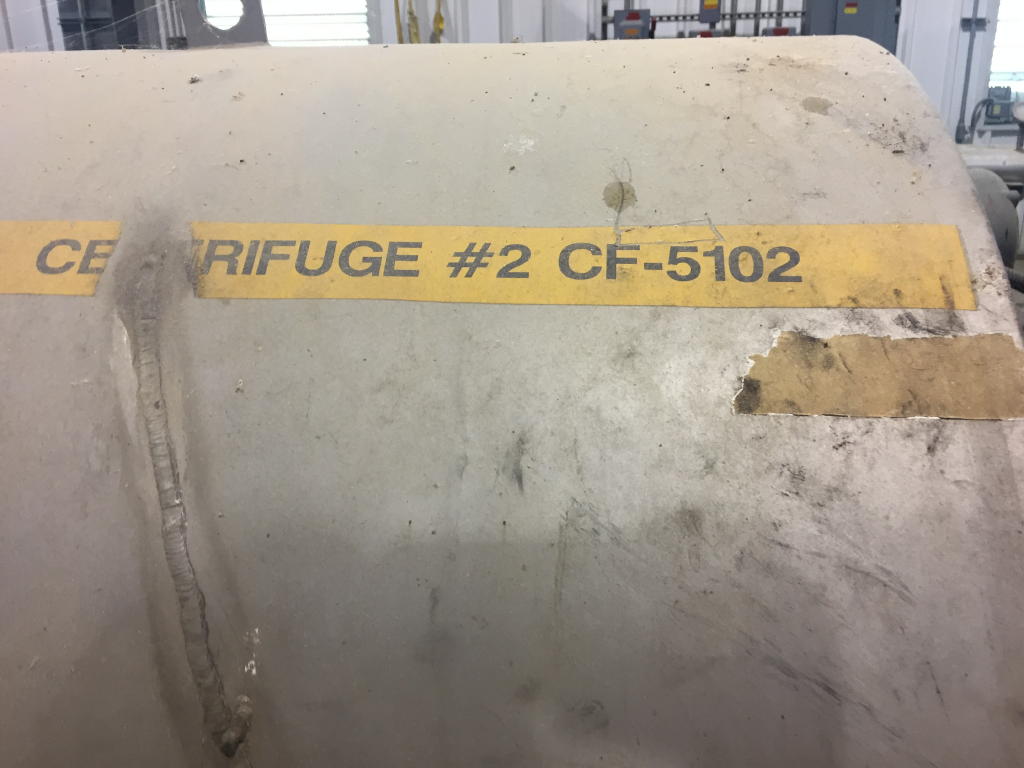

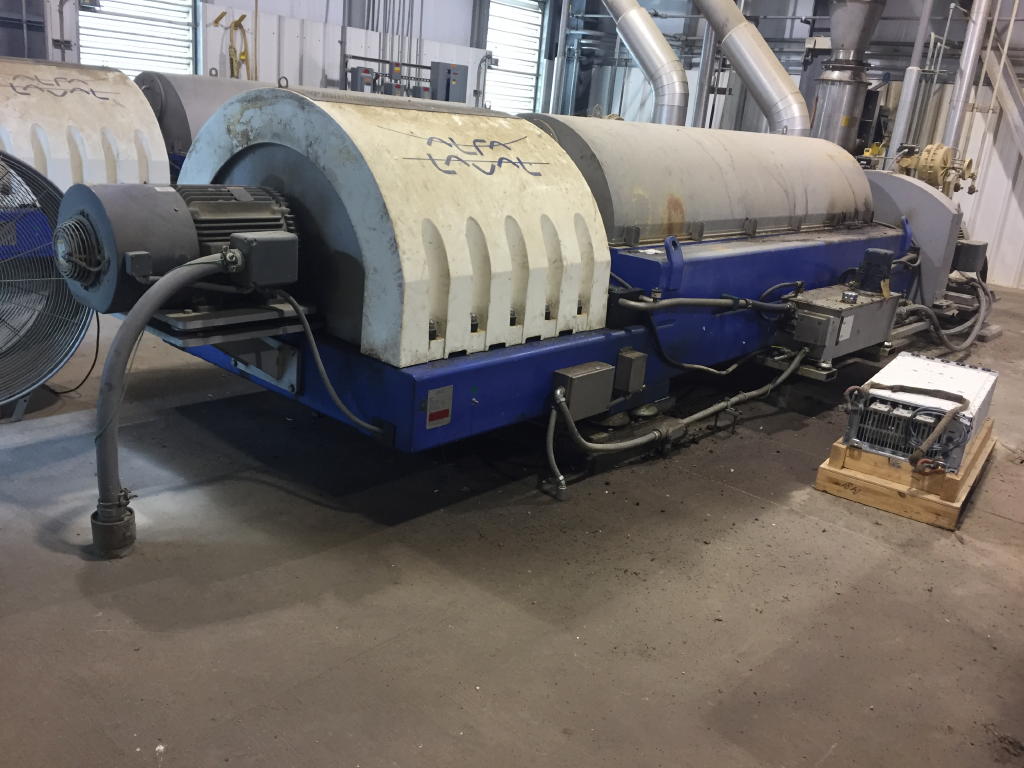

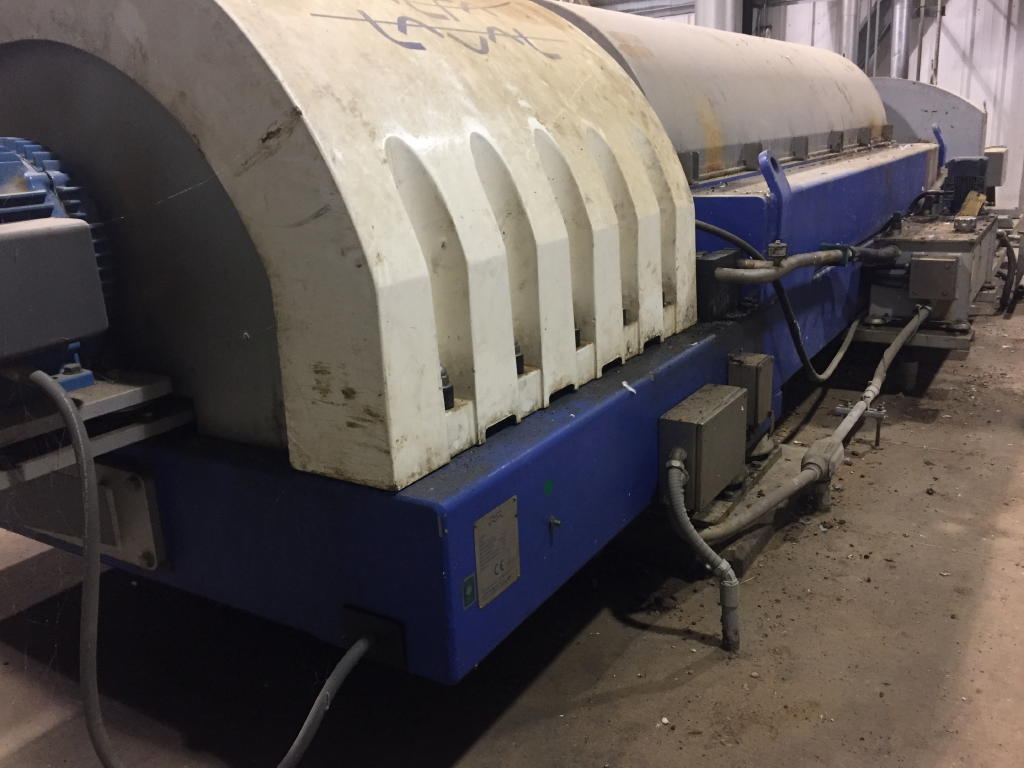

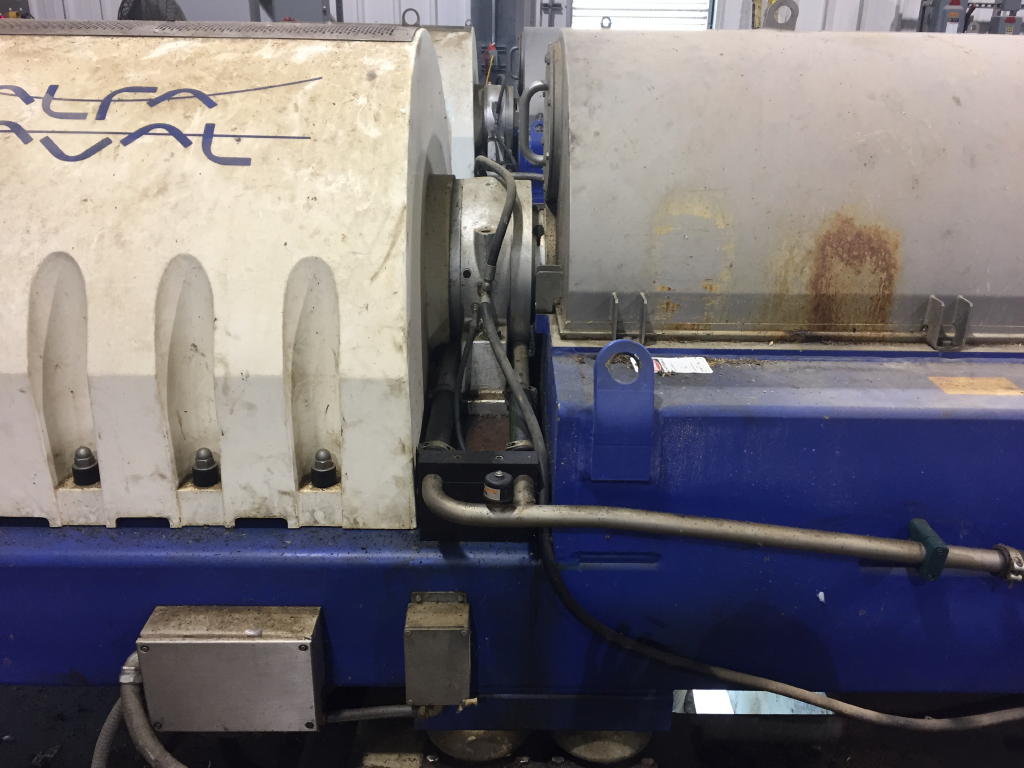

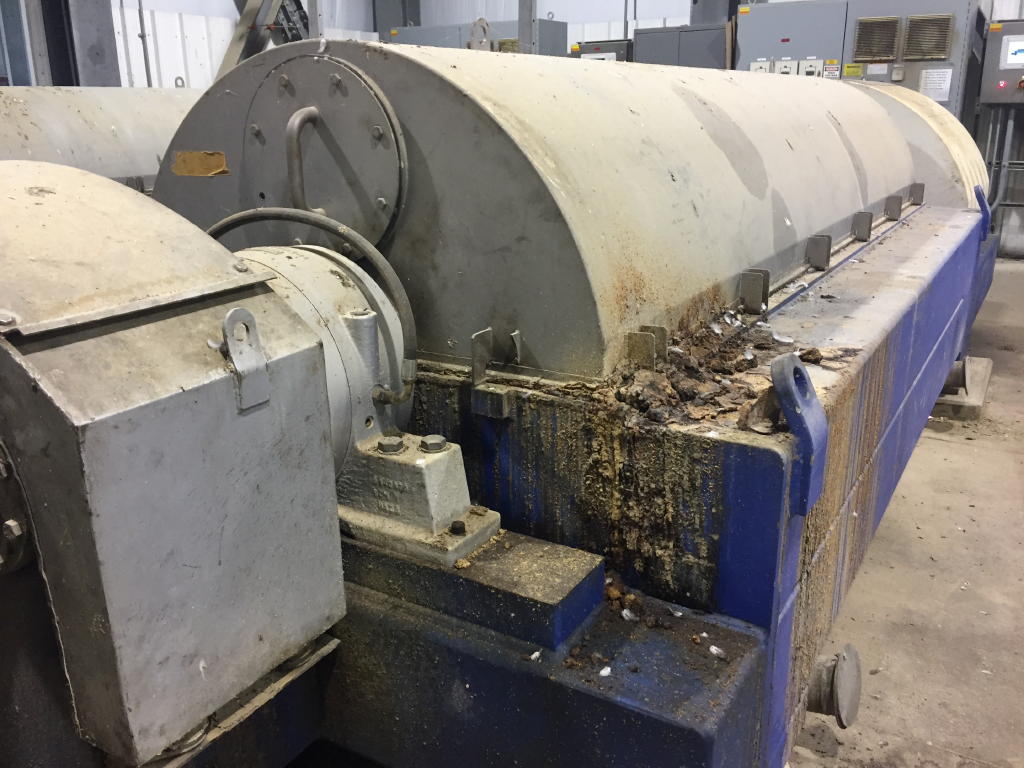

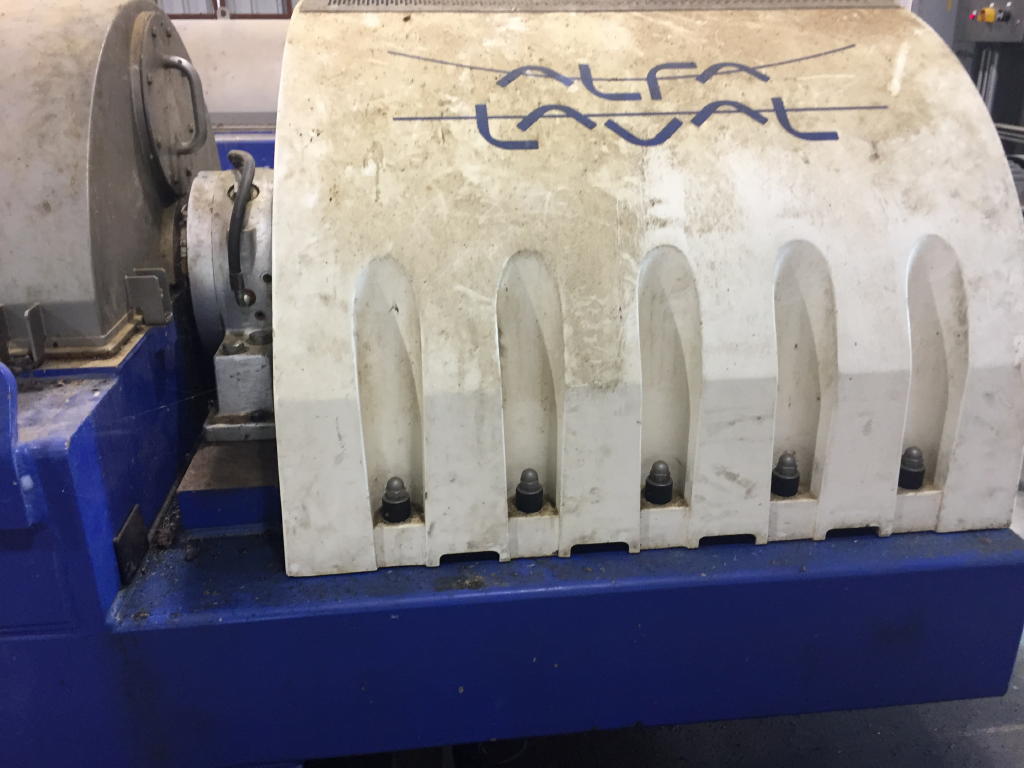

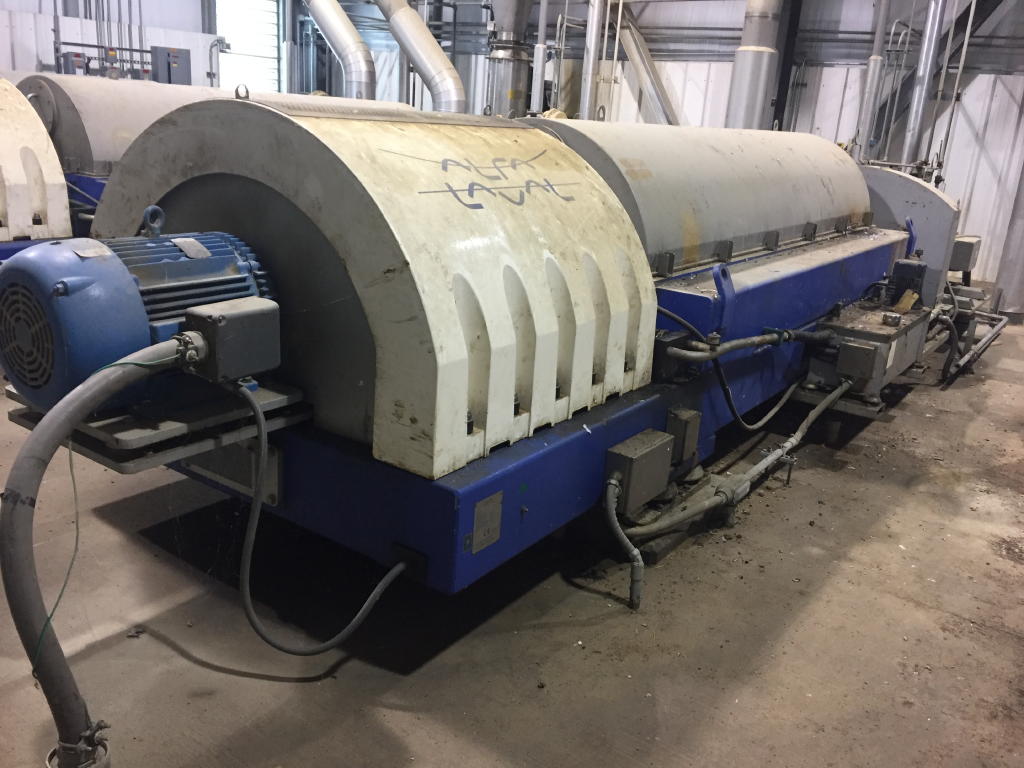

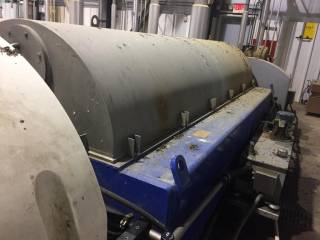

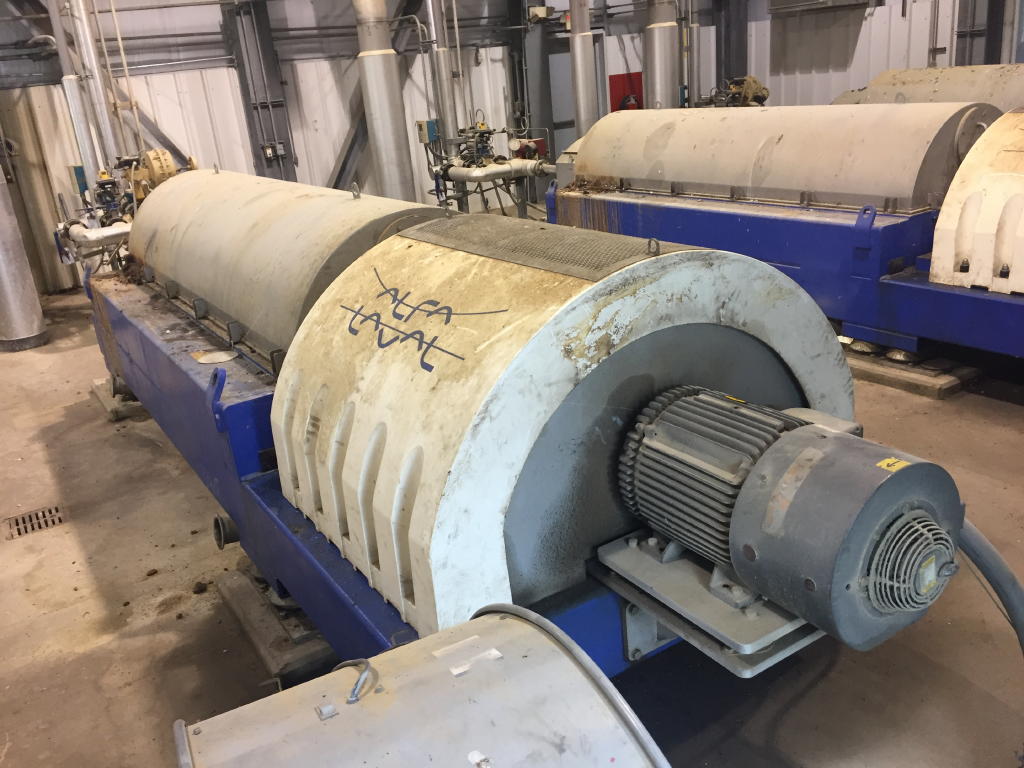

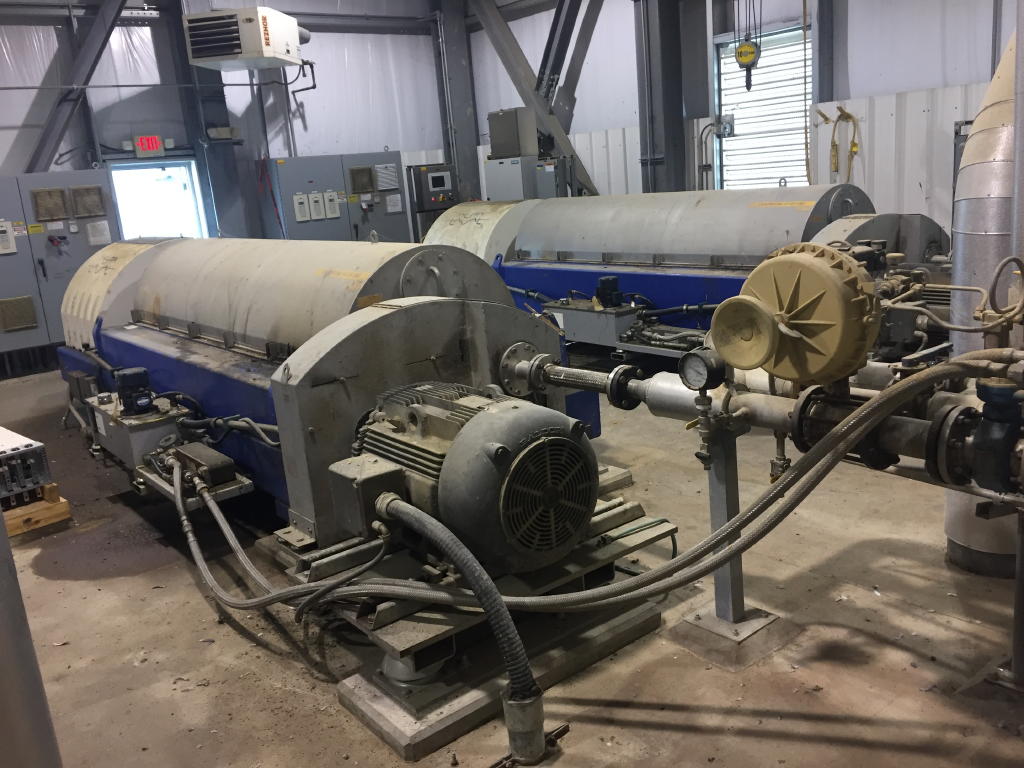

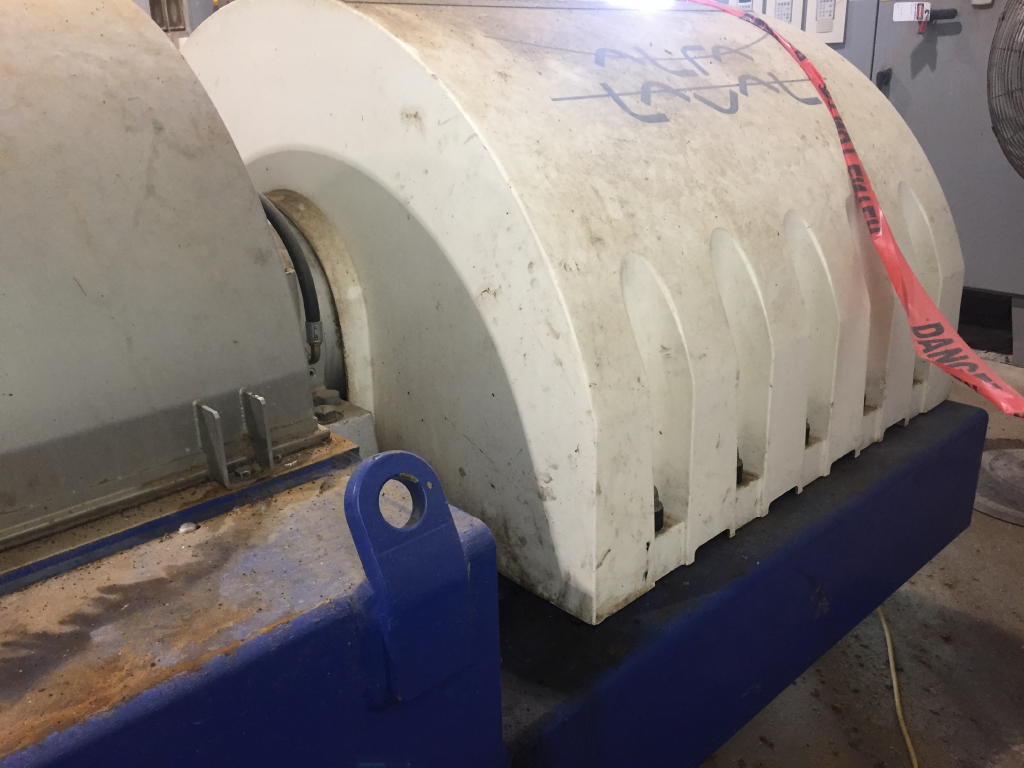

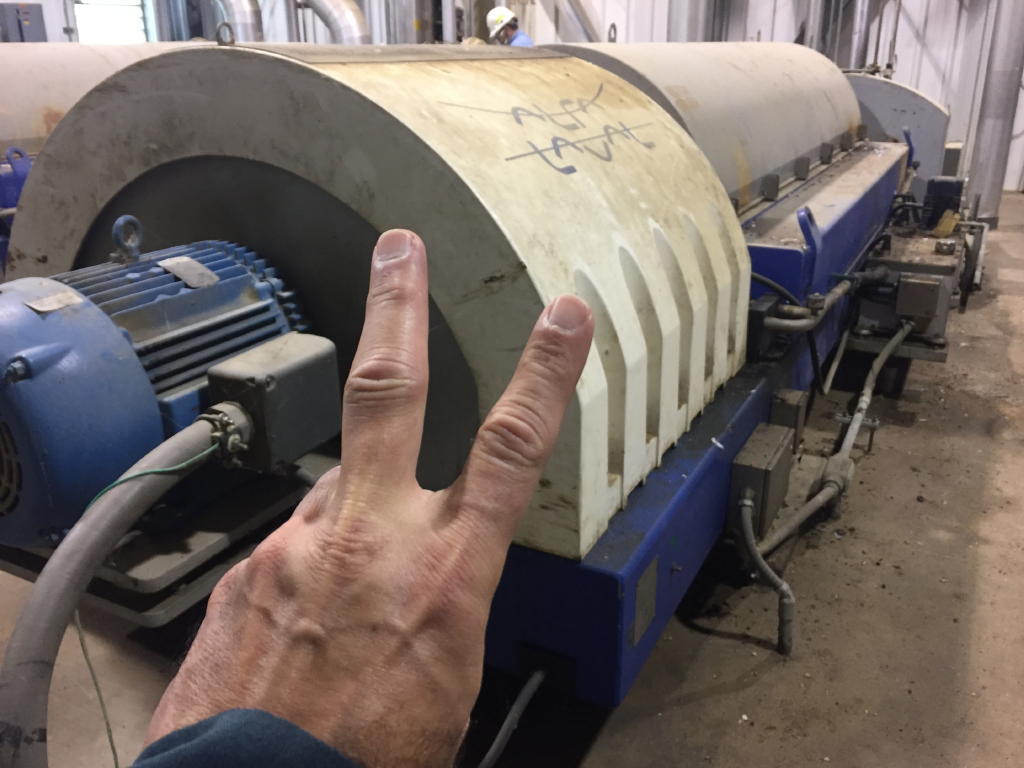

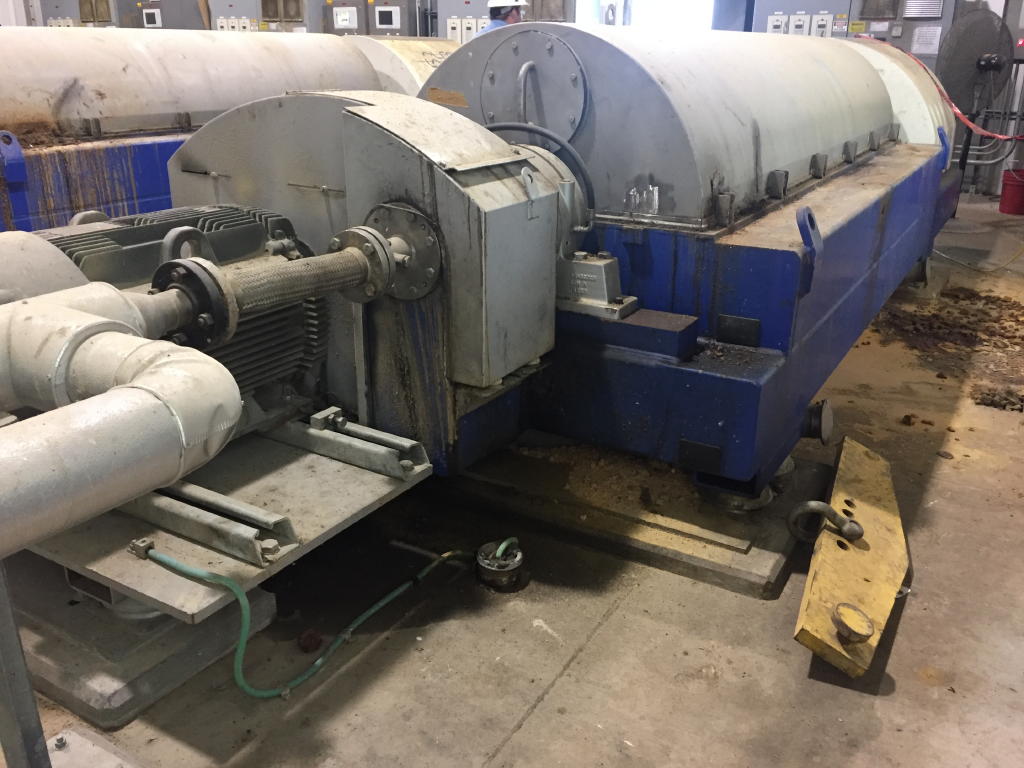

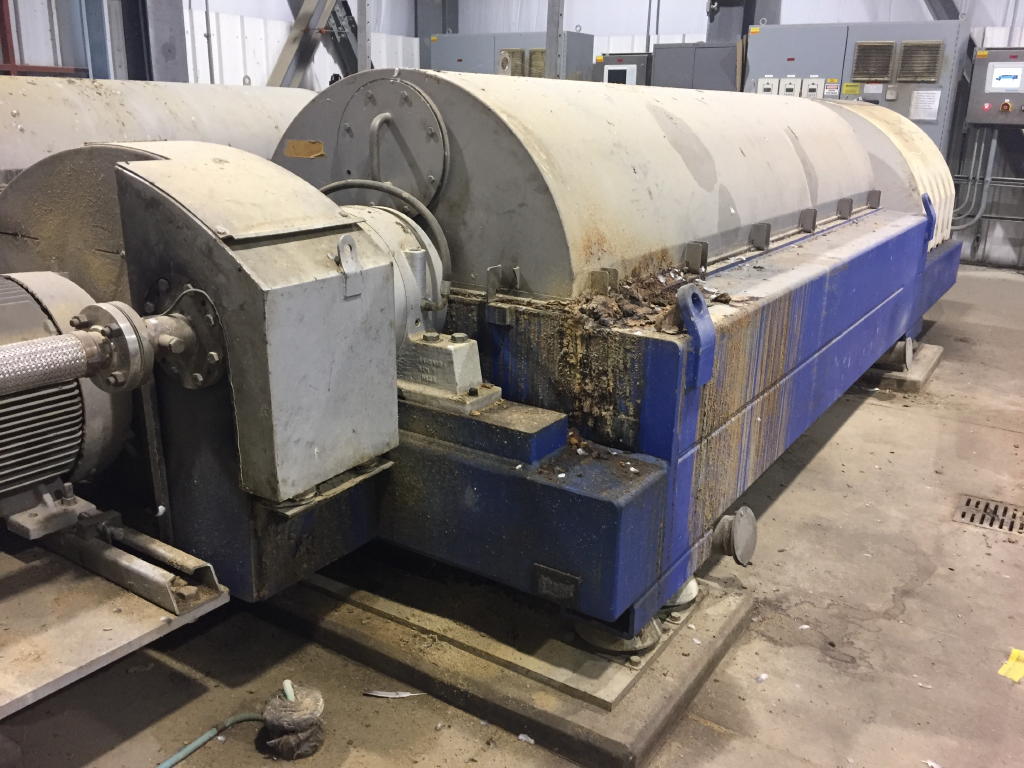

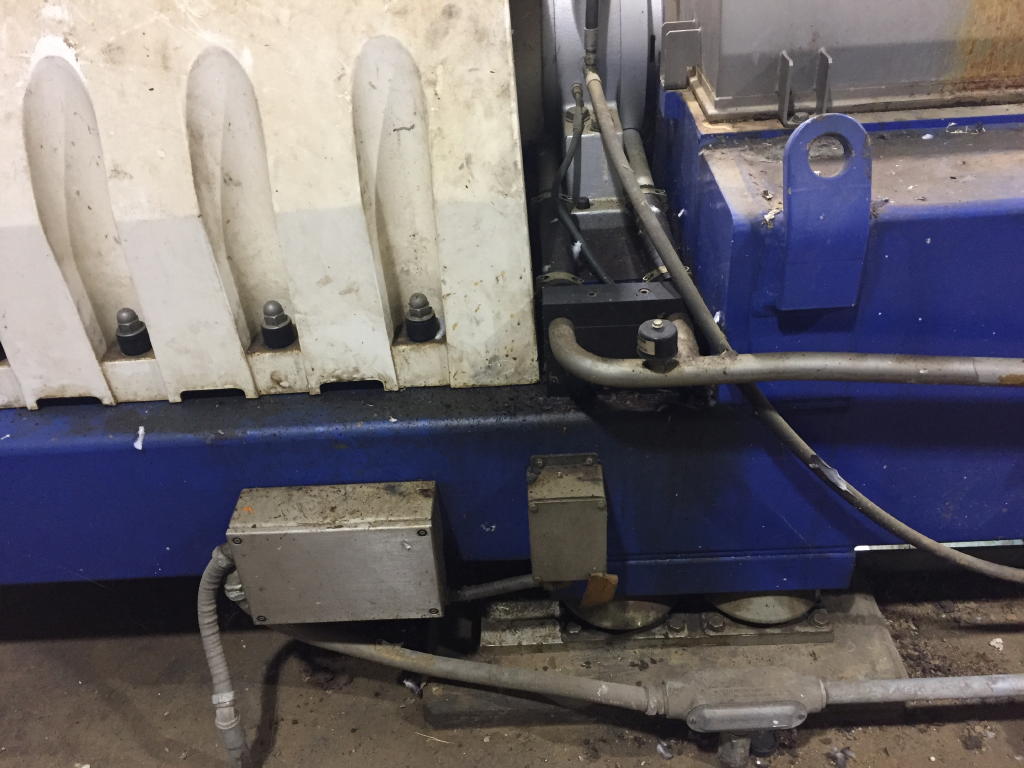

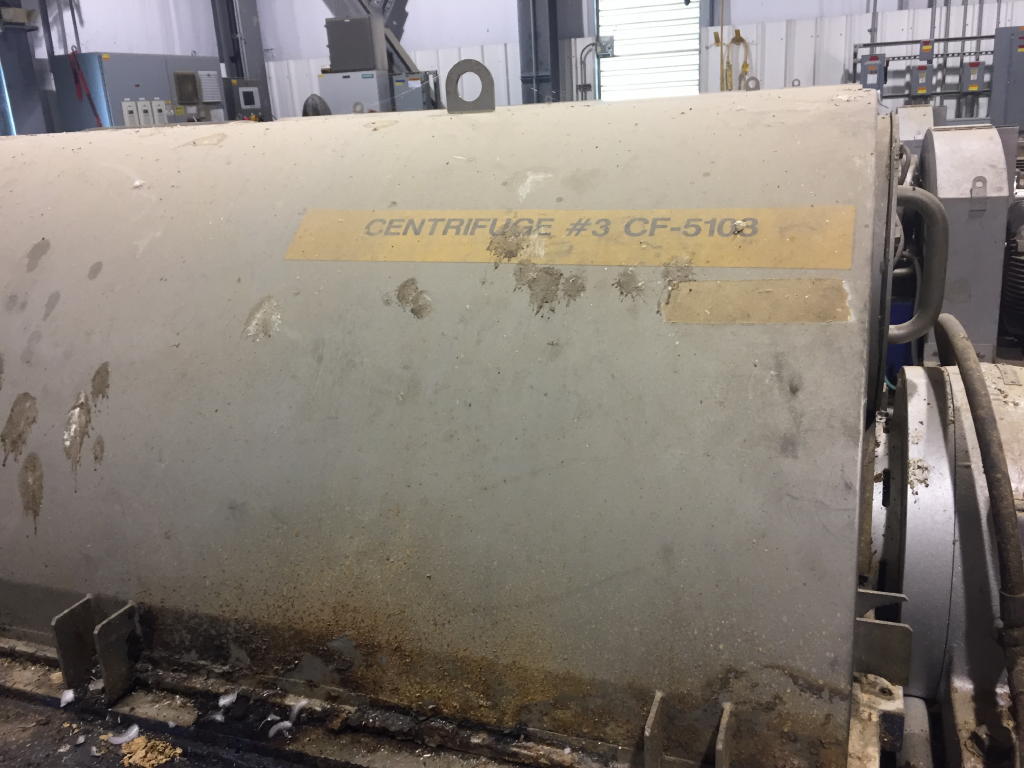

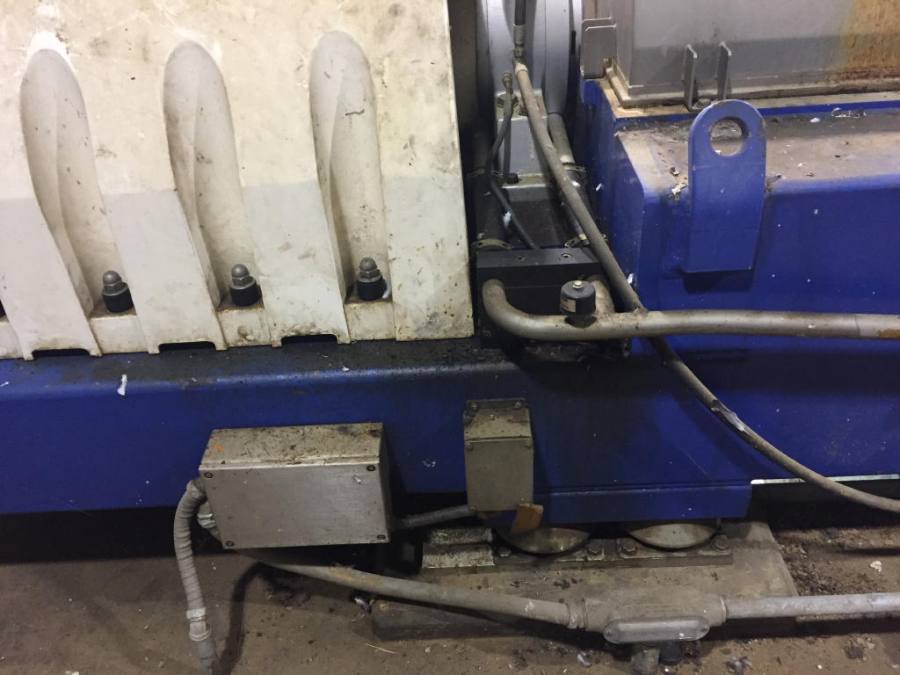

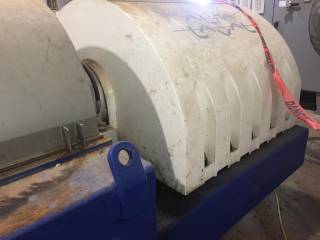

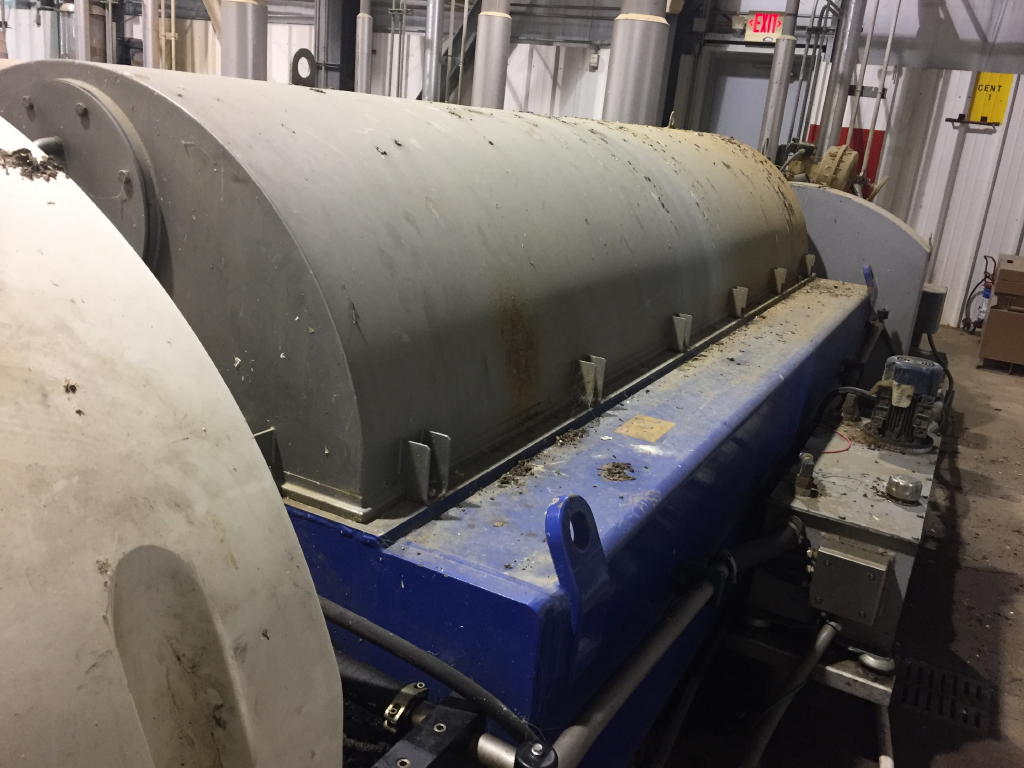

4- ALFA LAVAL NX706 DECANTER CENTRIFUGES WITH VFD CONTROLS AND ASSOCIATED EQUIPMENT
These units were purchased new in 2007 and used in a large ethanol plant. The Alfa Laval units were recently replaced with a different brand that was in use at the company's other locations.
These Are Now Surplus and Must Be Sold!!
SPECIFICATIONS
Process Liquid: Min. 0º C (32º F) – Max. 100º C (212º F)
Max. Density of Compact Wet Cake at Max. Bowl Speed: 1.5 kg/dm³

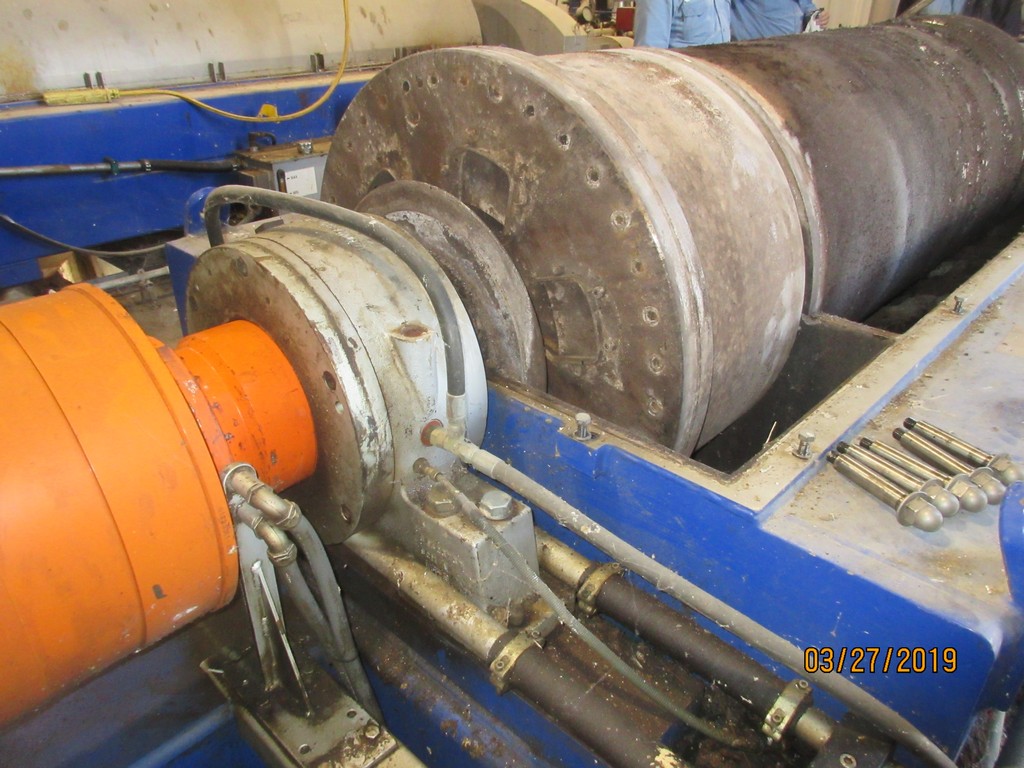

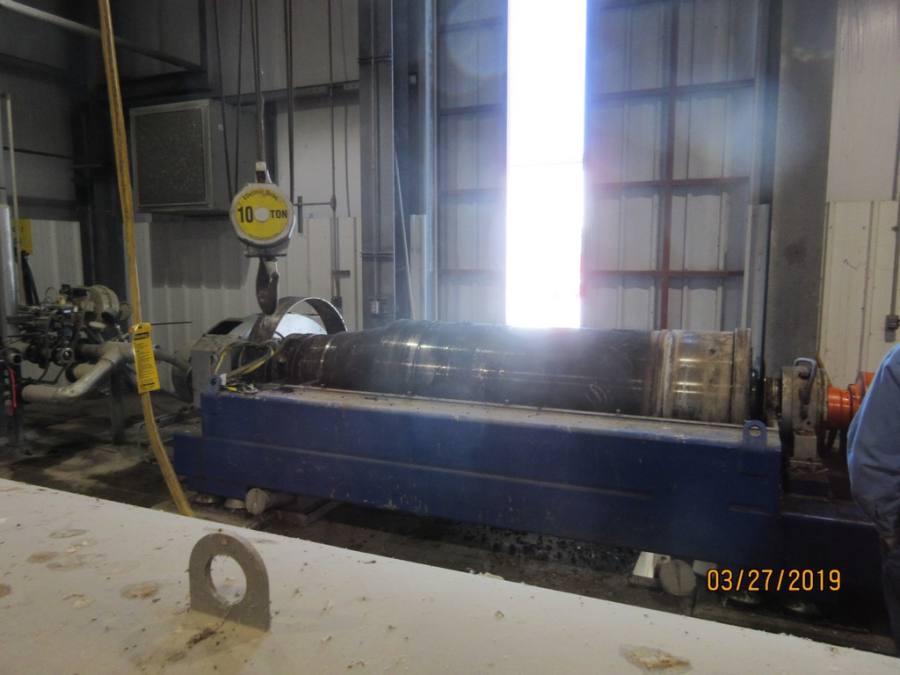

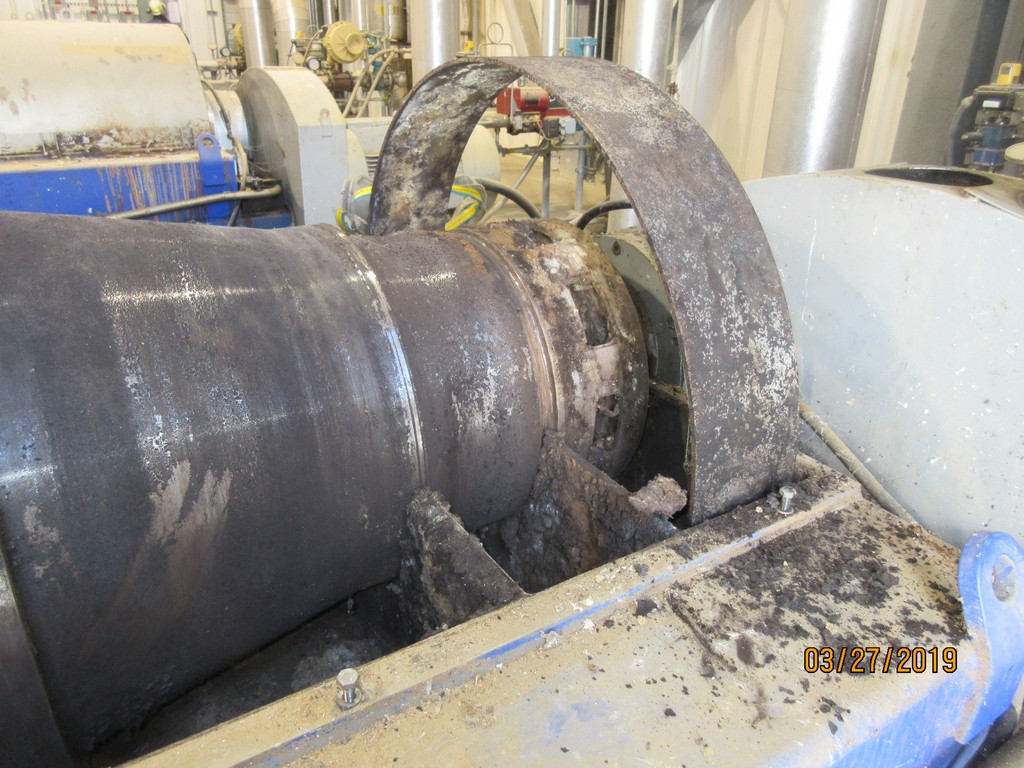

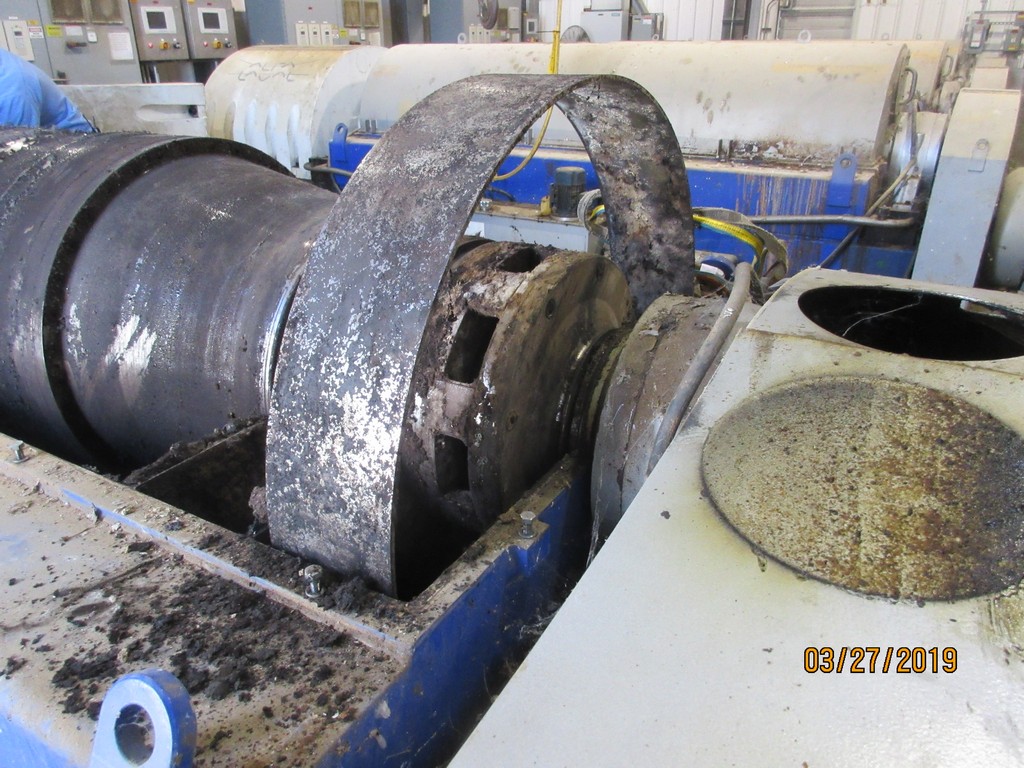

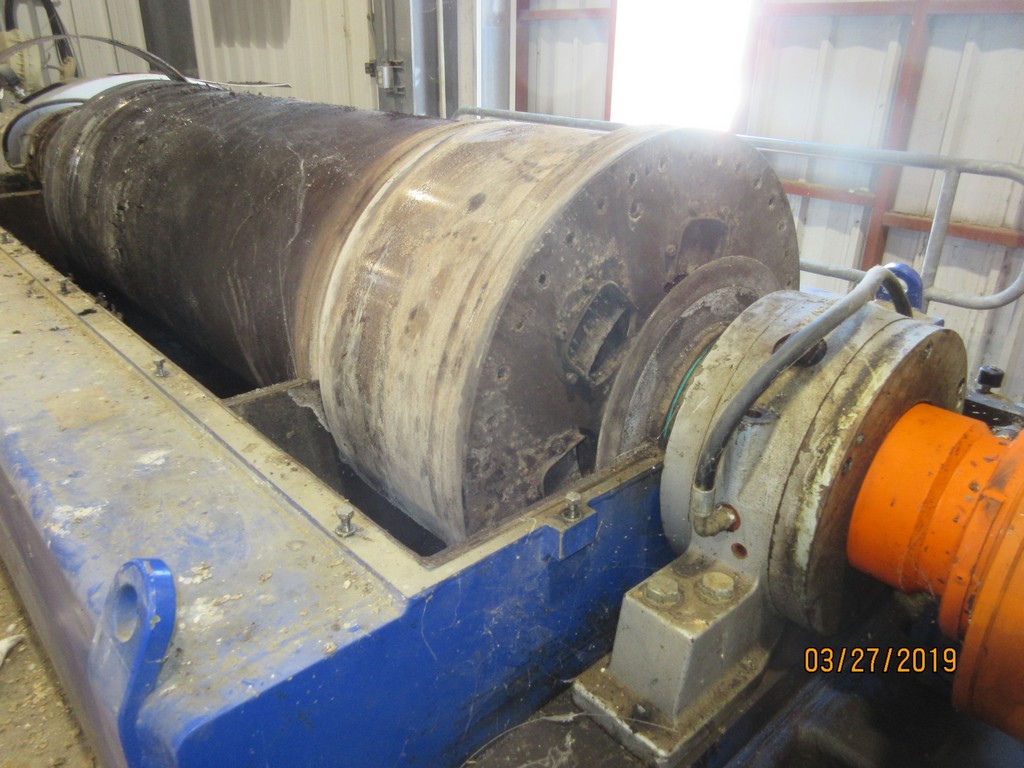

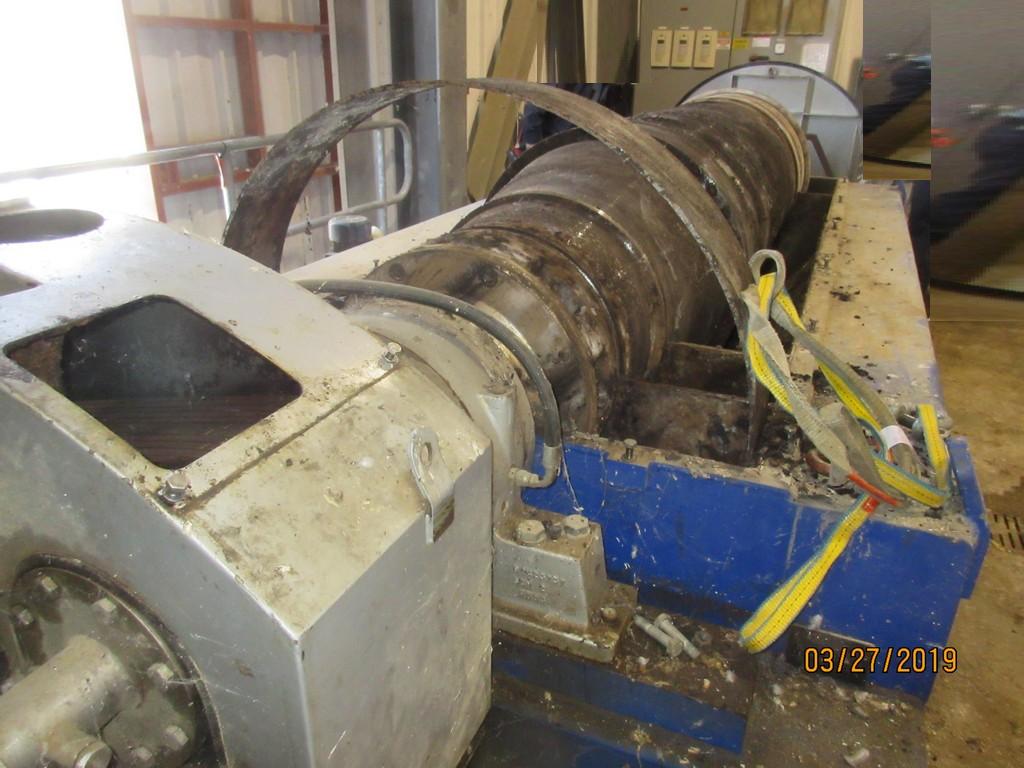

BOWL
Maximum Main Speed: 2800RPM
Bowl Length: 3017mm / 118in
Bowl Diameter: 740mm / 29in
Beach Angle: 10 Degrees
Solids Discharge Type: 360 Degrees Type with 8 Wear Liners
Solids Discharge Radius: 203mm
Solids Transportation Aids, Cylindrical Section: Ribs
Solids Transportation Aids, Taper Section: Ribs
Material-Hubs: AL 111 2329-83 (Duplex Stainless Steel)
Material-Bowl Shell: AL 111 2329-32 (Duplex Stainless Steel)
Material-Bolts: A4-80 (AISI 316)
Liquid Outlet Type: 6 Plate Dams
Liquid Outlet Radius: 196mm
CONVEYOR
Material: Flights/Hub: AL 111 2349 (AISI 316)
WEAR PROTECTION
Bowl Solids Discharge: Wear Liner in Tungsten Carbide, 8 Pieces
Conveyor Flights: Tiles/PTA (Flame Sprayed Tungsten Carbide)
Conveyor Feed Zone: Tungsten Carbide Bushings

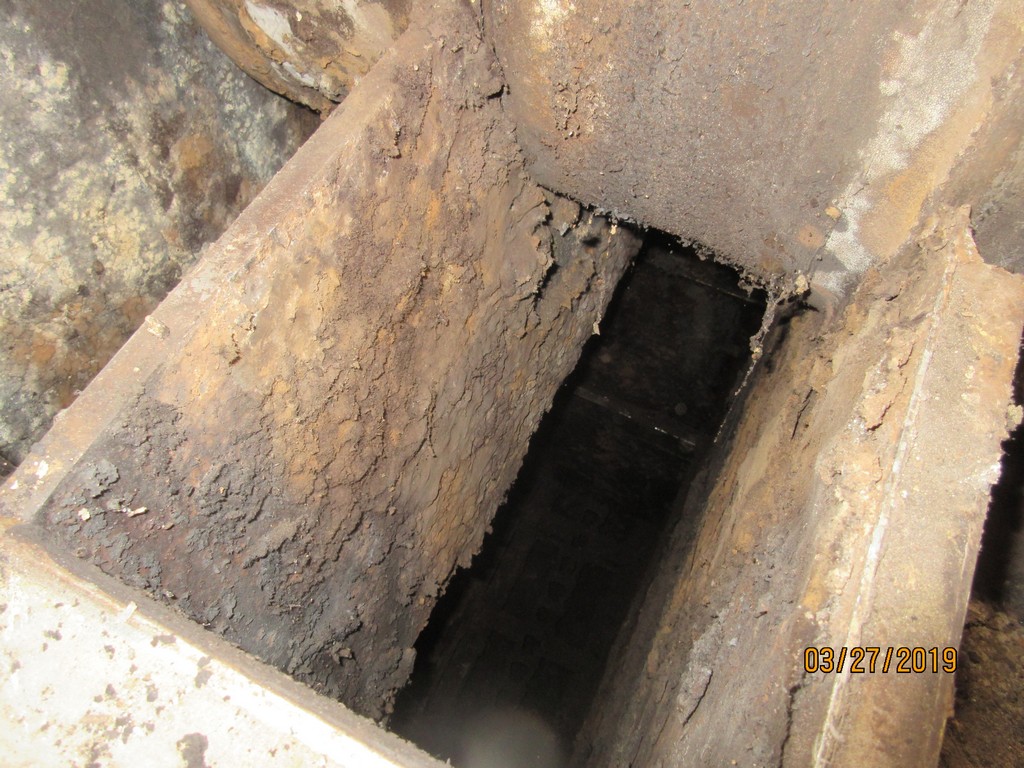

Frame/Casing: Wear Liner in Upper Casing
FRAME AND CASING
Material: Casing/Cover: Stainless Steel (AISI 316)
Inside Surface of Casing: Stainless Steel Cladding Throughout
DRIVES
Power Supply: 3 x 460 V / 60Hz

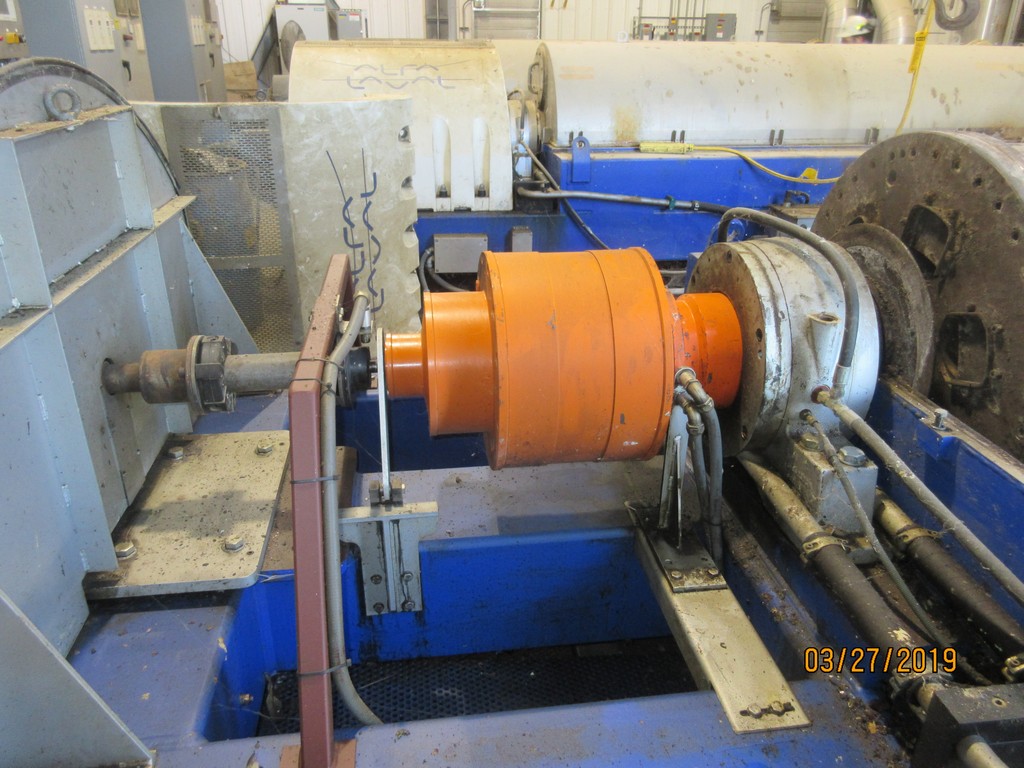

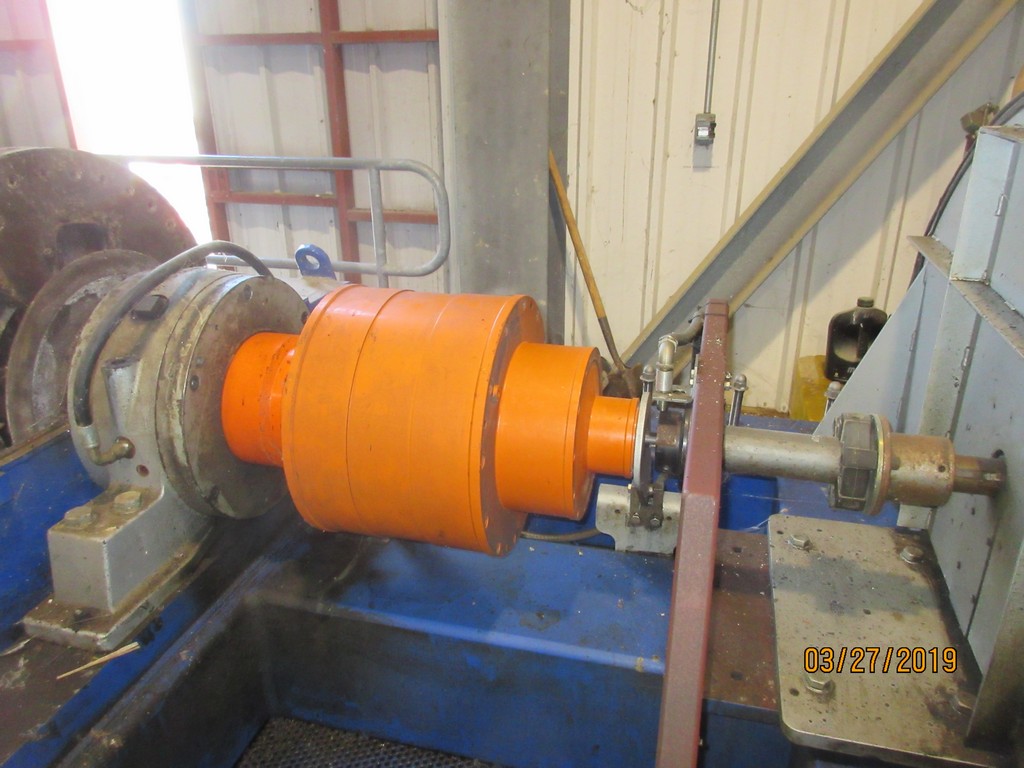

Gearbox Type: Planetary- 2 Stage DD
Gearbox Max Torque: DD 16.0 kNm
Gearbox Ratio 1:127.2

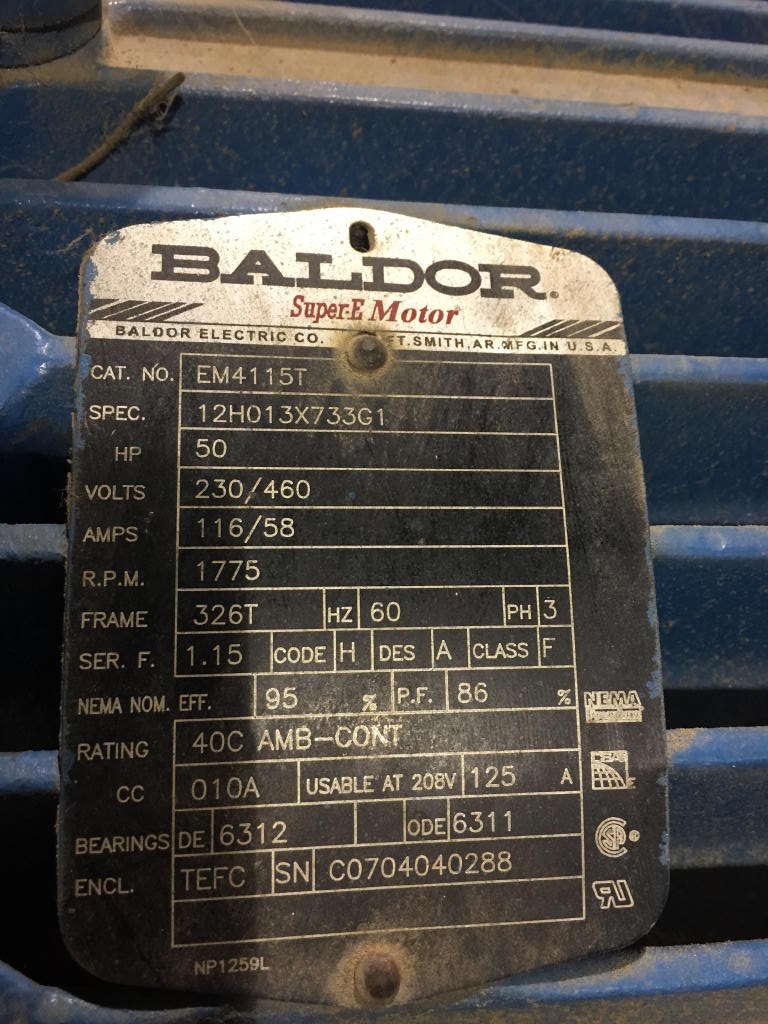

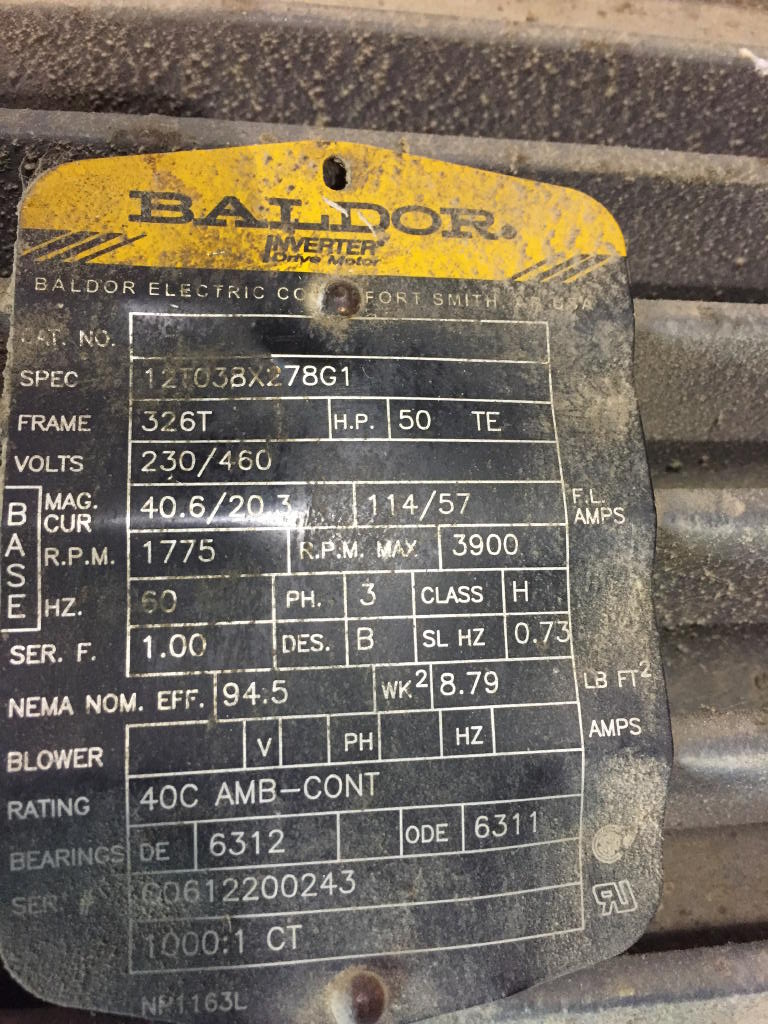

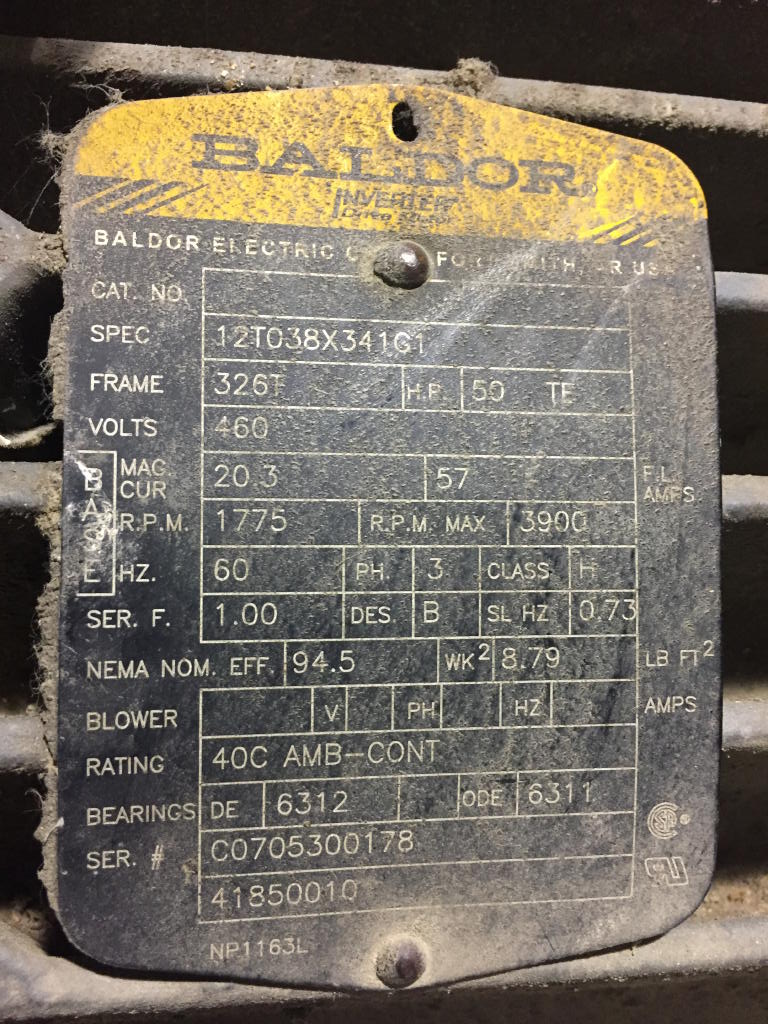

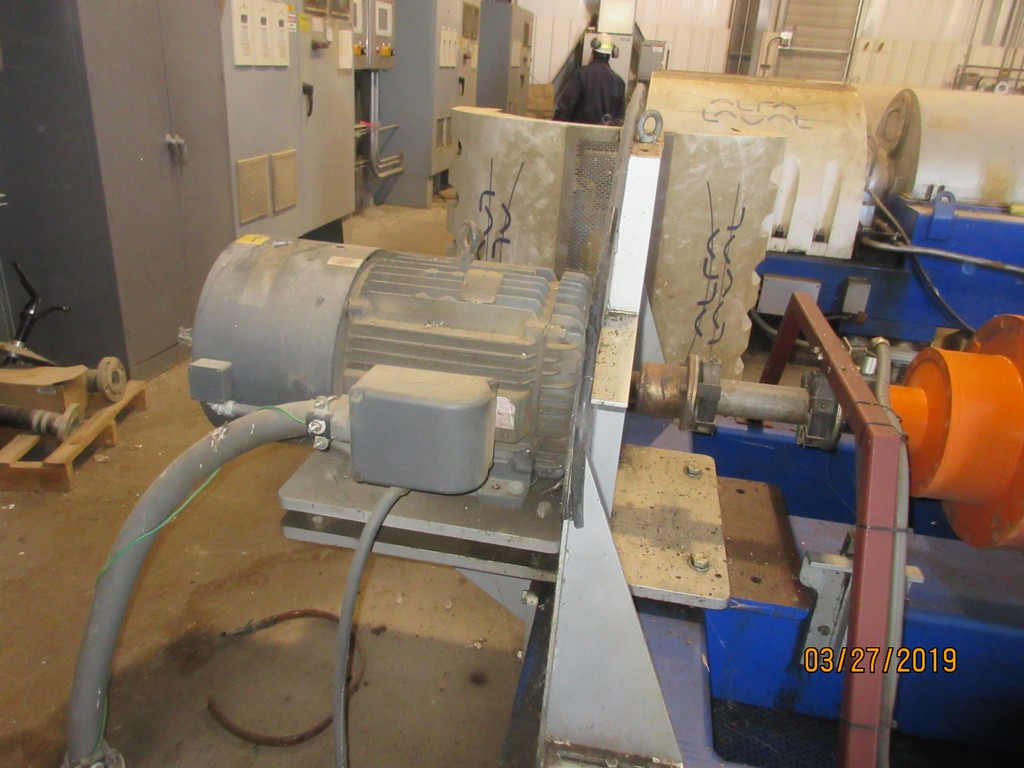

Back Drive: Variable Frequency Drive 50 HP NEMA (460v, 60Hz), Max. Diff. Speed 22.1 RPM at 16 kNm, Diff. Speed 23.6RPM at Max. 15.00 kNm (Back Drive Motor, 460VD, 1800RPM, 60Hz).
Operating Main Speed 2800RPM
G-Force at Operating Speed 3243G

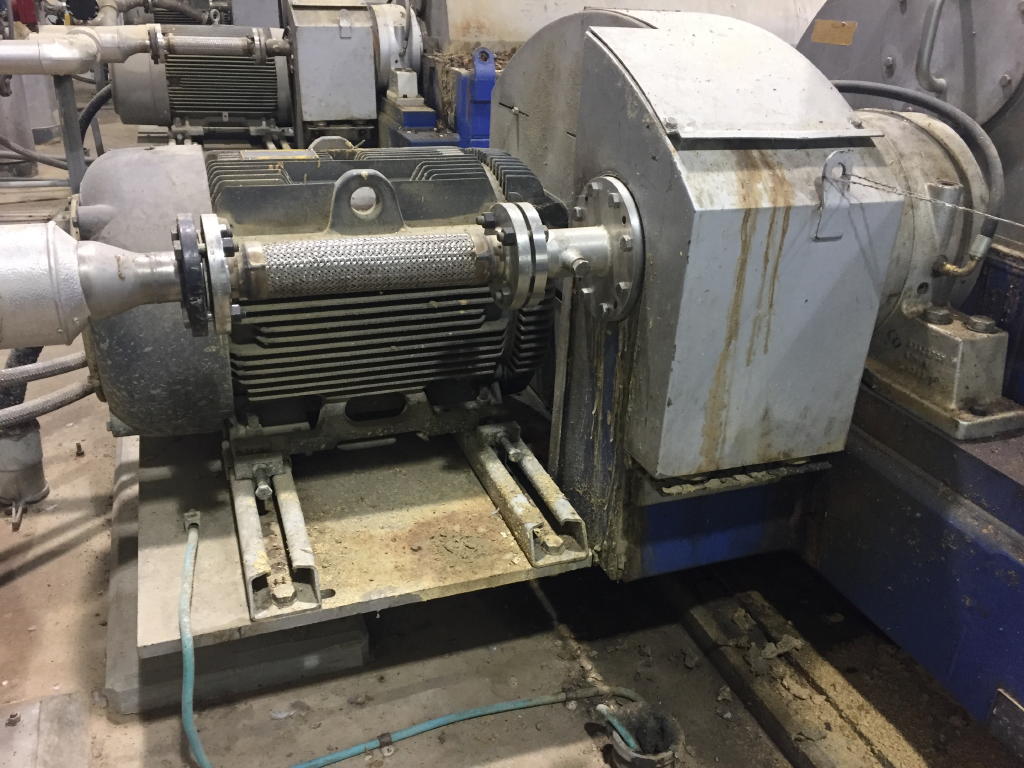

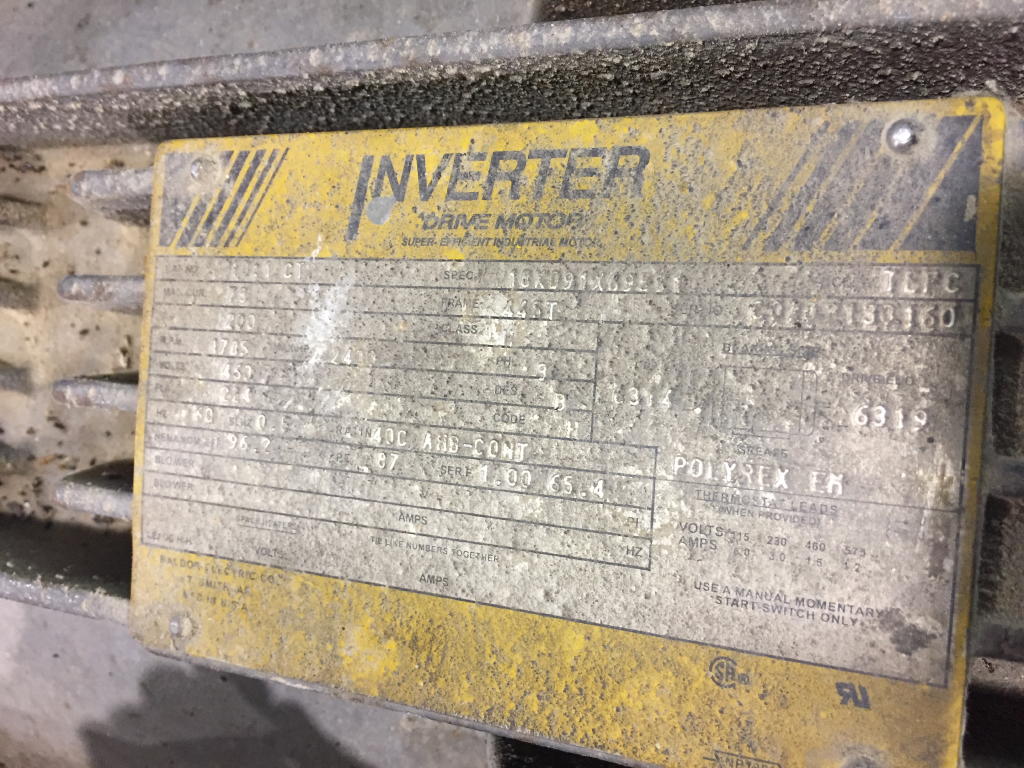

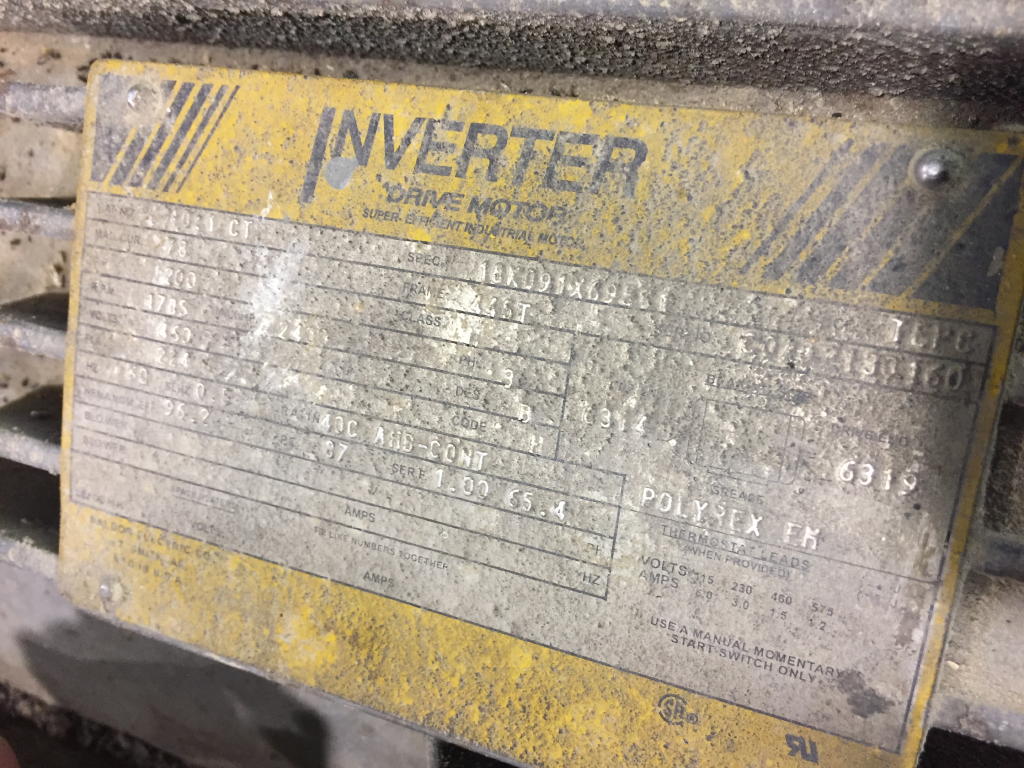

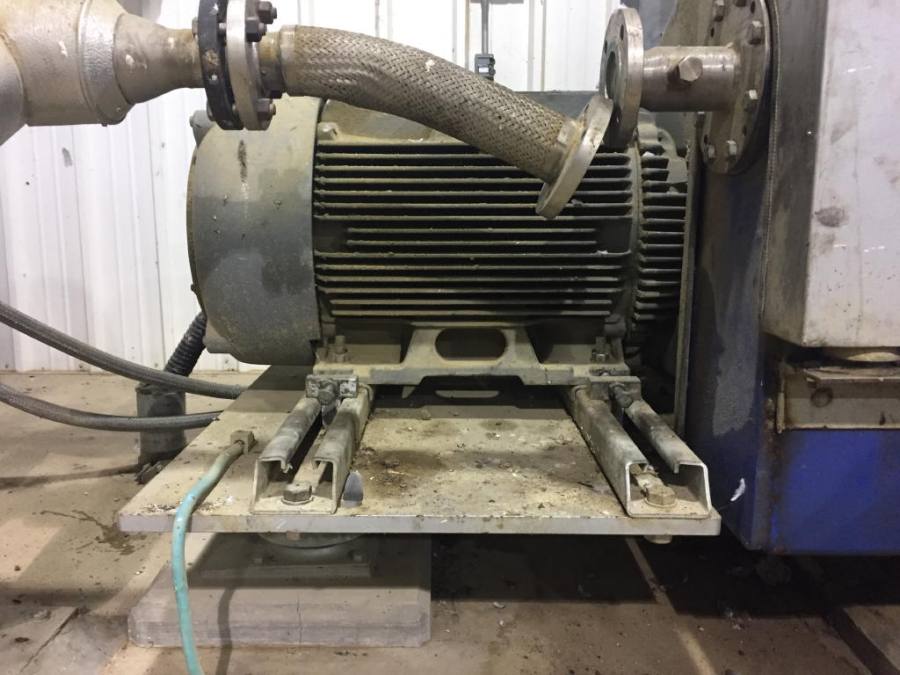

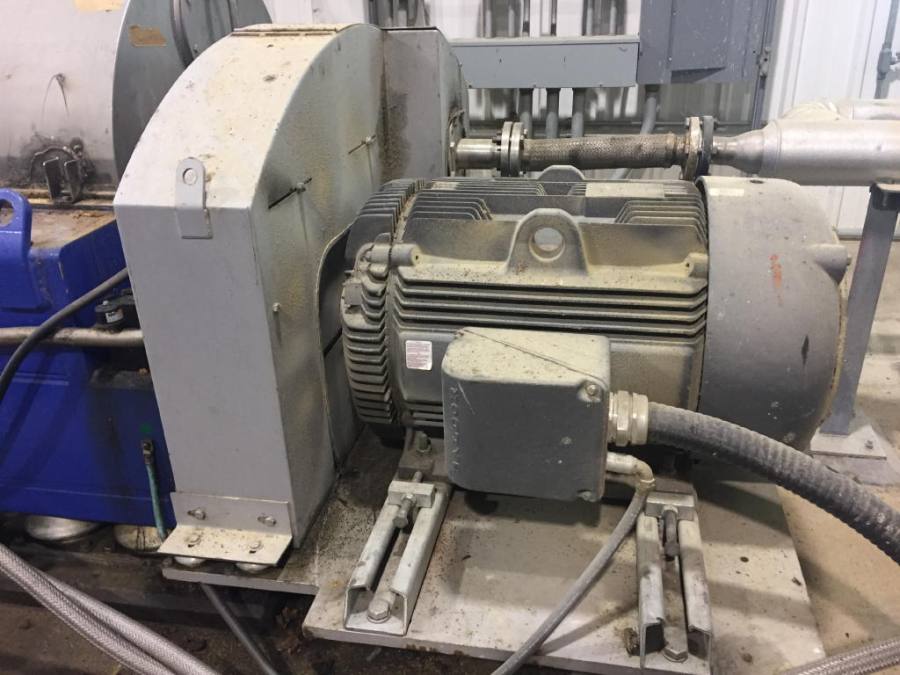

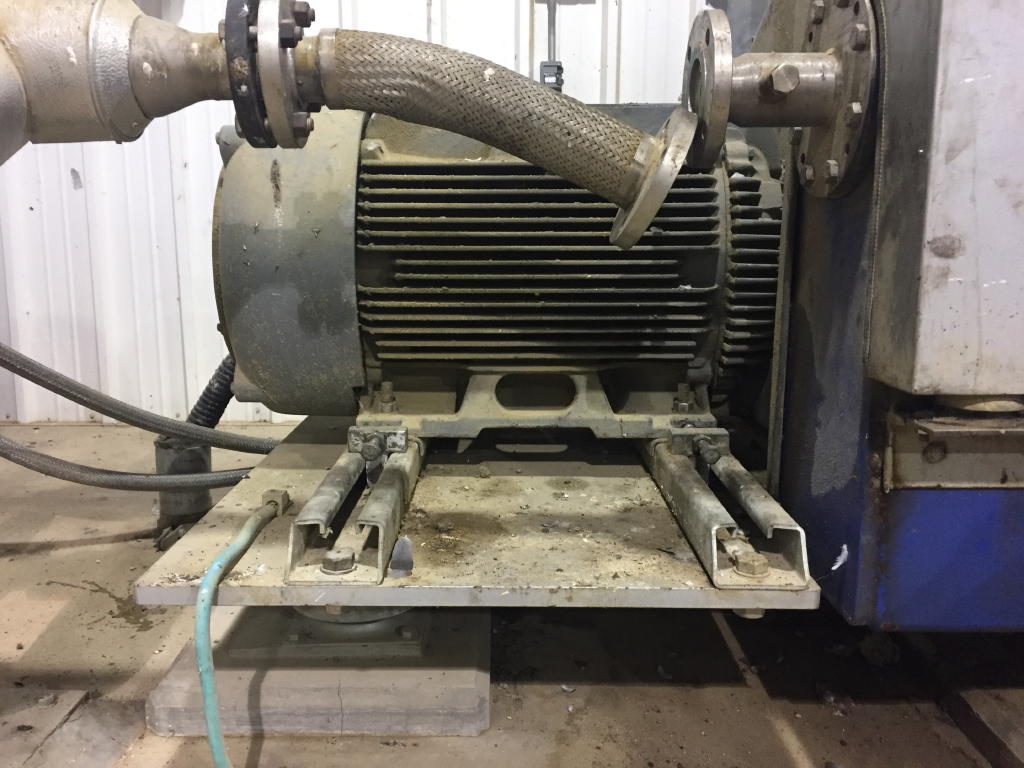

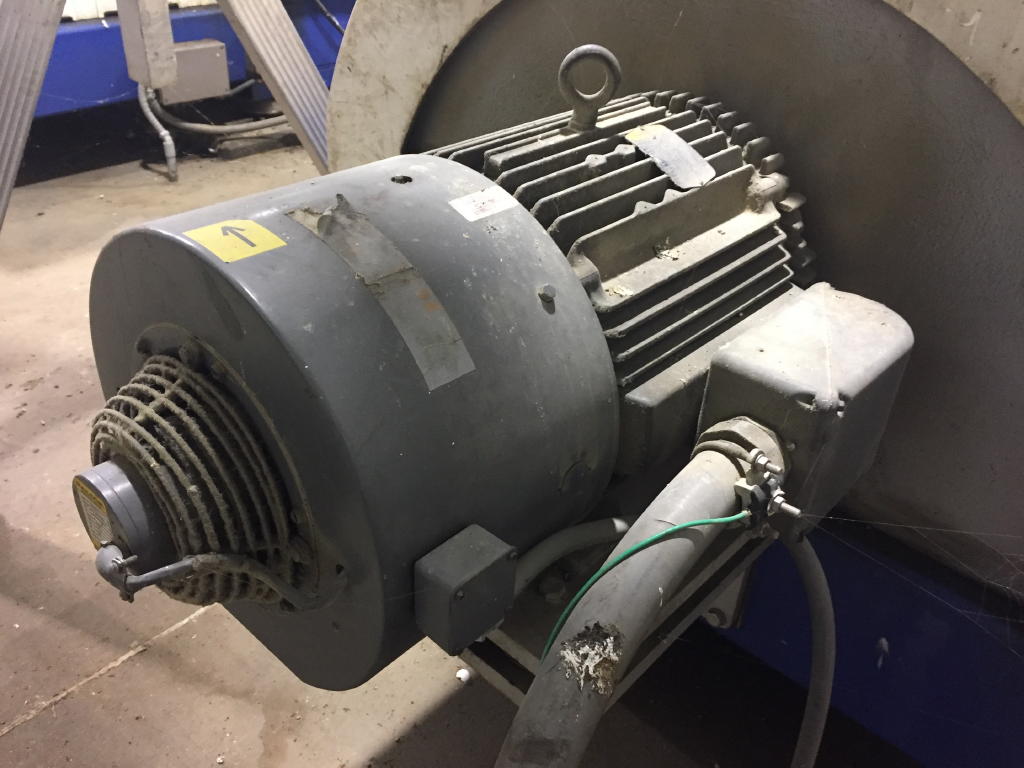

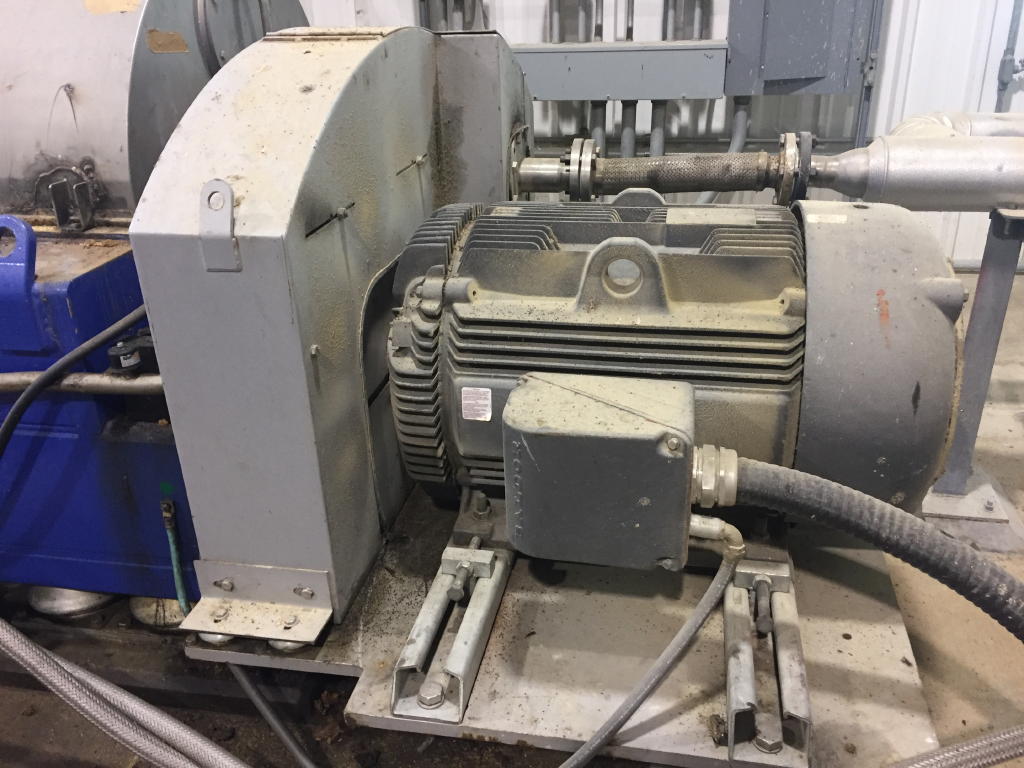

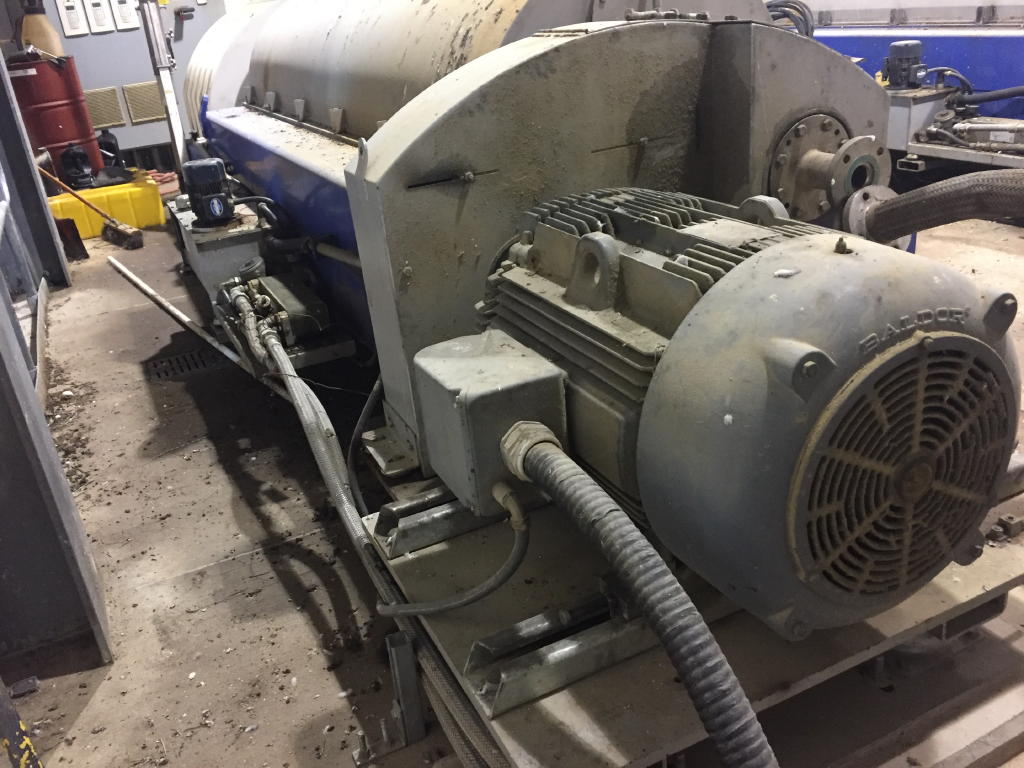

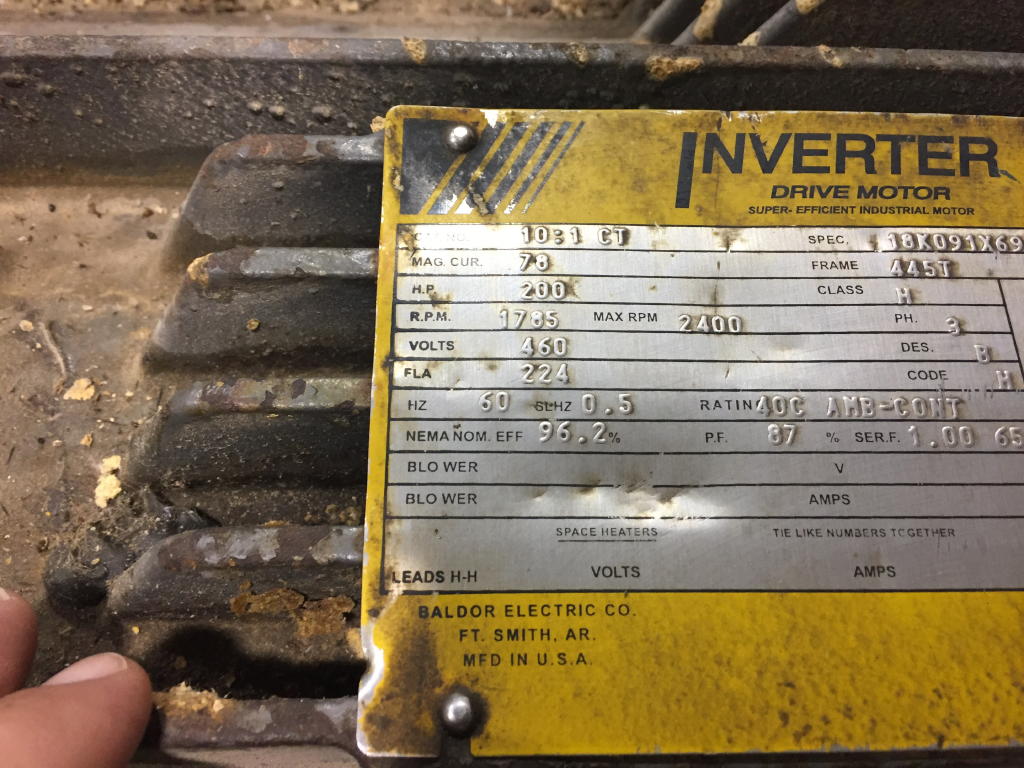

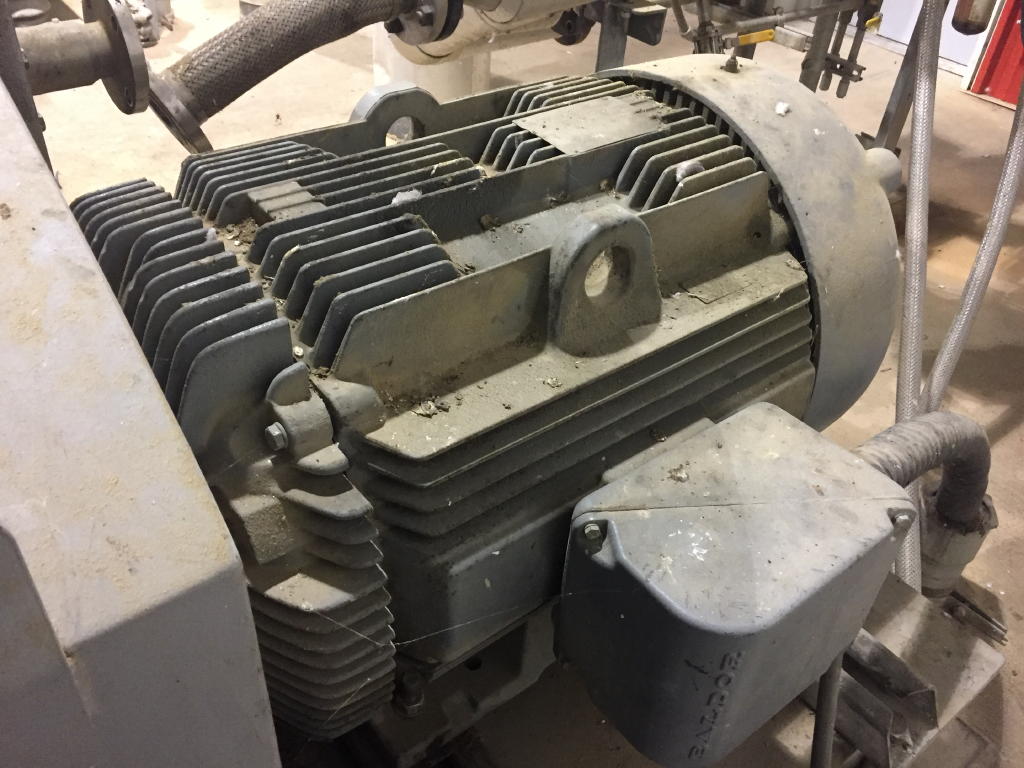

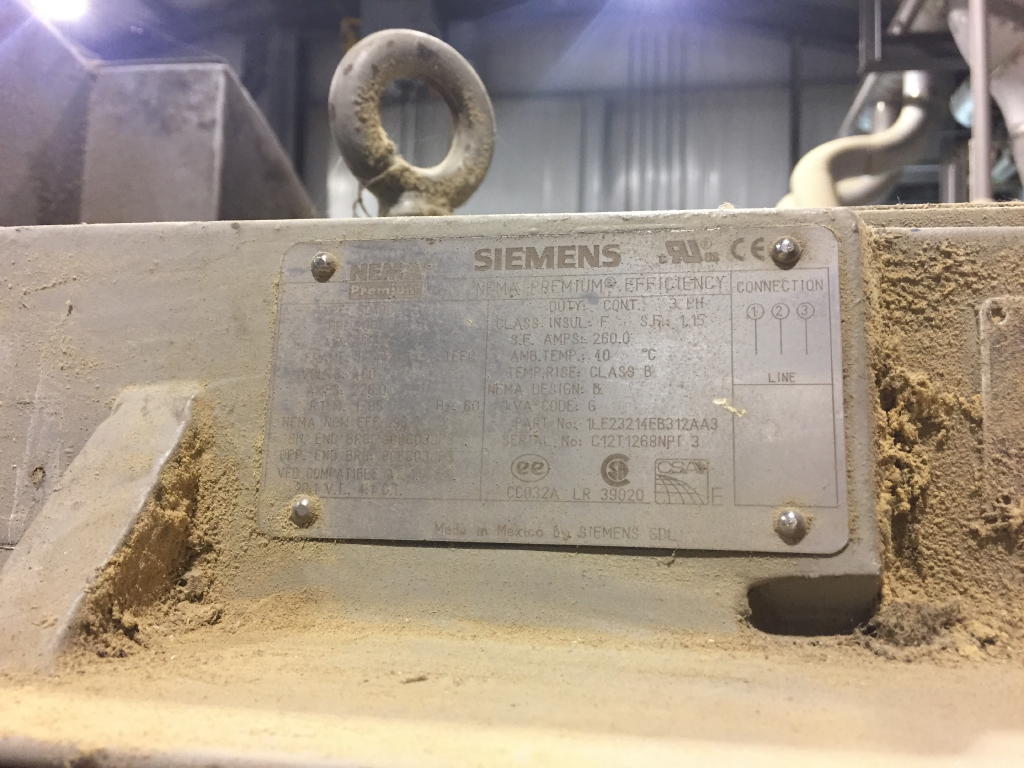

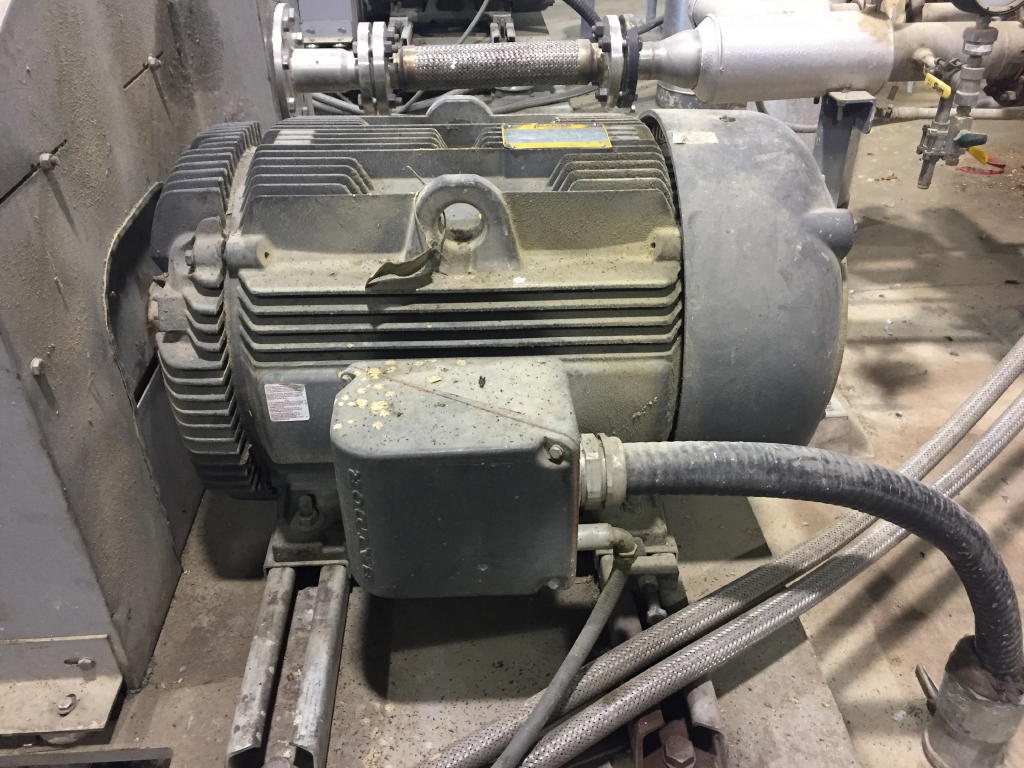

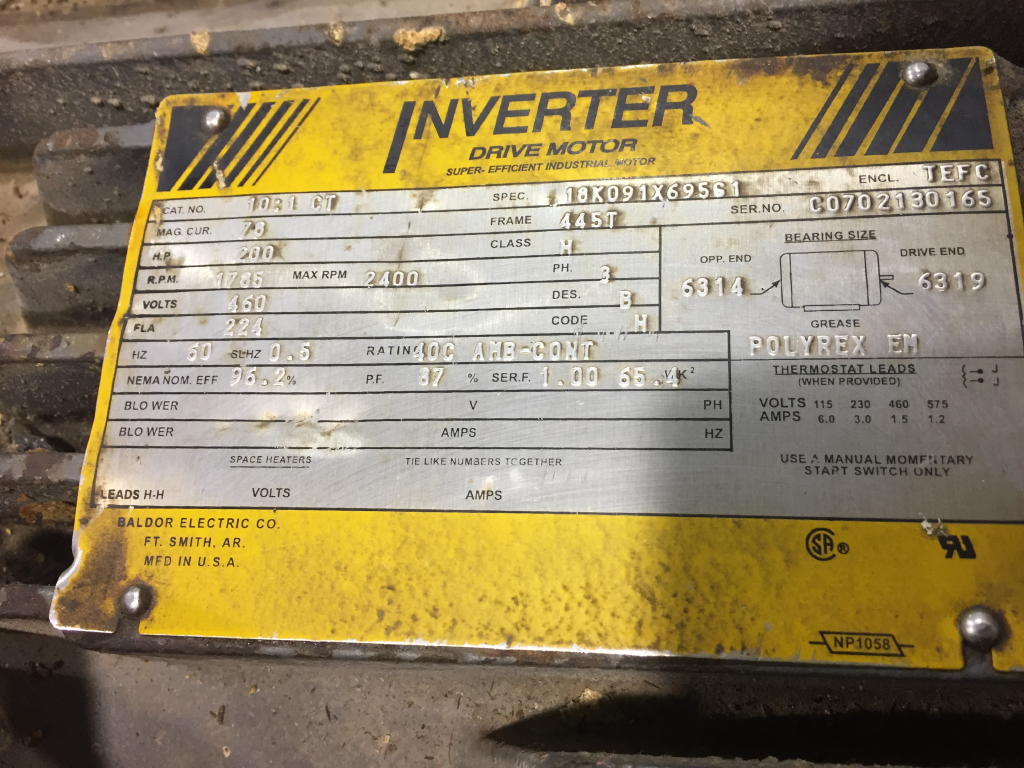

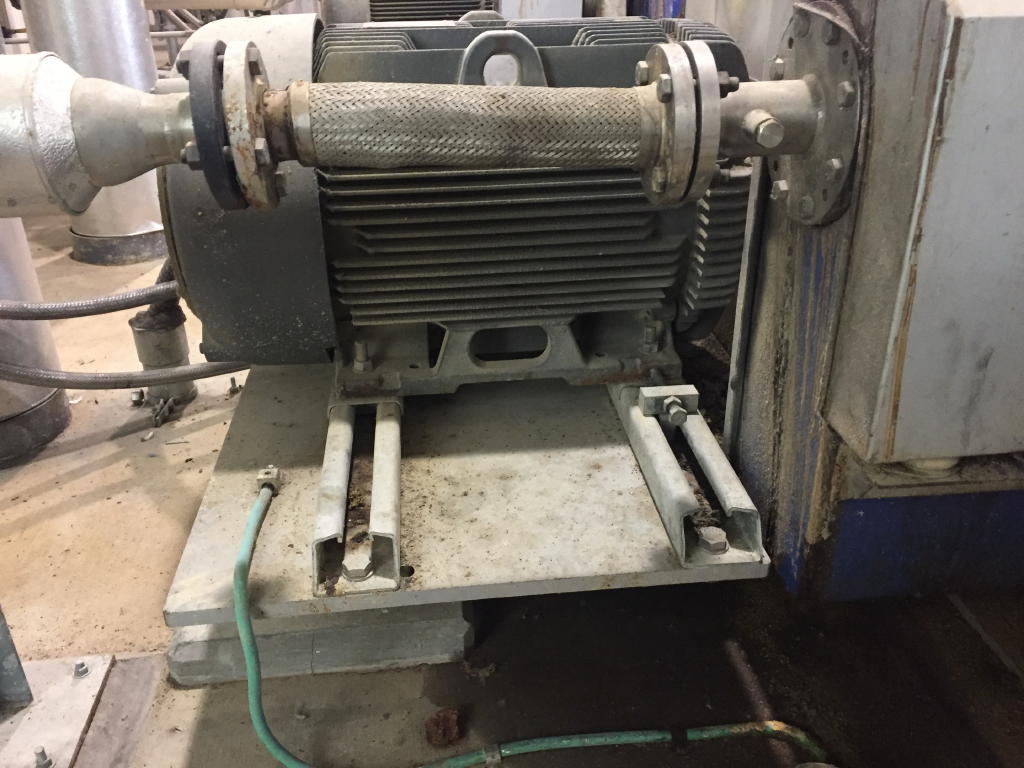

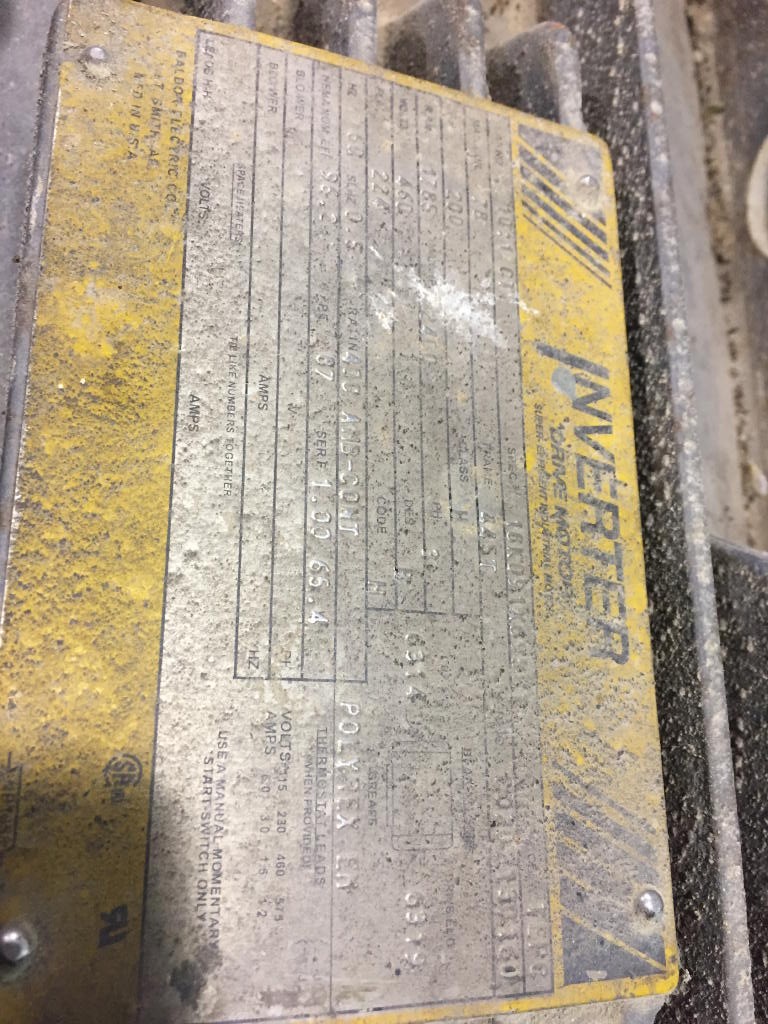

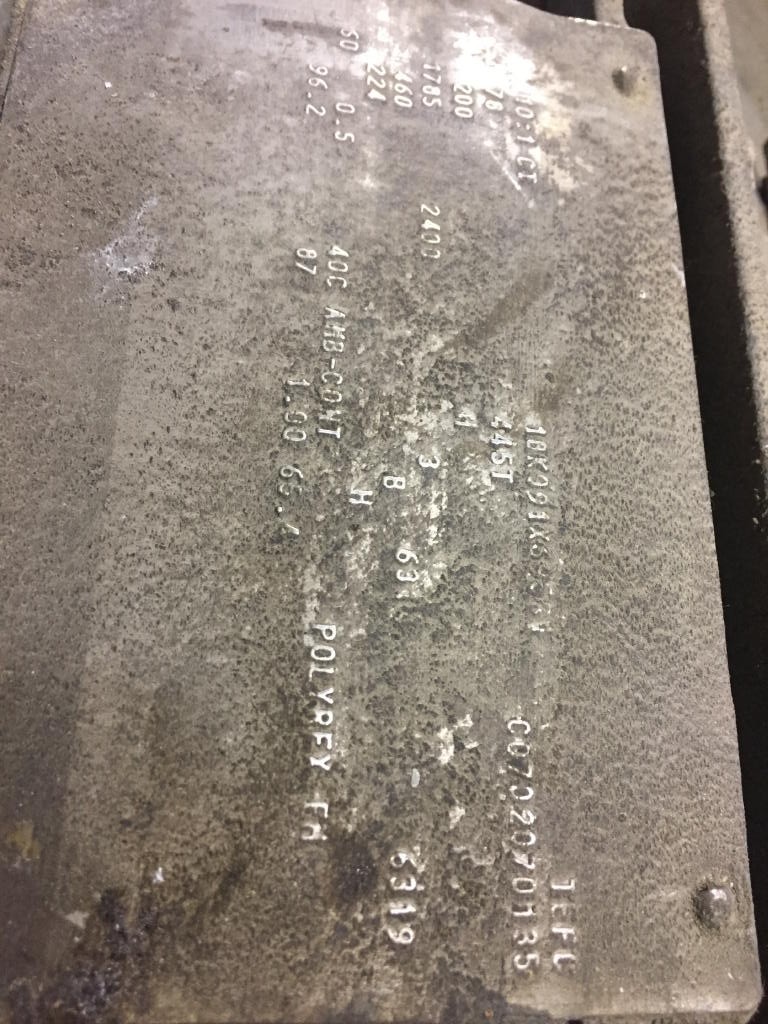

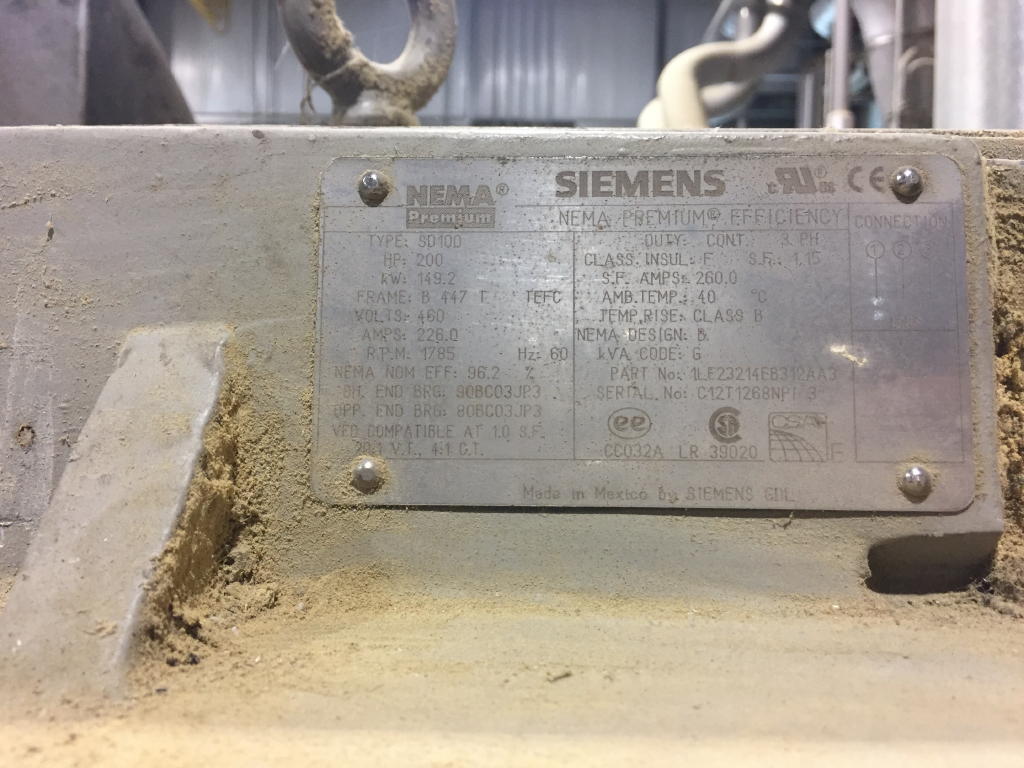

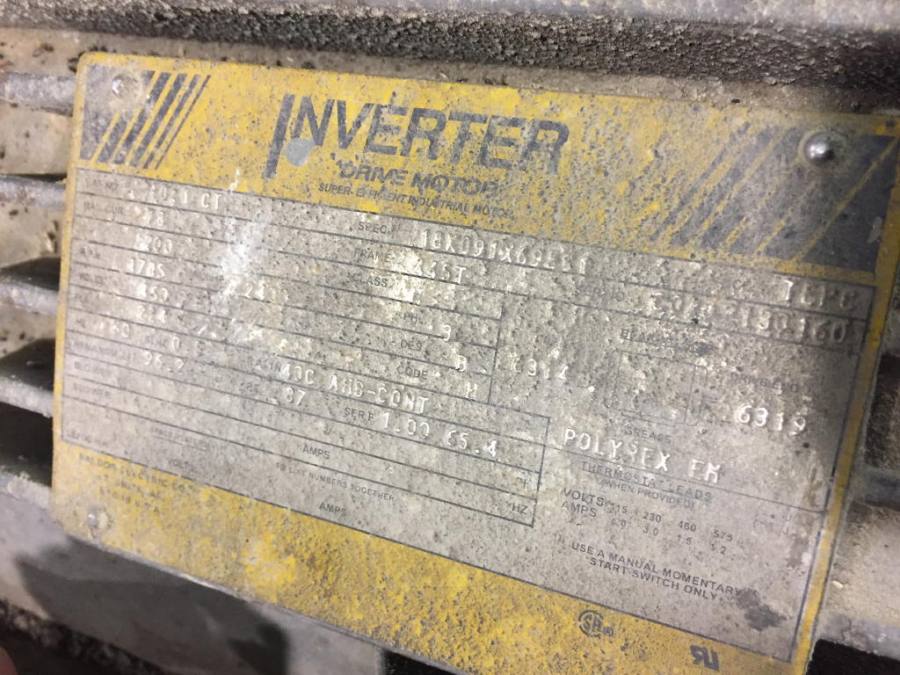

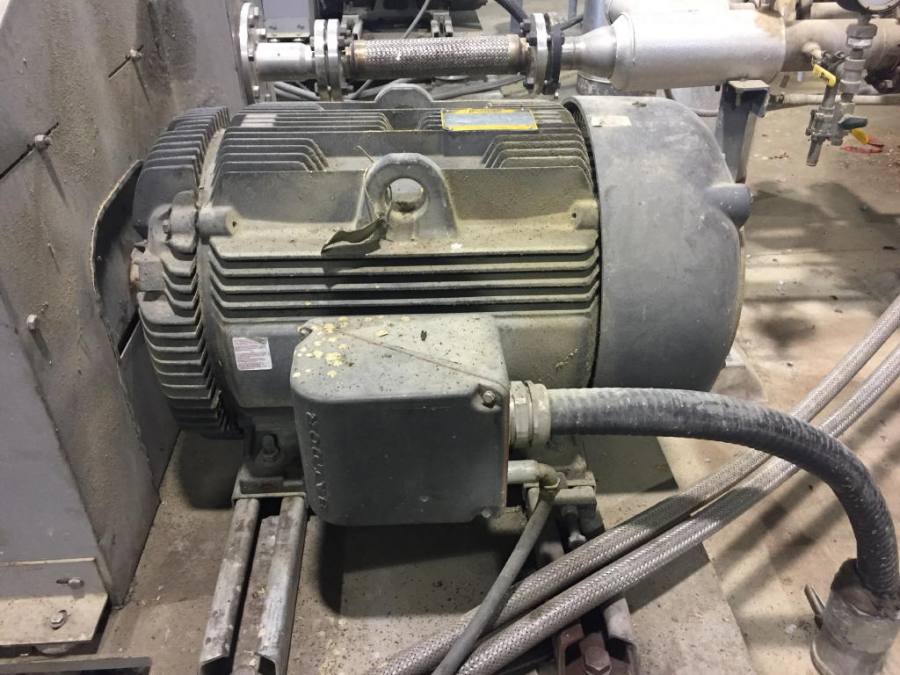

Main Motor: 200HP BALDOR 460VD Y/D-VFD (447T)

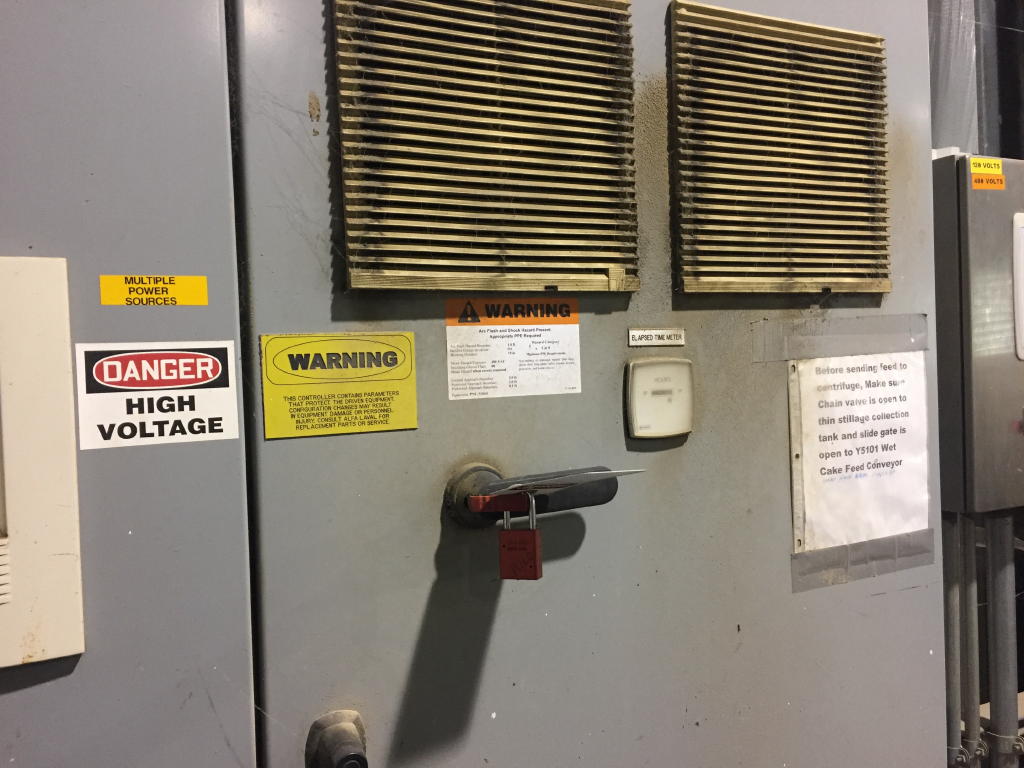

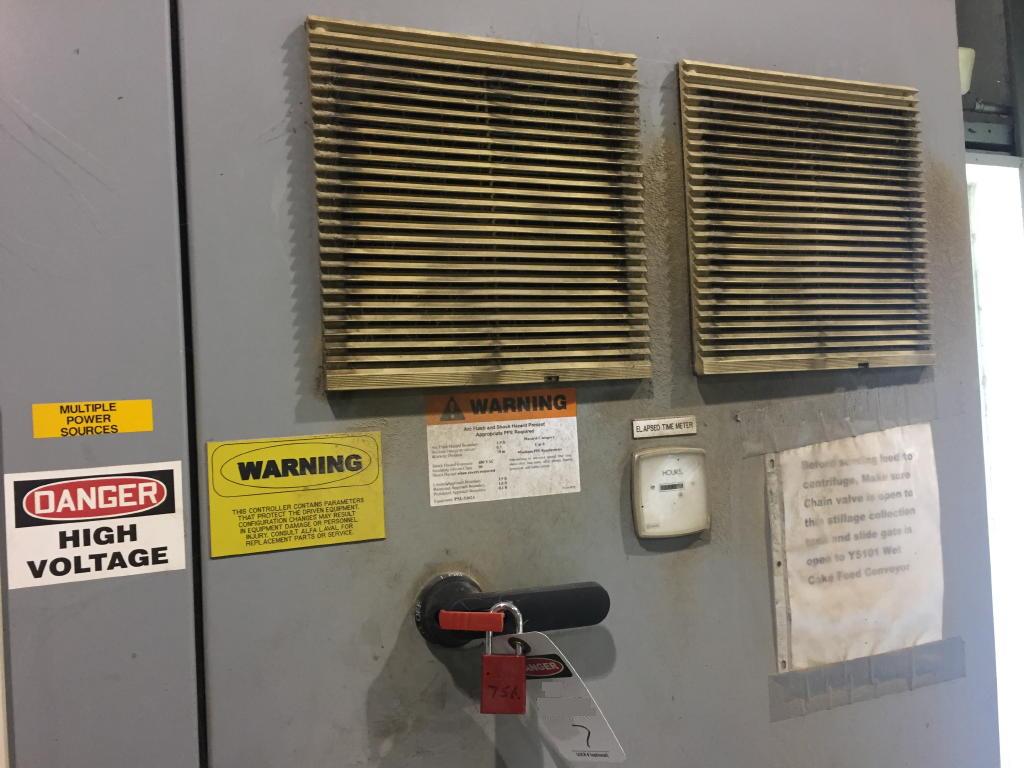

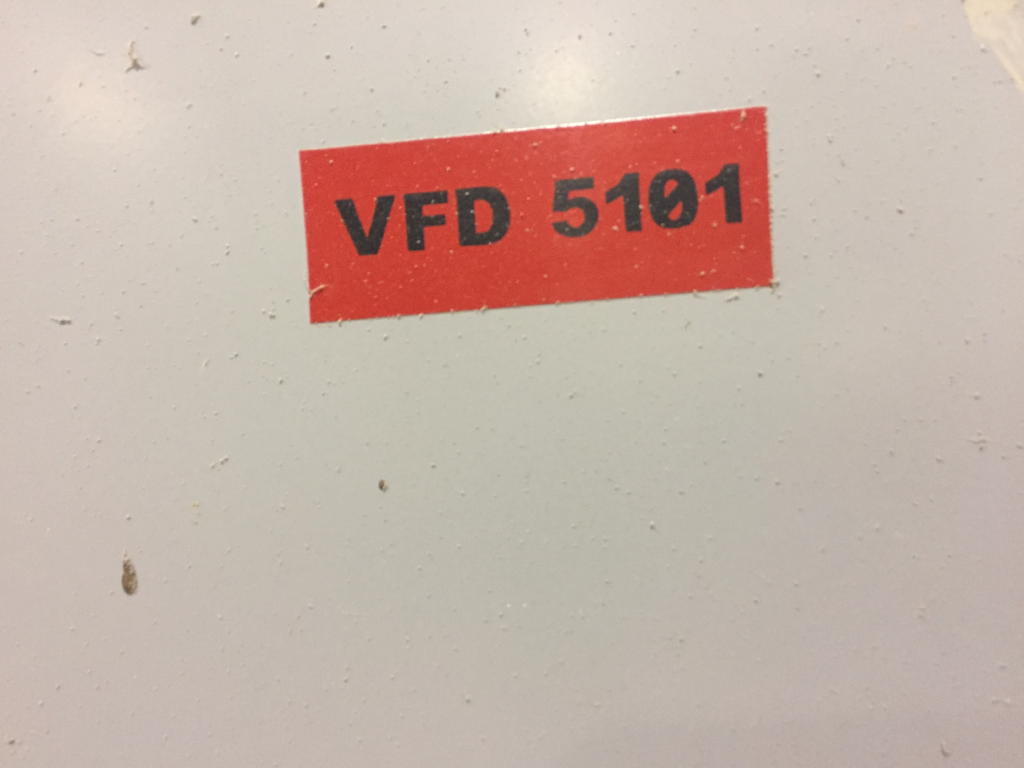

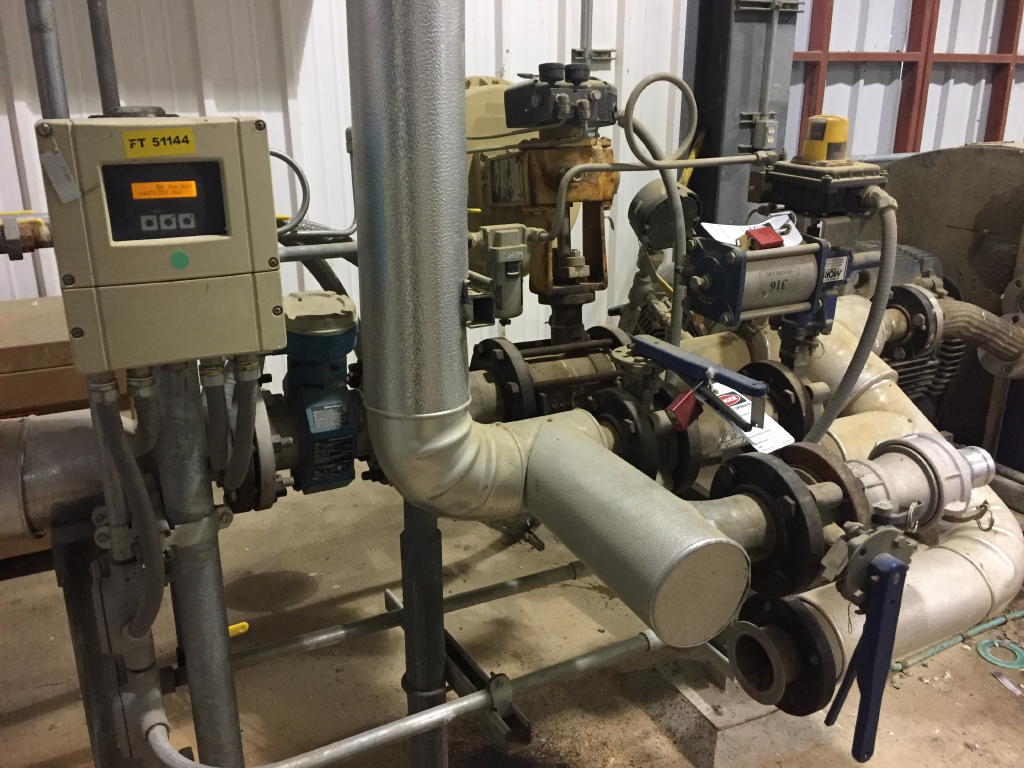

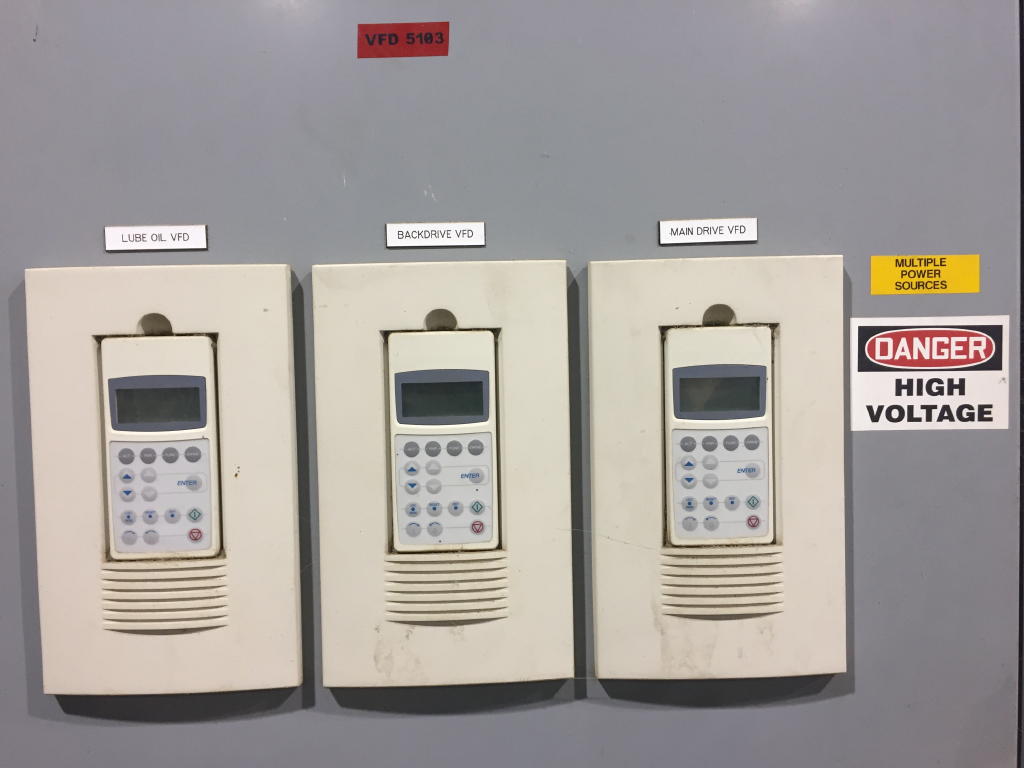

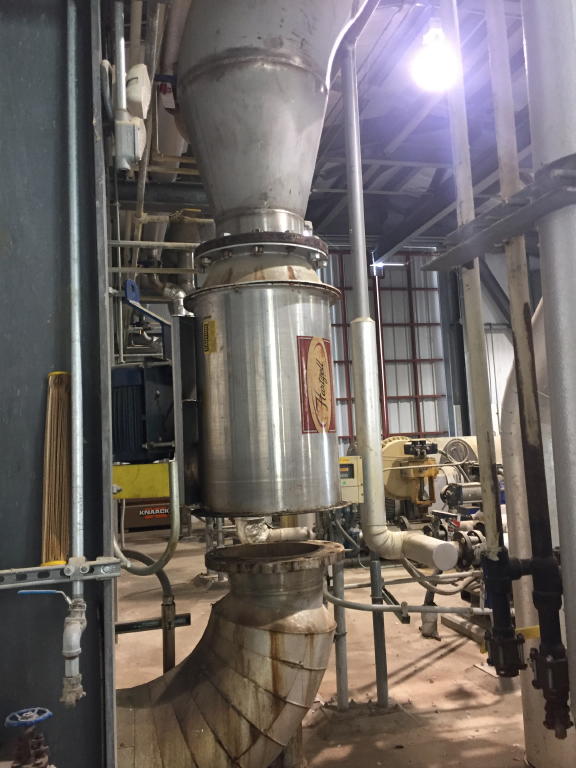

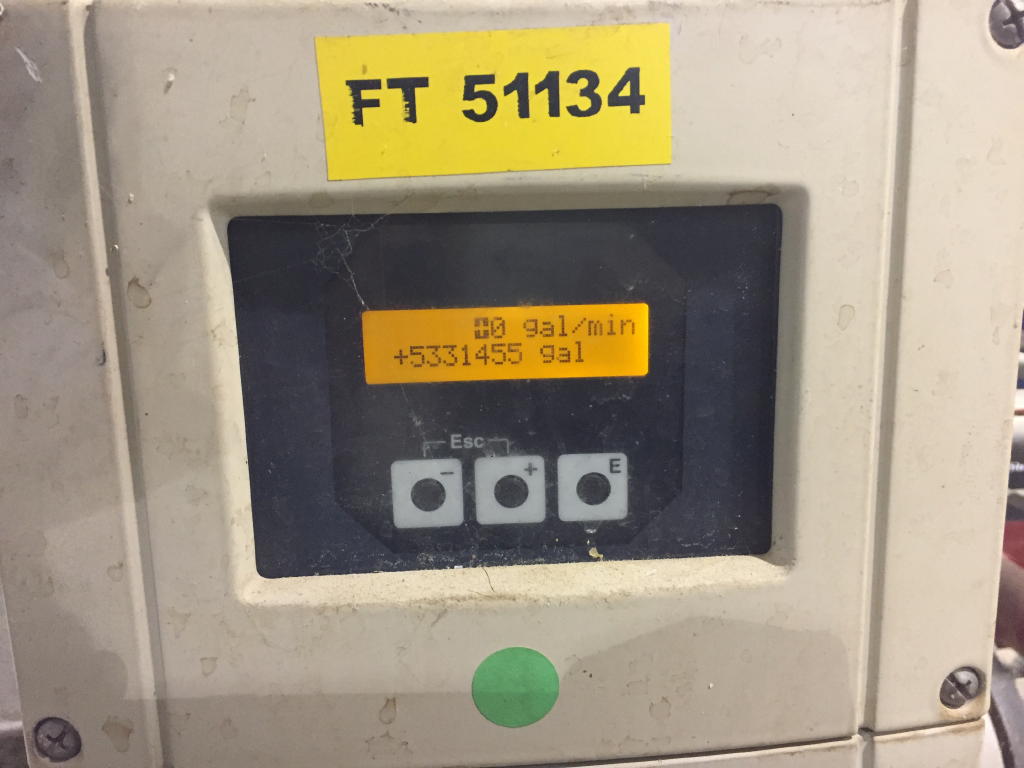

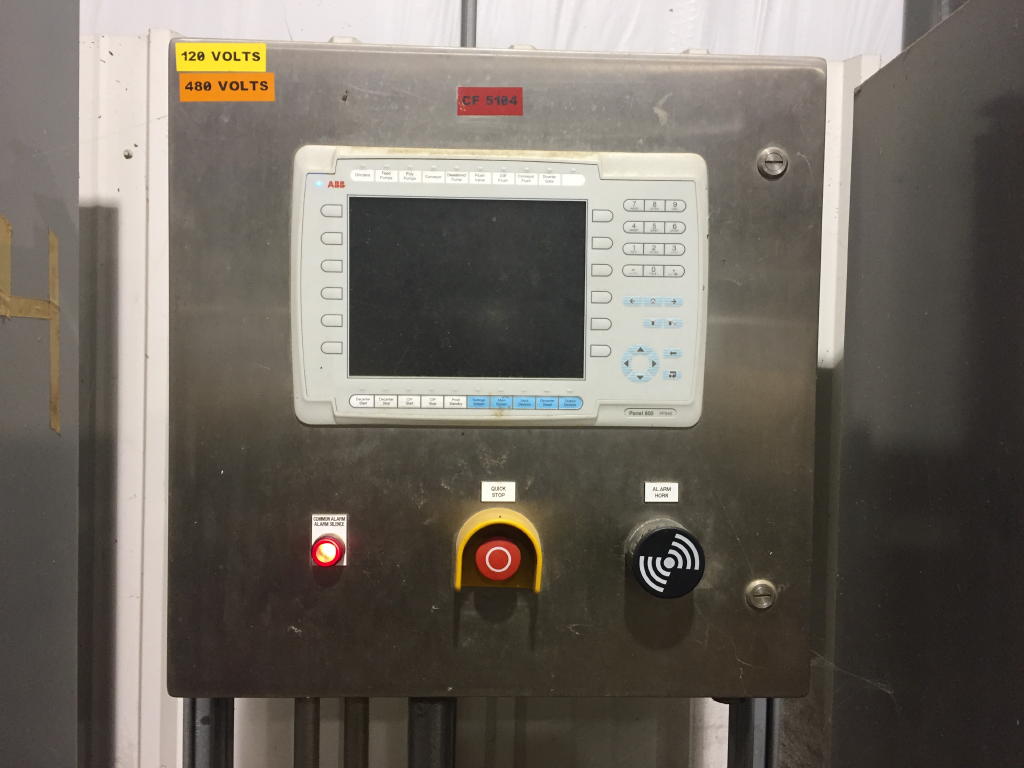

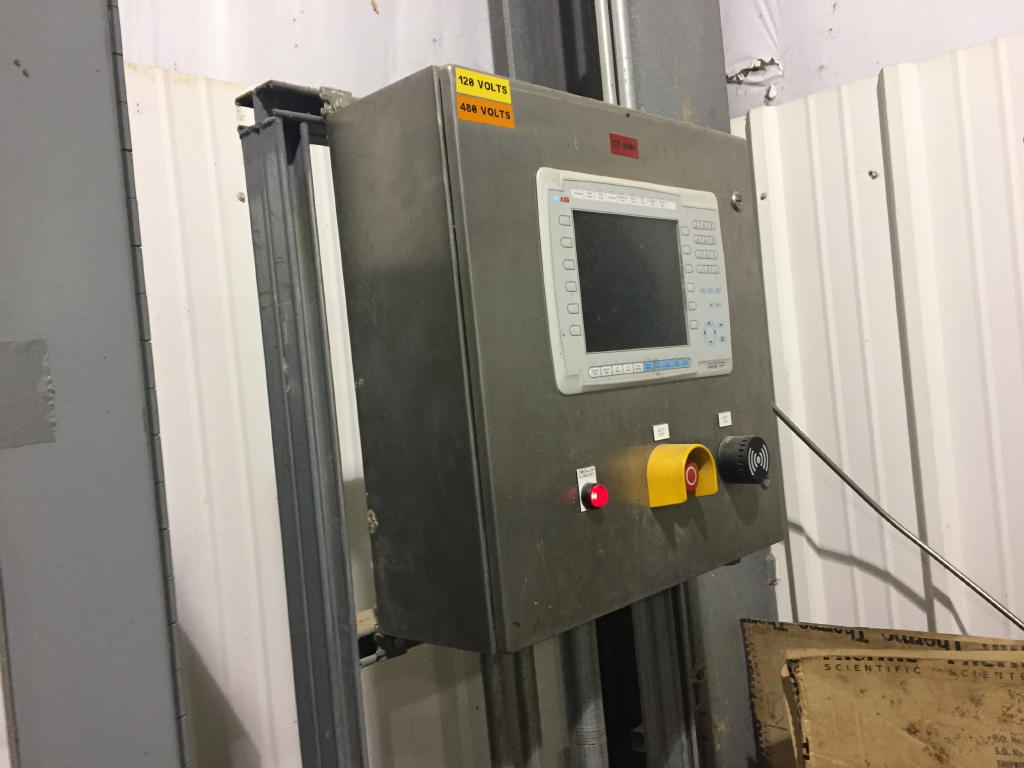

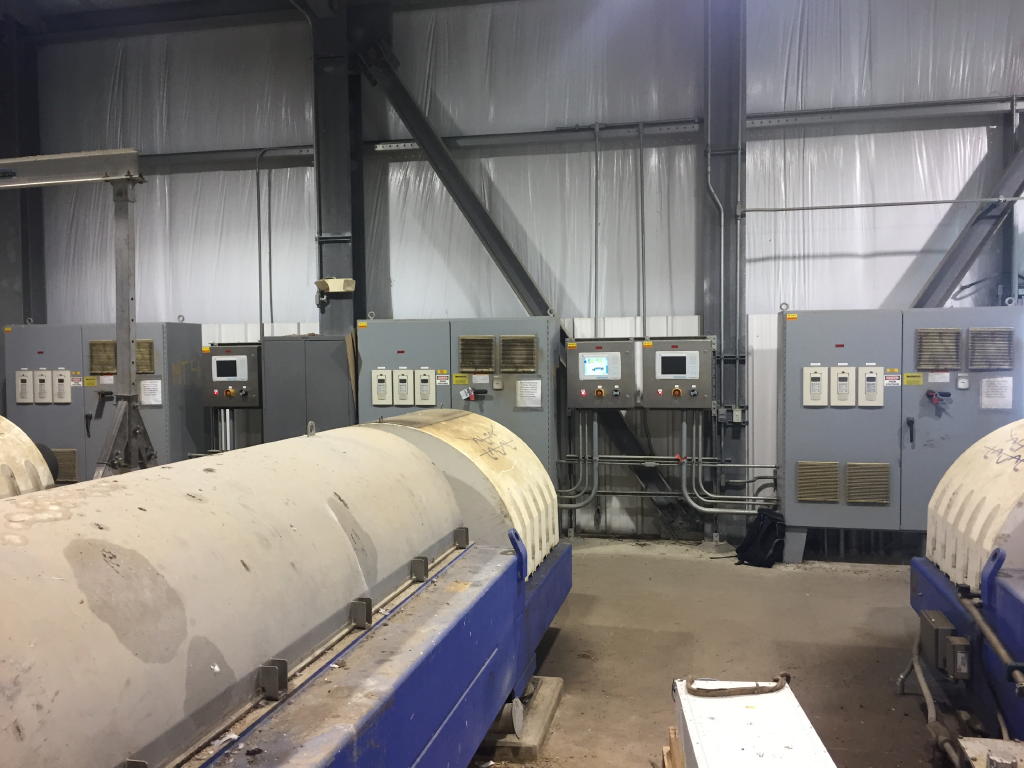

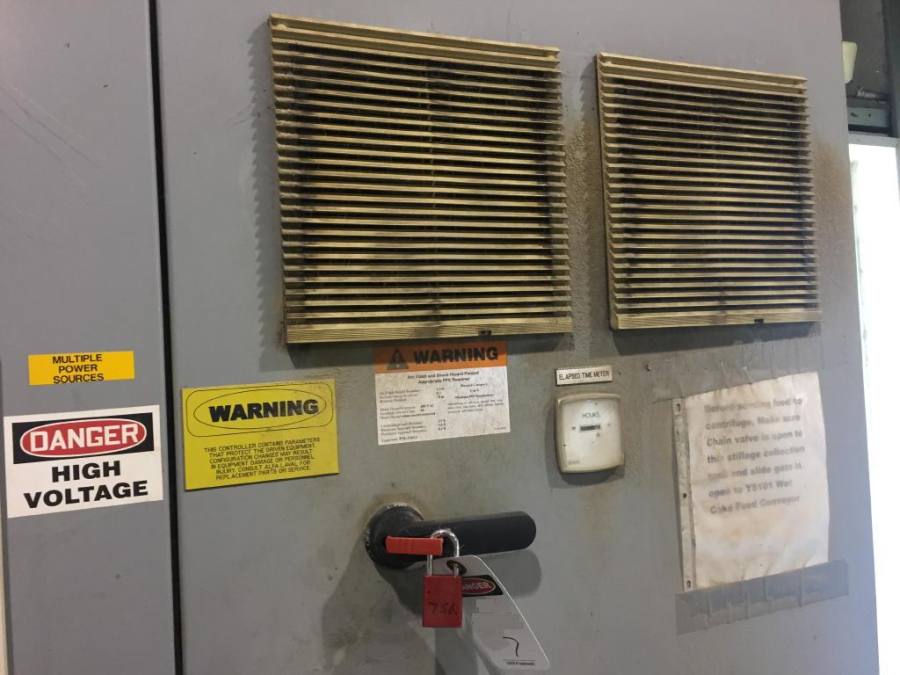

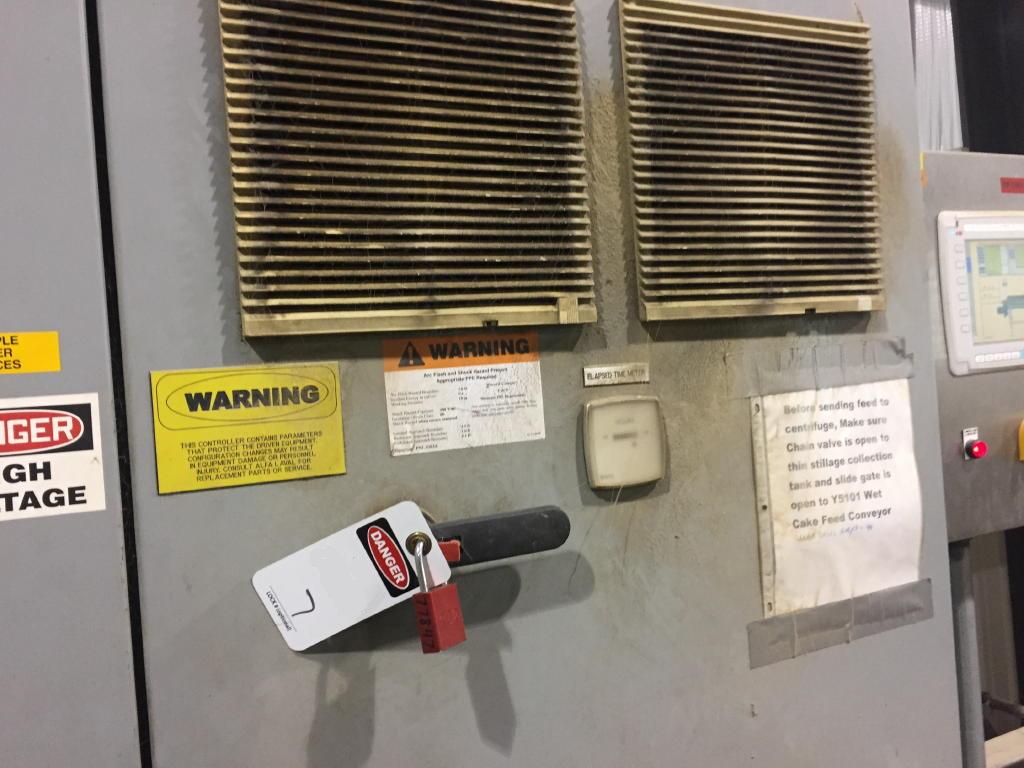

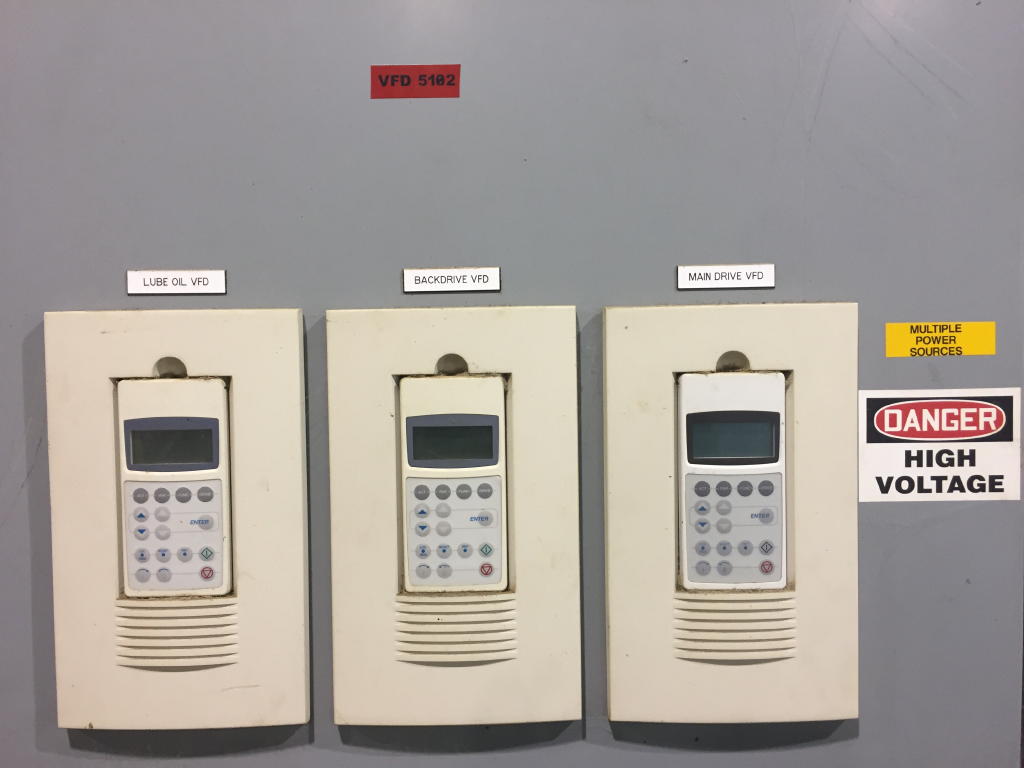

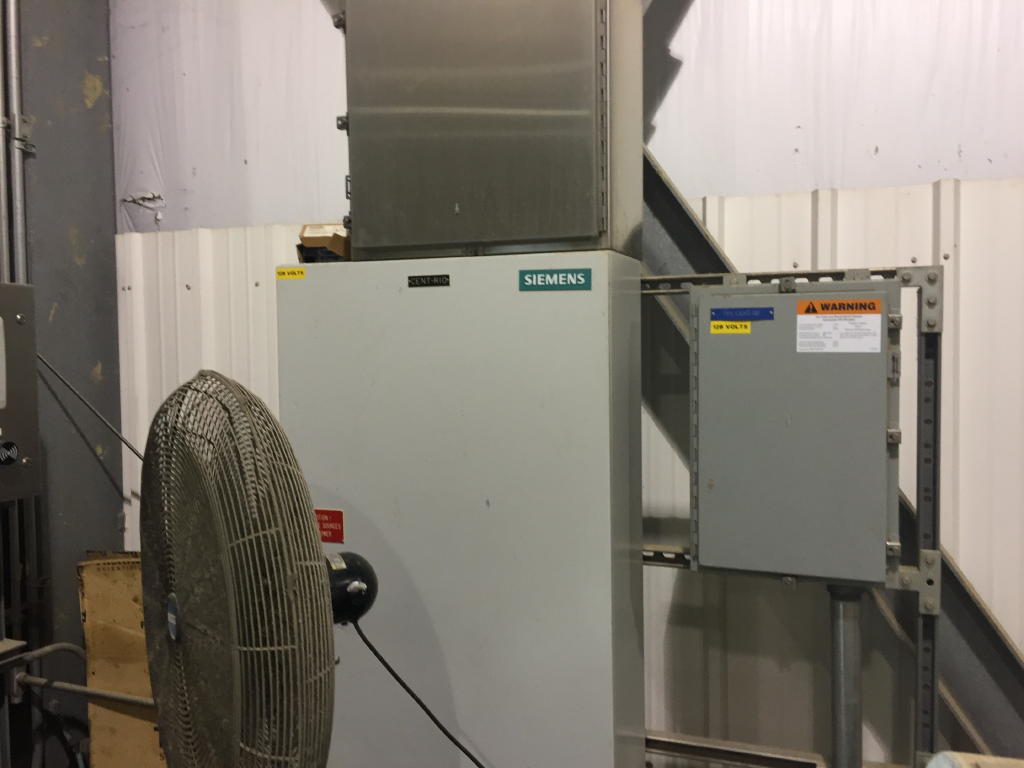

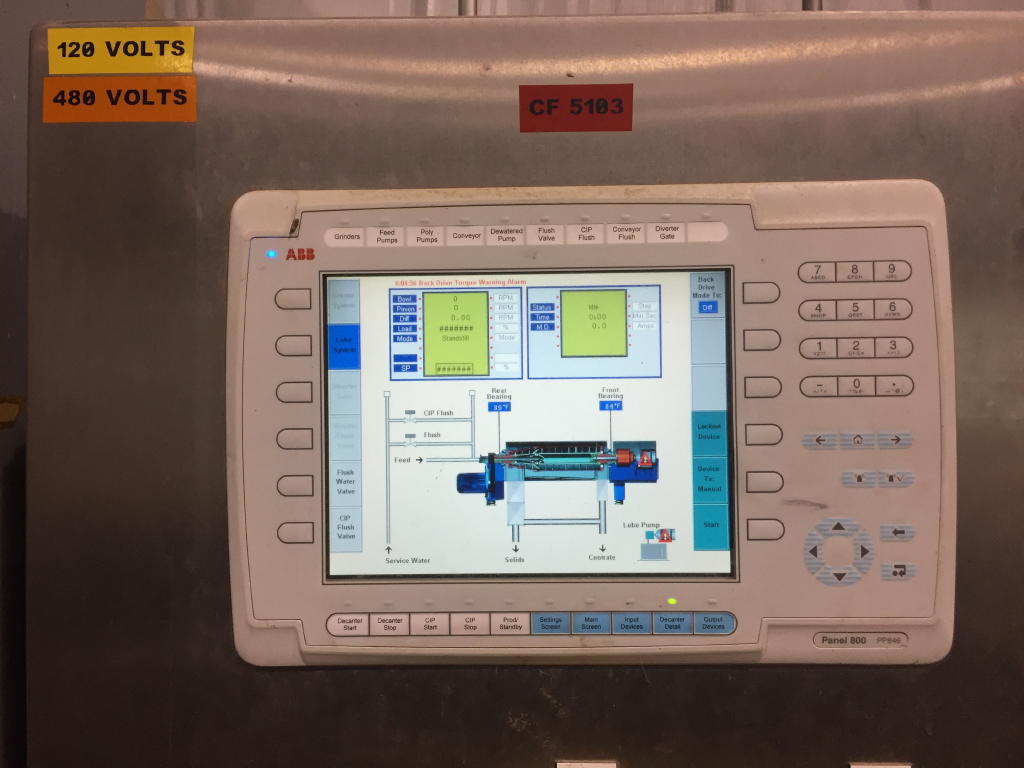

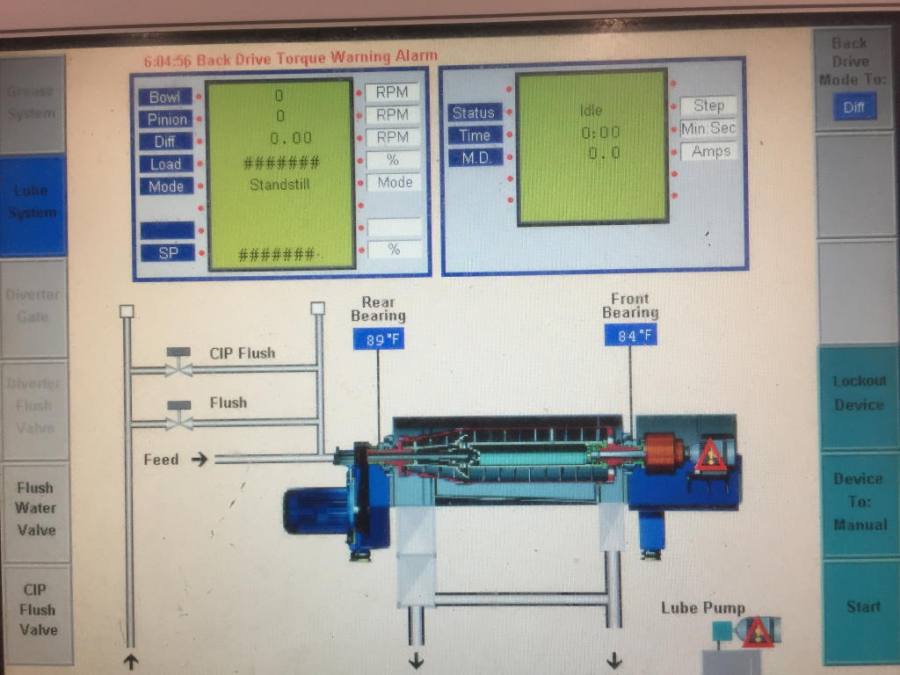

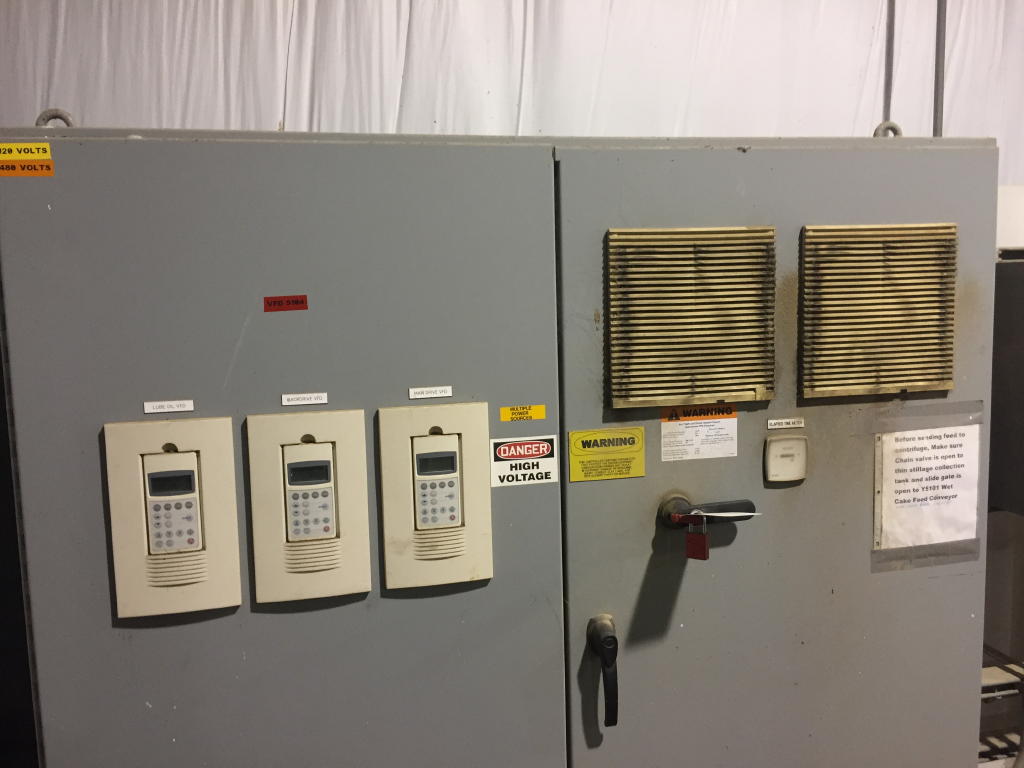

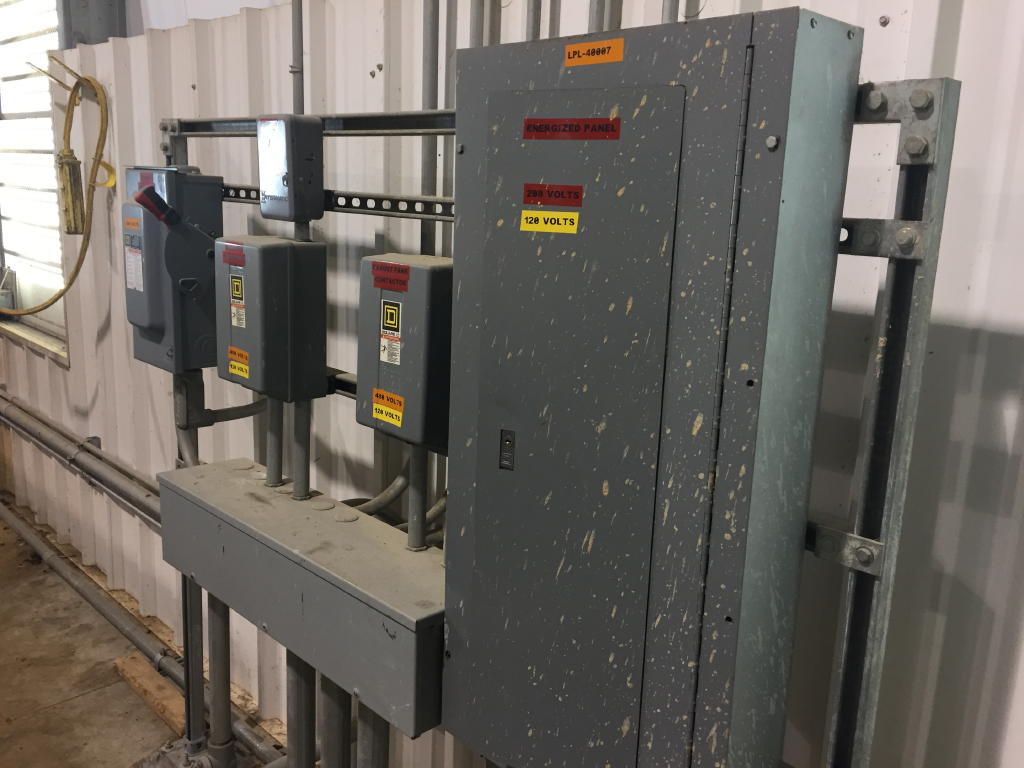

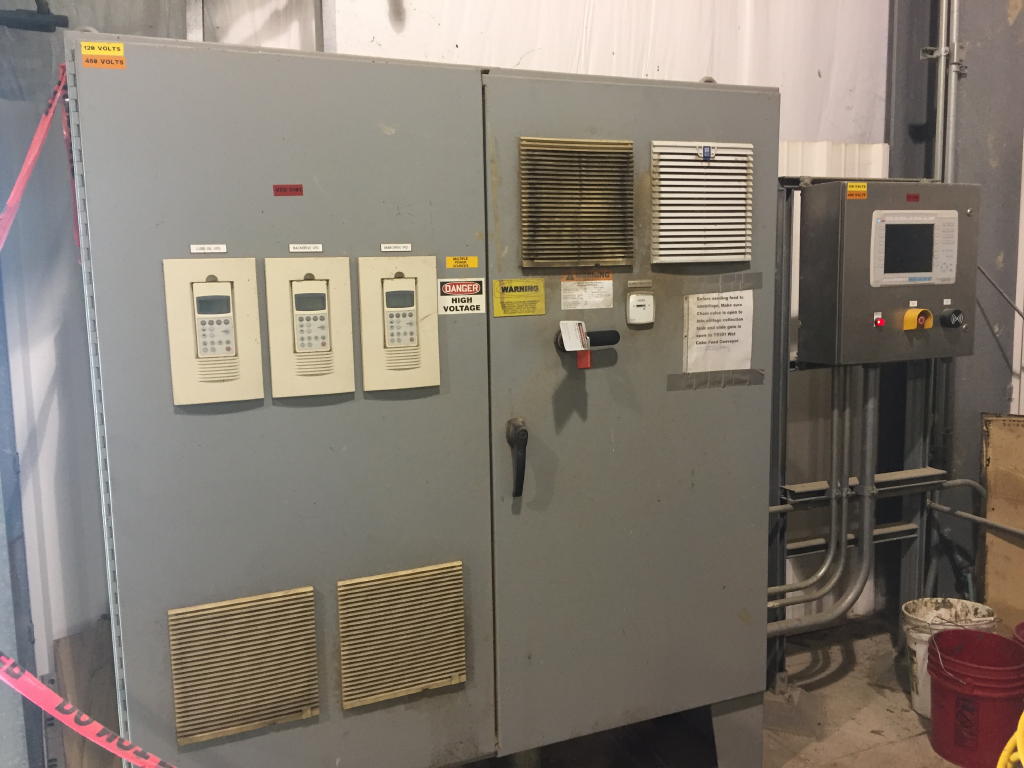

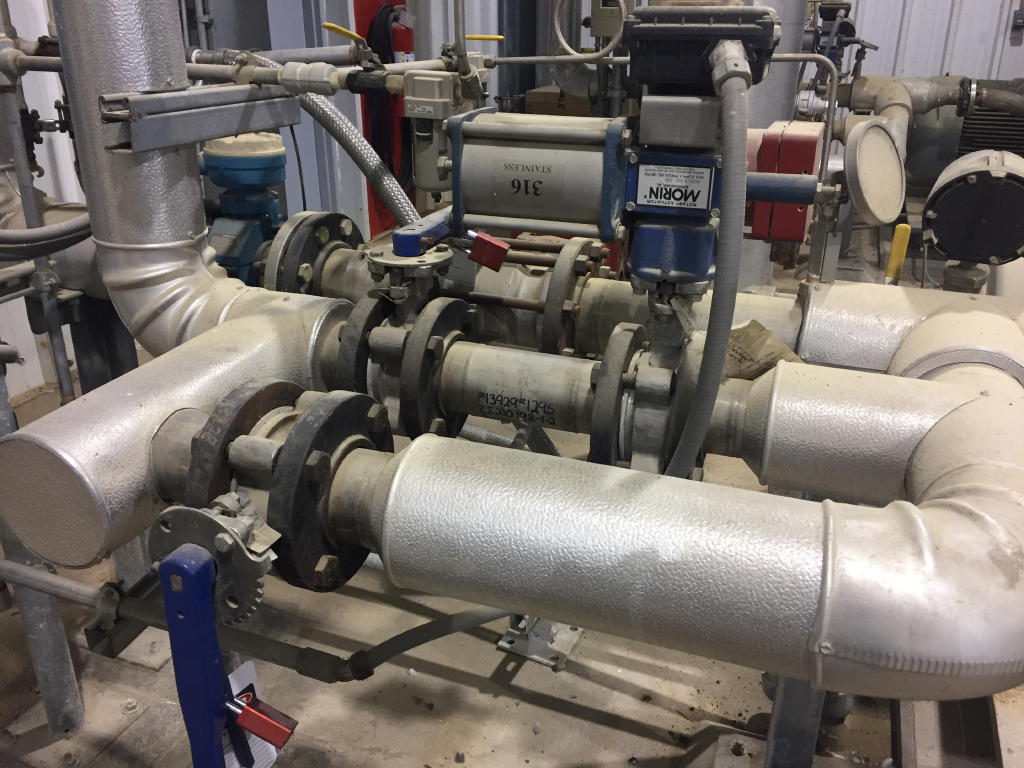

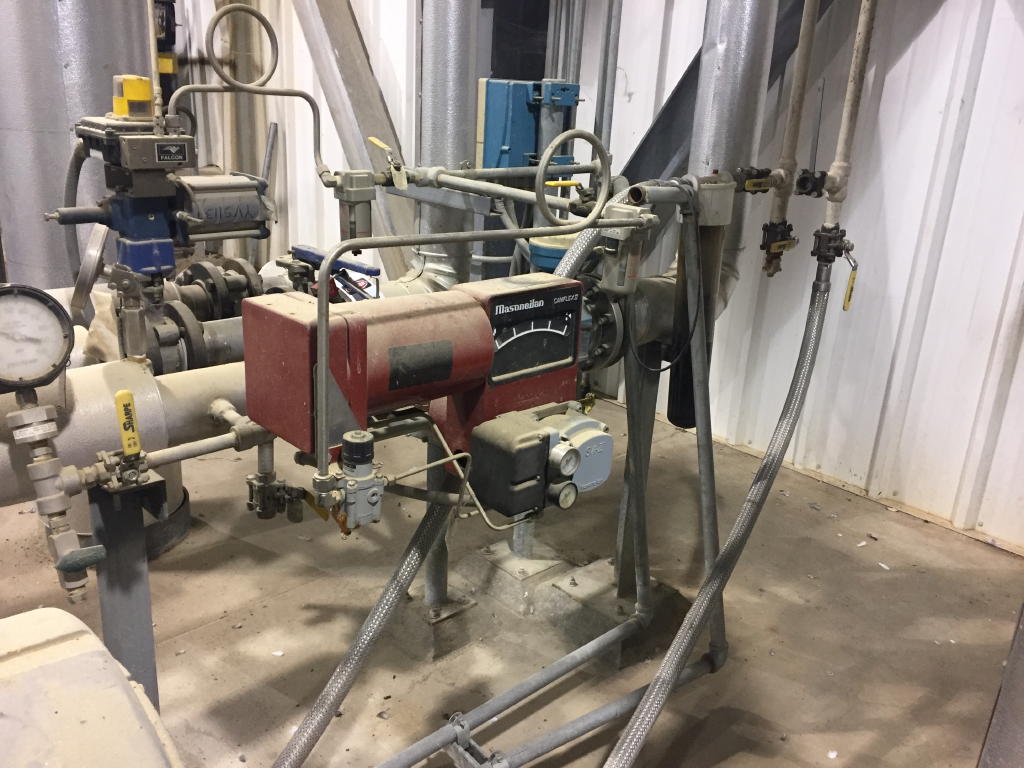

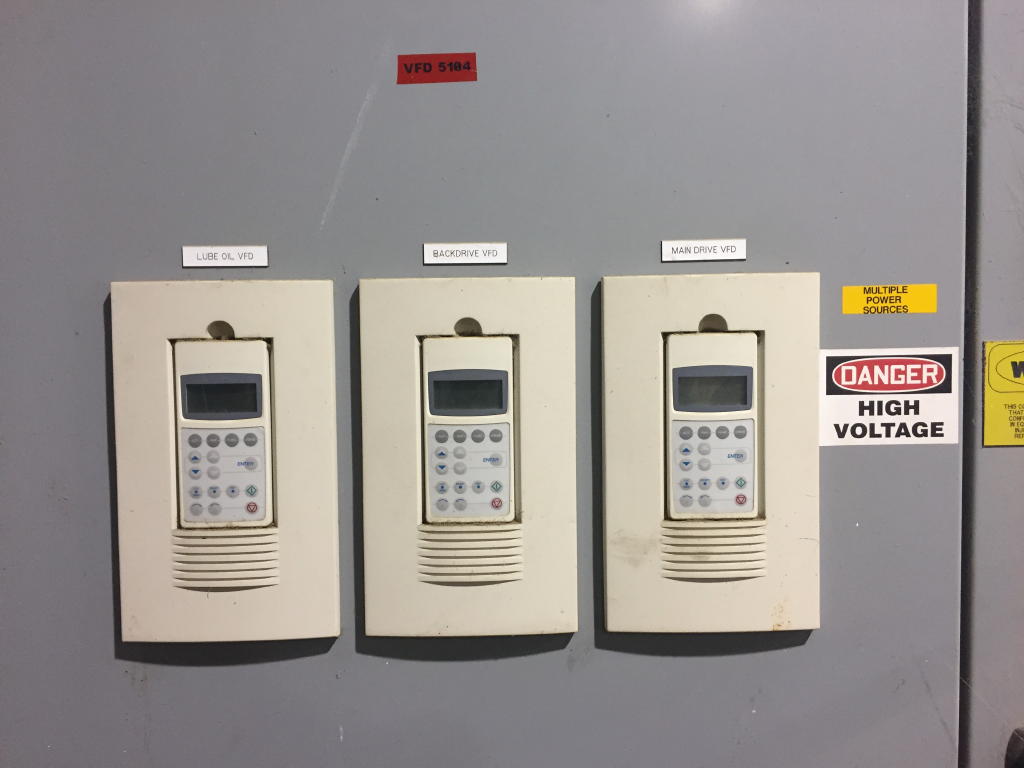

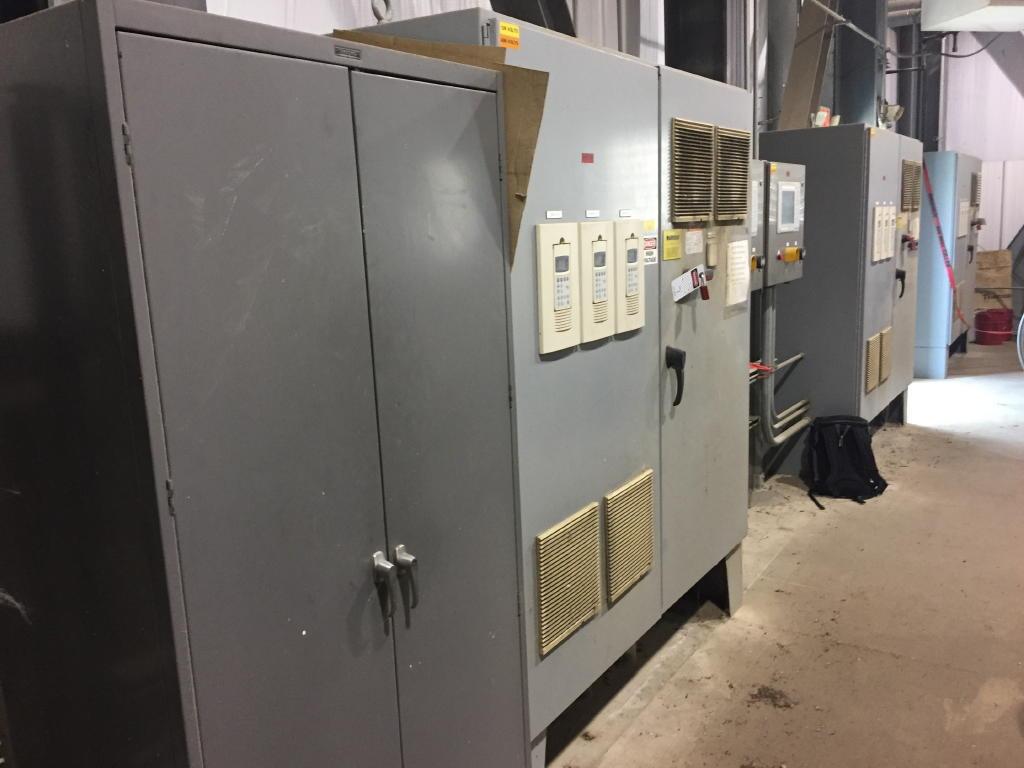

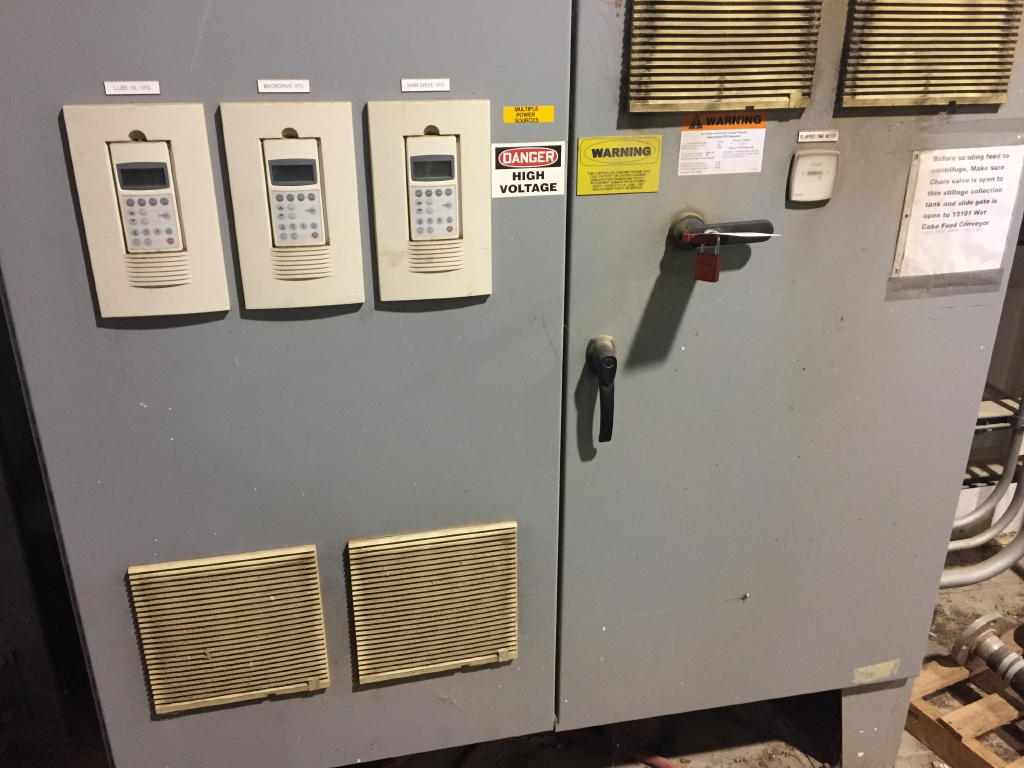

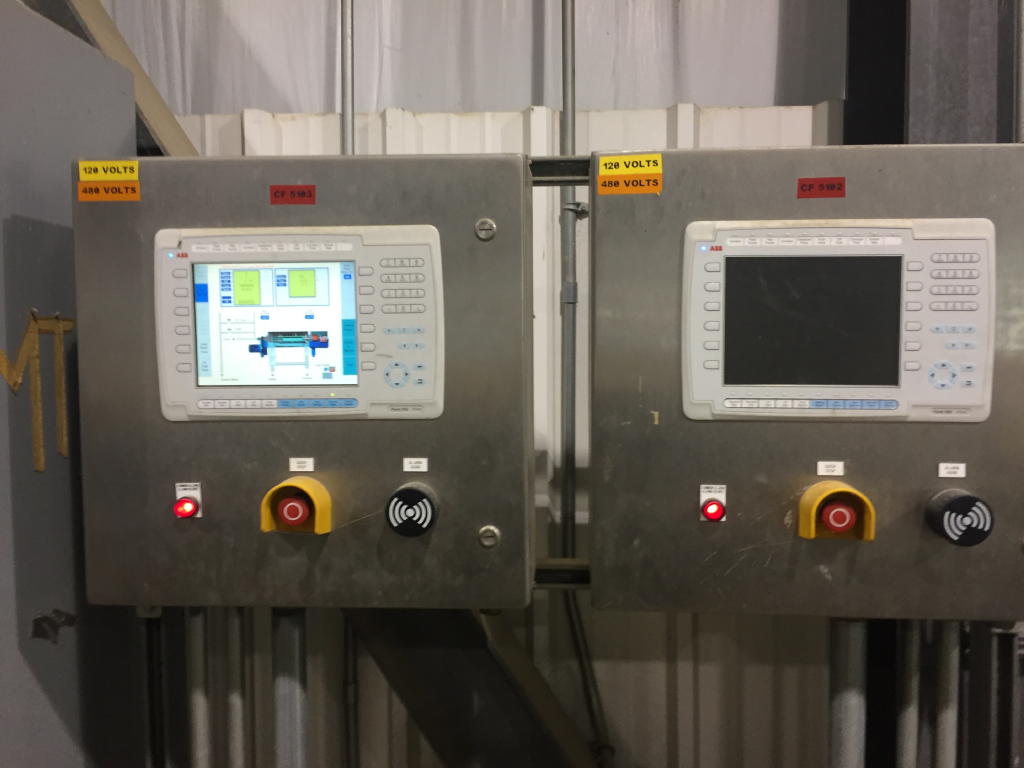

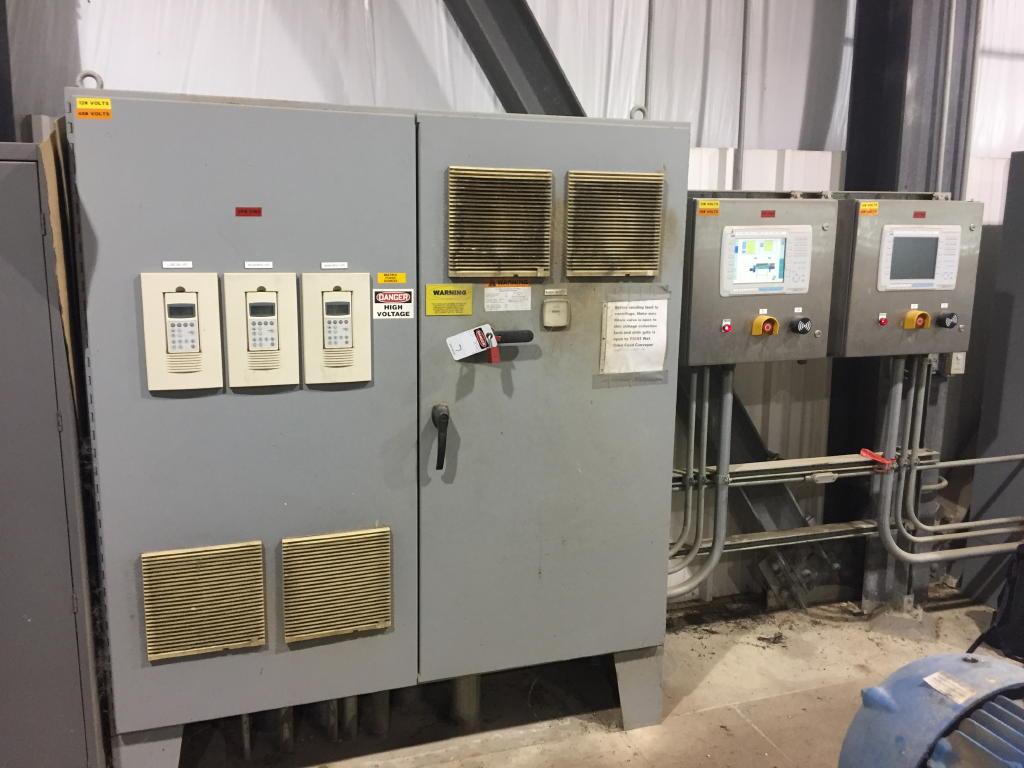

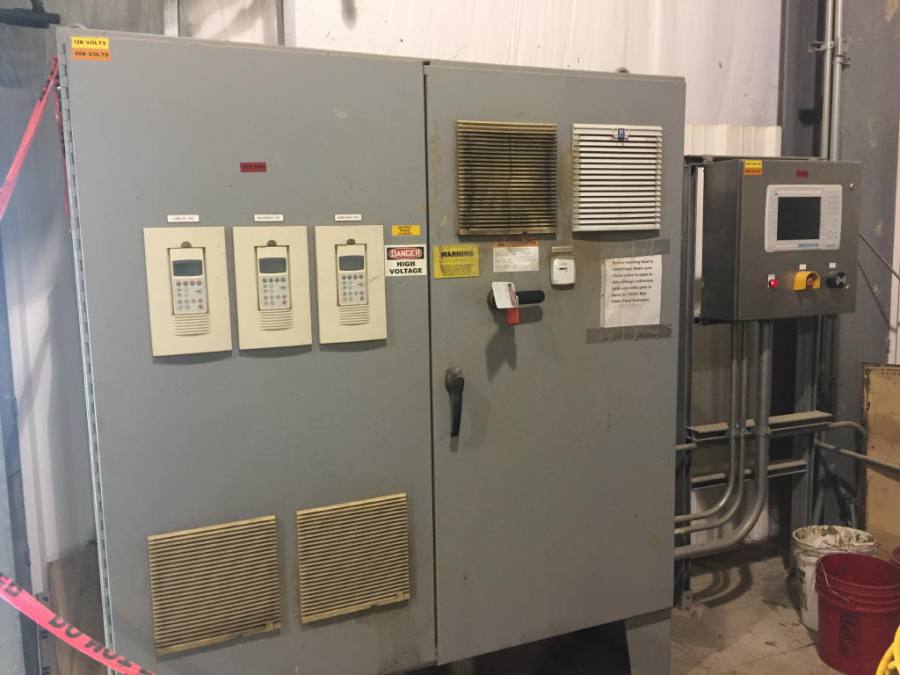

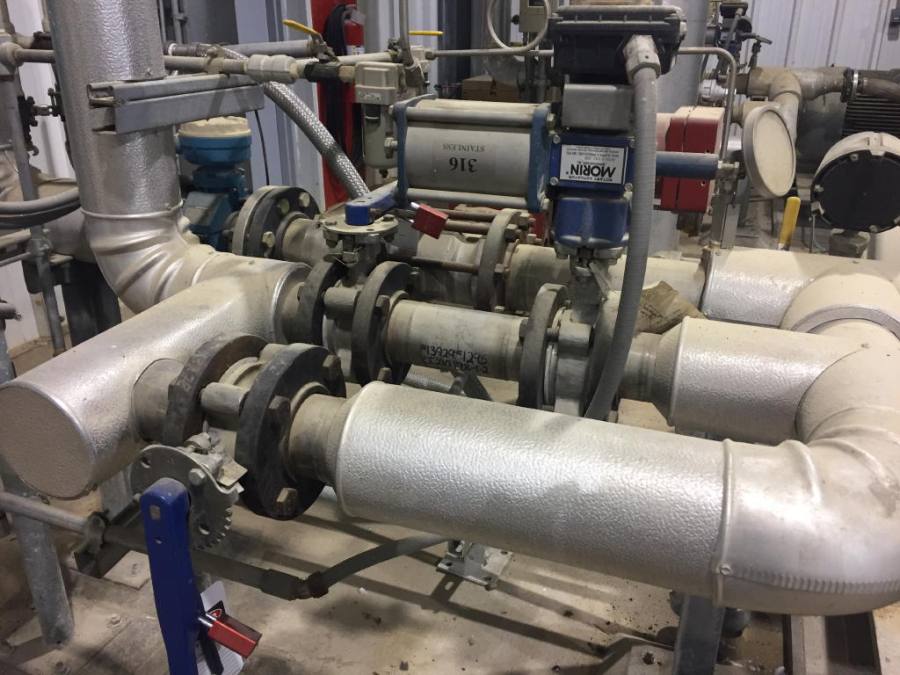

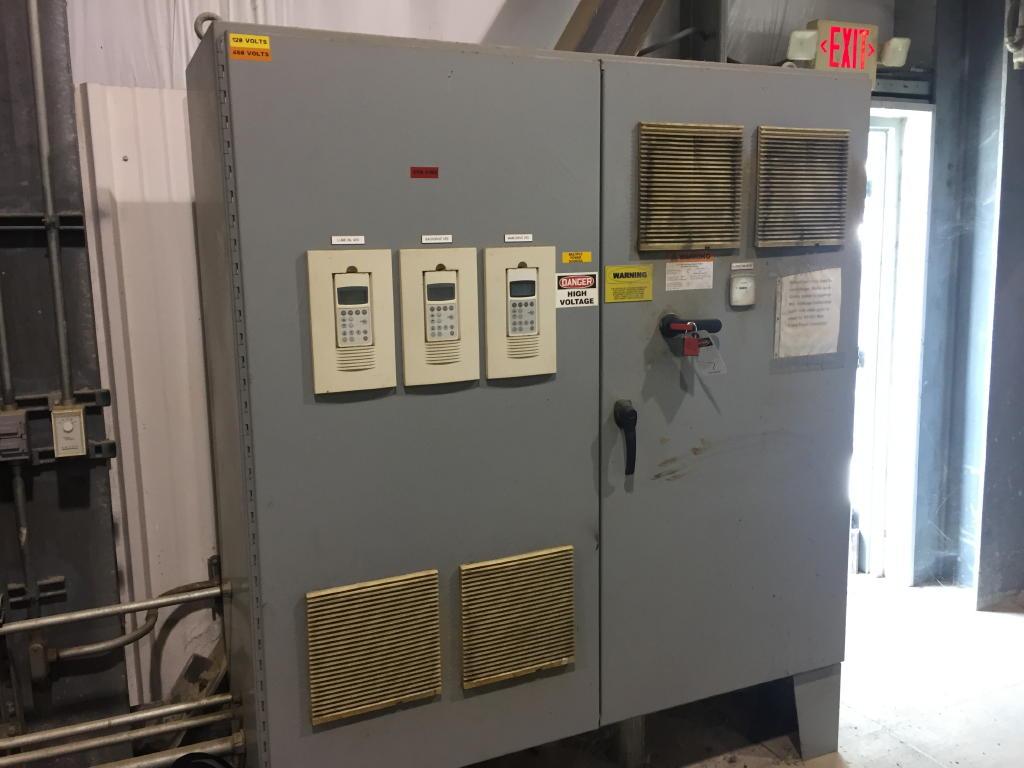

Includes VFD Controls and Associated Equipment
